Exploded View

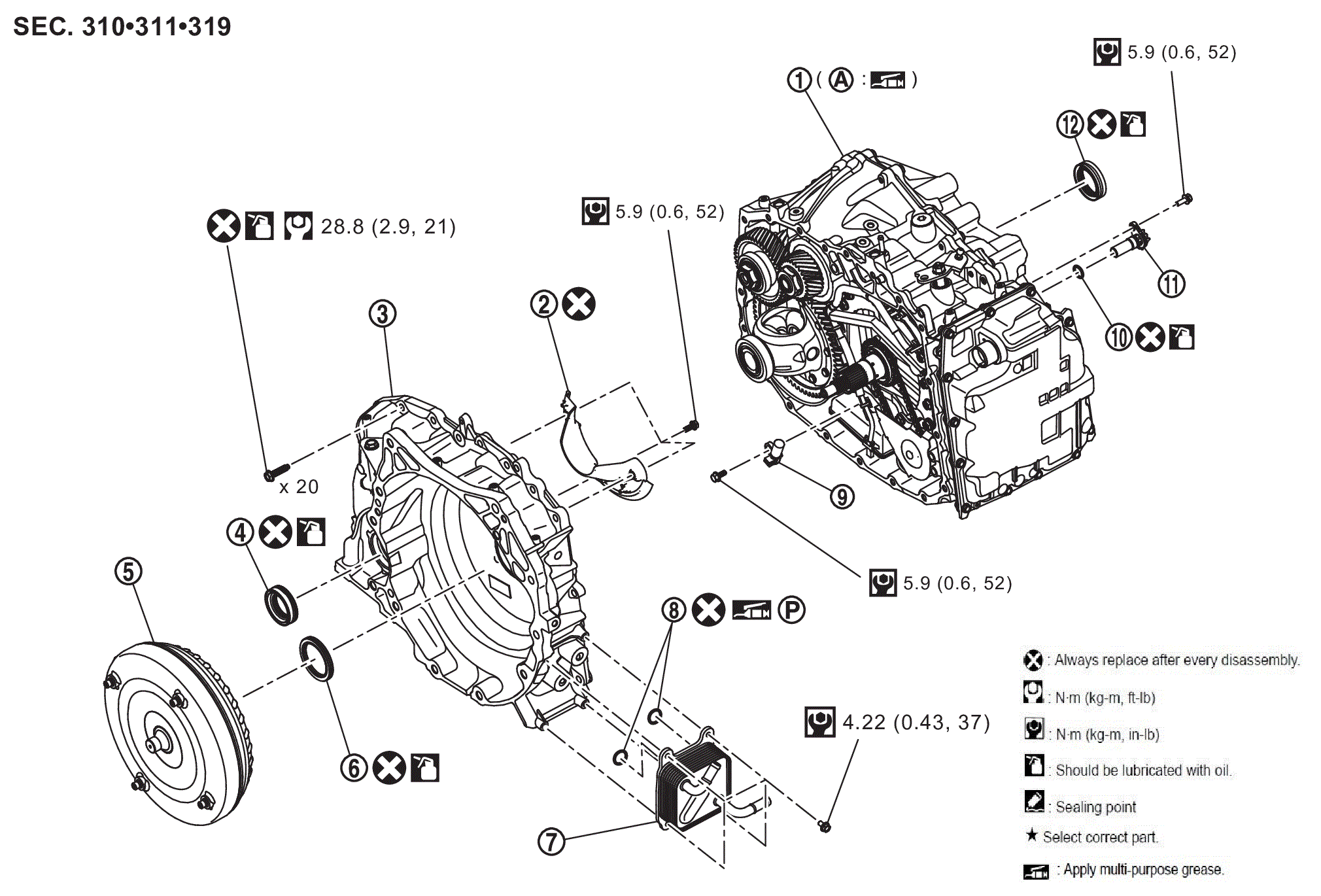

Fig 1: Input Speed Sensor With Torque Specifications
GNSDB133752Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Transaxle assembly SYMBOL Baffle plate C SYMBOL Converter housing
SYMBOL Differential side oil seal SYMBOL Torque converter SYMBOL Converter housing oil seal
SYMBOL CVT oil warmer SYMBOL O-ring SYMBOL Input speed sensor
SYMBOL O-ring SYMBOL Primary speed sensor SYMBOL Differential side oil seal
SYMBOL Converter housing installation surface of the transaxle case
SYMBOL : Always replace after every disassembly.
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : N.m (kg-m, in-lb)
SYMBOL : Apply CVT fluid
SYMBOL : Apply petroleum jelly
SYMBOL : Apply Loctite 5460 or equivalent
