System Description

• The steering operation condition by the driver and the information from multiple sensors are computed by the chassis control module (with built in steering angle sensor), and a command is transmitted to the TCM.
• Based on the command from the chassis control module (with built in steering angle sensor), TCM shifts the gear ratio of the transaxle to the low side and applies the engine brake.
• When the OFF the VDC function, the intelligent engine brake function is also completely turned OFF.
• When a malfunction occurs in intelligent engine brake function, the master warning lamp illuminates and the information display in the combination meter informs the driver.

NOTE:

• Intelligent engine brake function may not be effective in all driving environments (traction conditions, etc.).
• When intelligent engine brake function operates, the needle of the tachometer will rise up, you may hear an engine noise and sense slight deceleration. These are not symptoms of malfunctions and indicate normal operating conditions.

CORNERING CONTROL

• For the purpose of reducing the operation of switching to depress the brake pedal during cornering, the operation information of the driver is computed by the chassis control module (with built in steering angle sensor) and a command is transmitted to TCM.
• Based on the command from the chassis control module (with built in steering angle sensor), TCM shifts the gear ratio of the transaxle to the low side and applies the engine brake.

  Courtesy of NISSAN NORTH AMERICA, INC.

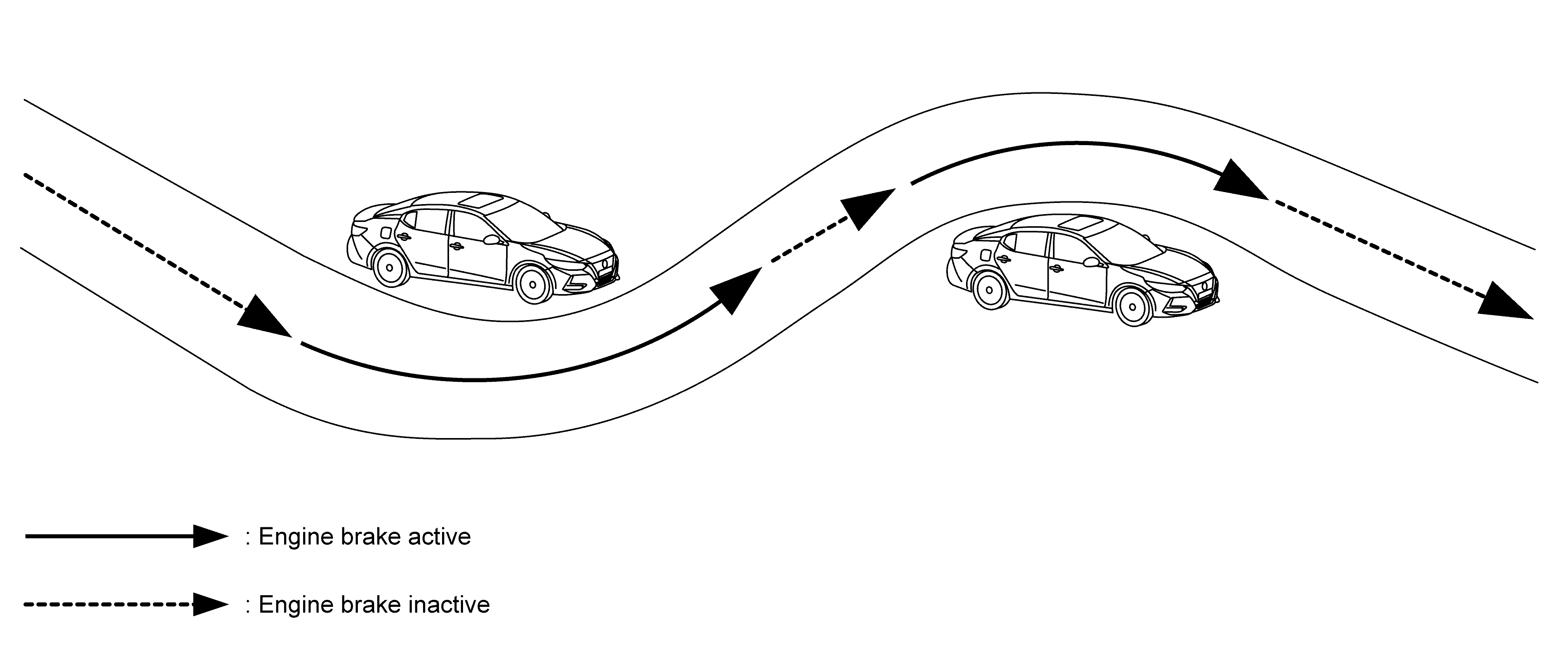

  • The transaxle is controlled according to the steering operation of the driver, as well as the accelerator pedal condition and cornering condition of the vehicle.

    Courtesy of NISSAN NORTH AMERICA, INC.

BRAKING CONTROL

• For the purpose of improving the feeling of effectiveness of the brake when decelerating, the brake operation amount of the driver is computed by the chassis control module (with built in steering angle sensor) and a command is transmitted to TCM.
• Based on the command from the chassis control module (with built in steering angle sensor), TCM shifts the gear ratio of the transaxle to the low side and applies the engine brake.

  Courtesy of NISSAN NORTH AMERICA, INC.

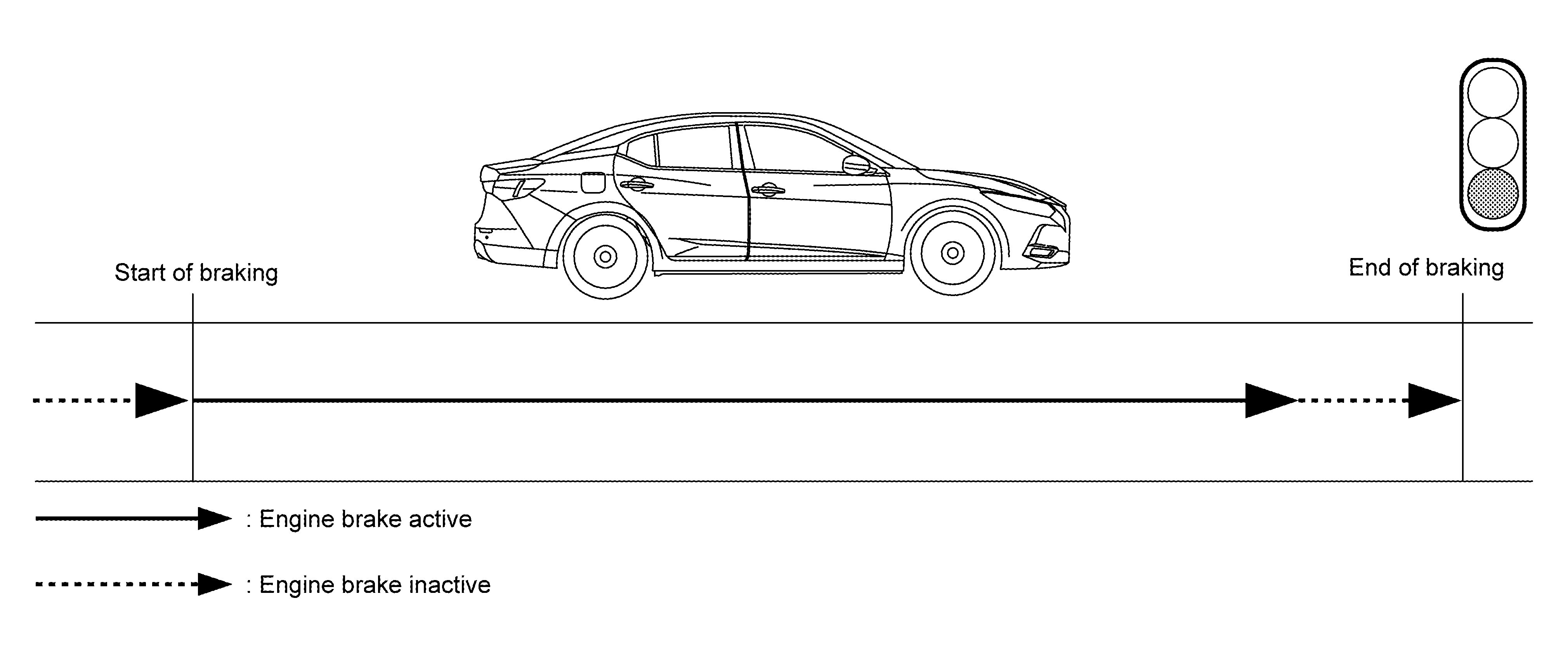

  • The transaxle is controlled according to the brake condition.

    Courtesy of NISSAN NORTH AMERICA, INC.

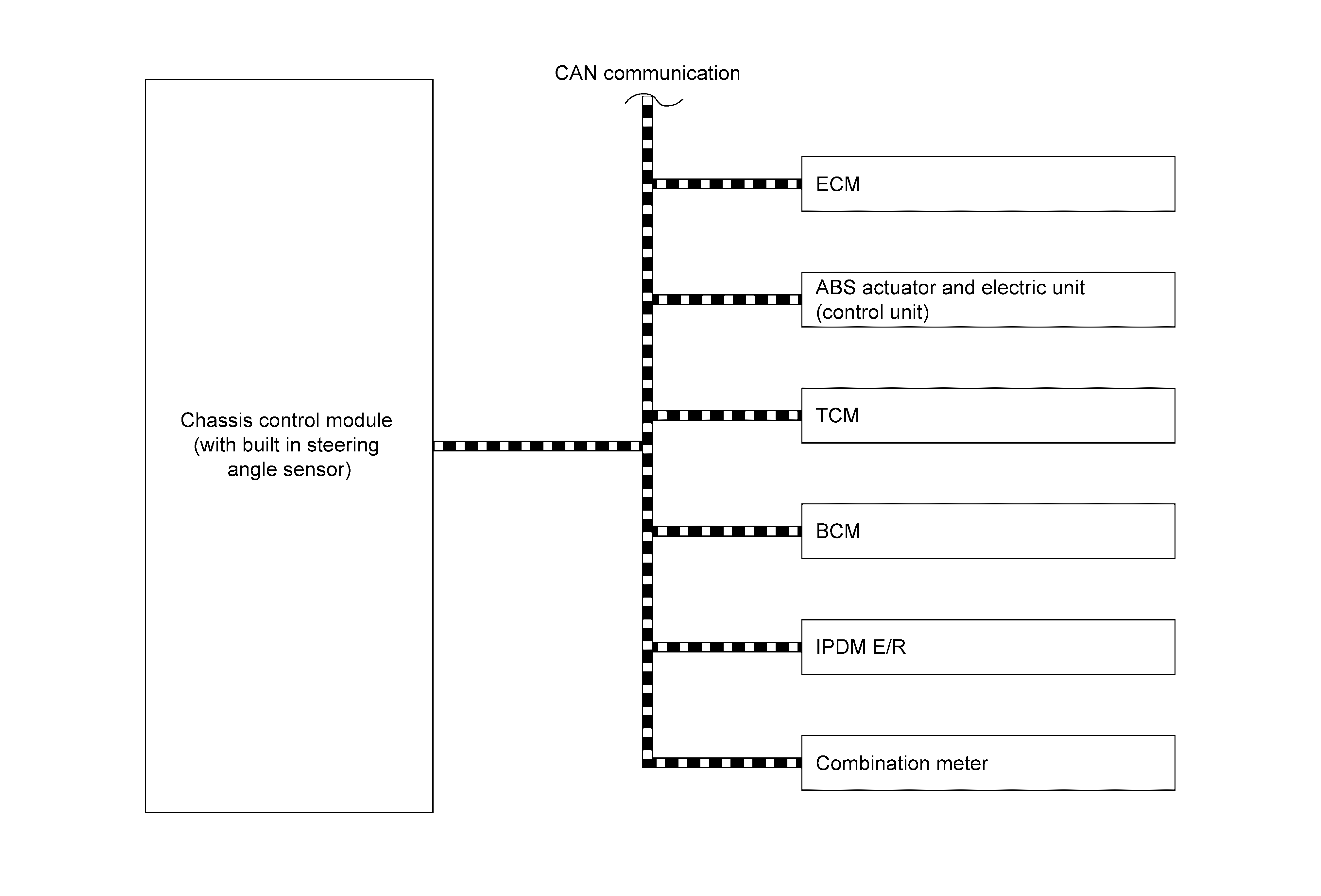

SYSTEM DIAGRAM

Courtesy of NISSAN NORTH AMERICA, INC.

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.
