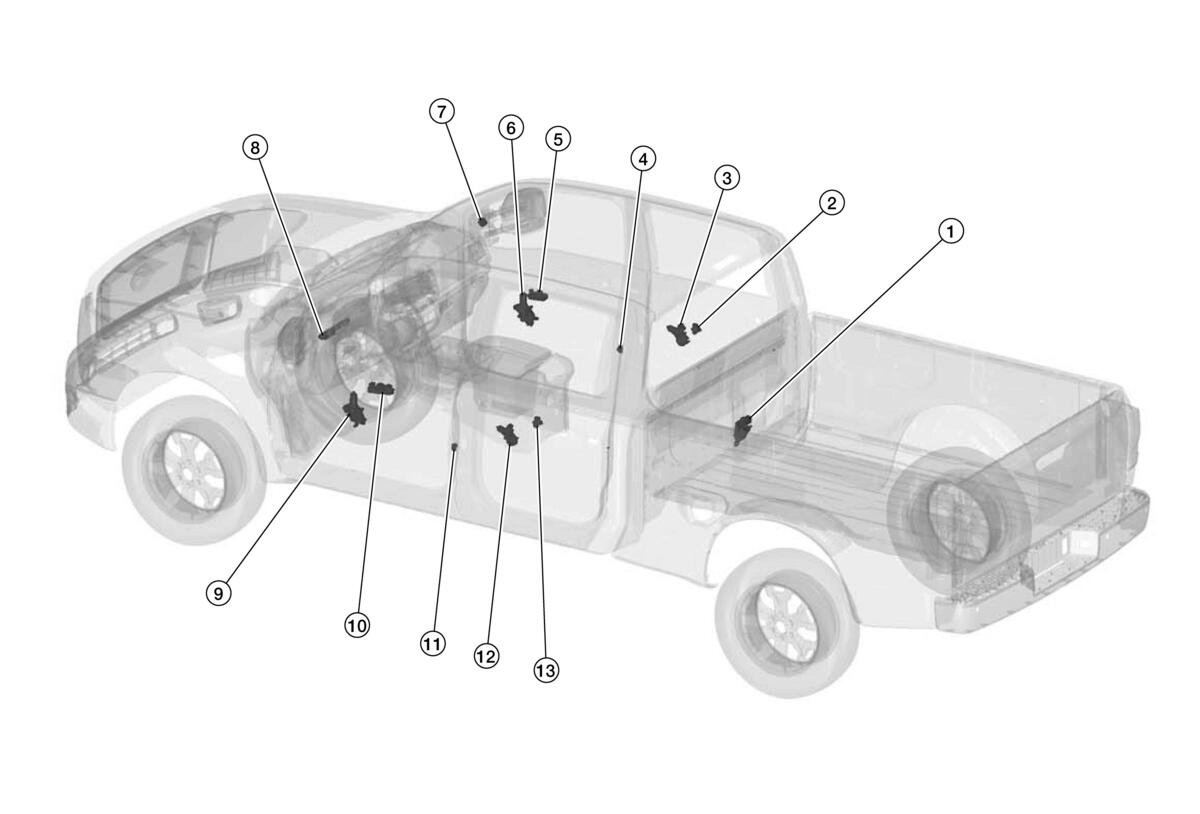

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
1.	Rear power slide glass motor (if equipped)	Refer to Rear Power Slide Glass Motor .
2.	Rear power window switch RH (if equipped)	Refer to Rear Power Window Switch .
3.	Rear power window motor RH (if equipped)	Refer to Power Window Motor .
4.	Front door switch RH	Detects door open/close condition and transmits to BCM. Refer to Front Door Switch .
5.	Power window and door lock/unlock switch RH	Refer to Power Window and Door Lock/Unlock Switch RH .
6.	Front power window motor RH	Refer to Power Window Motor .
7.	Rear power slide glass switch (if equipped)	Refer to Rear Power Slide Glass Switch .
8.	BCM (Body Control Module)	Supplies power to the window switches. Controls retained power. Refer to Component Location for detailed component location.
9.	Front power window motor LH	Refer to Power Window Motor .
10.	Main power window and door lock/unlock switch	Refer to Main Power Window and Door Lock/Unlock Switch- With Crew Cab or Main Power Window and Door Lock/Unlock Switch- Except Crew Cab .
11.	Front door switch LH	Detects door open/close condition and transmits to BCM. Refer to Front Door Switch .
12.	Rear power window motor LH (if equipped)	Refer to Power Window Motor .
13.	Rear power window switch LH (if equipped)	Refer to Rear Power Window Switch .
