System Description

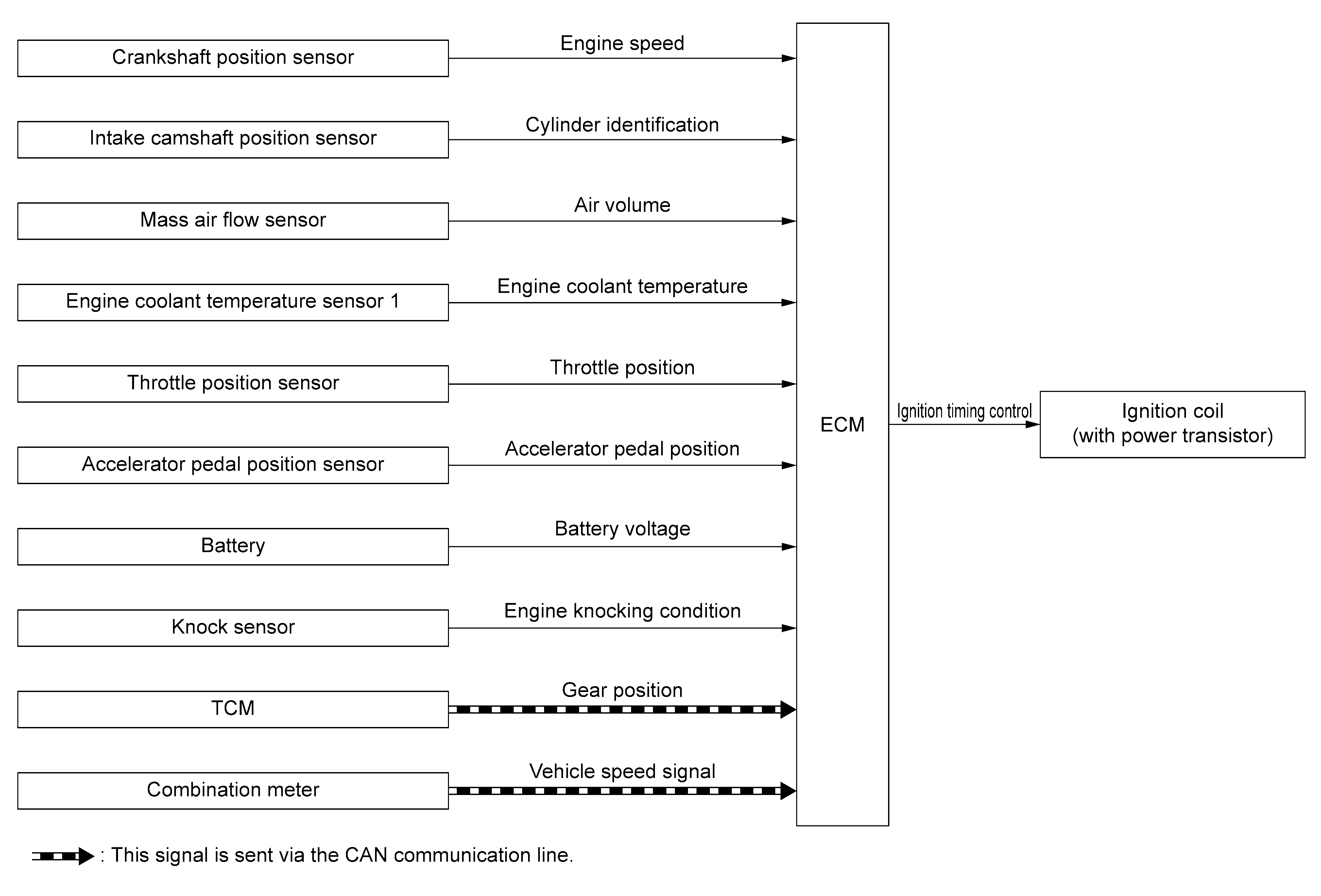

SYSTEM DIAGRAM

GNSDB129397Courtesy of NISSAN NORTH AMERICA, INC.
Component parts Function
Crankshaft position sensor Crankshaft Position Sensor .
Intake camshaft position sensor Intake Camshaft Position Sensor .
Mass air flow sensor Mass Air Flow Sensor .
Engine coolant temperature sensor 1 Engine Coolant Temperature Sensor .
Throttle position sensor Electric Throttle Control Actuator .
Accelerator pedal position sensor Accelerator Pedal Position Sensor .
Battery ECM receives the battery voltage signal.
Knock sensor Knock Sensor .
TCM ECM receives the gear position via CAN communication.
Combination meter ECM receives the vehicle speed signal via CAN communication.
ECM ECM .
Ignition coil (with power transistor) Ignition Coil With Power Transistor .

SYSTEM DESCRIPTION

Ignition order: 1 - 2 - 3

The ignition timing is controlled by the ECM to maintain the best air-fuel ratio for every running condition of the engine. The ignition timing data is stored in the ECM. The ECM receives information such as the injection pulse width and camshaft position sensor signal. Computing this information, ignition signals are transmitted to the power transistor.

During the following conditions, the ignition timing is revised by the ECM according to the other data stored in the ECM:

The basic ignition timing is programmed within the anti-knocking zone, if recommended fuel is used under dry conditions. The knock sensor feedback control does not operate under normal driving conditions. If engine knocking occurs, the knock sensor monitors the condition. The signal is transmitted to the ECM. The ECM retards the ignition timing to eliminate the knocking condition.

BASIC CONTROL

CYLINDER DISTINCTION CONTROL

ECM distinguishes cylinder based on the combination of signals of crankshaft position sensor, intake camshaft position sensor and the exhaust camshaft position sensor, and if any of sensor malfunctions distinguishes cylinder with normal sensors.

Abnormal point Sensor to use for cylinder distinction
Crankshaft position sensor Camshaft position sensor
Intake camshaft position sensor
  • Crankshaft position sensor
  • Exhaust camshaft position sensor
Exhaust camshaft position sensor
  • Crankshaft position sensor
  • Intake camshaft position sensor
