Exploded View

REMOVAL (JAPAN PRODUCTION MODELS)

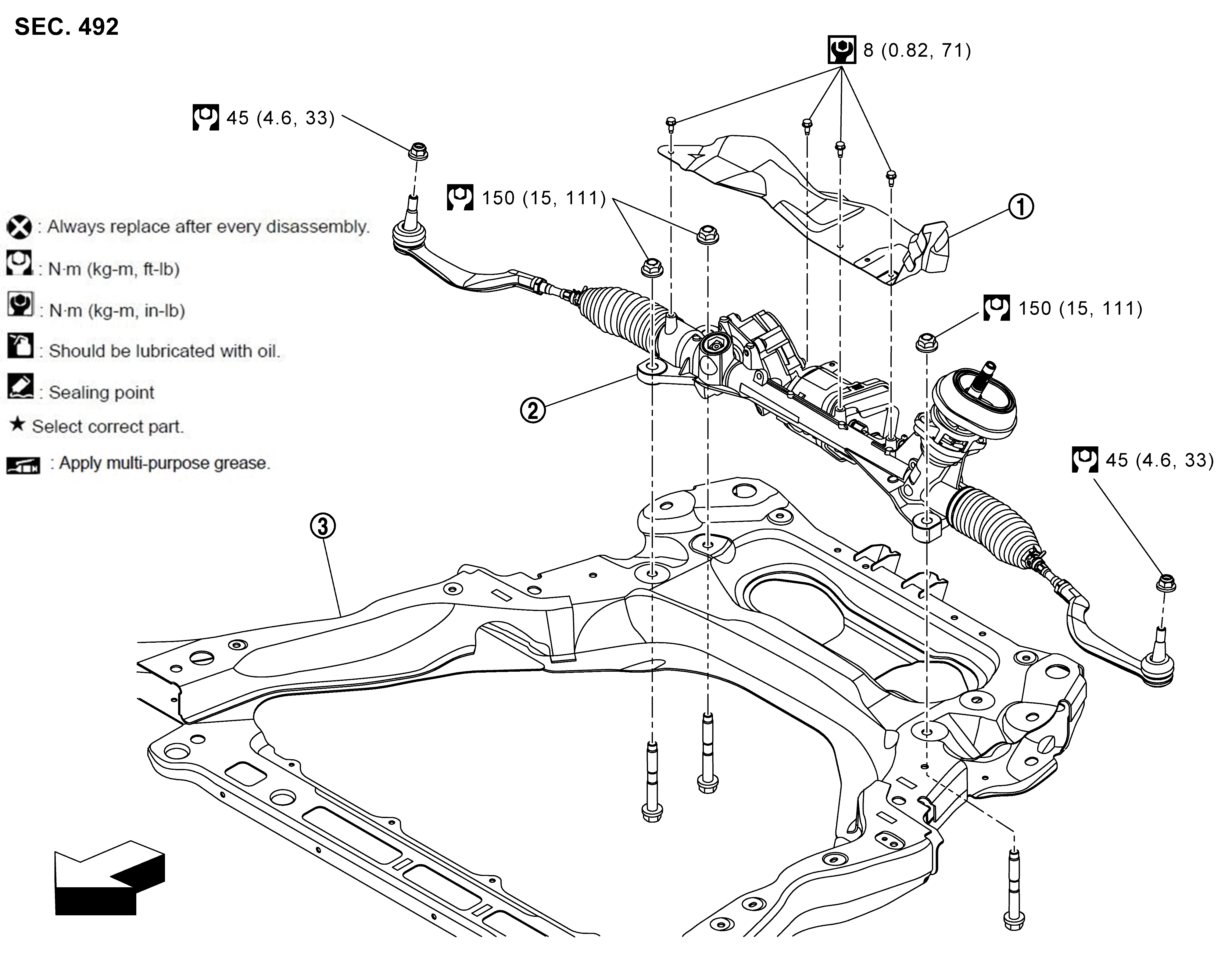

Fig 1: Steering Gear And Linkage With Torque Specifications - Japan Production Models

Courtesy of NISSAN NORTH AMERICA, INC.

REMOVAL (NORTH AMERICA PRODUCTION MODELS)

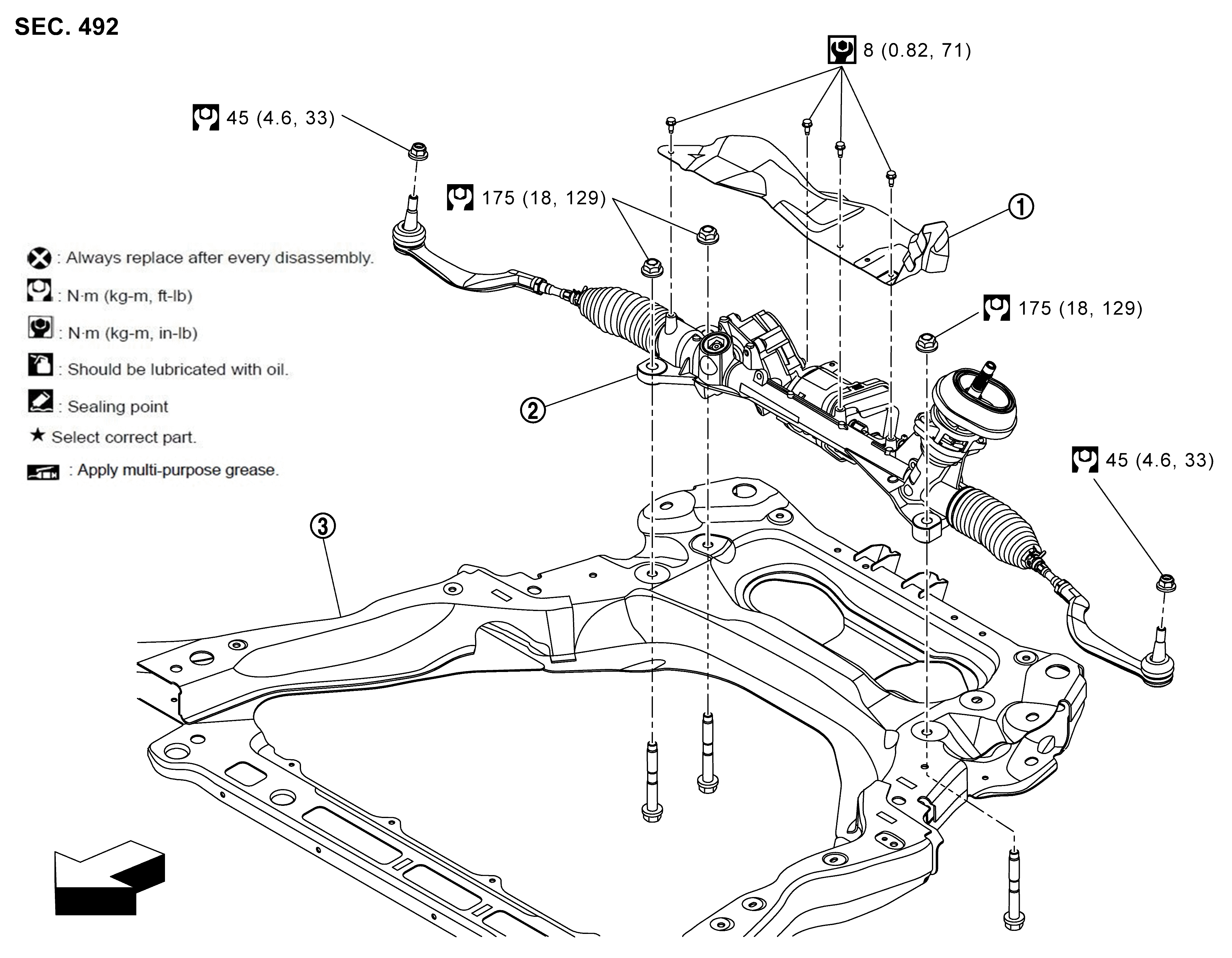

Fig 2: Steering Gear And Linkage With Torque Specifications - North America Production Models

Courtesy of NISSAN NORTH AMERICA, INC.

DISASSEMBLY (JAPAN PRODUCTION MODELS)

Fig 3: Steering Gear And Linkage With Torque Specifications - Japan Production Models

Courtesy of NISSAN NORTH AMERICA, INC.

Outer socket	Outer socket lock nut	Boot clamp (small diameter)
Boot	Boot clamp (large diameter)	Hole cover seal
Gear housing assembly
: N.m (kg-m, ft-lb)
: Apply Dow Corning 111 or equivalent.
: Always replace after every disassembly.

CAUTION:

Never apply the grease to the surface between steering rack and inner socket screw part.

DISASSEMBLY (NORTH AMERICA PRODUCTION MODELS)

Fig 4: Steering Gear And Linkage With Torque Specifications - North America Production Models

Courtesy of NISSAN NORTH AMERICA, INC.

Outer socket	Outer socket lock nut	Boot clamp (small diameter)
Boot	Boot clamp (large diameter)	Hole cover seal
Inner socket	Gear housing assembly
: N.m (kg-m, ft-lb)
: Apply Dow Corning 111 or equivalent.
: Always replace after every disassembly.

CAUTION:

Never apply the grease to the surface between steering rack and inner socket screw part.
