Input Gear & Selective Thrust Washer

Inspection

1. Inspect forward clutch hub for worn splines and lubrication holes for obstruction.

2. Inspect internal gear for cracks or damage.

3. Inspect gear teeth for excessive wear or damage.

Assembly & Installation

1. Install thrust washer on input internal gear and retain with petroleum jelly.

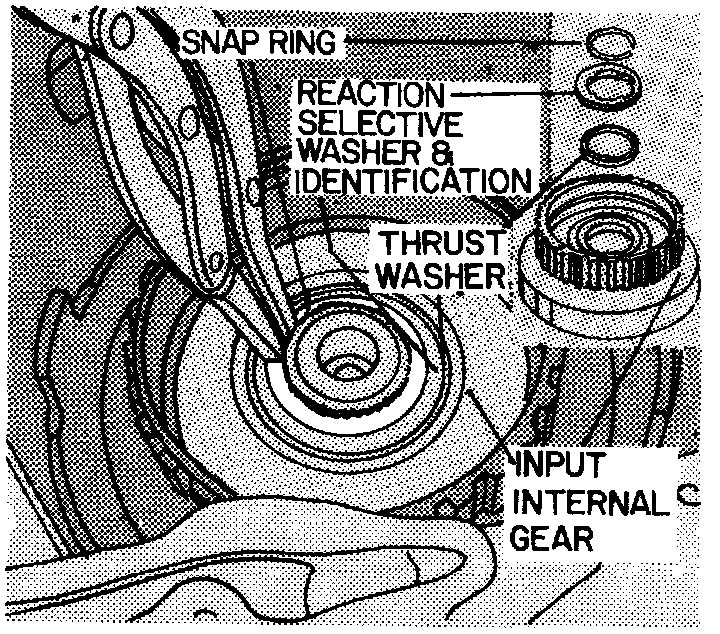

2. Install input internal gear, see image.
