Thermal Controller

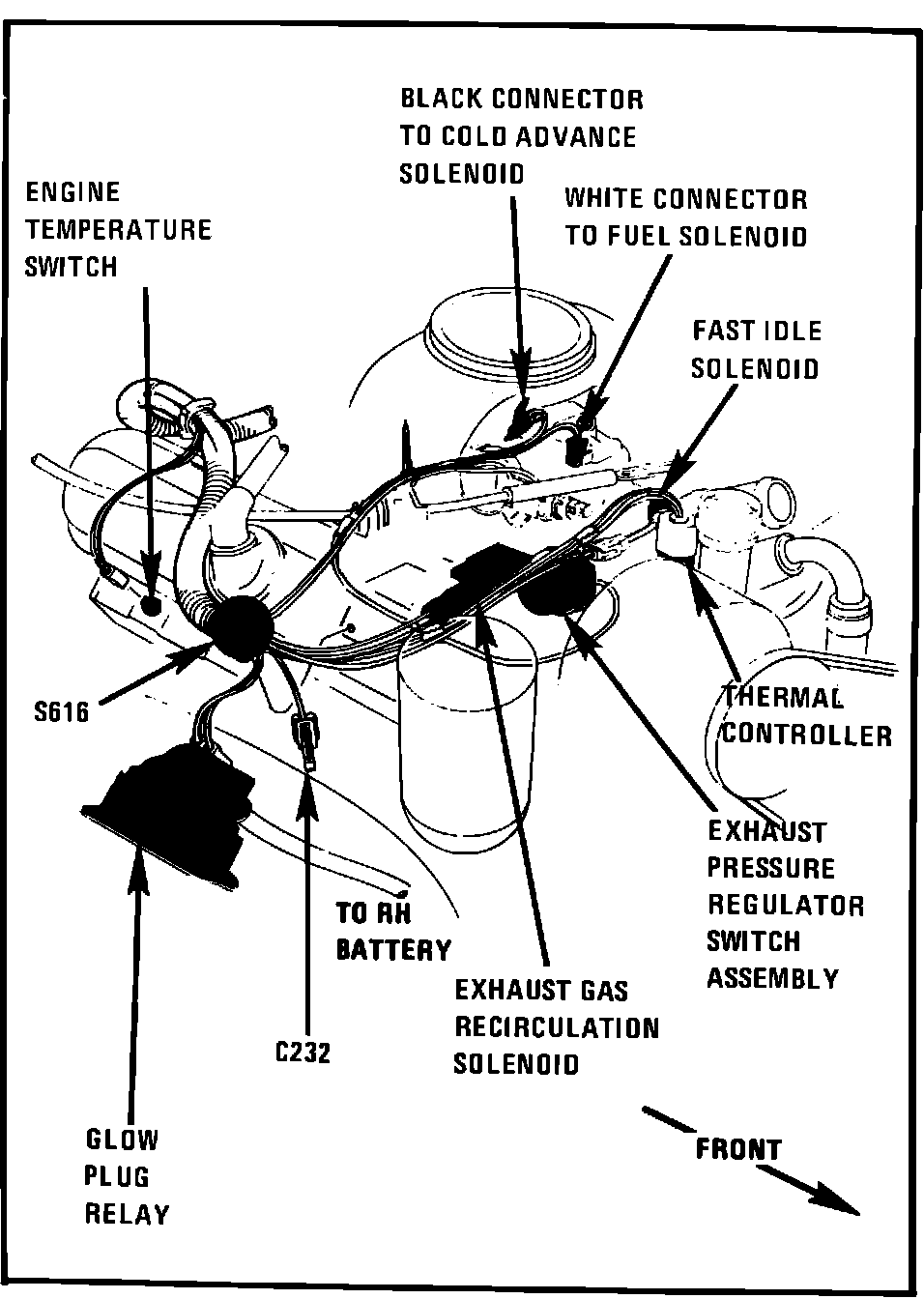

Top Of Diesel Engine.:




Front Center Of Crossover

Applicable to: 1981-83 Toronado

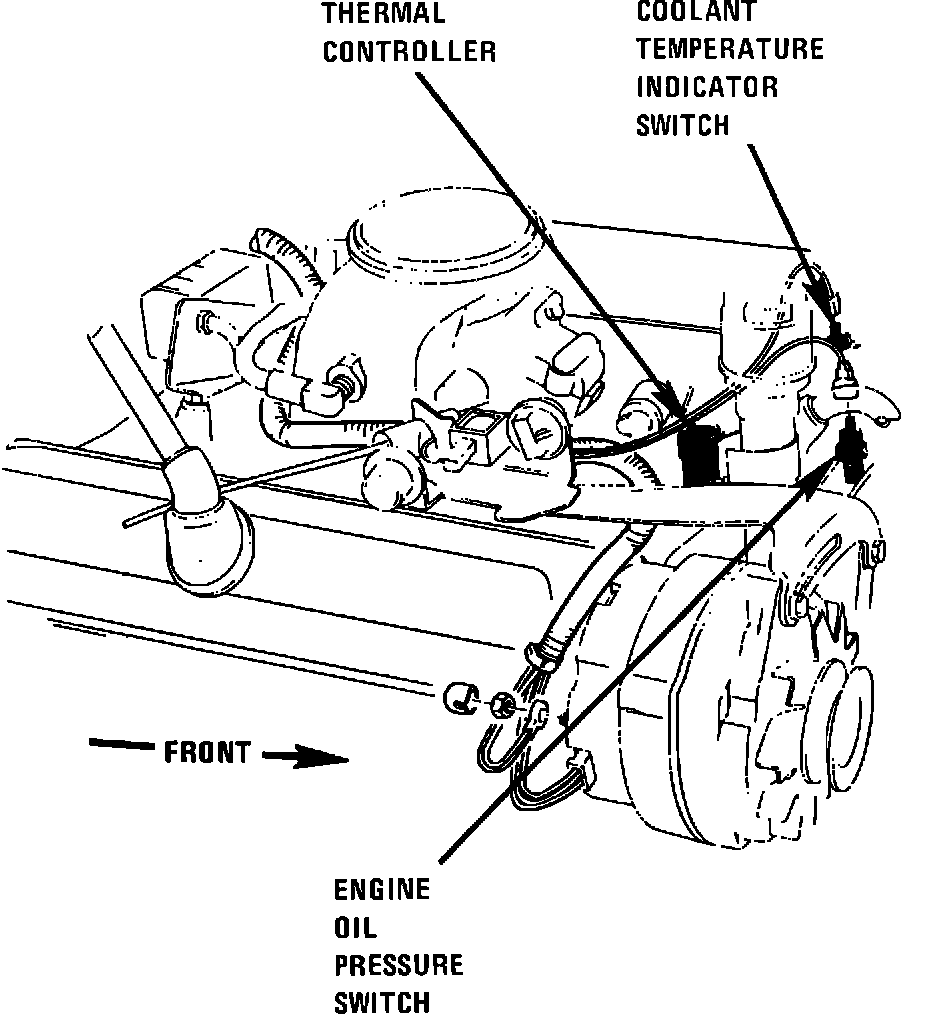

Front Of Diesel Engine.:




Front Center Of Crossover

Applicable to: 1981-83 Toronado Less A/C
