System Specifications

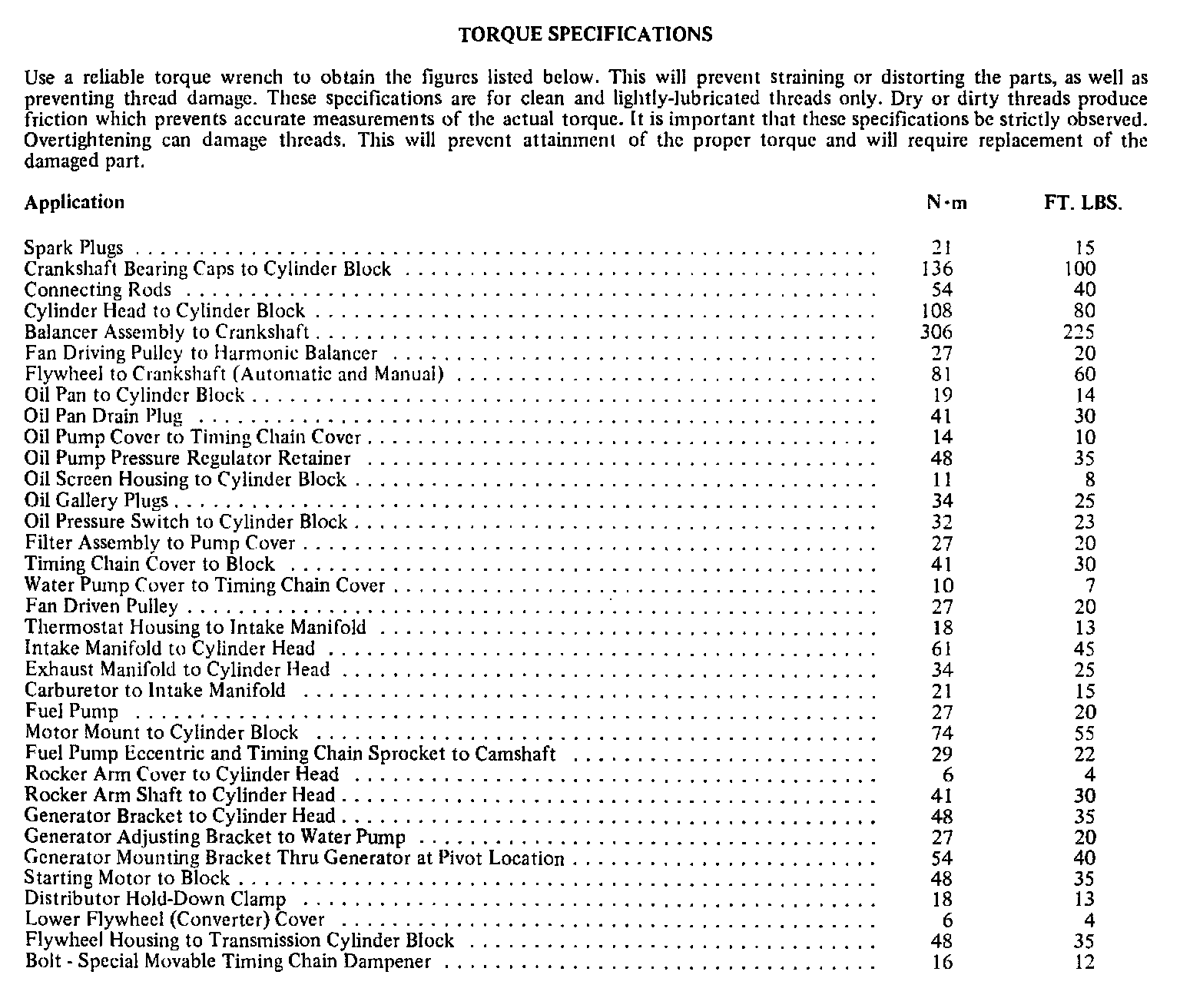

Torque Sequence:

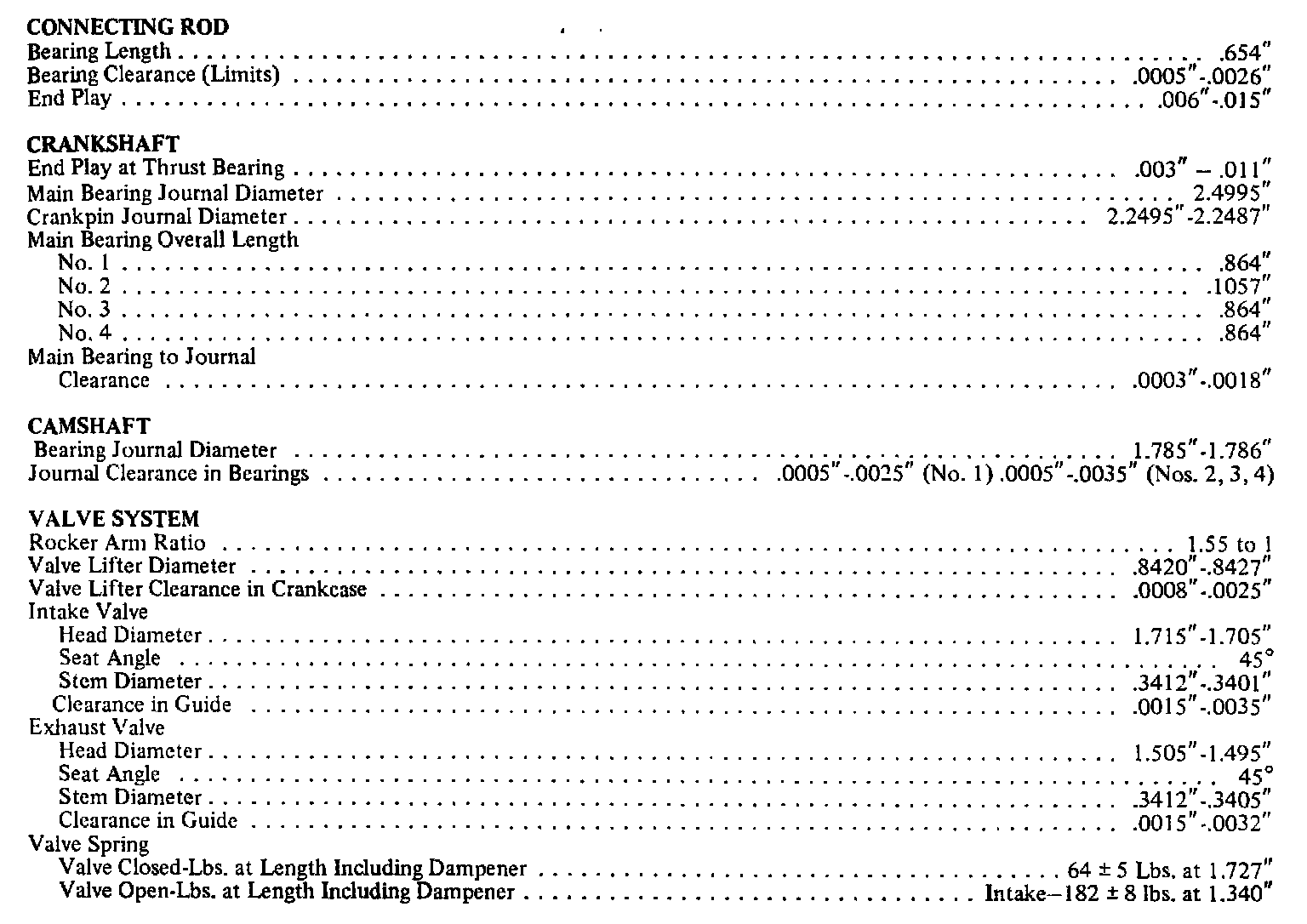

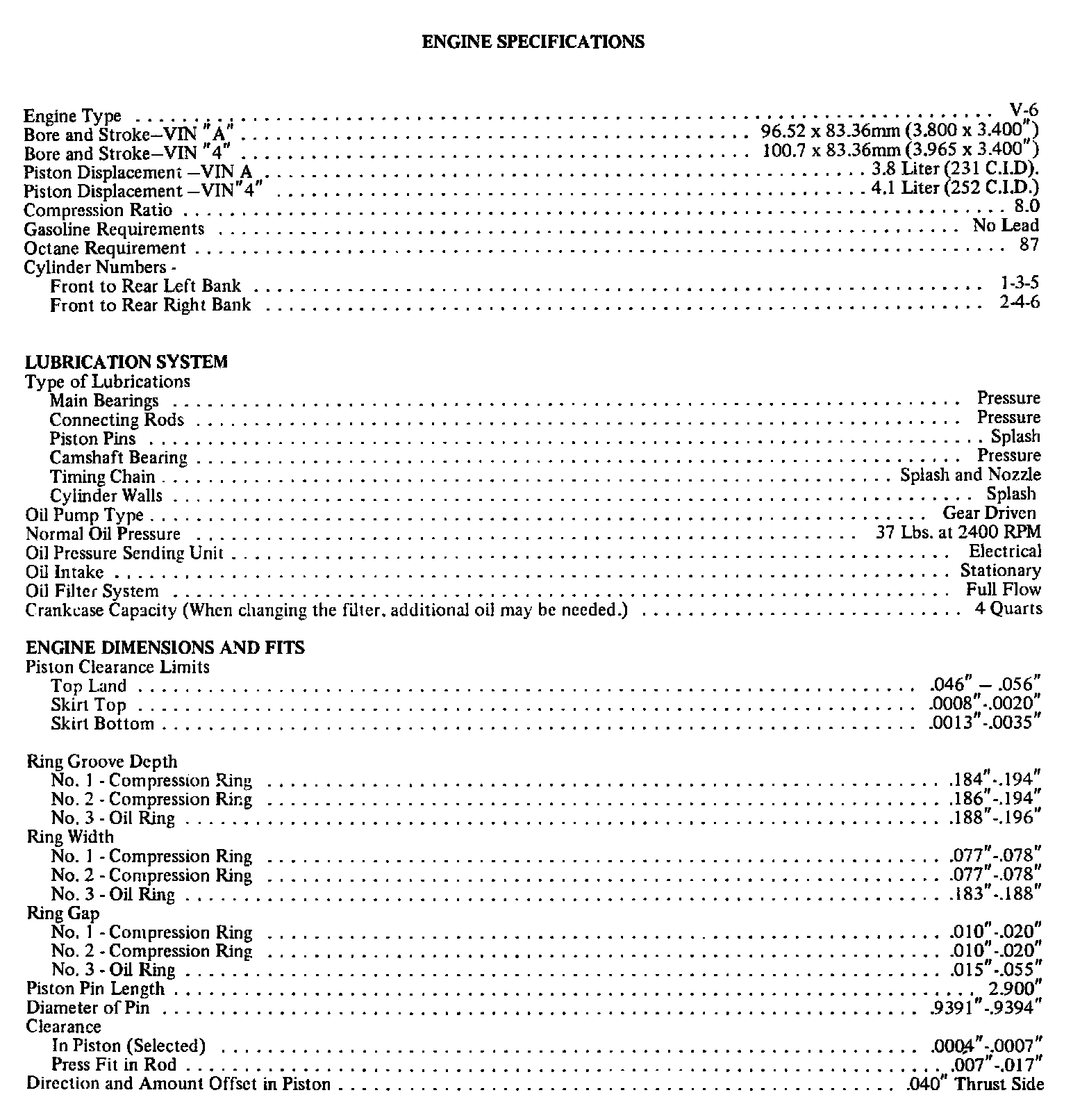

Engine Specifications:





Continued Engine Specifications:

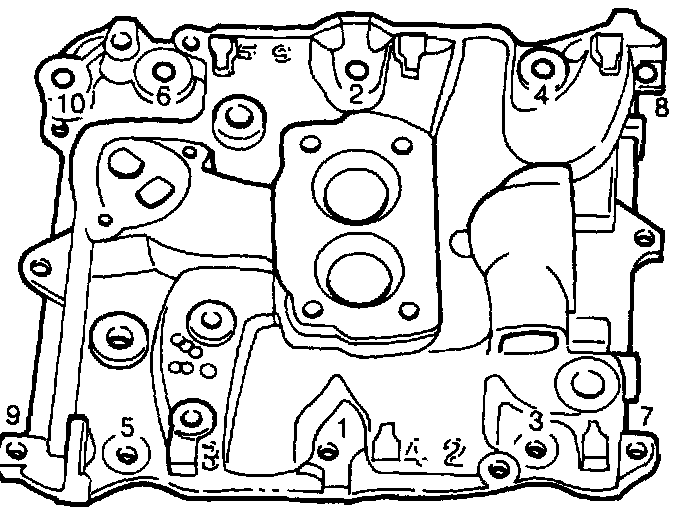

Intake Manifold Sequence:





Cylinder Head Sequence:
