Diagnostic Charts

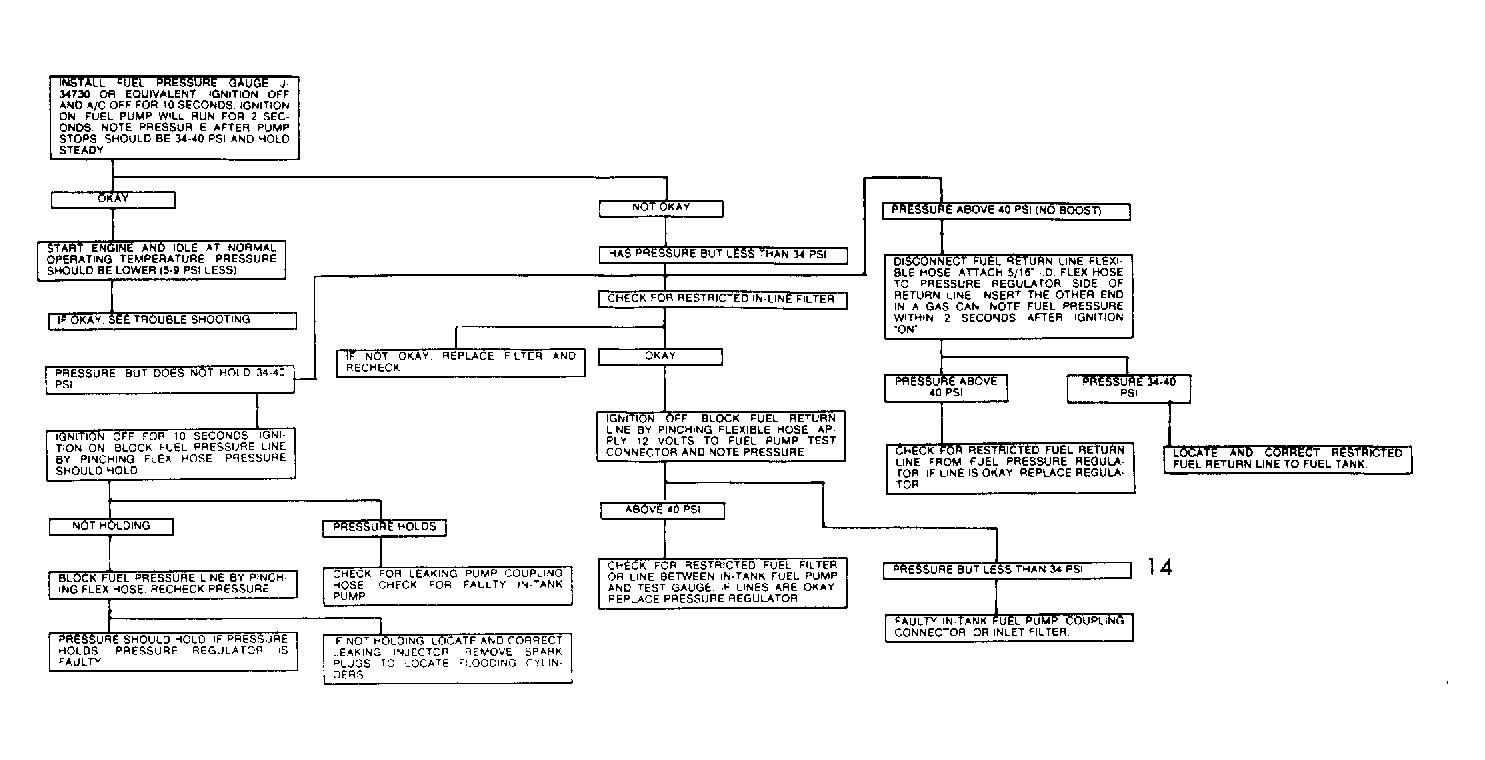

Fig 1: Fuel System Diagnosis

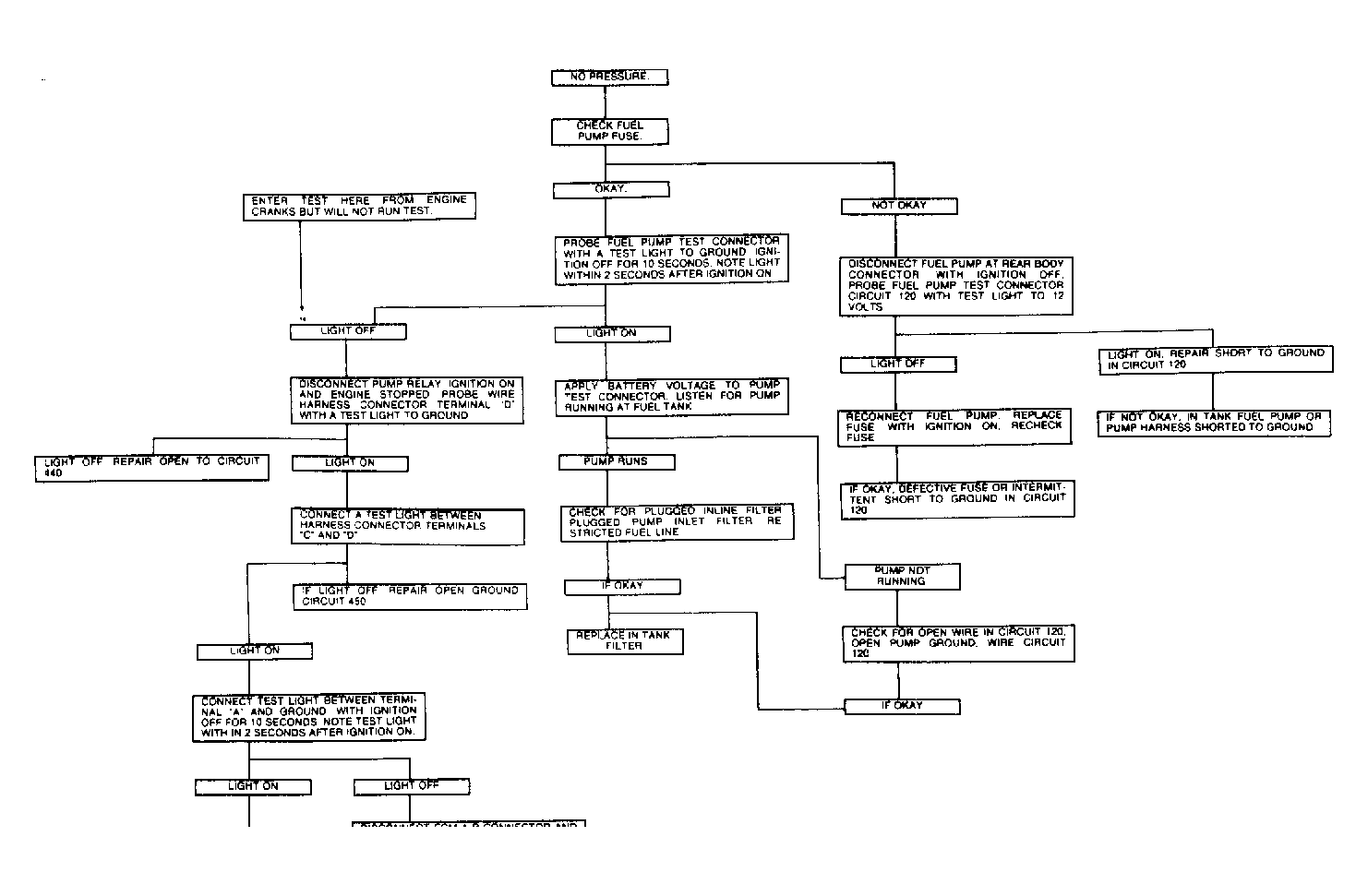

Fig 2: Fuel System No Pressure Check

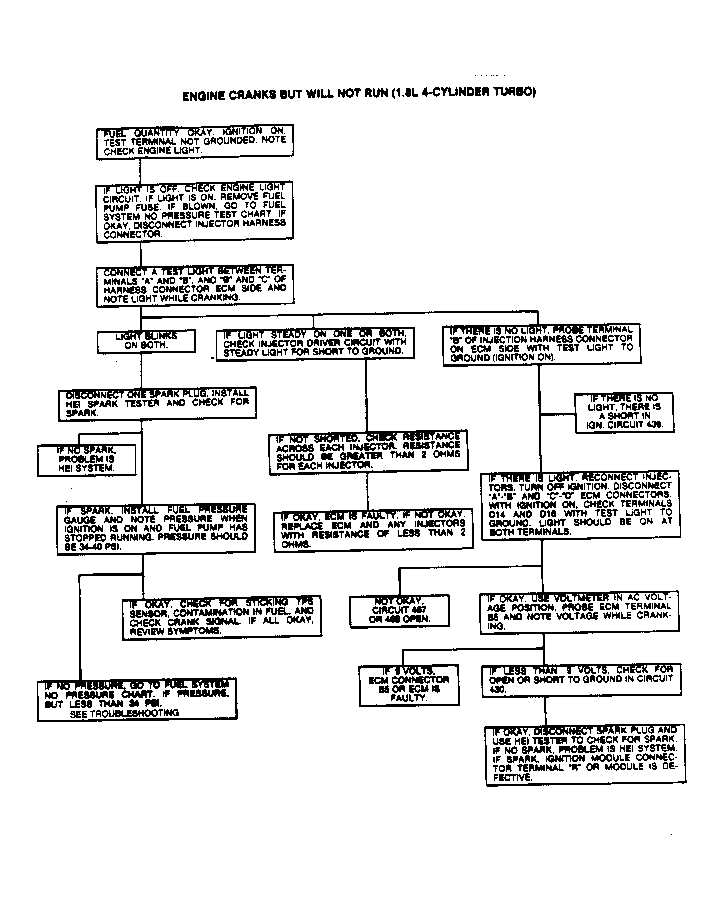

Fig 3: Engine Cranks But Will Not Run (1.8 4-Cylinder Turbo

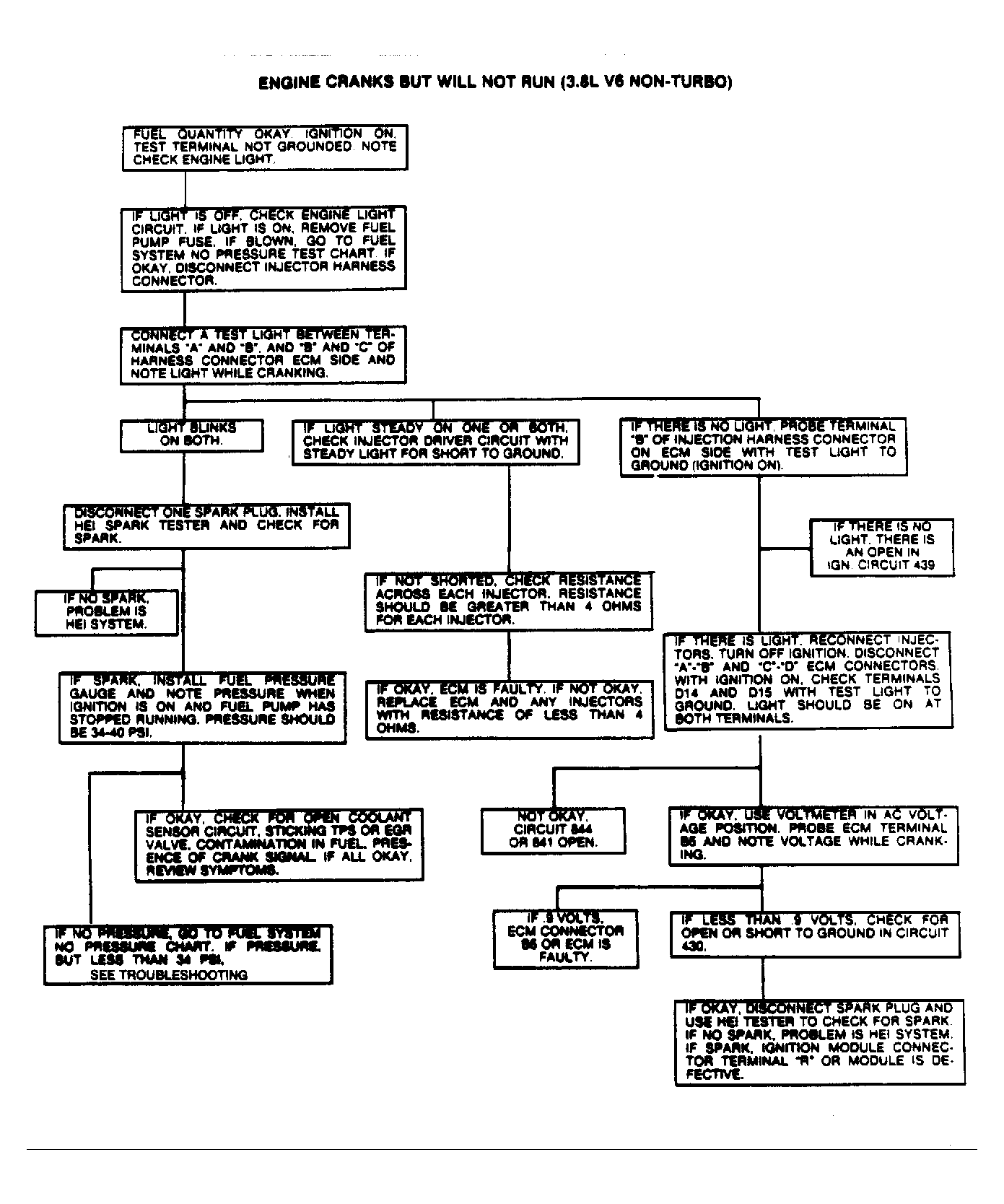

Fig 4: Engine Cranks But Will Not Run (3.8 V6 Non-Turbo)

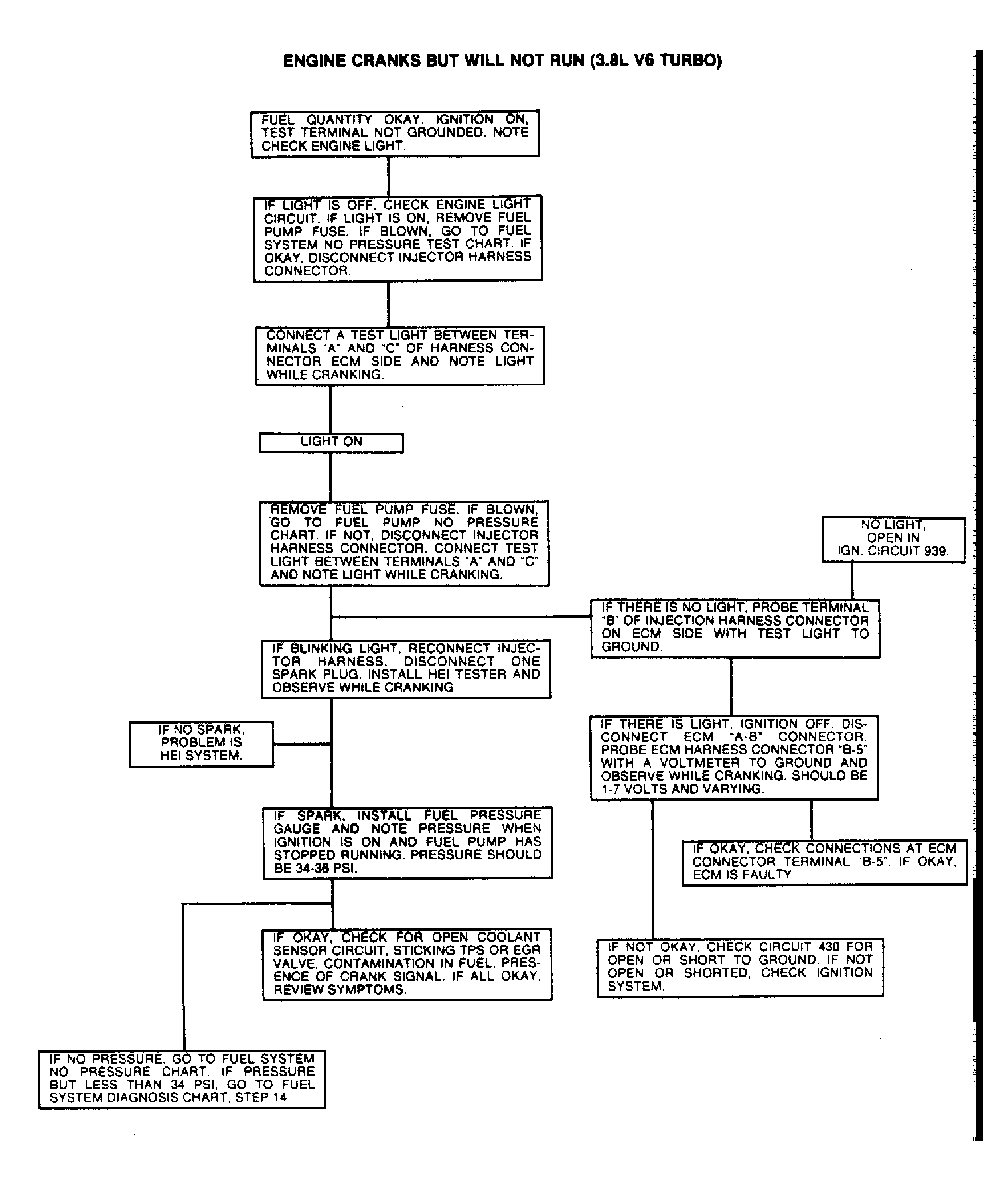

Fig 5: Engine Cranks But Will Not Run (3.8L V6 Turbo)

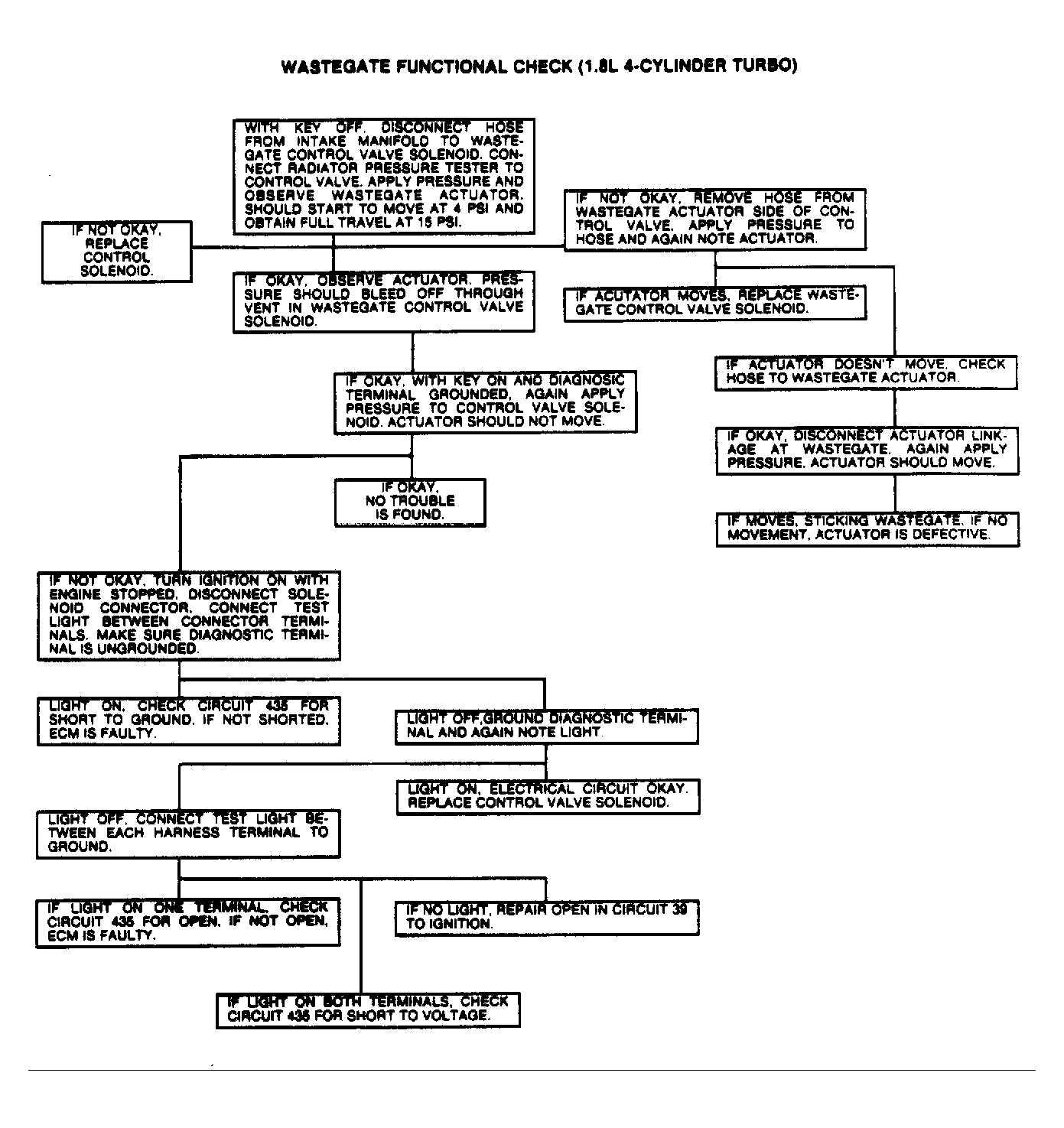

Fig 6: Wastegate Functional Check (1.8L 4-Cylinder Turbo)

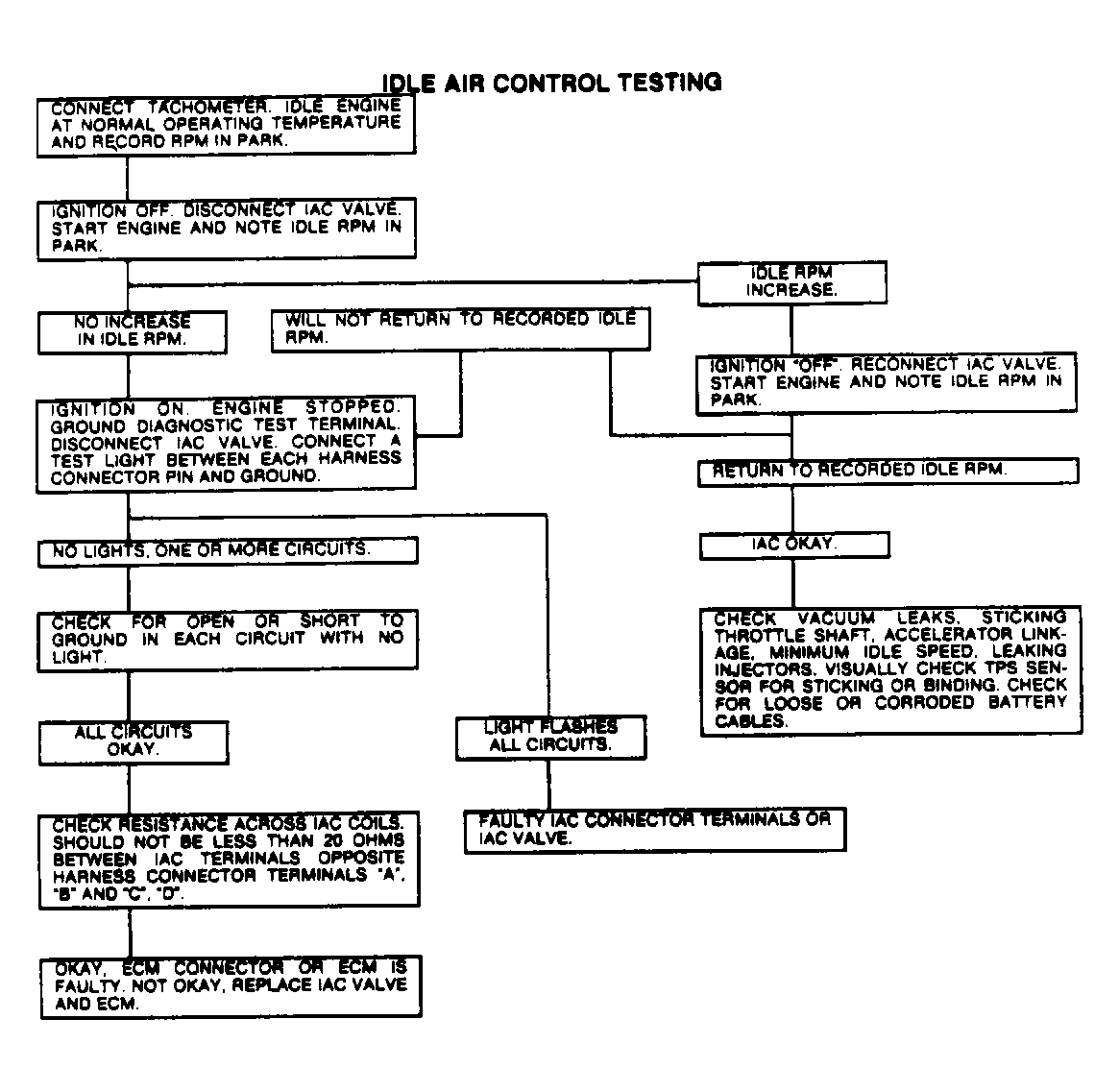

Fig 7: Idle Air Control Testing

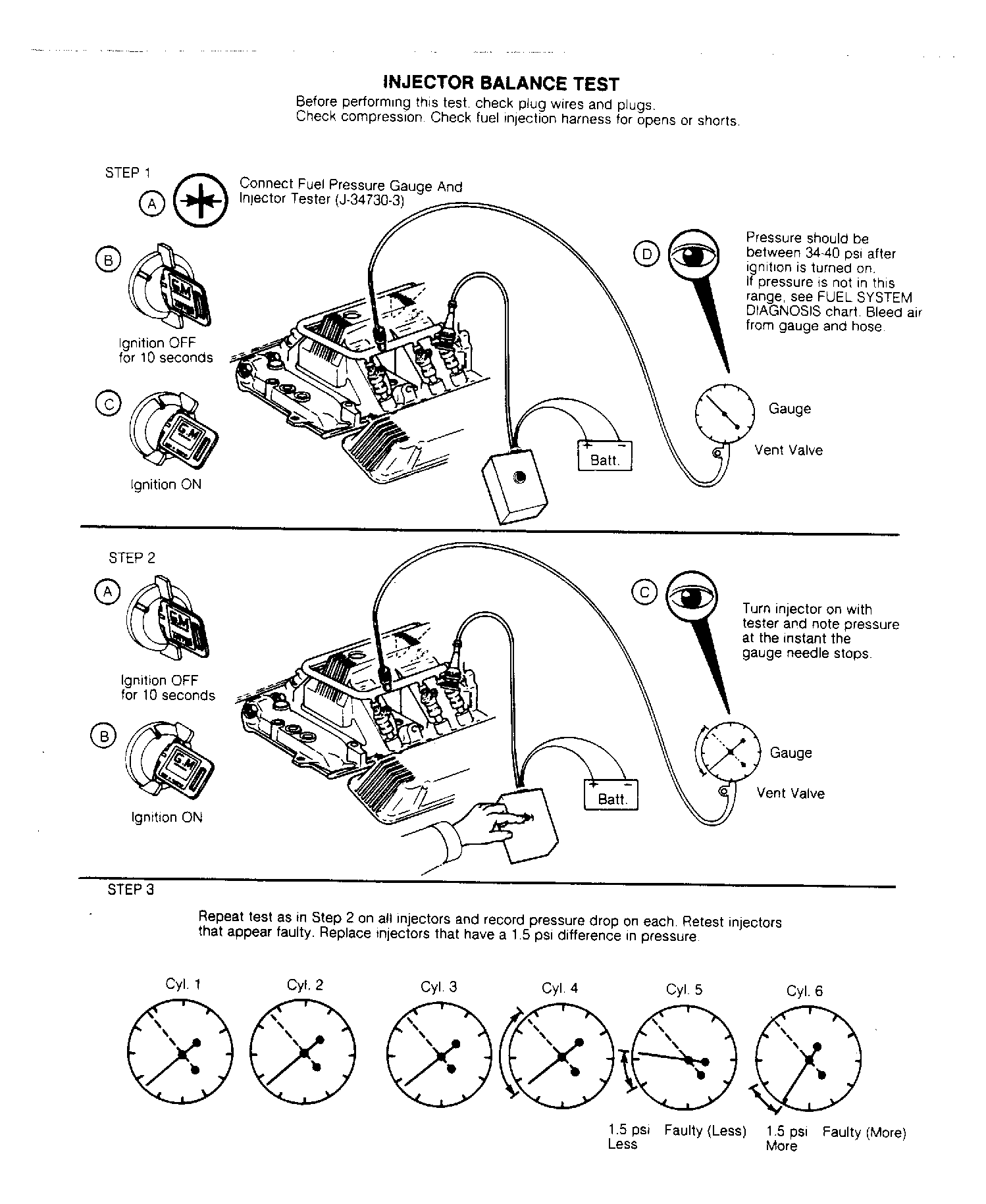

Fig 8: Injector Balance Test
