Chart C7A - Non-ECM Controlled EGR Check
NOTE:
There is no text or circuit diagram with this check.

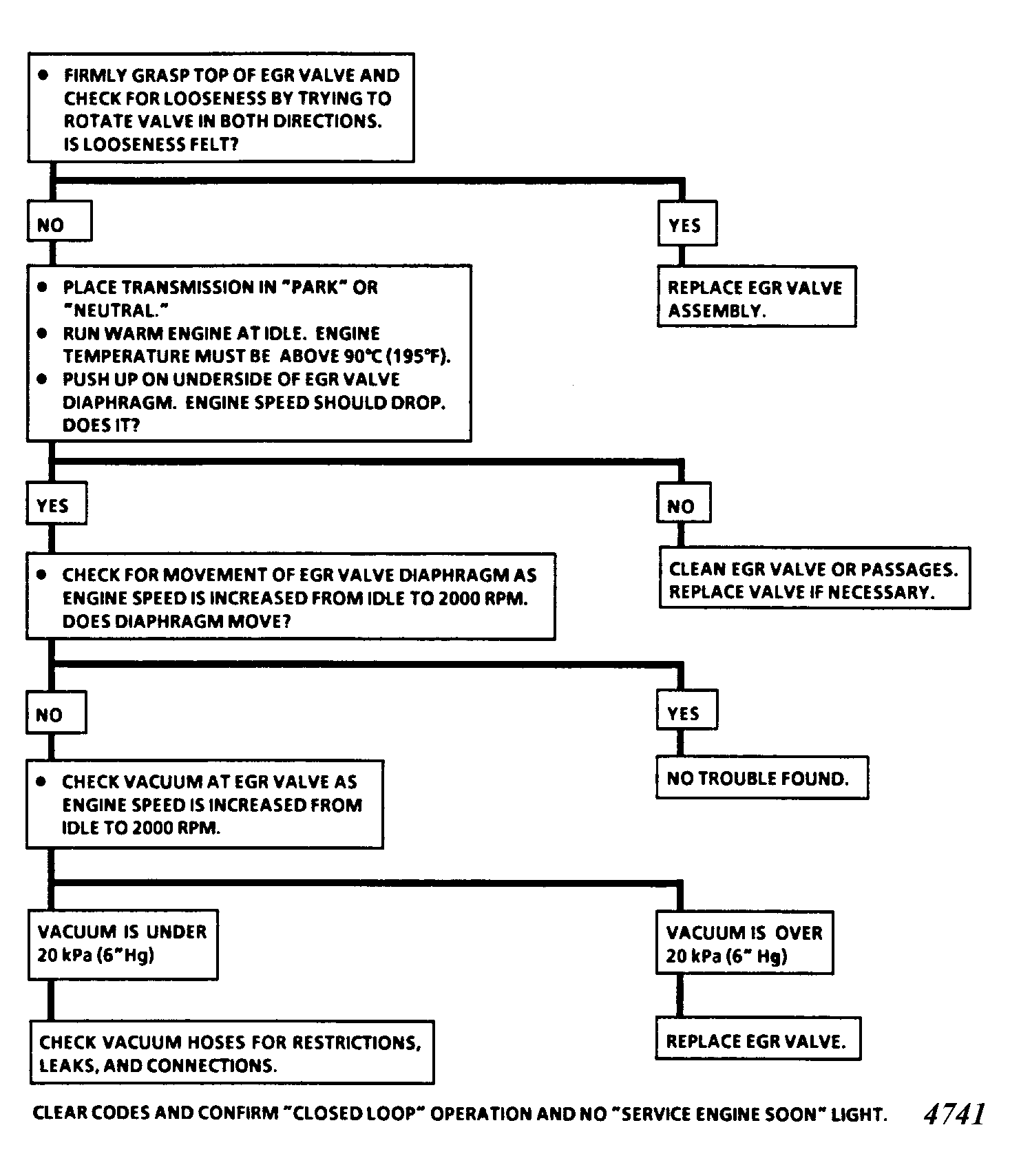

Fig 1: Chart C7A, Non-ECM Controlled EGR Valve Check
Fig 2: Chart C7A, Non-ECM Controlled EGR Valve Check
