Starting and Charging: Specifications

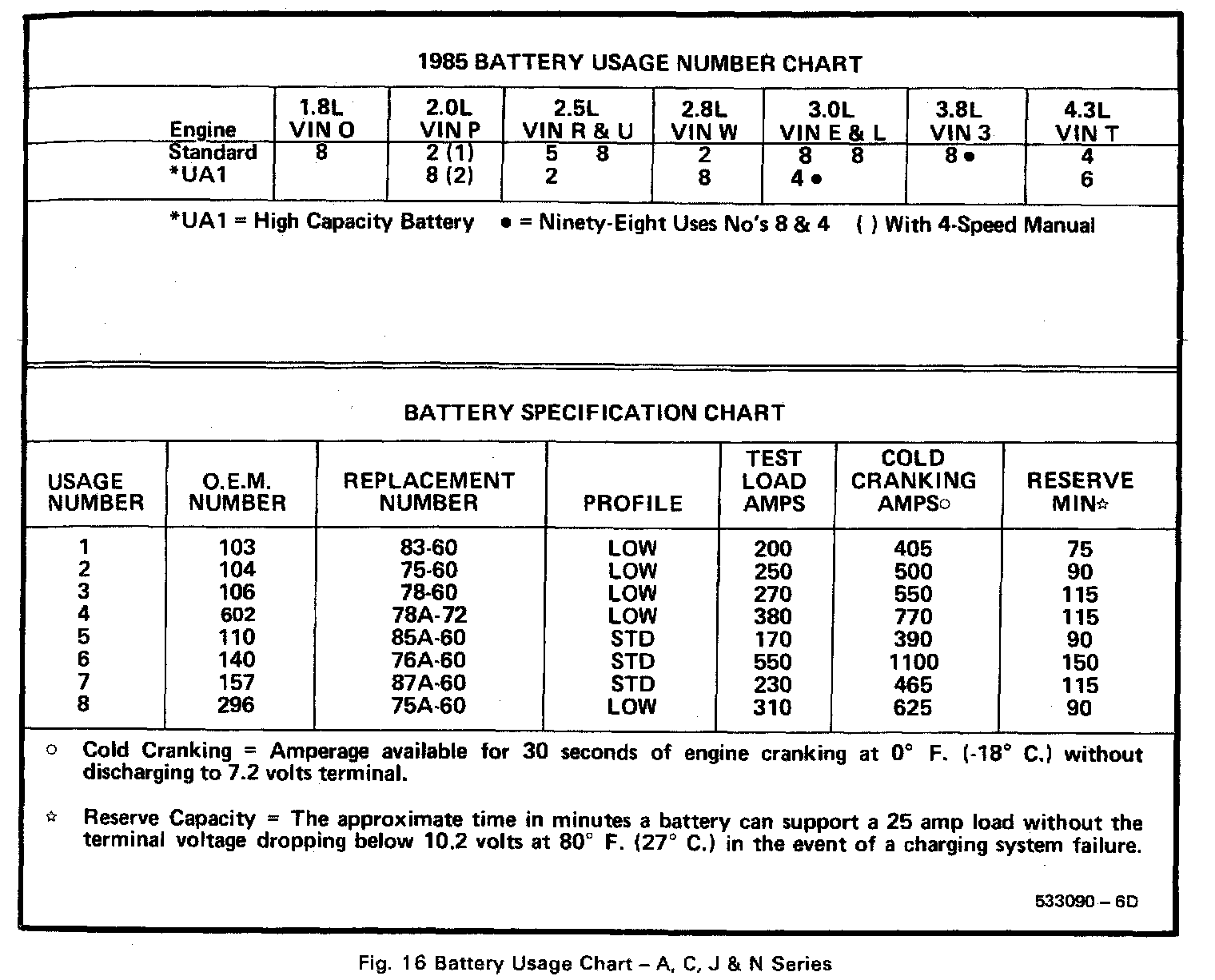

BATTERY SPECIFICATIONS

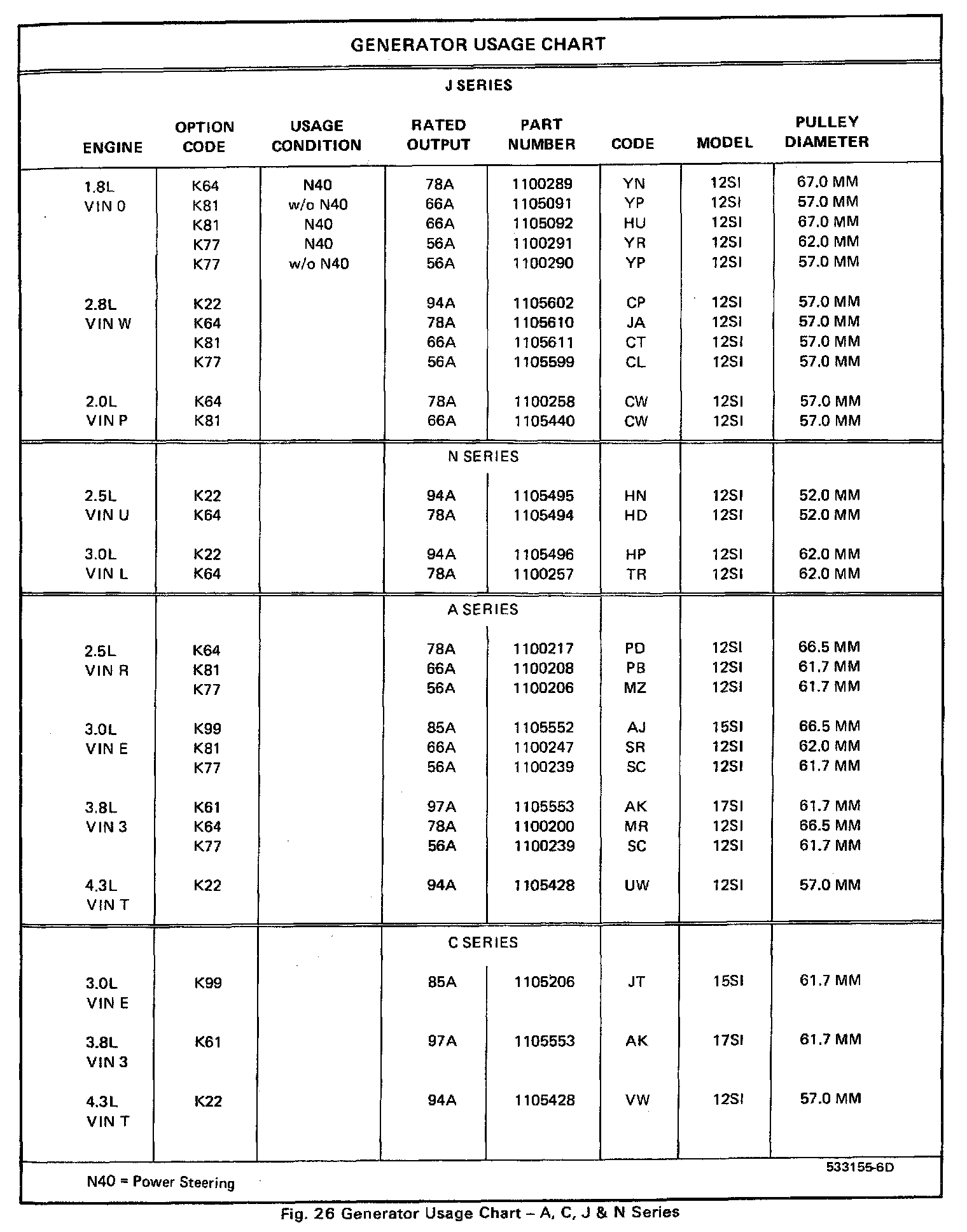

ALTERNATOR SPECIFICATIONS

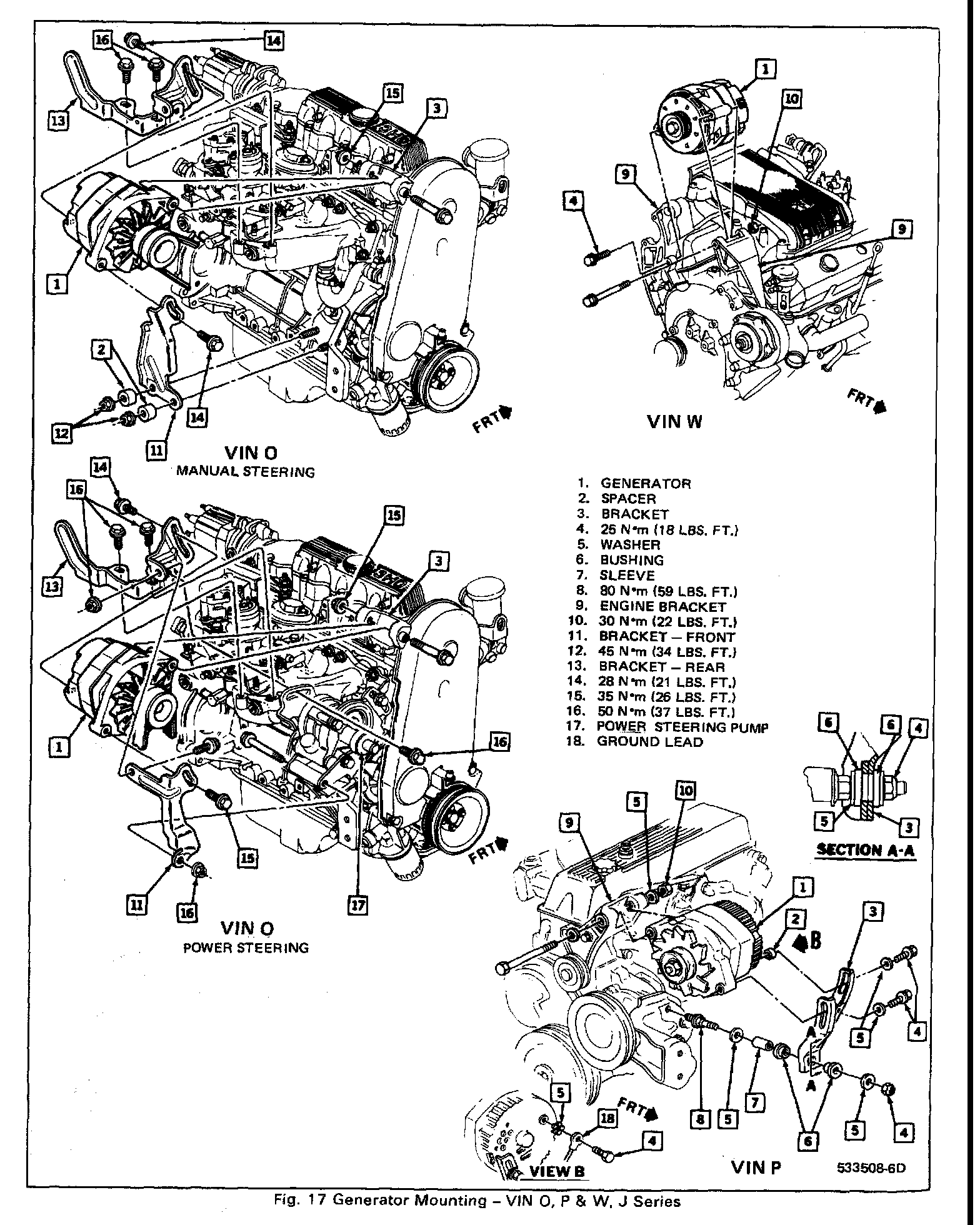

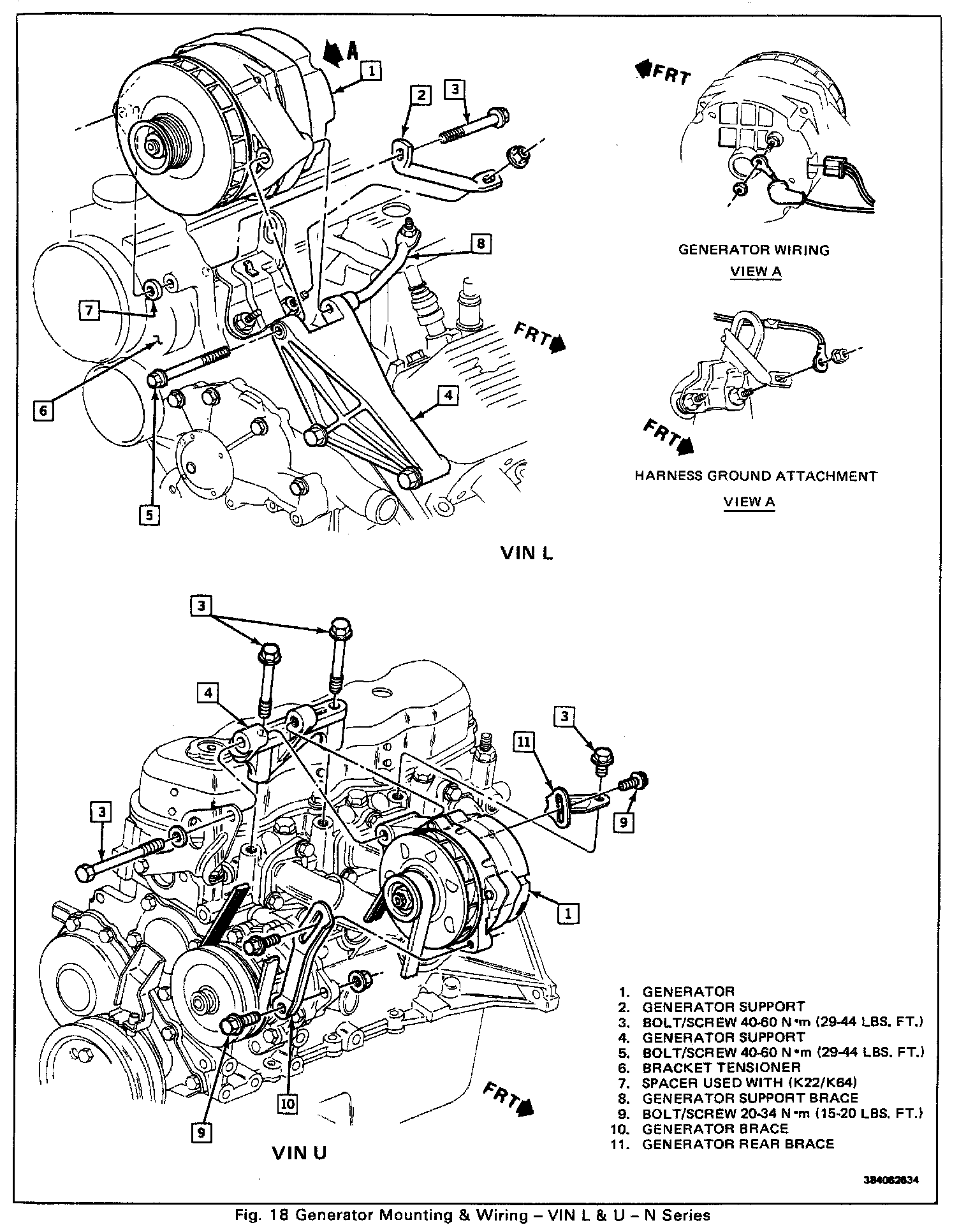

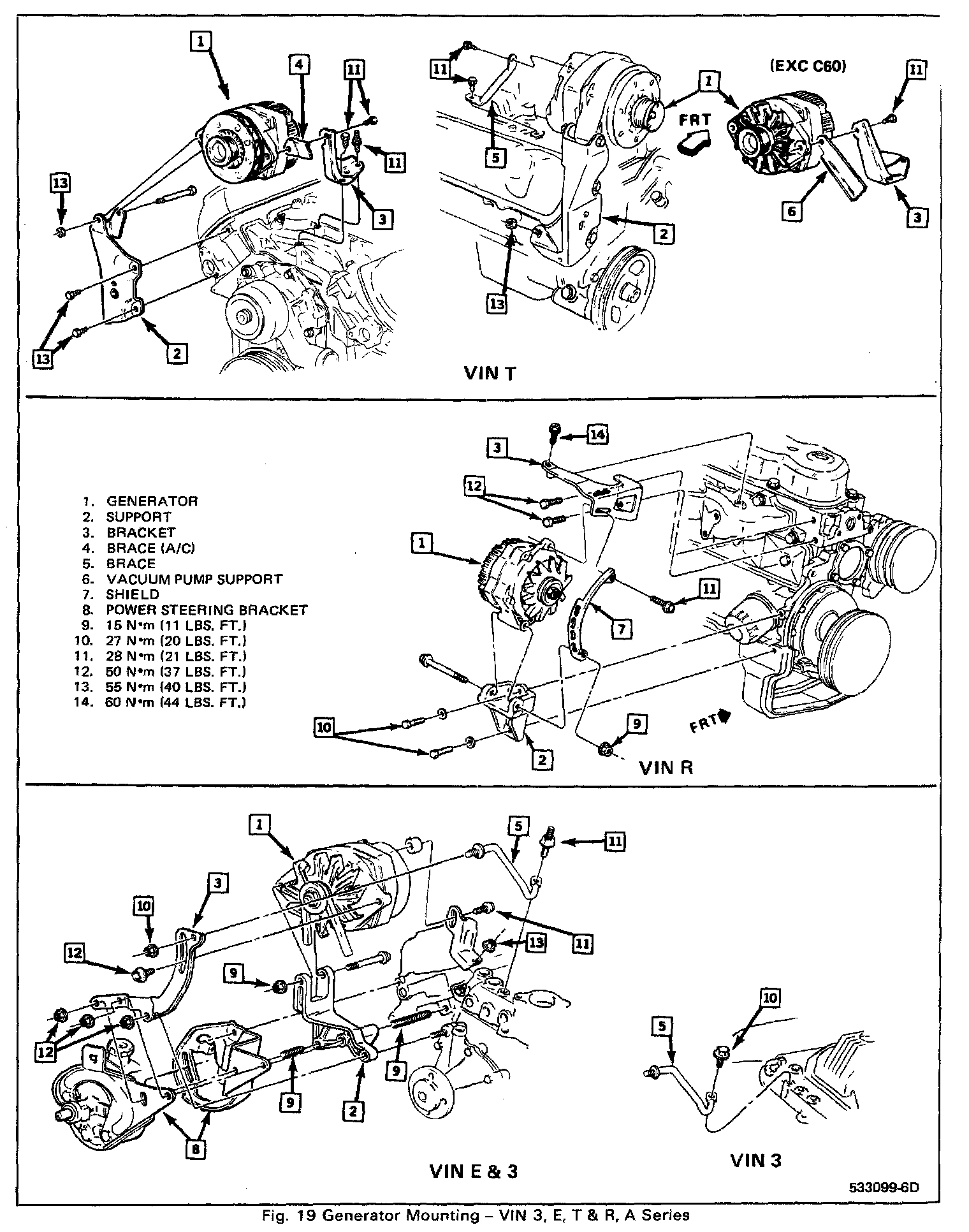

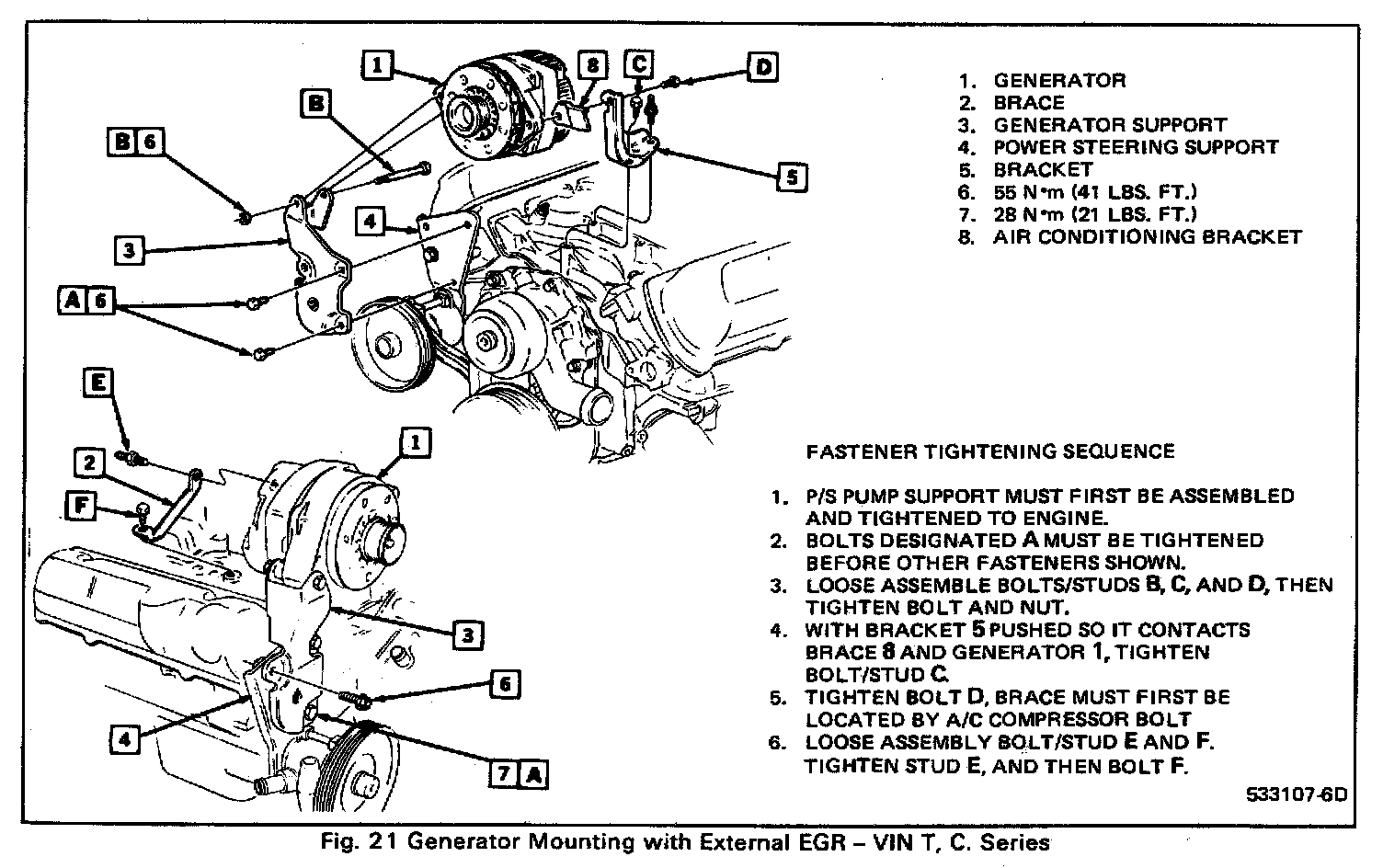

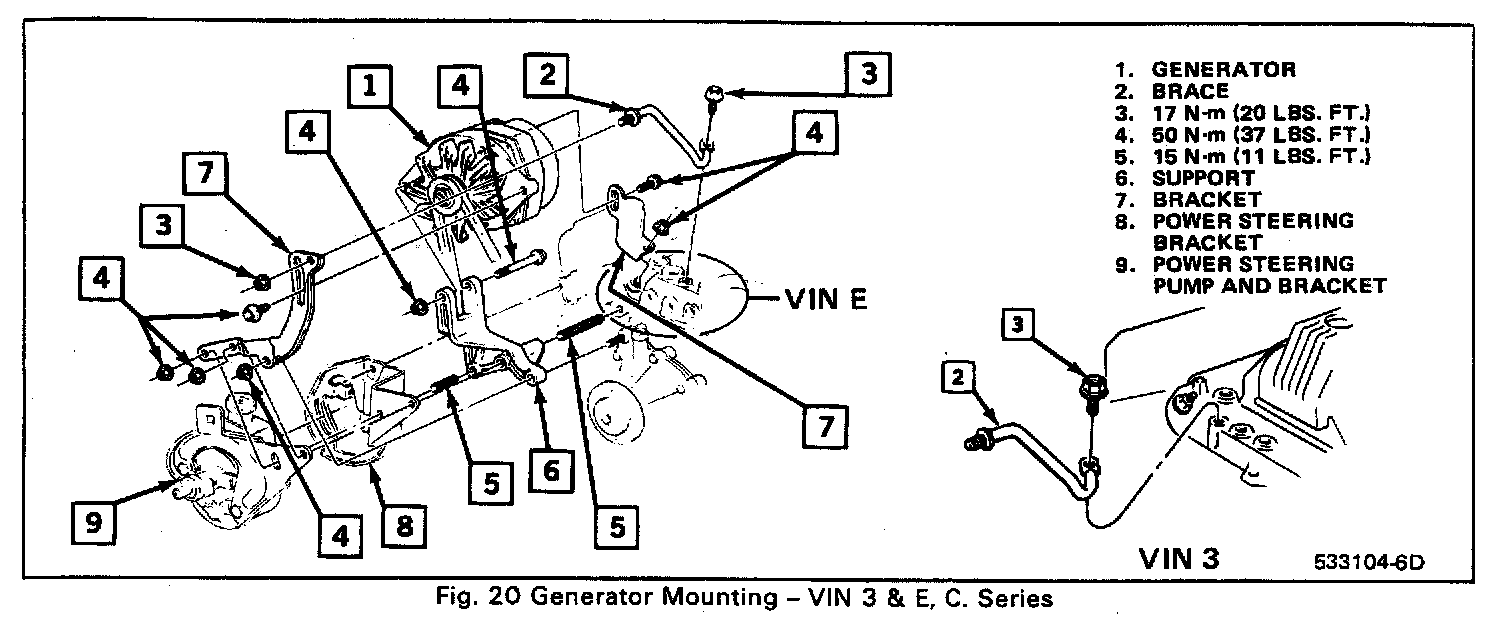

ALTERNATOR TORQUE SPECIFICATIONS

I Of V:





II Of V:





III Of V:





IV Of V:





V Of V:

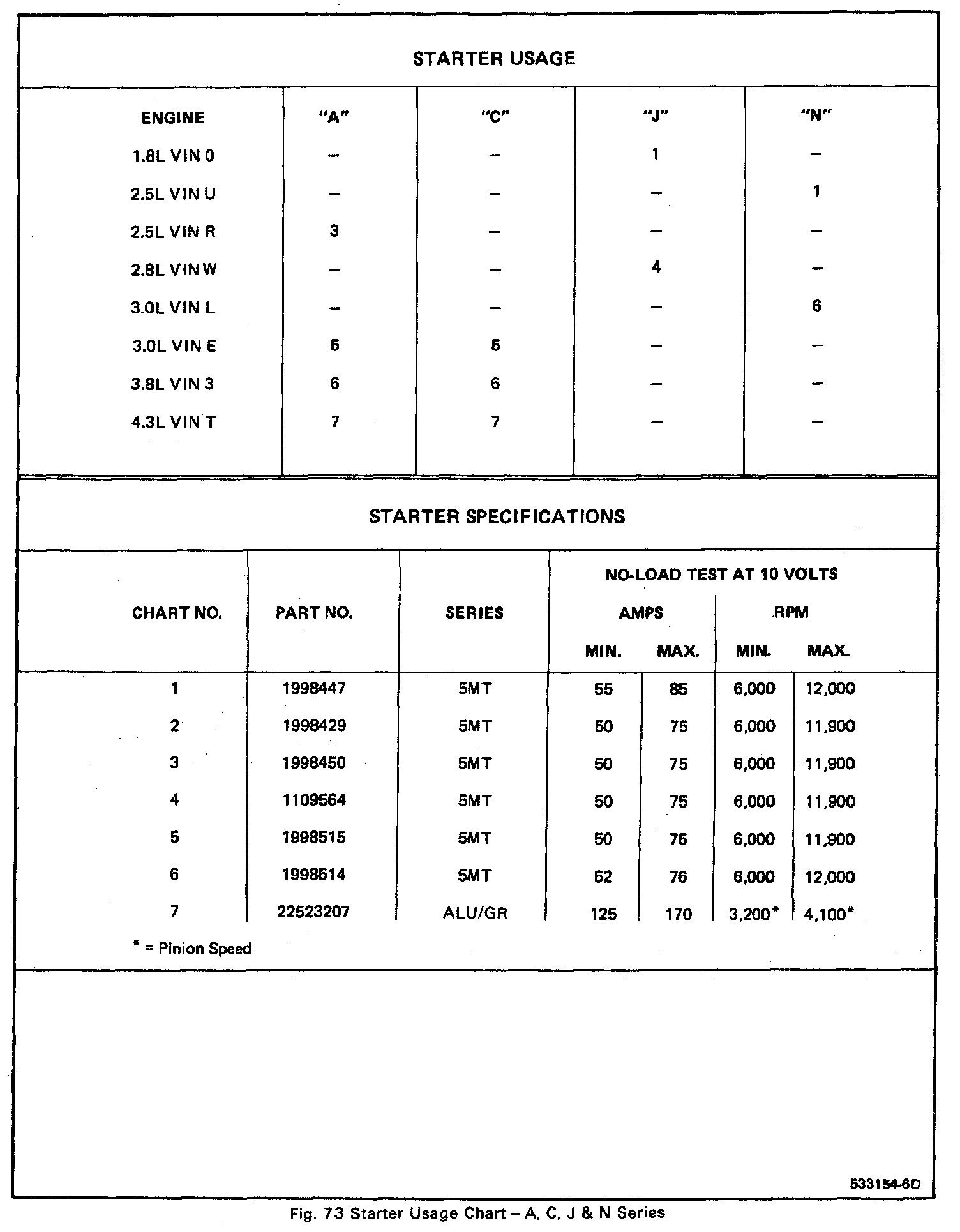

STARTER SPECIFICATIONS

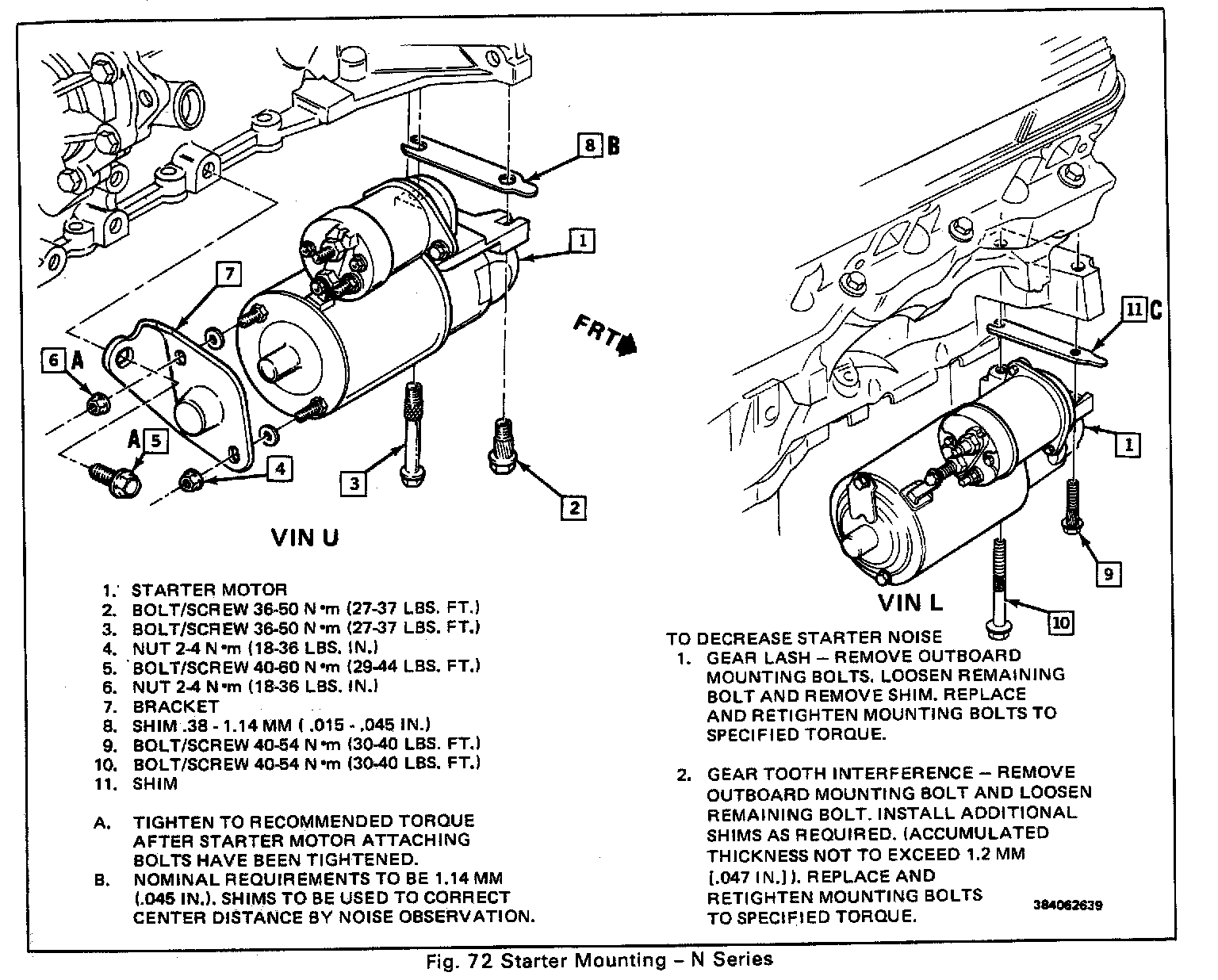

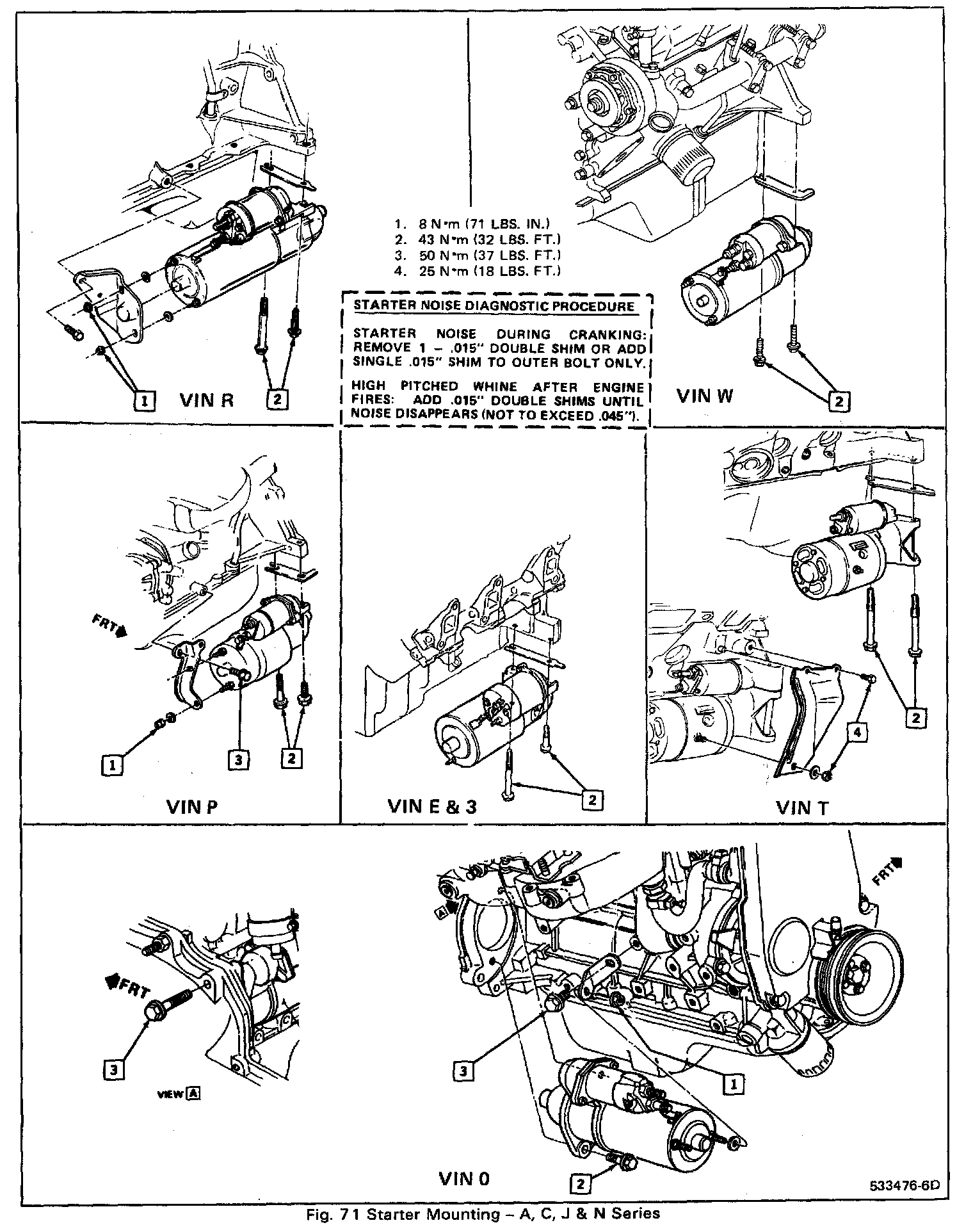

STARTER TORQUE SPECIFICATIONS

I Of II:





II Of II:
