Air Flow Meter/Sensor: Service and Repair

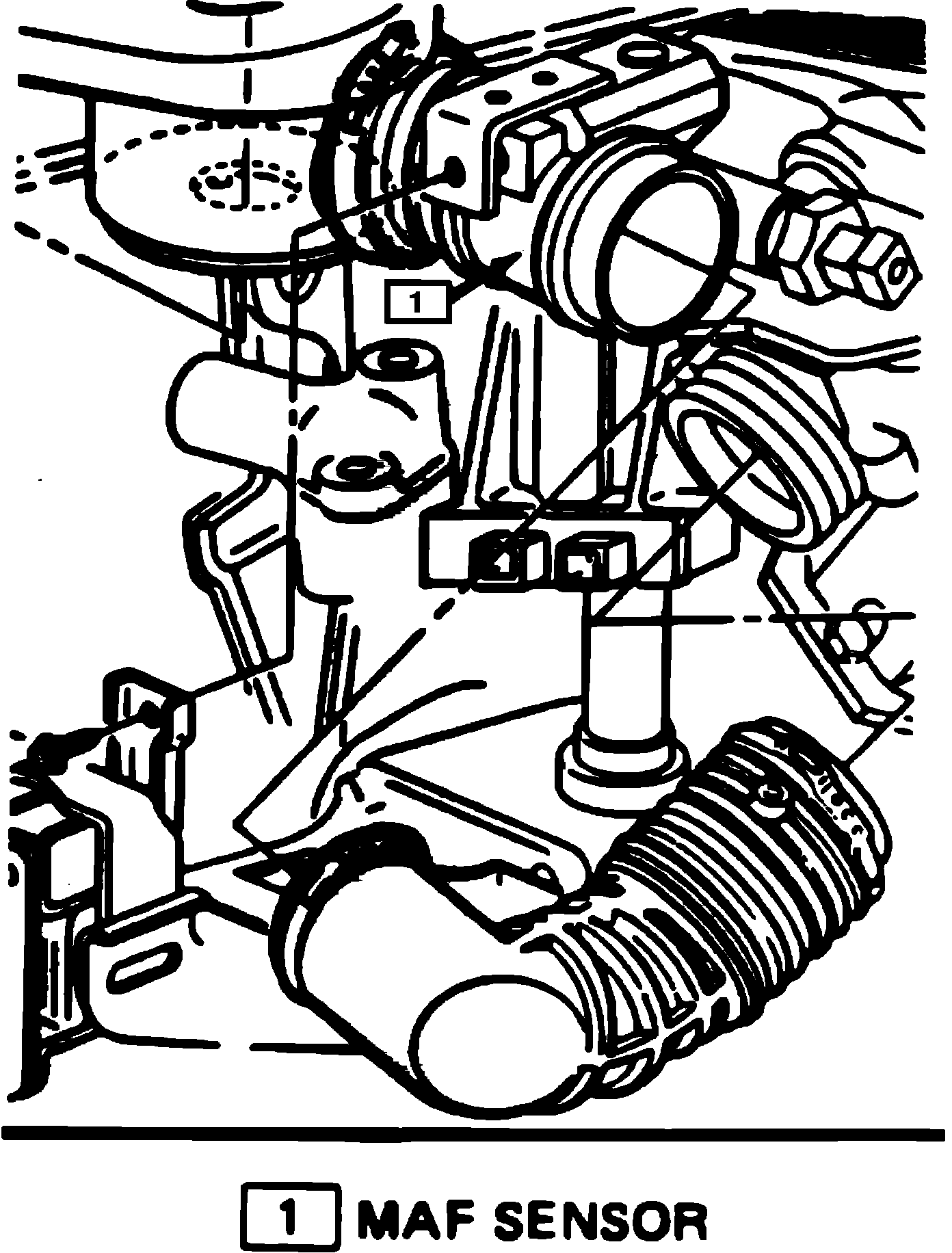

Fig. 343 MAF sensor removal. V6-181 (3.0L), V6-231 (3.8L) Non-Turbo & 1986-87 V6-231 (3.8L) Turbo:

Fig. 344 MAF sensor removal. 1984-85 V6-231 (3.8L) Turbo:

V6-181 (3.0L) & V6-231 (3.8L) All
To replace MAF sensor on all except 1984-85 turbocharged models, refer to Fig. 343. To replace MAF sensor on 1984-85 turbocharged models, refer to Fig. 344.

Fig. 345 MAF sensor removal. V8 engines, Camaro & Firebird w/V6-173 (2.8L) similar:

Fig. 346 MAF sensor removal. Front wheel drive models w/V6-173 (2.8L):

V6-173 (2.8L) V6-181 (3.0L) & V8-305 (5.0L)
