Chart C1E - Vac Sensor Check

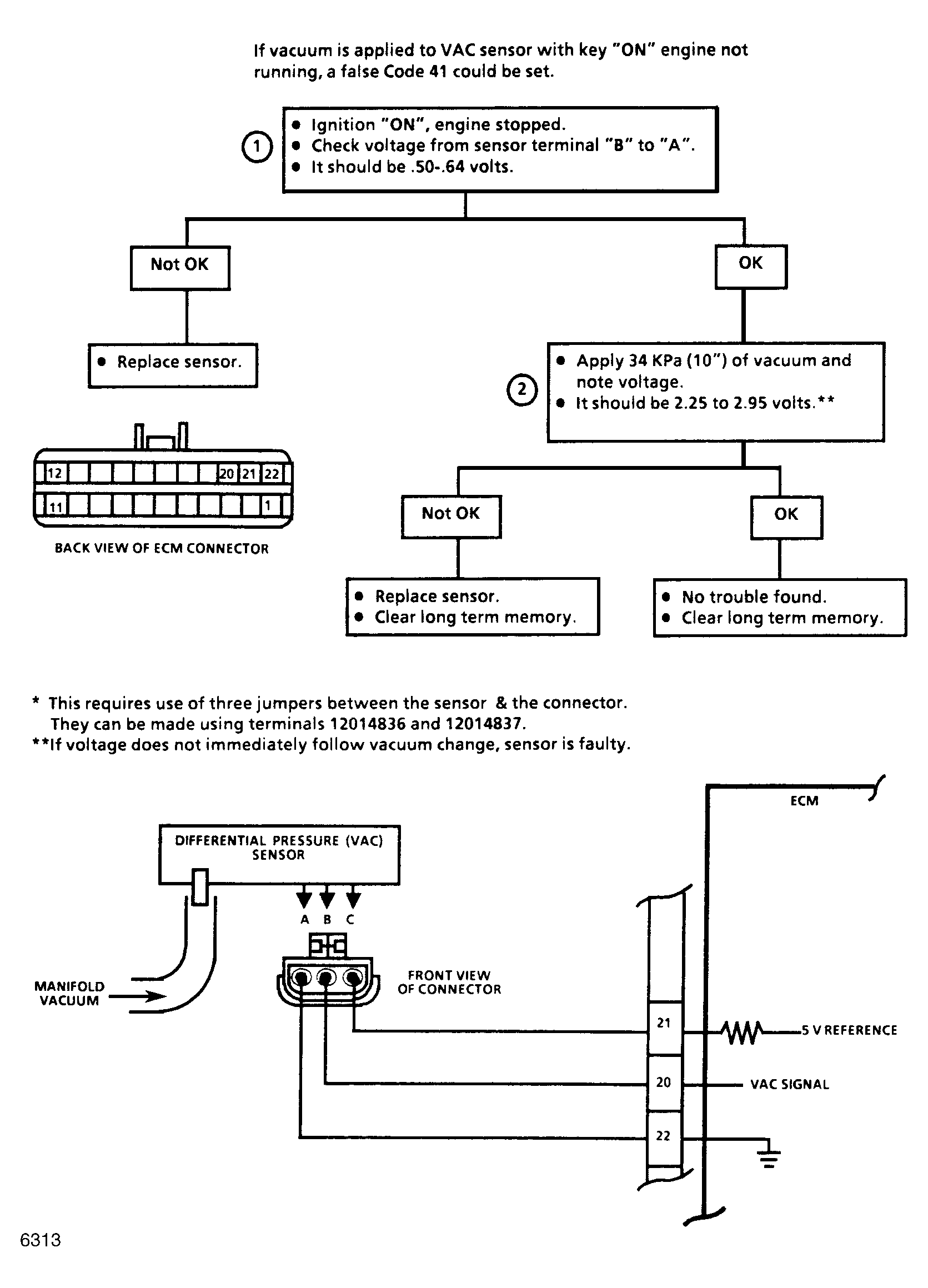

Fig 1: Flow Chart C1E, Differential Pressure Sensor (VAC) Check
G6313
Fig 2: Flow Chart C1E, Differential Pressure Sensor (VAC) Check
GB0045930
