Miscellaneous Components

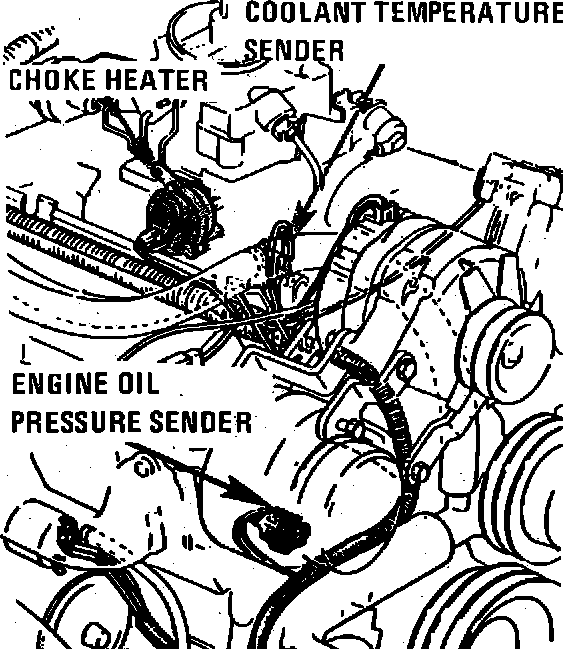

Top LH Front Of Engine.:




RH Front Of Engine, Above Oil Filter

Applicable to: Oldsmobile

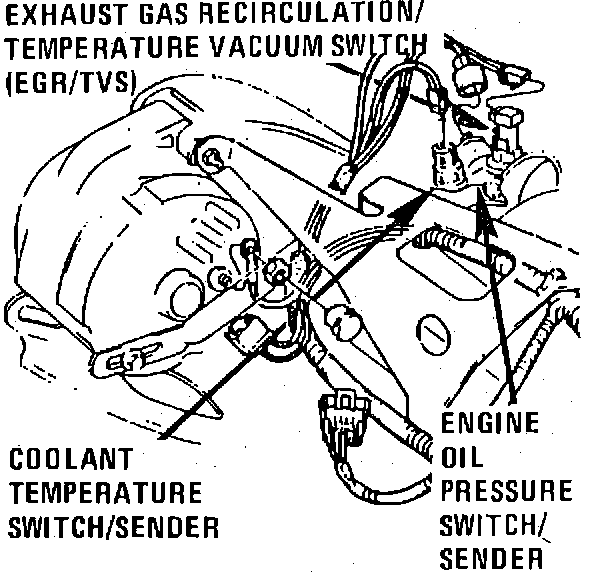

Top RH Side Of Engine.:




Front Portion Of Engine

Applicable to: Oldsmobile
