Emission Control Systems: Locations

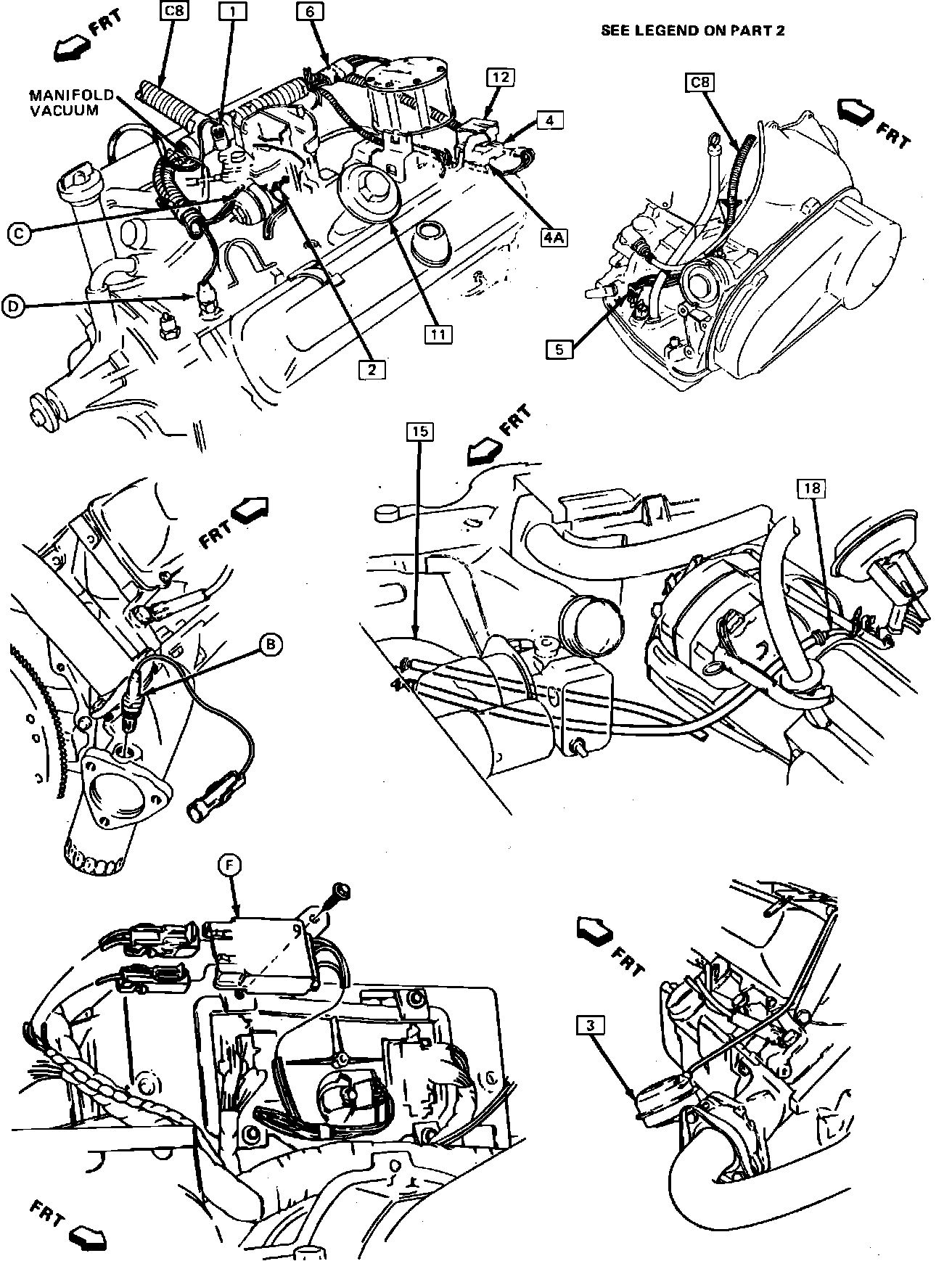

Fig. 30a Emission Component Location. 1985 Toronado W/V8-307/5.0L, 4 Bbl. (Part 1 of 2):

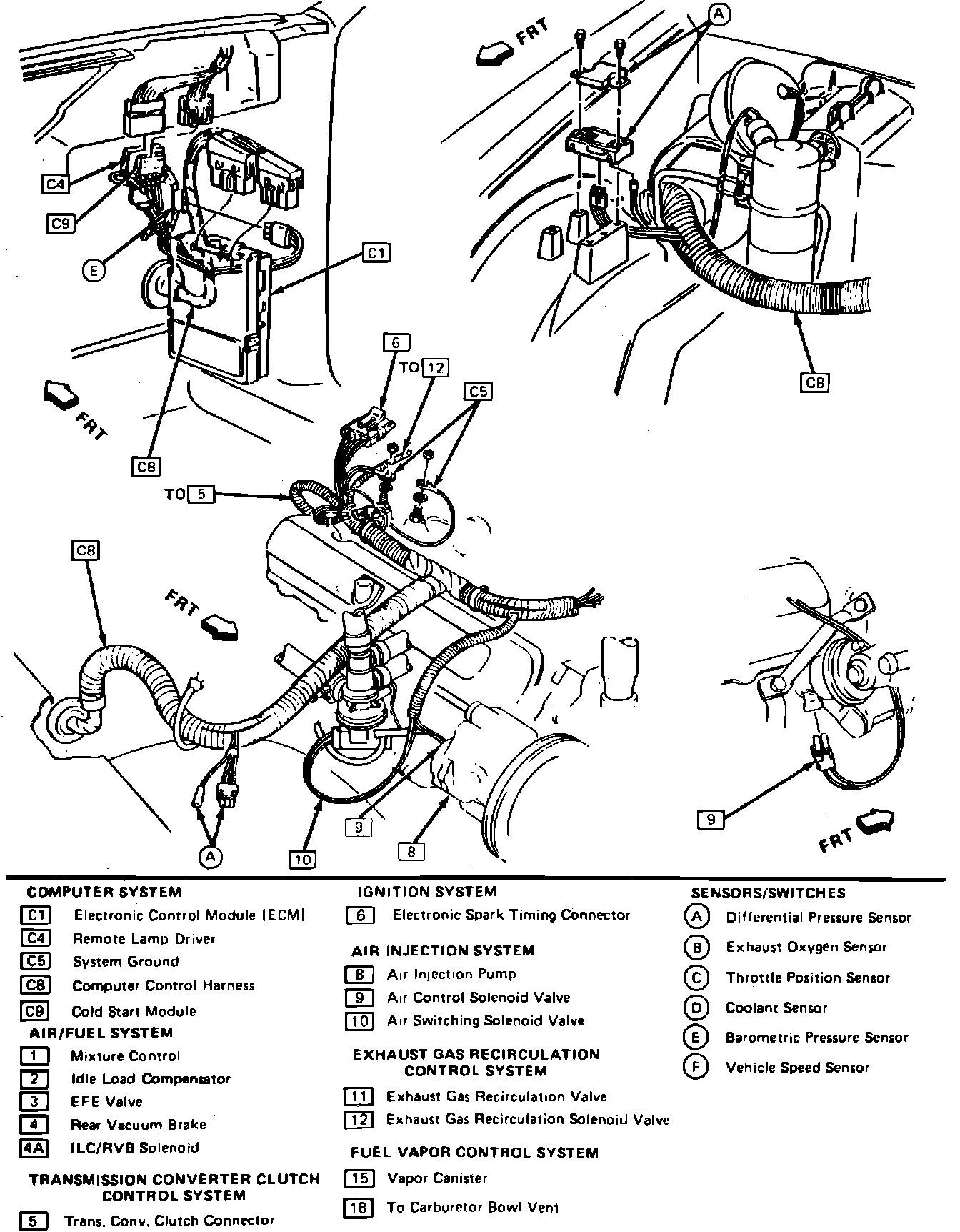

Fig. 30b Emission Component Location. 1985 Toronado W/V8-307/5.0L, 4 Bbl. (Part 2 of 2):
