Starting and Charging: Specifications

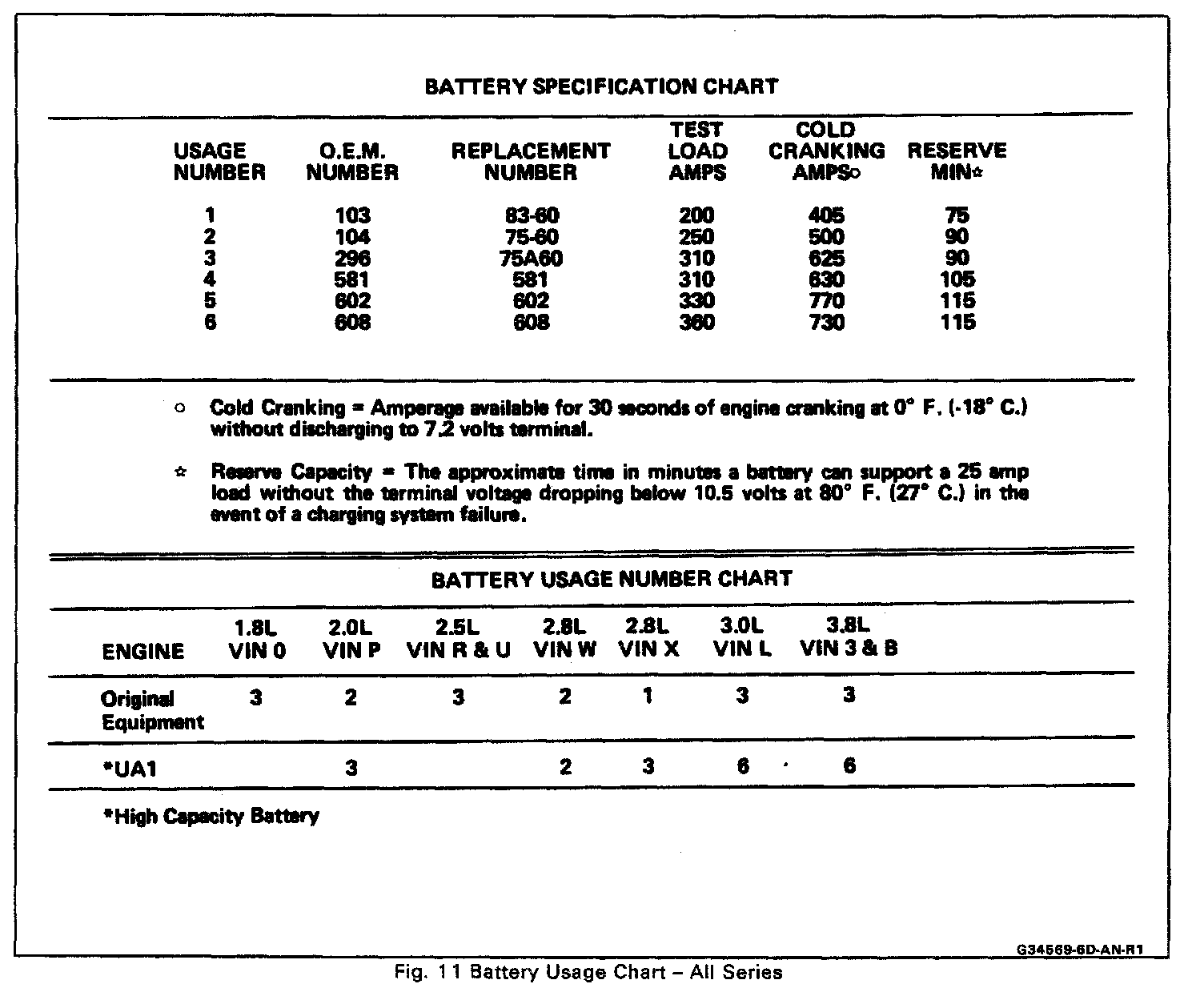

BATTERY SPECIFICATIONS

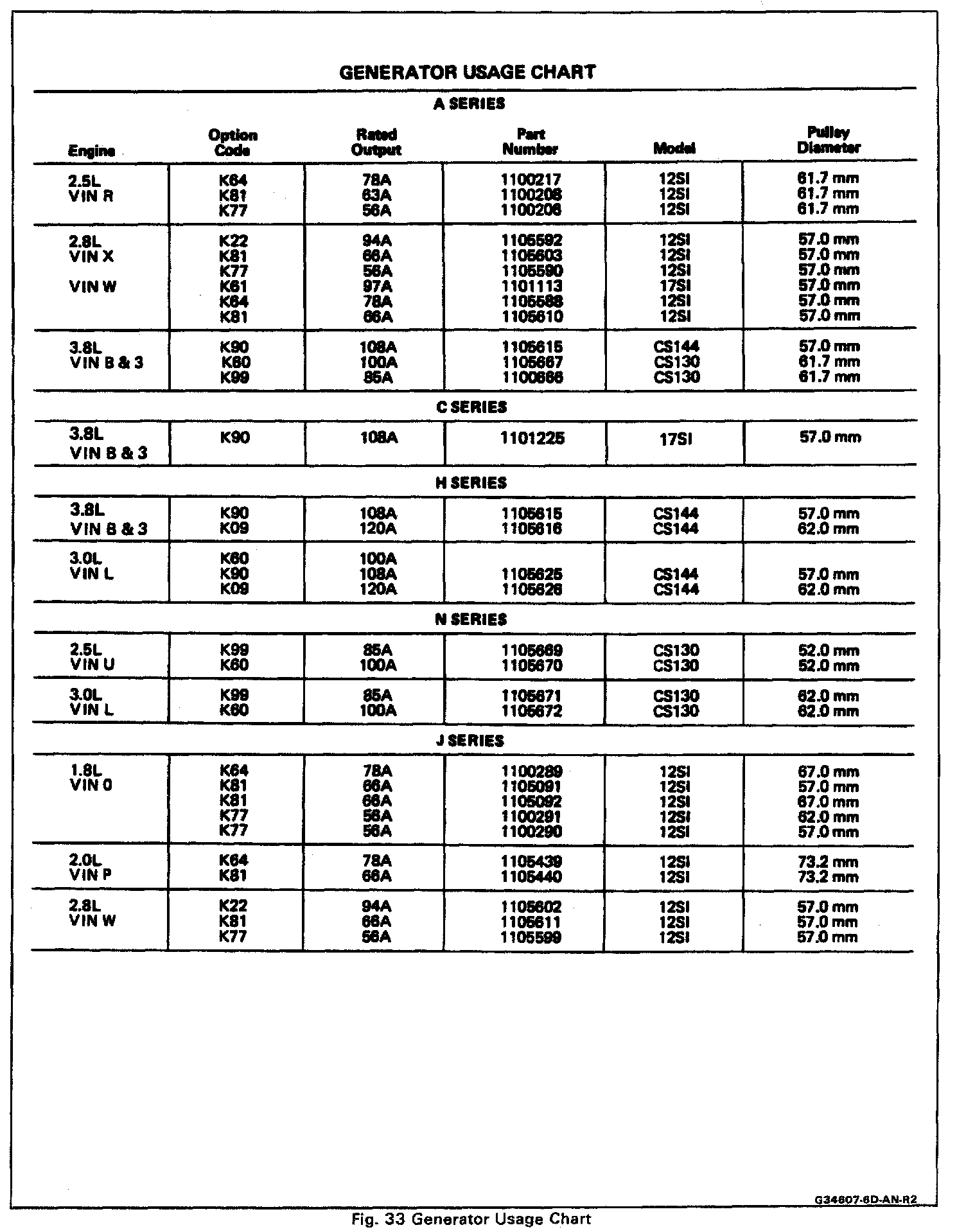

ALTERNATOR SPECIFICATIONS

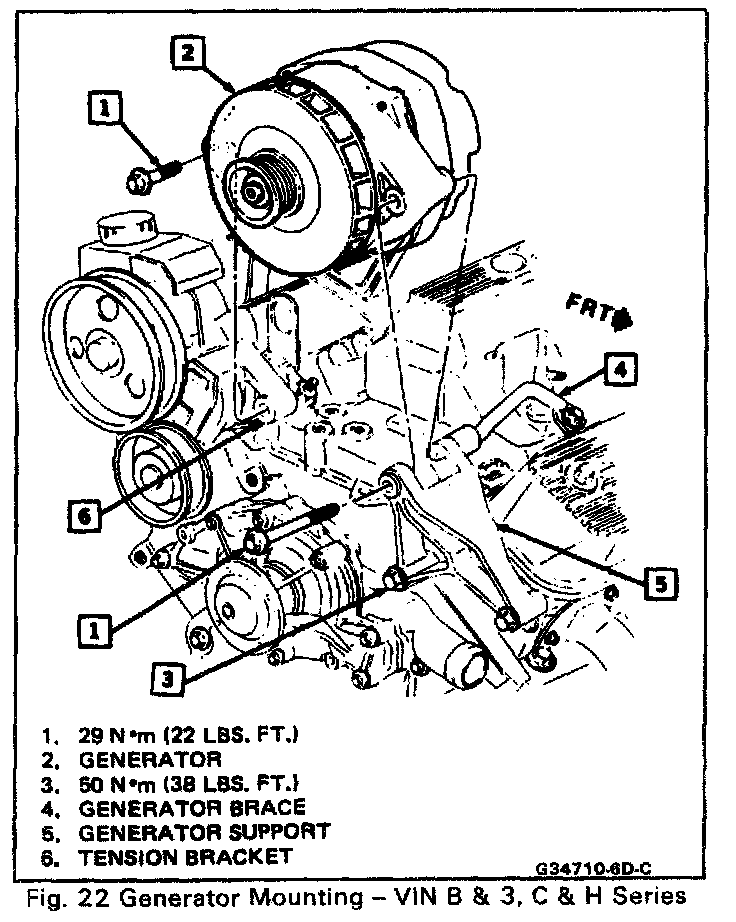

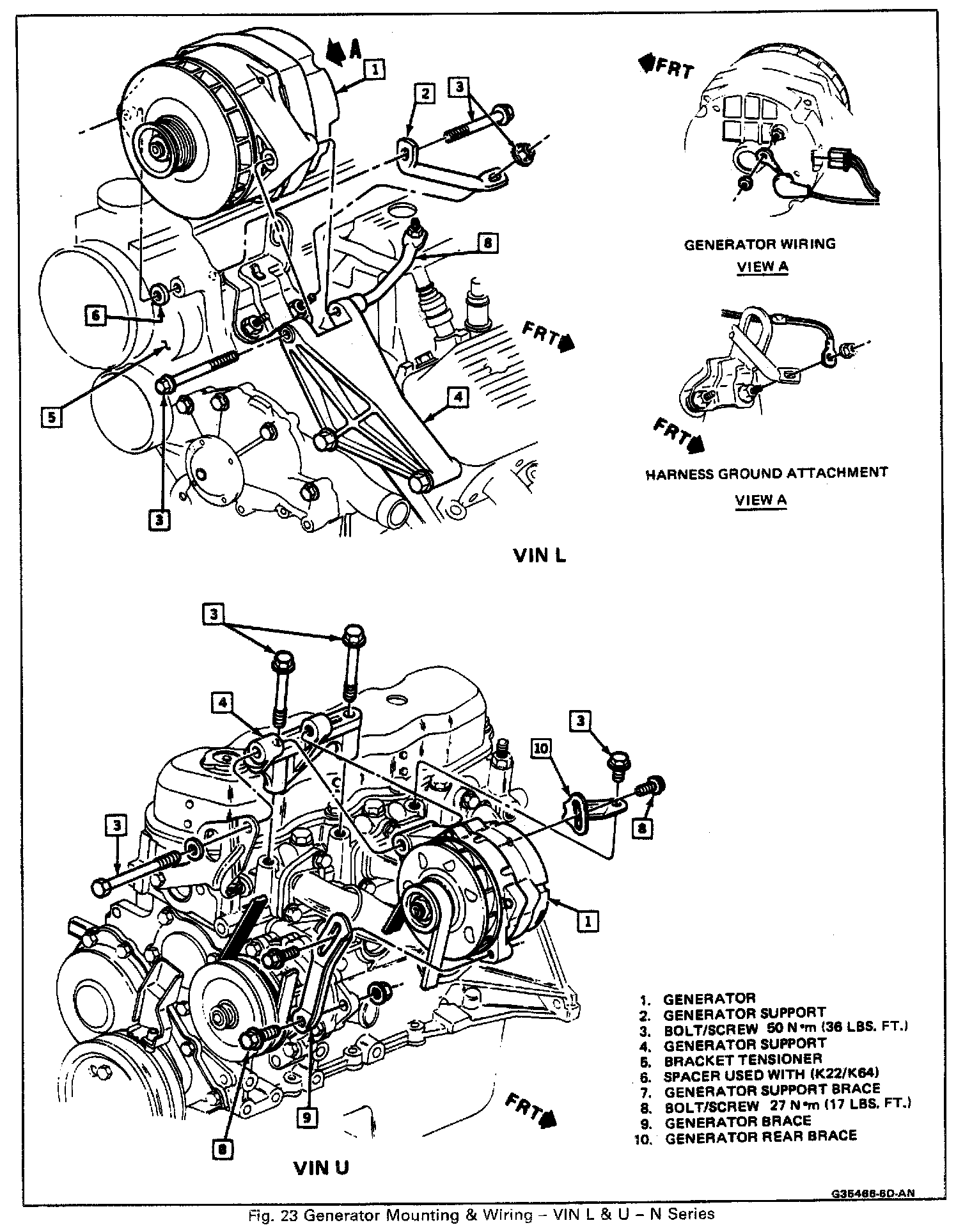

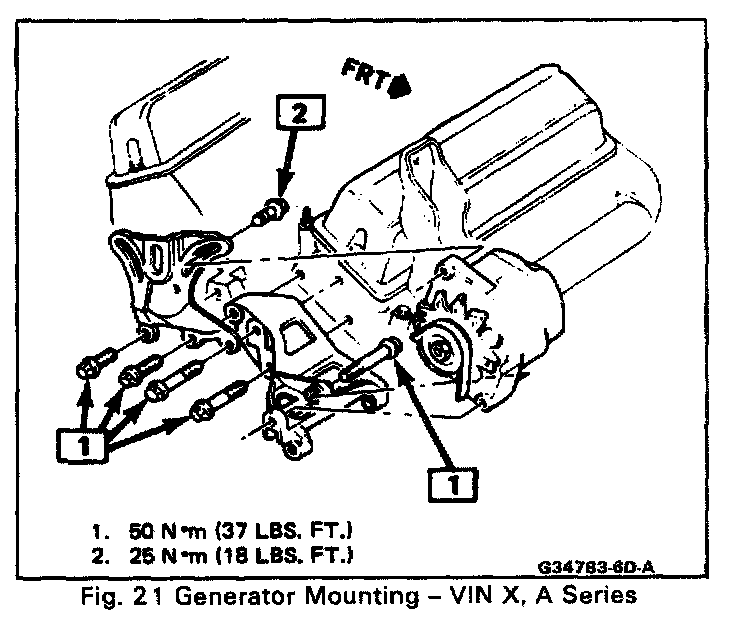

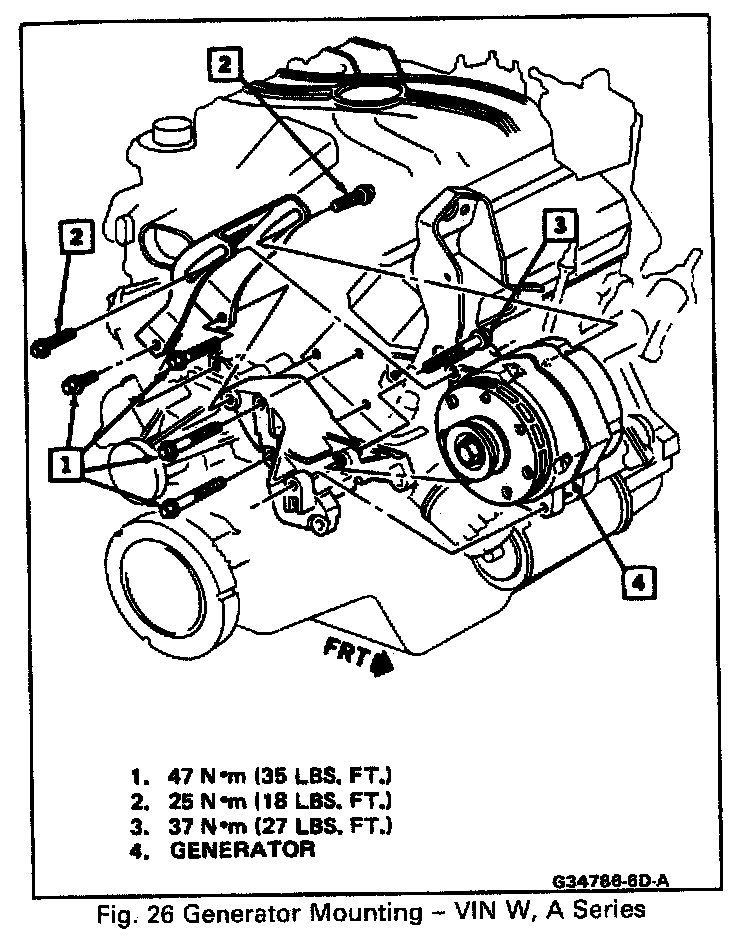

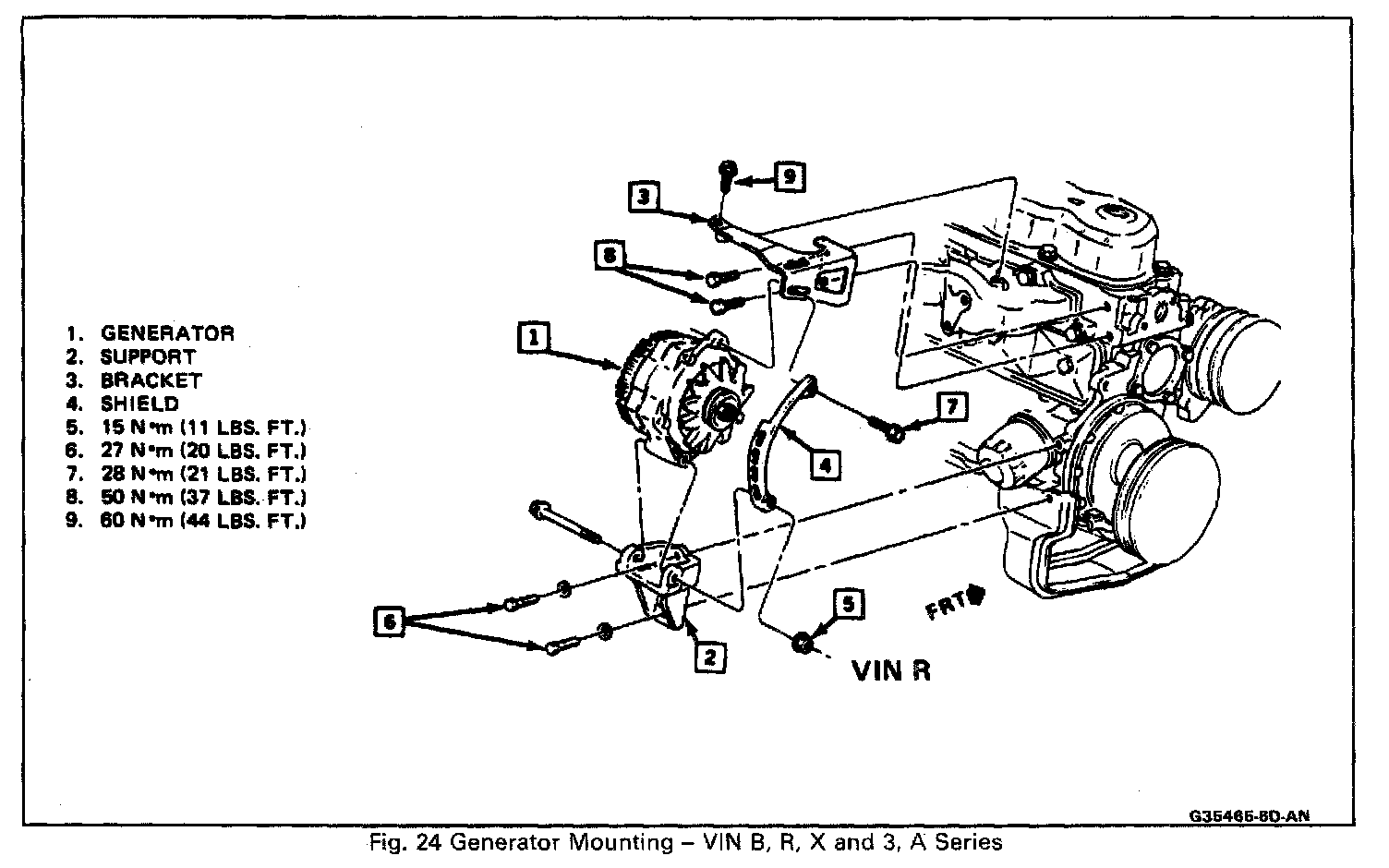

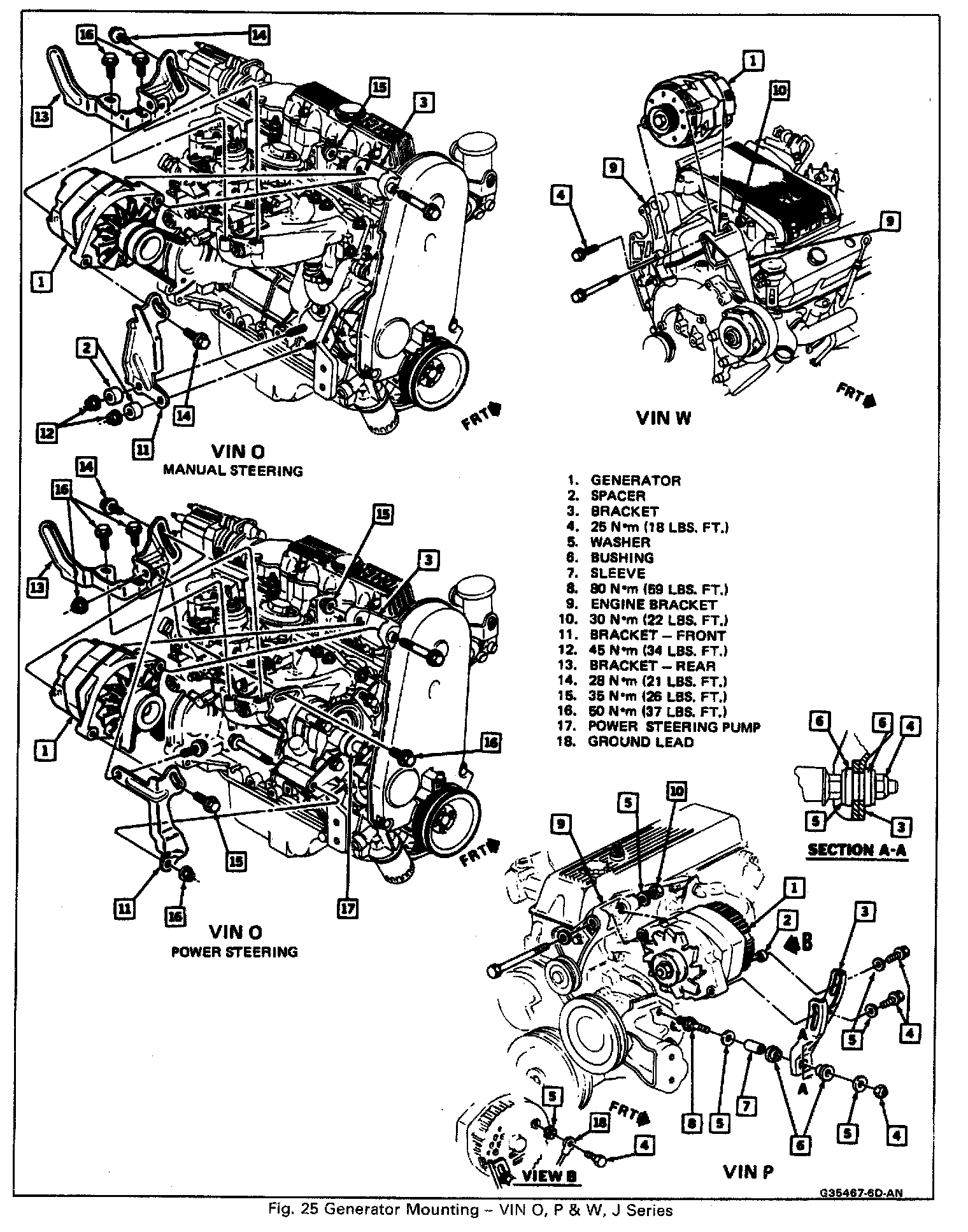

ALTERNATOR TORQUE SPECIFICATIONS

I Of VI:

II Of VI:

III Of VI:

IV Of VI:

V Of VI:

VI Of VI:

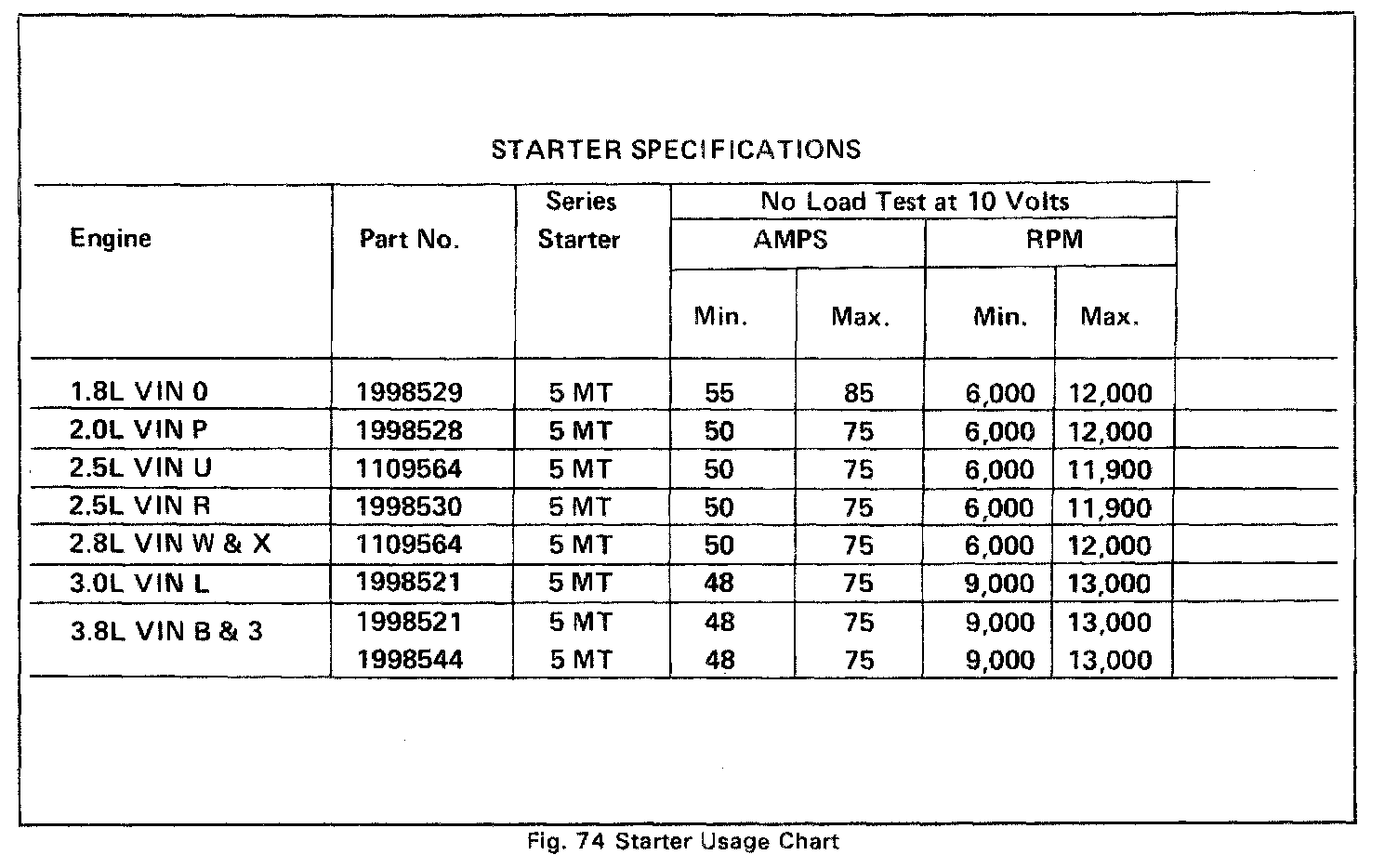

STARTER SPECIFICATIONS

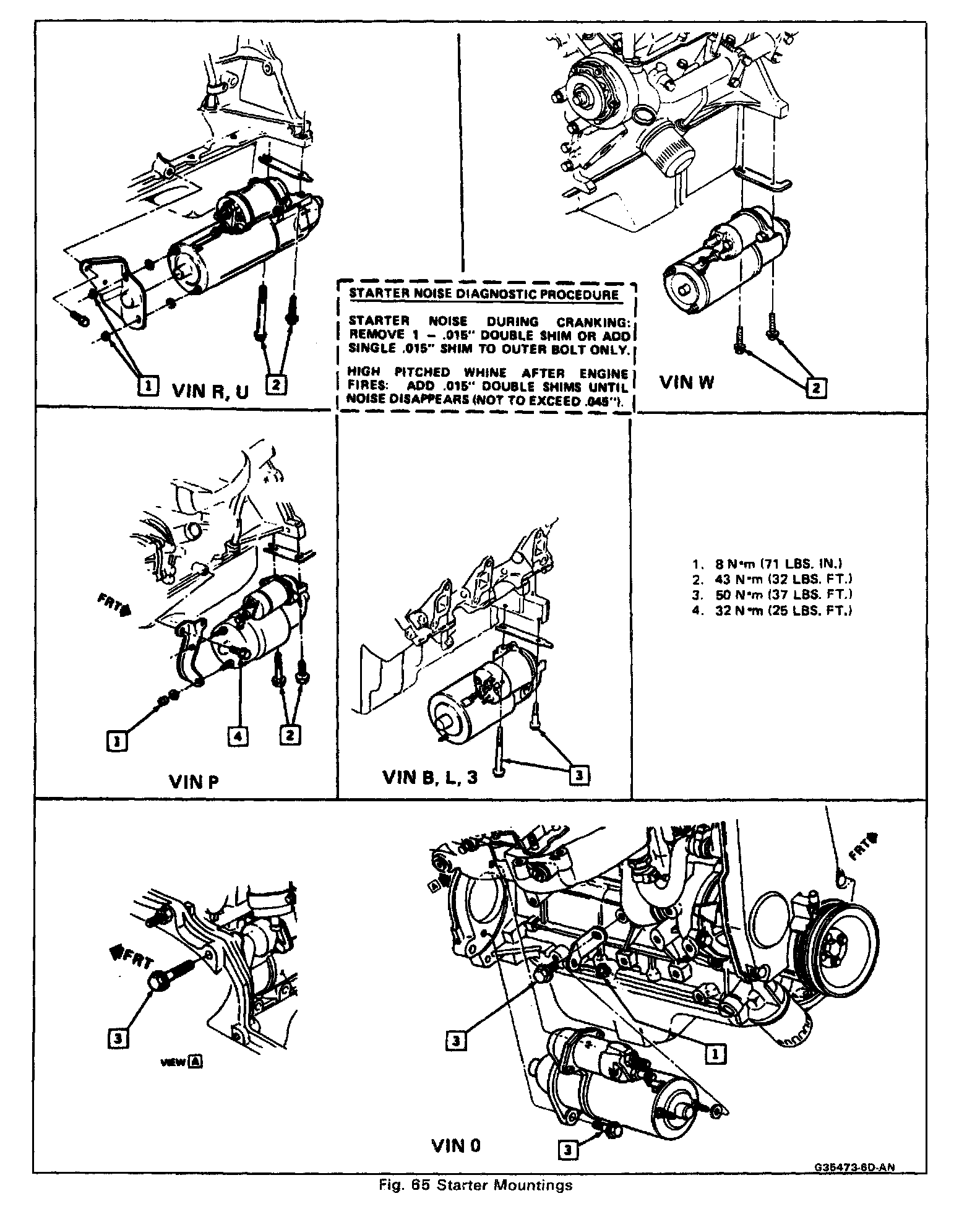

STARTER TORQUE SPECIFICATIONS
