Computer Controlled Coil Ignition Module

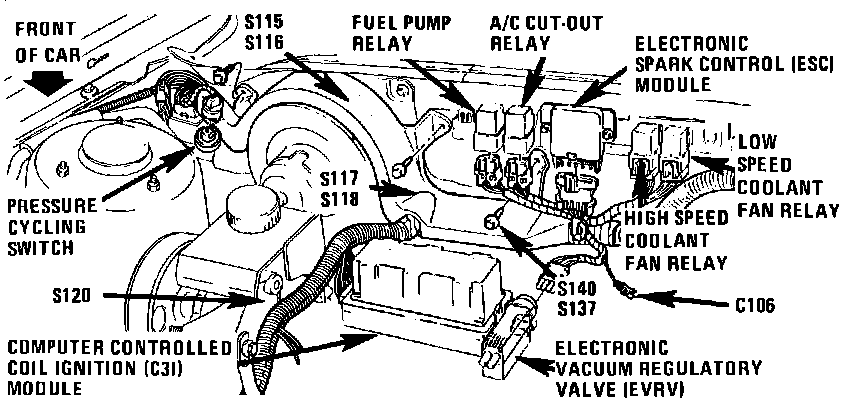

Underhood Component Location.:

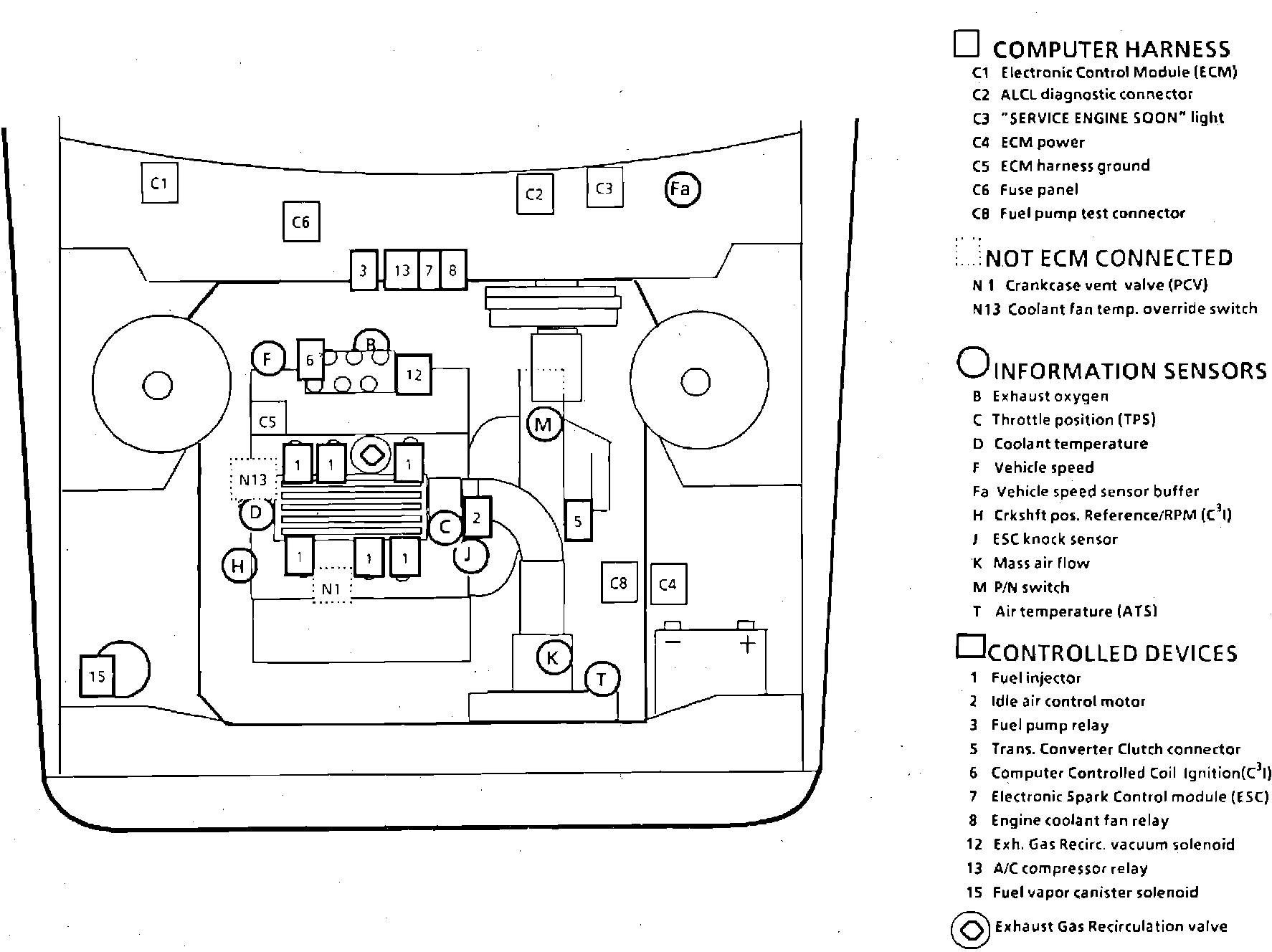

��Component Locator Views.:
RH Front Of Dash.:

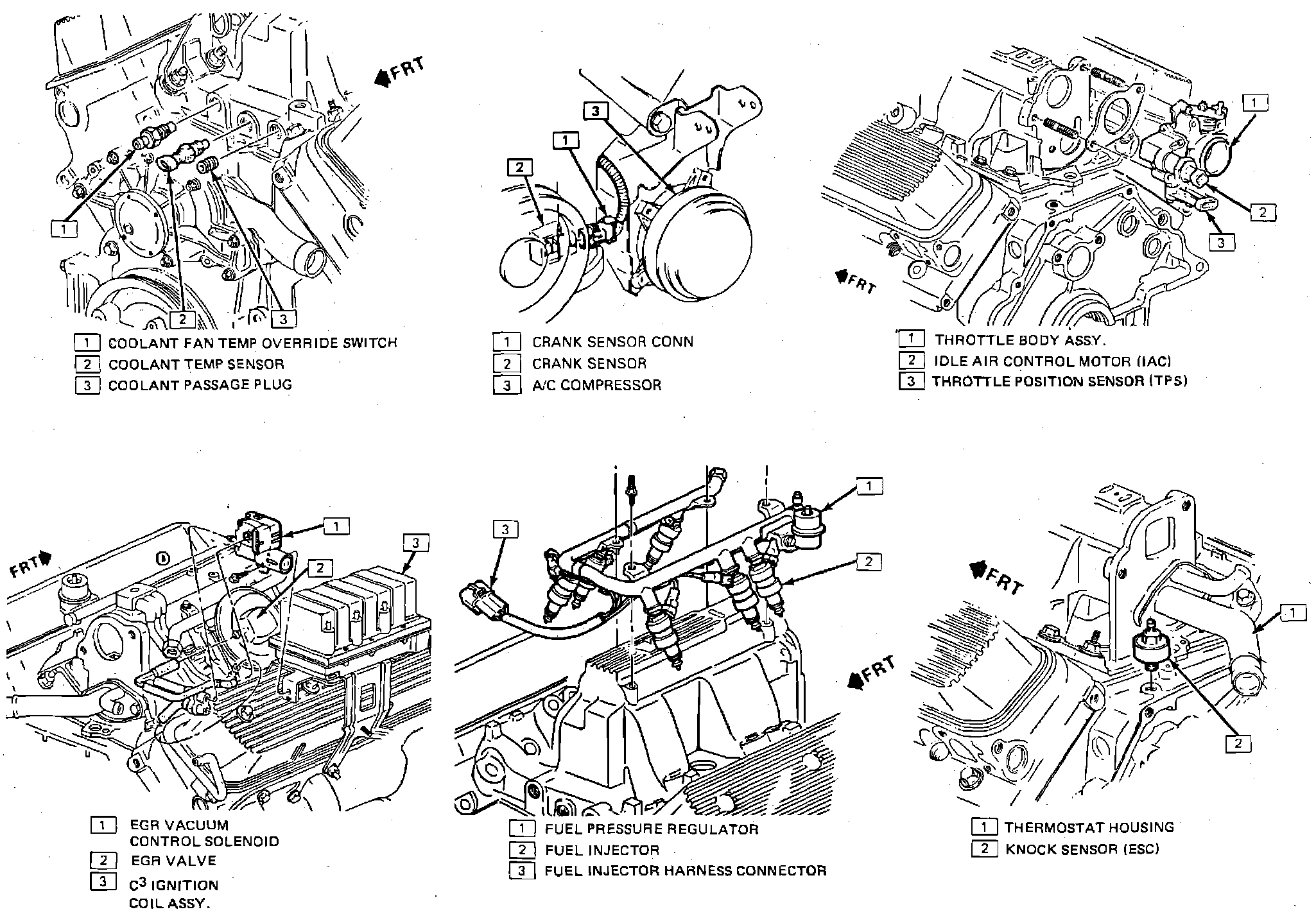

Top RH Rear Of Engine
Applicable to: 1986 (V6-181/3.0L)
