EXPERTEC TSB (86-T-5)

Publication date: 1985-10-28
Reference number: 86-T-5

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 86-T-5, Date of Issue: 10/28/85

REVISED DIAGNOSTIC CHARTS - '86 PRELIMINARY SHOP MANUALS

Model(S): 1986 Cutlass Ciera, Cutlass Supreme And Custom Cruiser

Bulletin No.: Oldsmobile 86-T-5

Date: 10/28/1985

BULLETIN ILLUSTRATION LIST

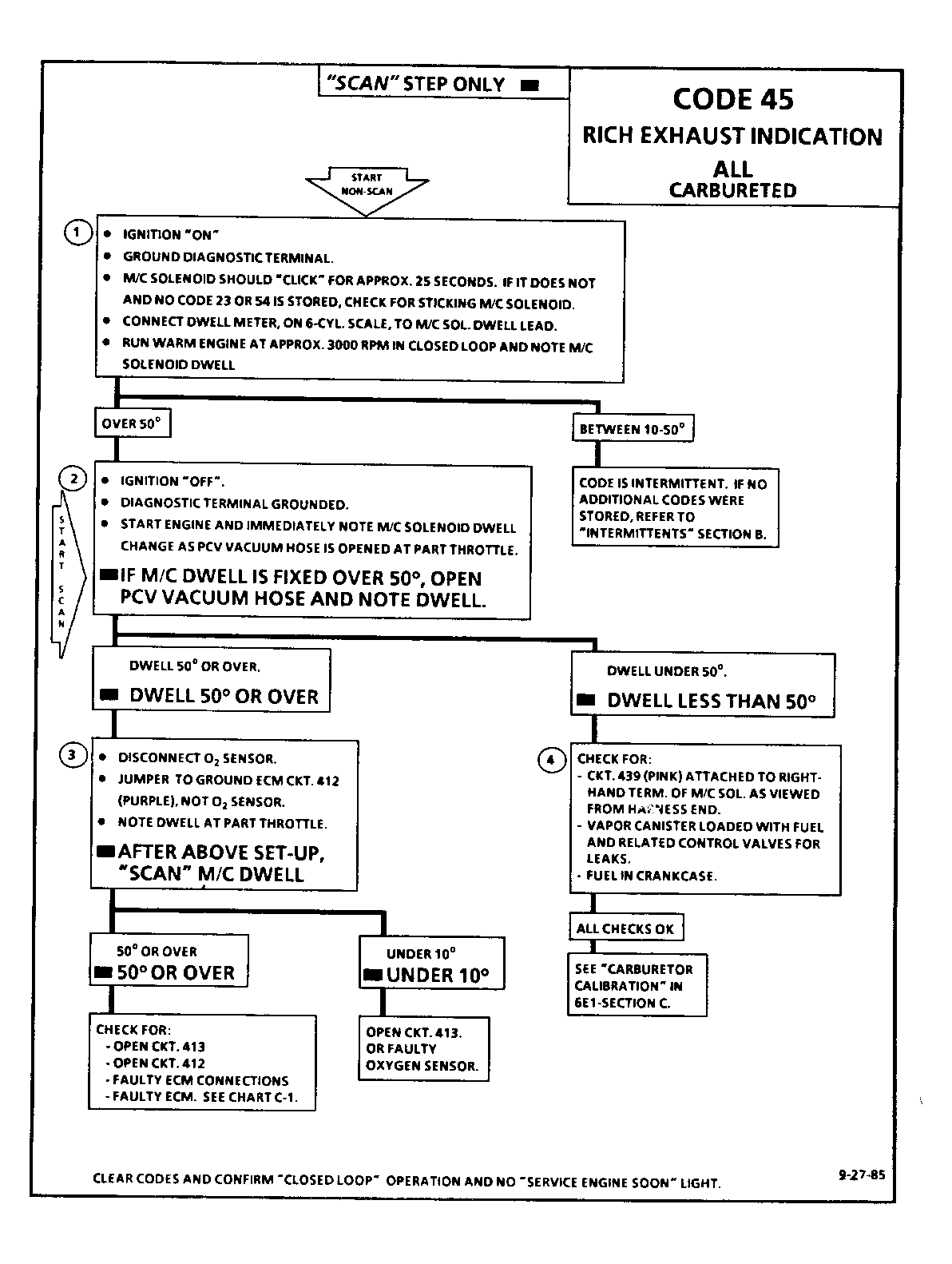

Fig 1: Graphic

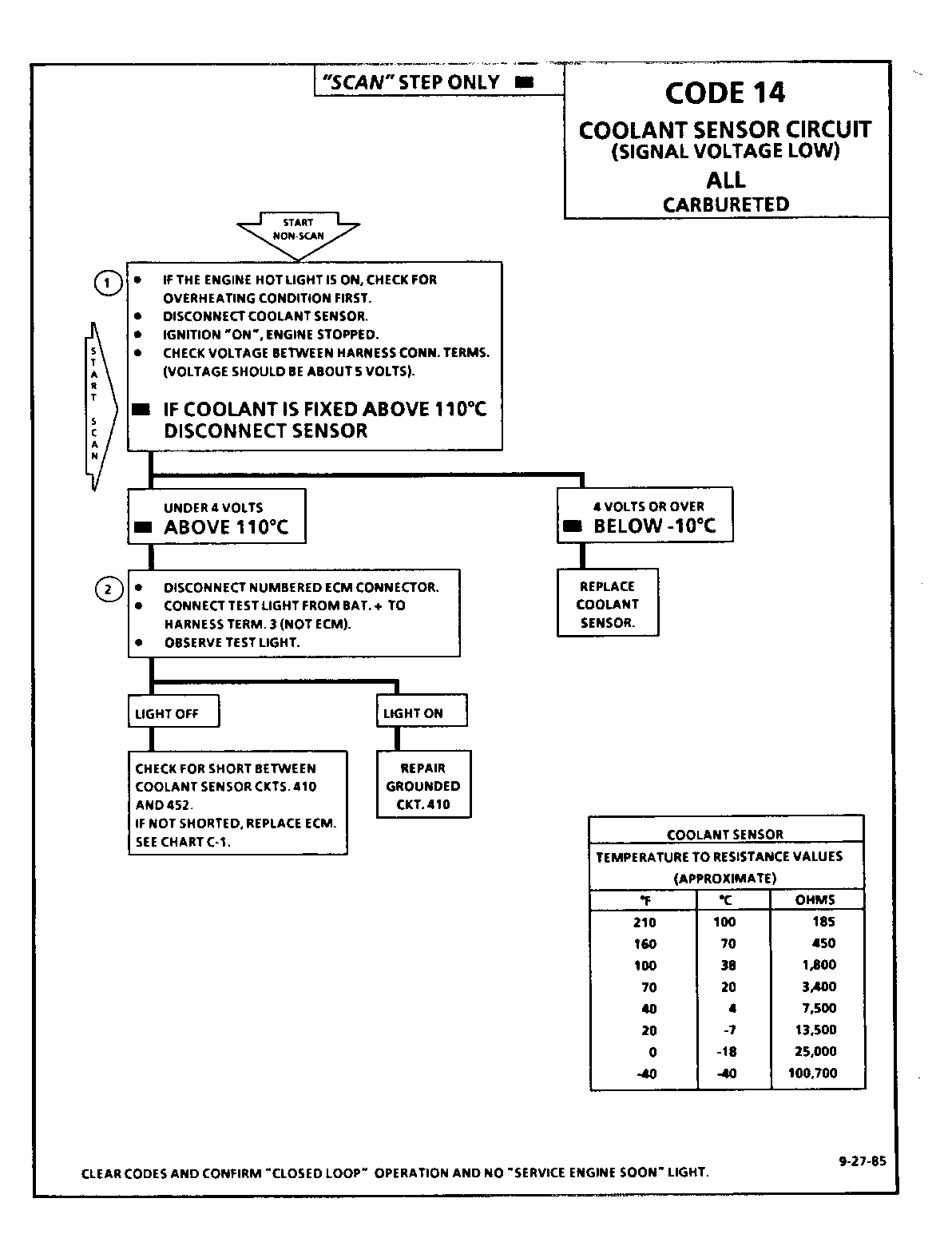

Fig 2: Graphic

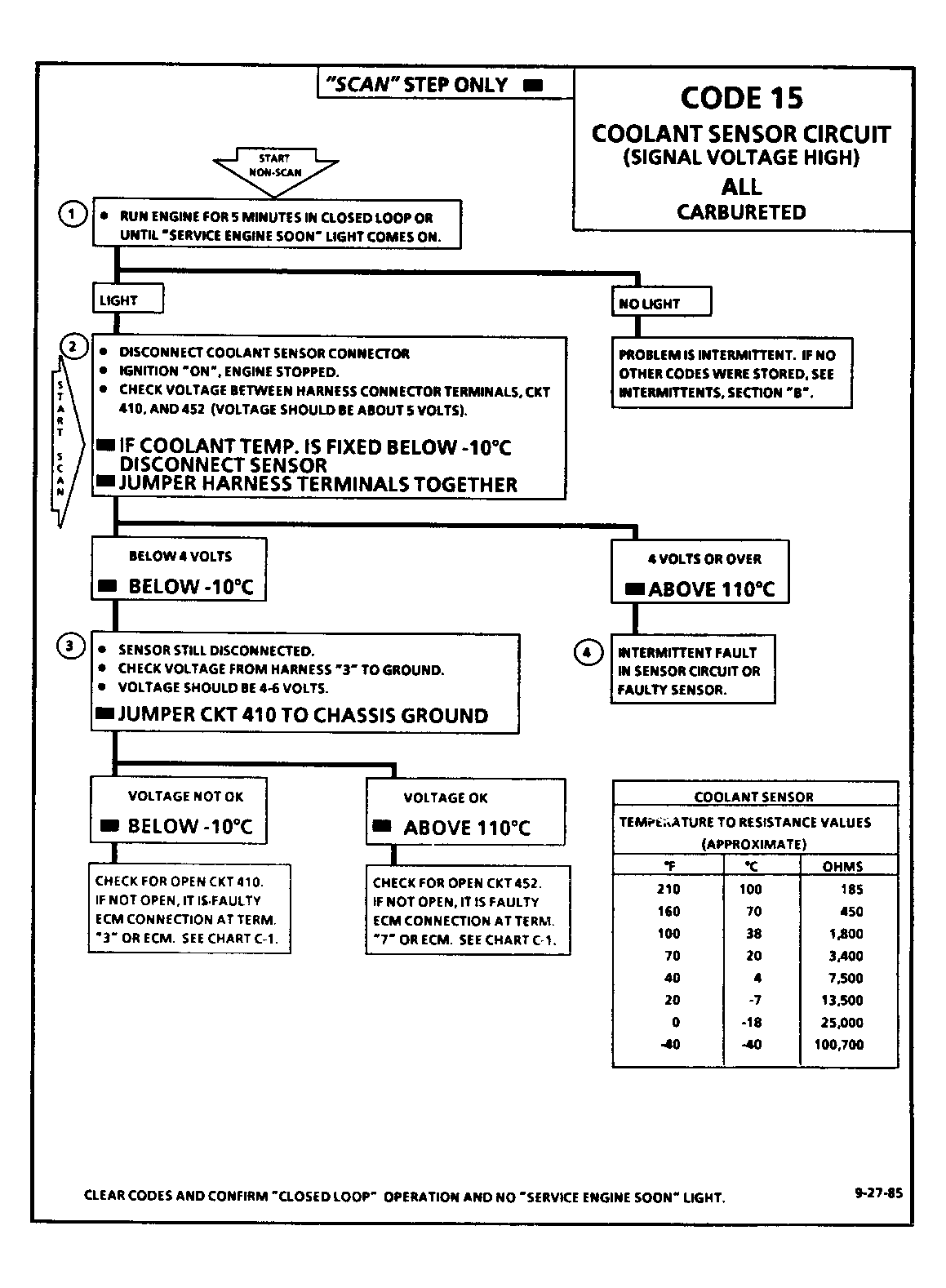

Fig 3: Graphic

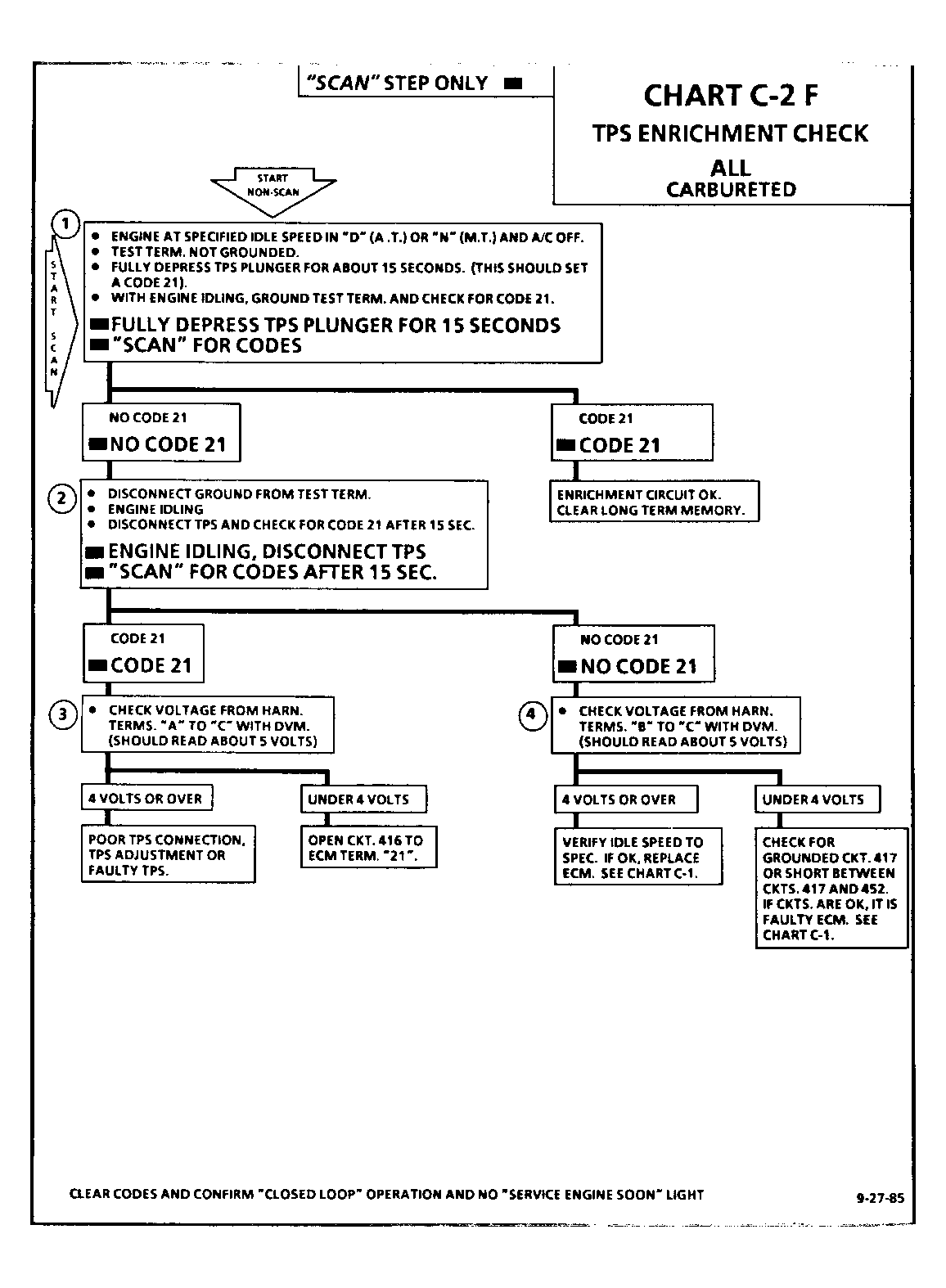

Fig 4: Graphic

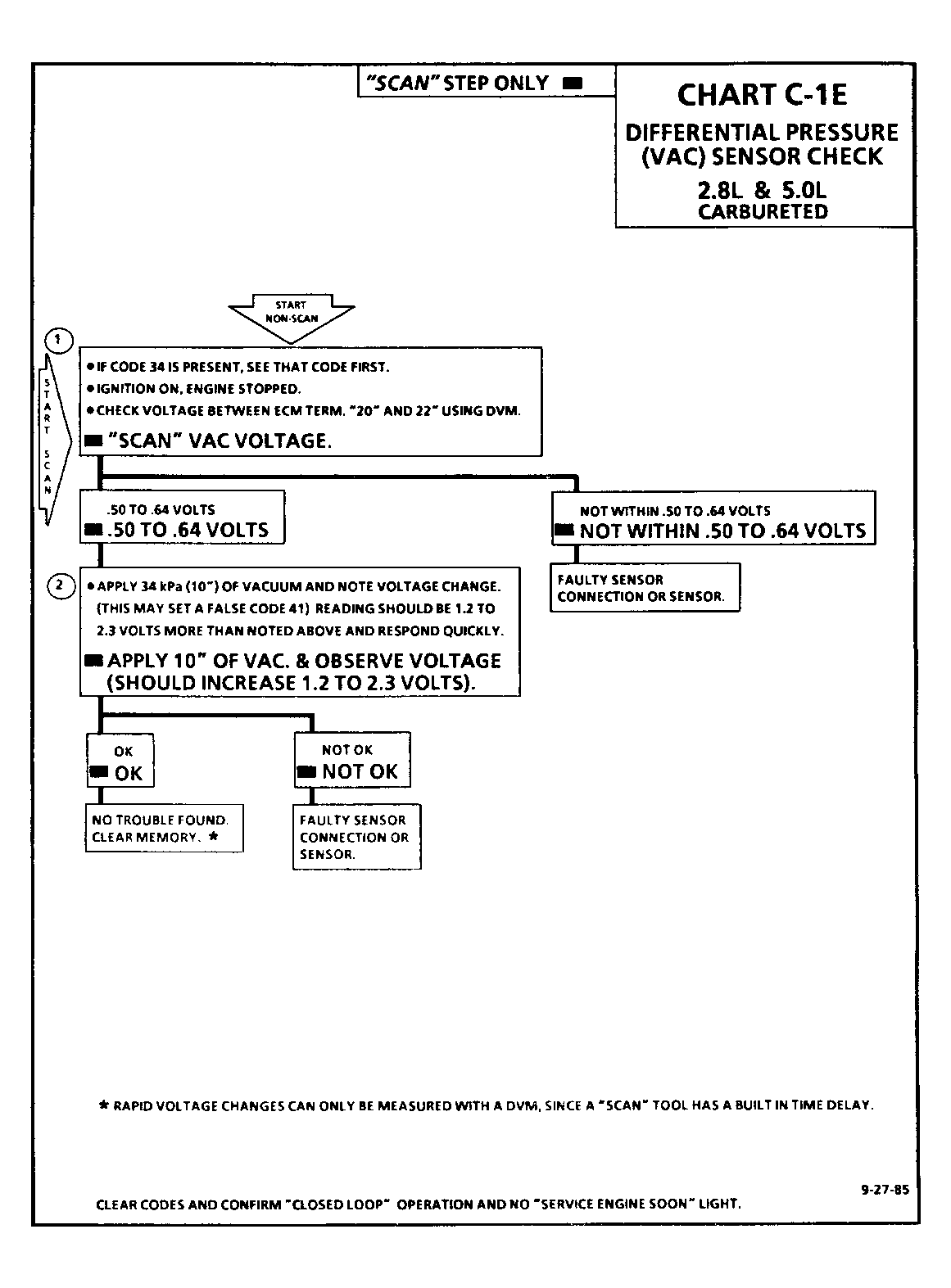

Fig 5: Graphic

SERVICE INFORMATION

Certain Driveability and Emissions - Carbureted Diagnostic Charts have been revised for 1986 models. Please update the applicable pages of your 1986 Oldsmobile New Product Service Information Manual - All Series Except Toronado with this revised information.
