A/C Signal: Locations

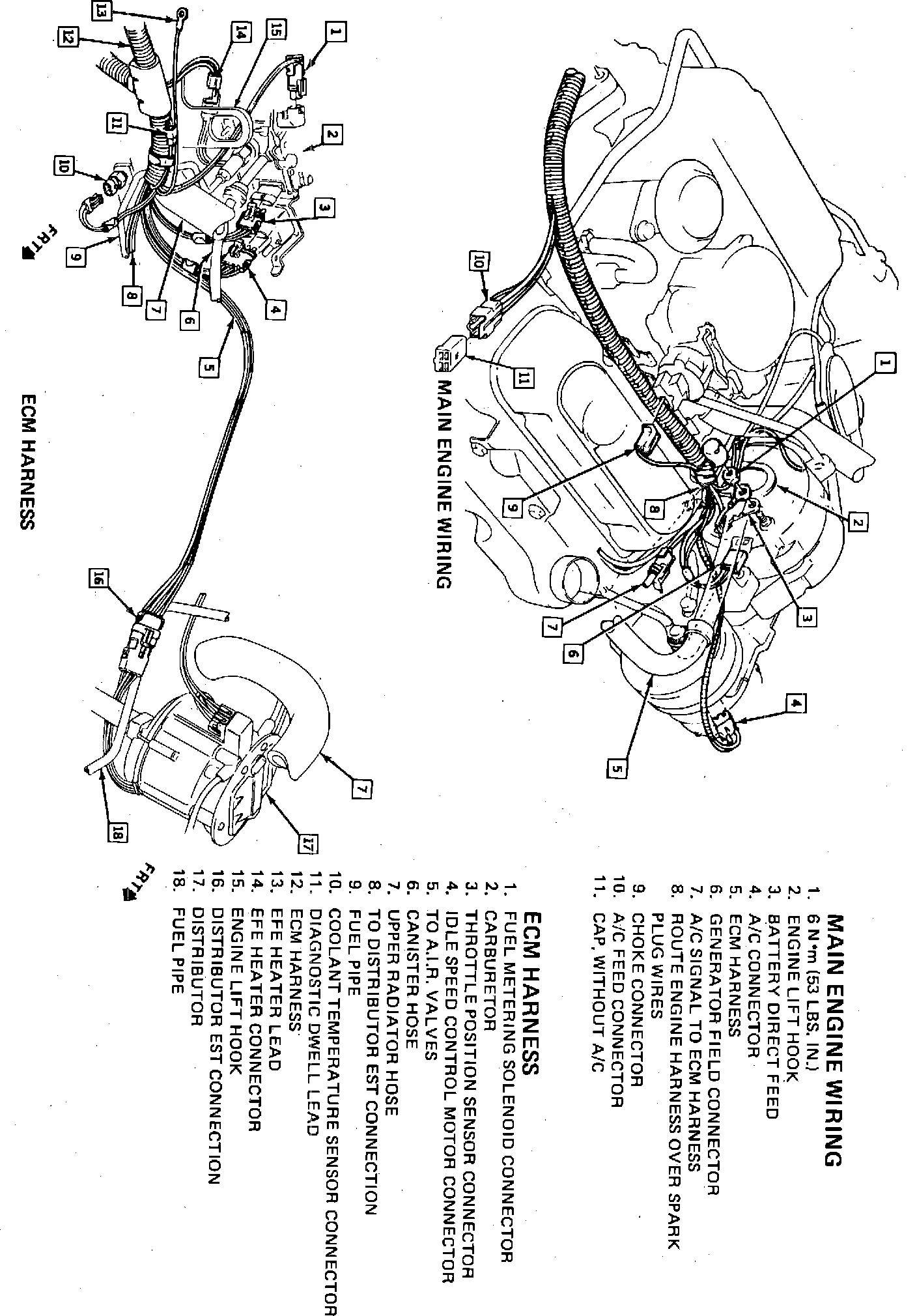

Engine Wiring. Part (1 Of 2):




Engine Wiring. Part (2 Of 2):

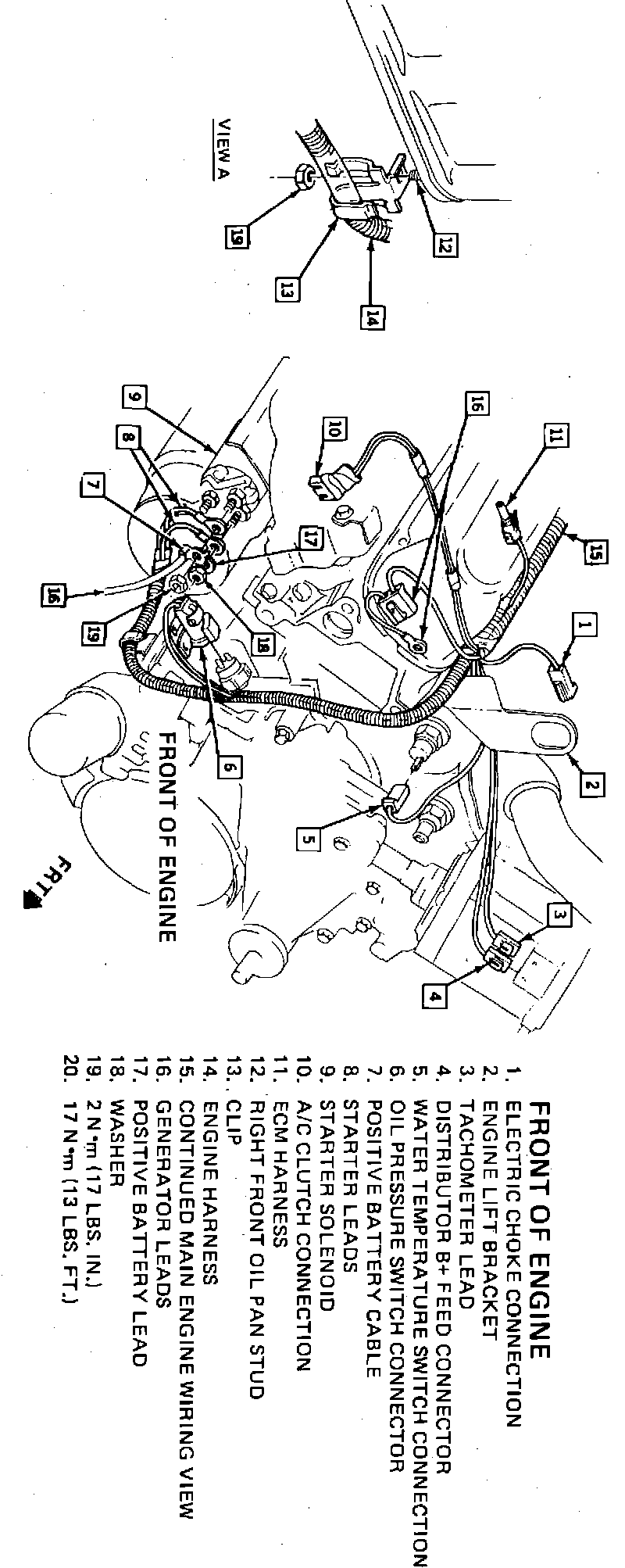

RH Front Of Engine

Applicable to: 1986 V6-231/3.8L, Cutlass Supreme (Part 1 Of 2)
