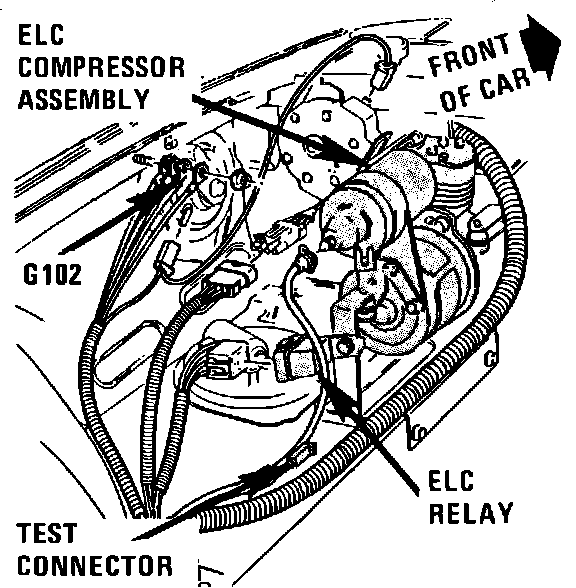

ELC Compressor Assembly

LH Side Of Engine Compartment:




LH Side Of Engine Compartment, Behind Headlamps

Applicable to: 1986-87 Electra, 88 & 98 & 1987 Bonneville
