PRNDL Decoder Module & Transaxle Position Switch

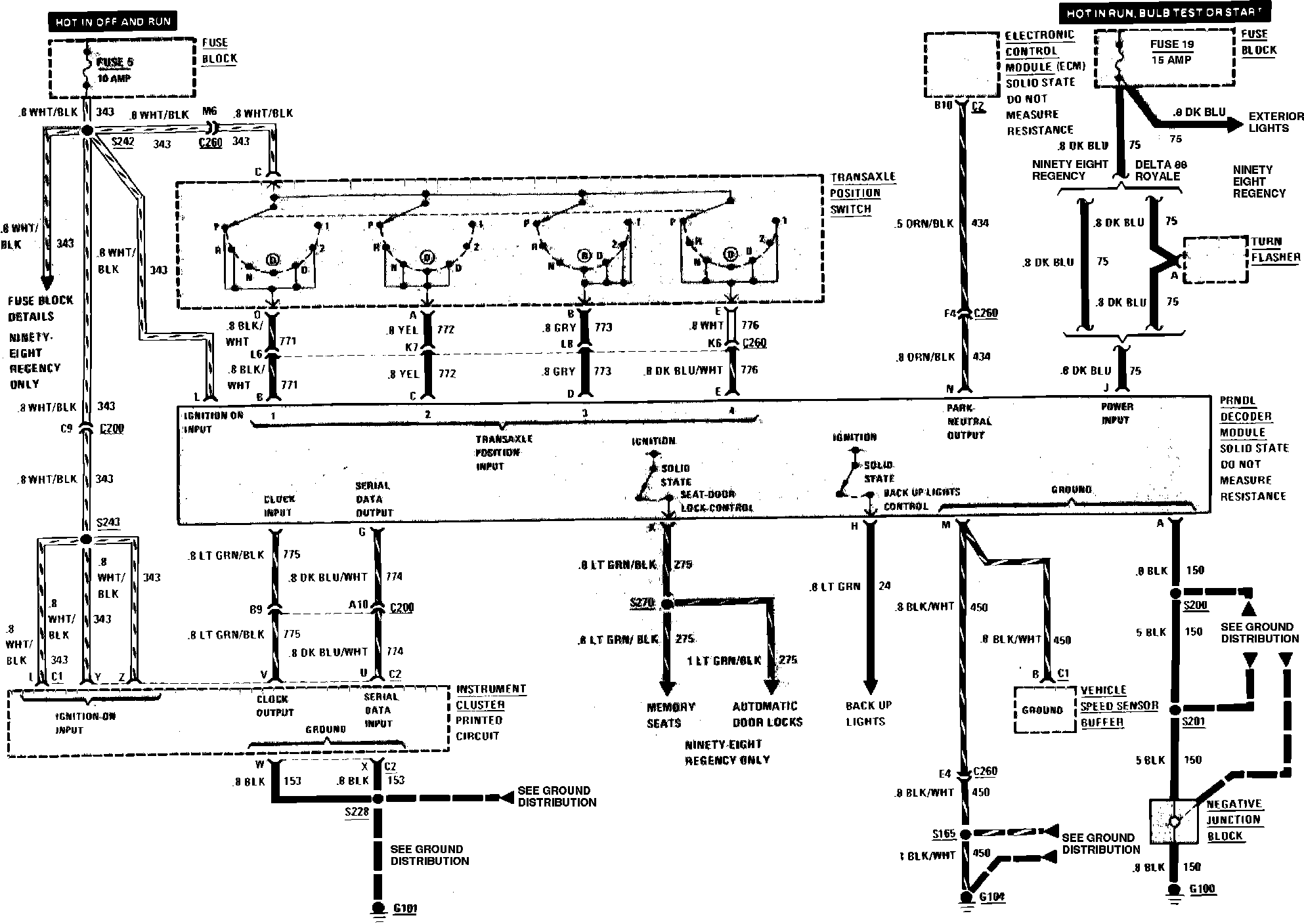

Instrument Panel Indicators, Decoder Module & Transaxle Position Switch Wiring Circuit. W/Digital Cluster:
