Wiring Diagrams

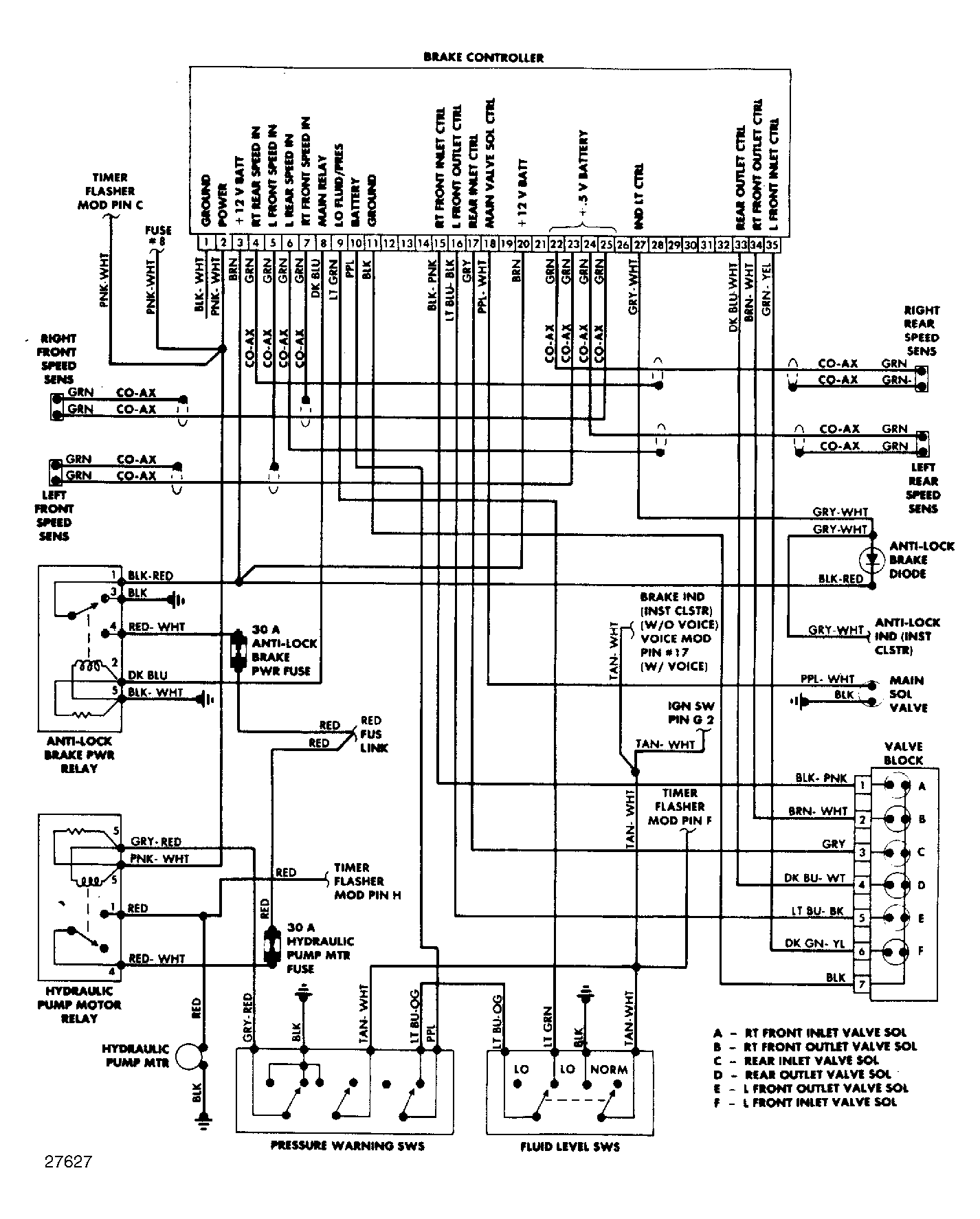

Fig 1: 1986 Anti-Lock Brake System Wiring Diagram
G27627

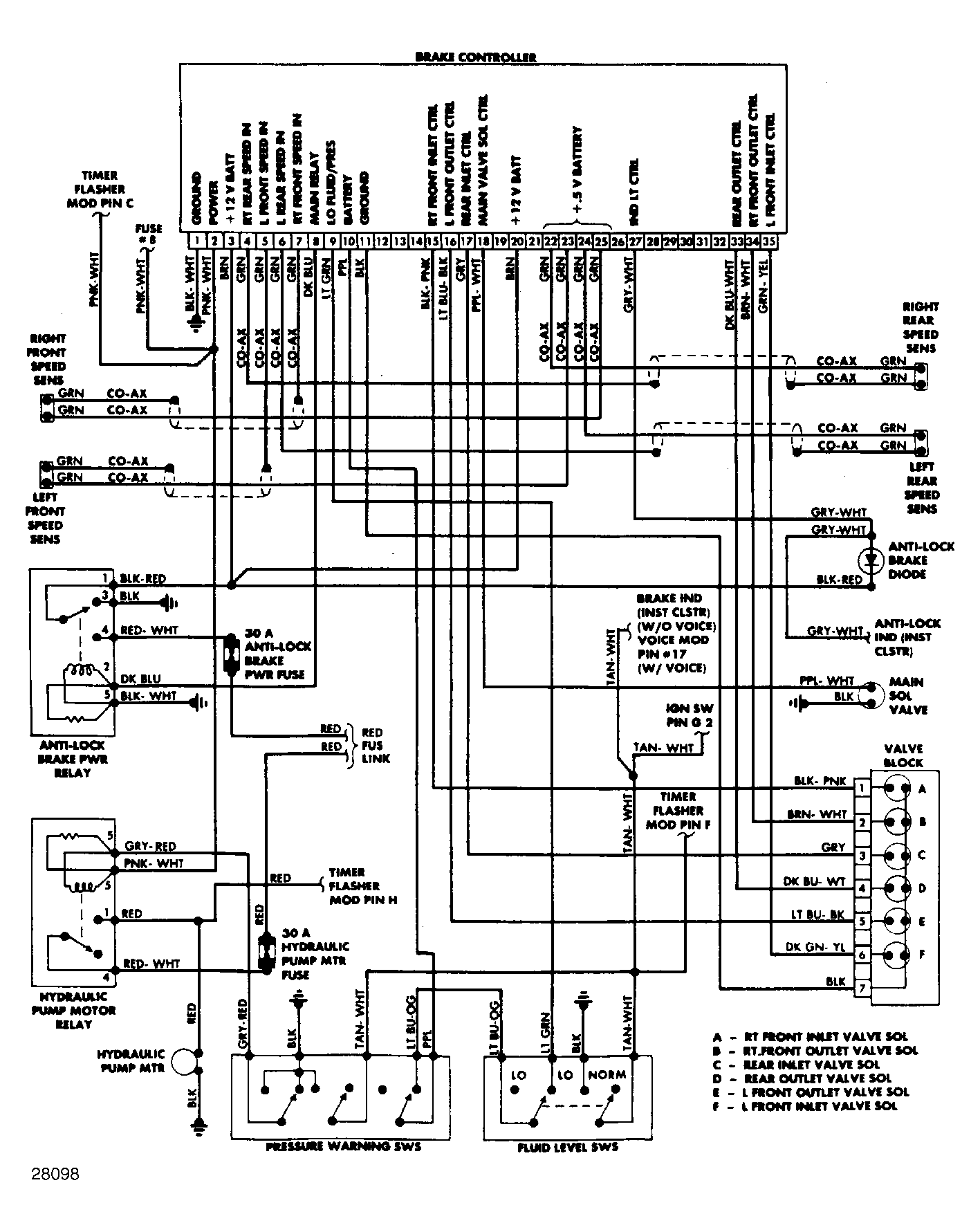

Fig 2: 1987 Anti-Lock Brake System Wiring Diagram
G28098

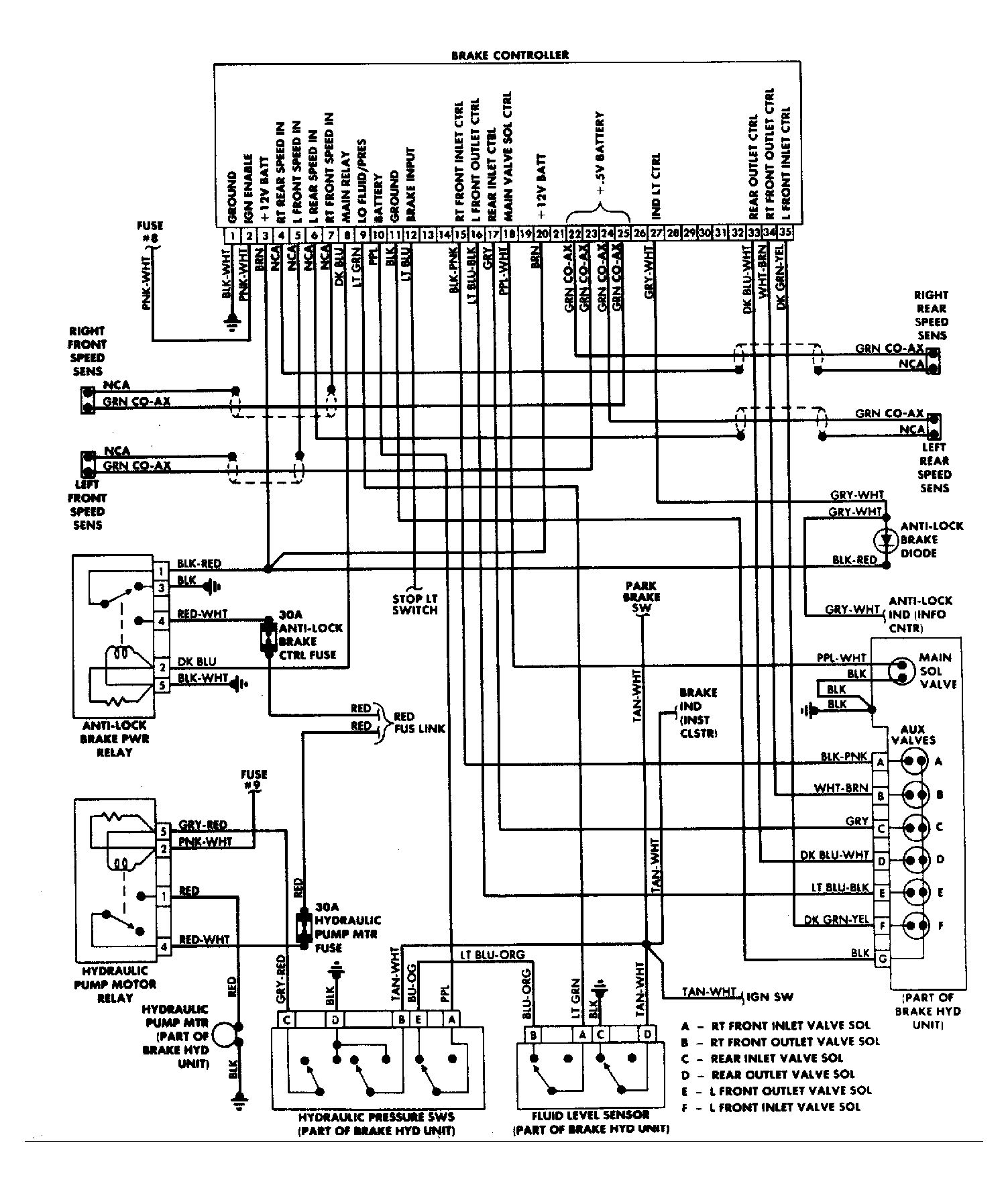

Fig 3: 1988 Anti-Lock Brake System Wiring Diagram
G56114
