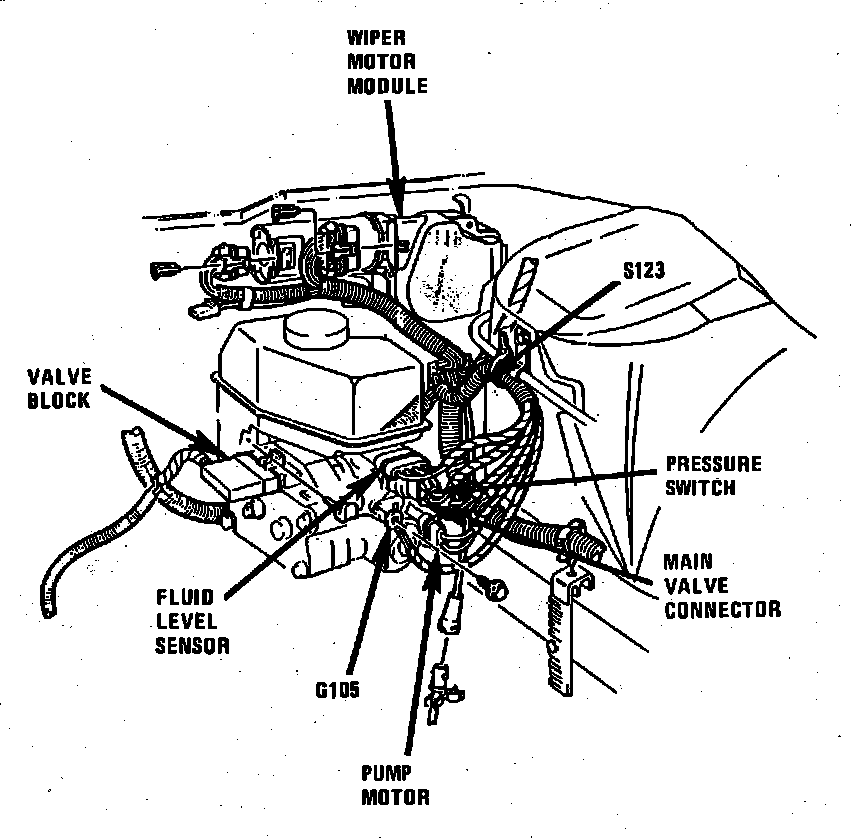

Valve Block
LH Front Of Dash:
LH Rear Of Engine Compartment, Below Master Cylinder
Applicable to: Electra, LeSabre, 88 & 98
