Isolation Test: Conditions
Do the tests in the order shown
Ignition Switch: Run
Test w/quick checker (J-34185 or equivalent) or Digital Meter

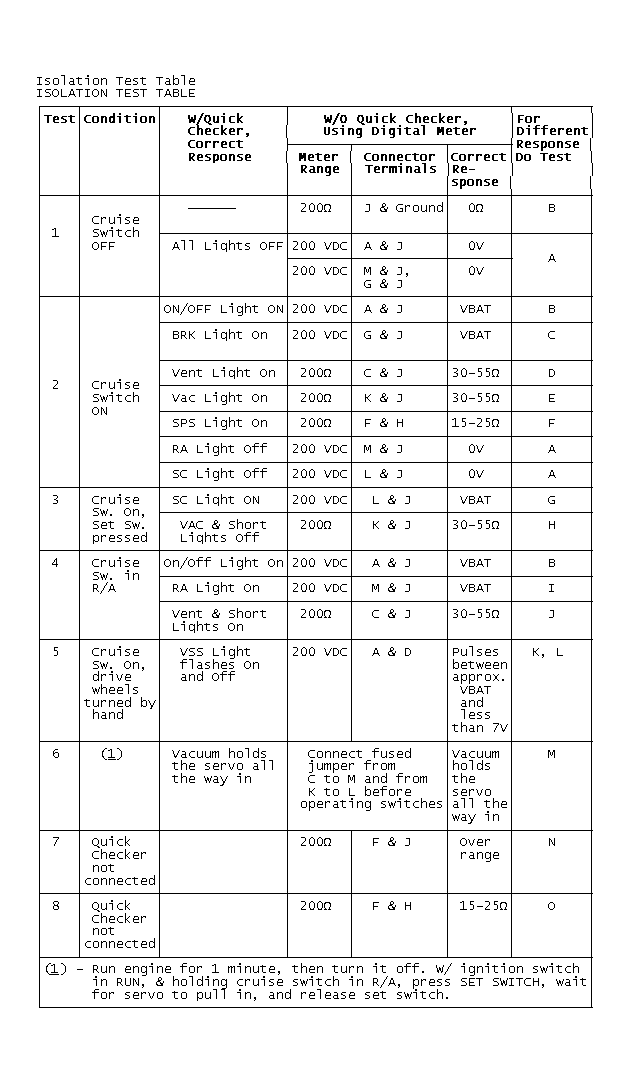

Fig 1: Isolation Test Table
