Description & Operation: Servo: Notes

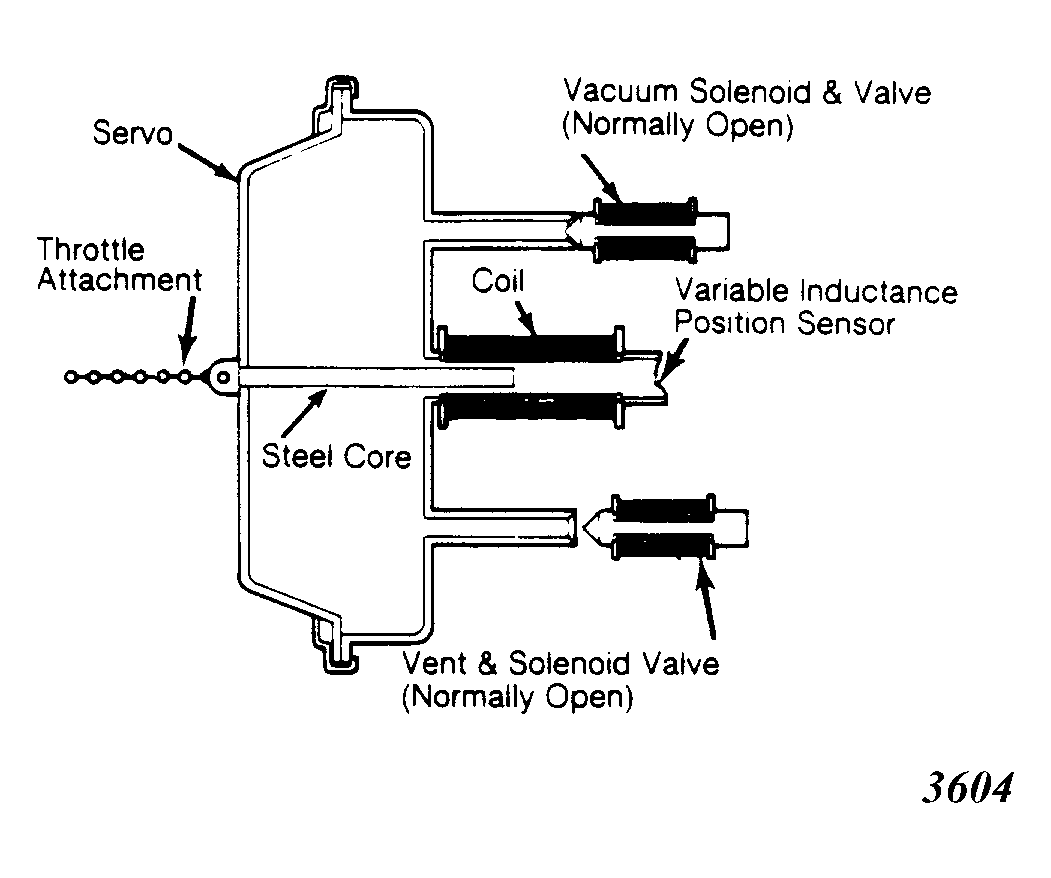

The servo consists of a vacuum operated diaphragm, a normally open solenoid valve to vent the diaphragm chamber to vacuum source, and a variable inductance position sensor. See Figure . The servo operates the throttle in response to signals from the cruise control module/ECM as follows:
