Schematic Symbols

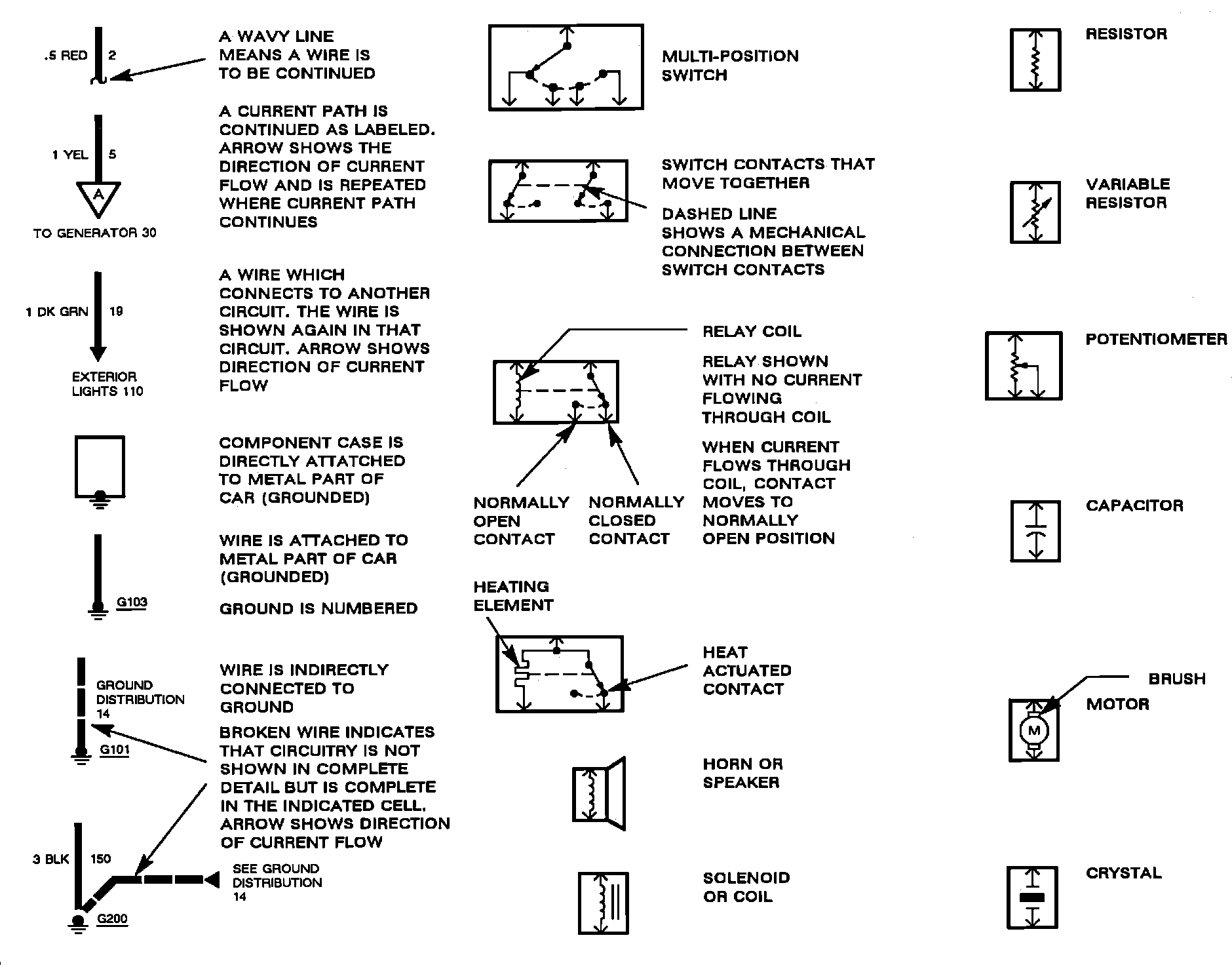

Symbols:

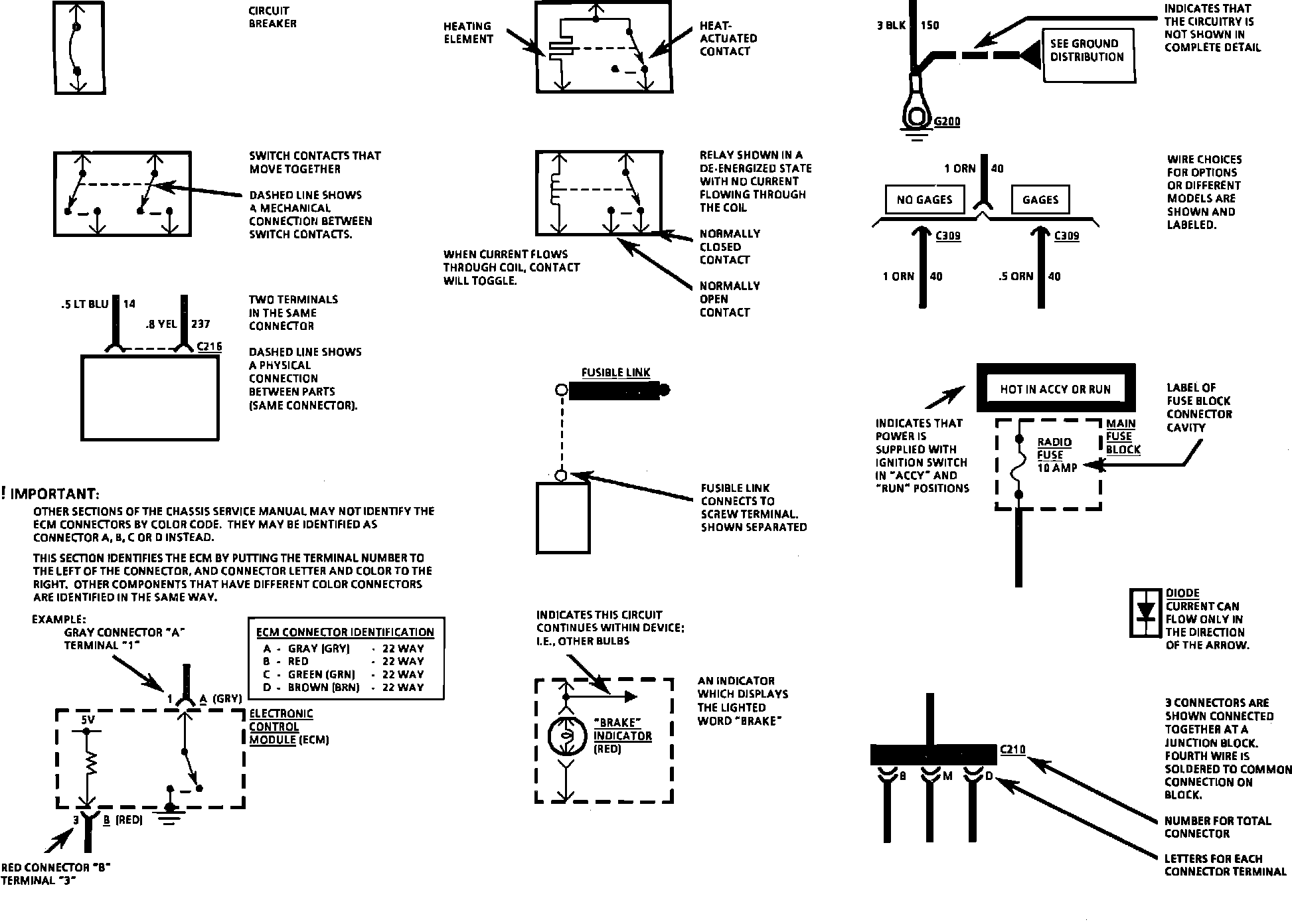

Part 1 of 13

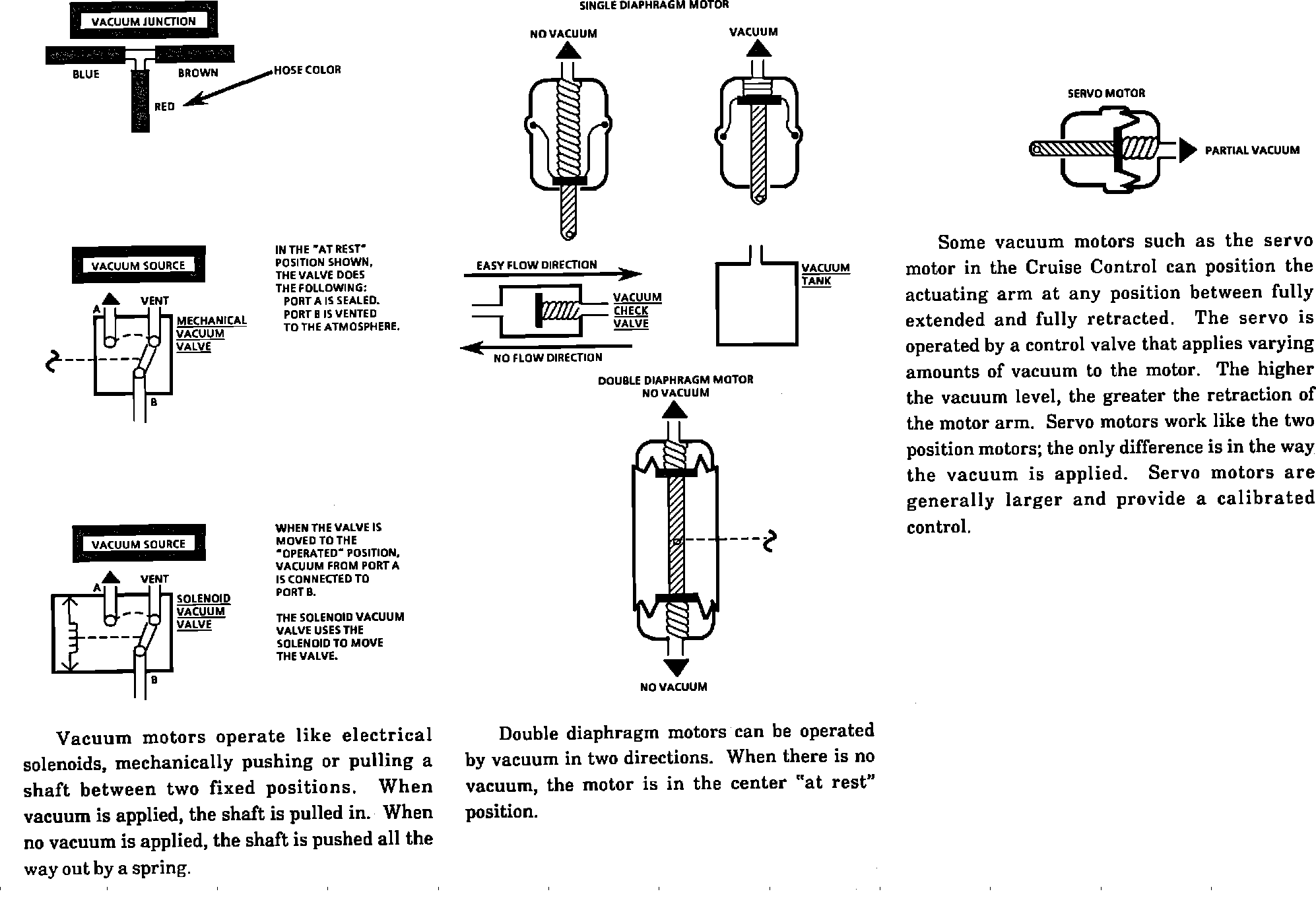

Symbols:

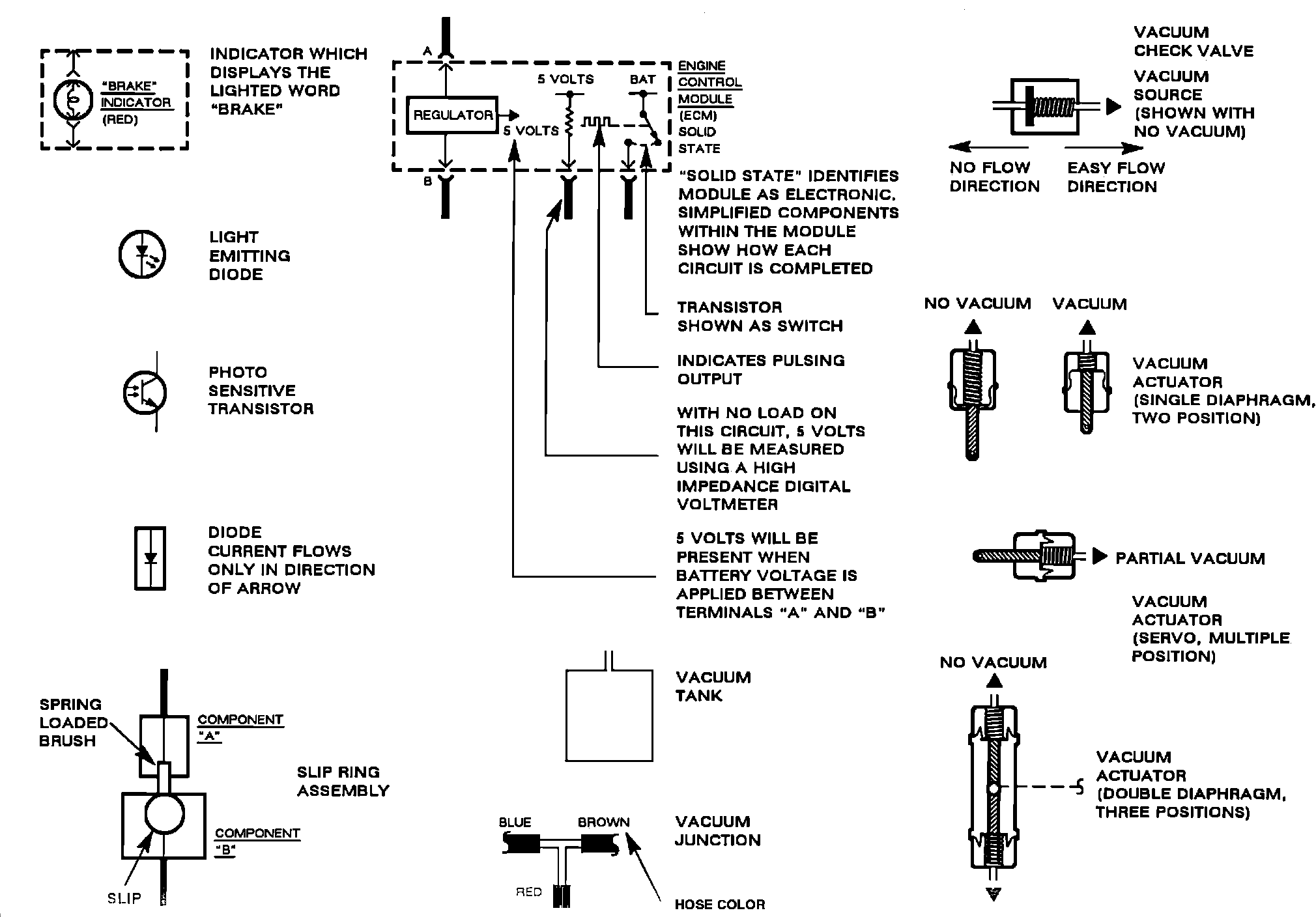

Part 2 of 13

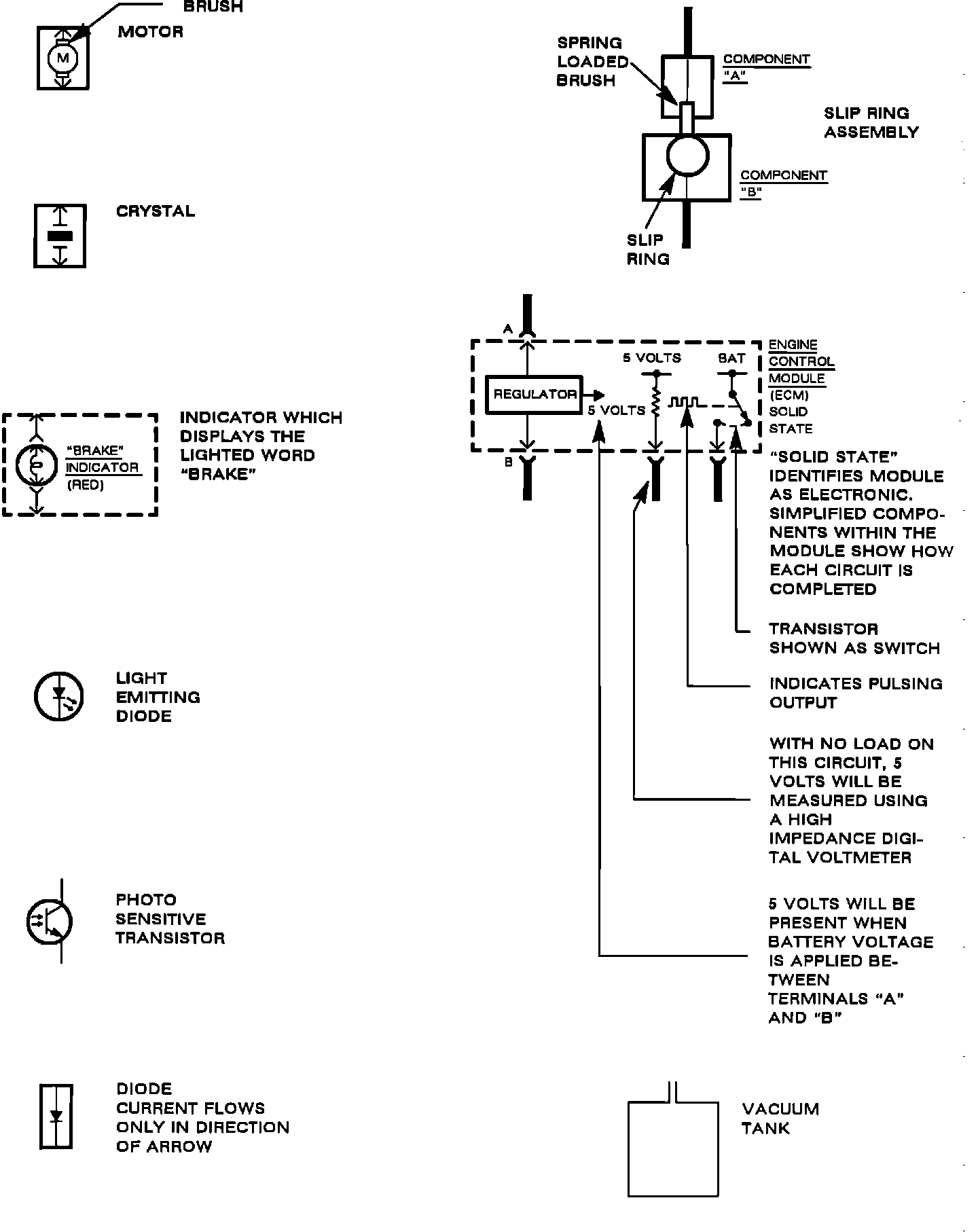

Symbols:

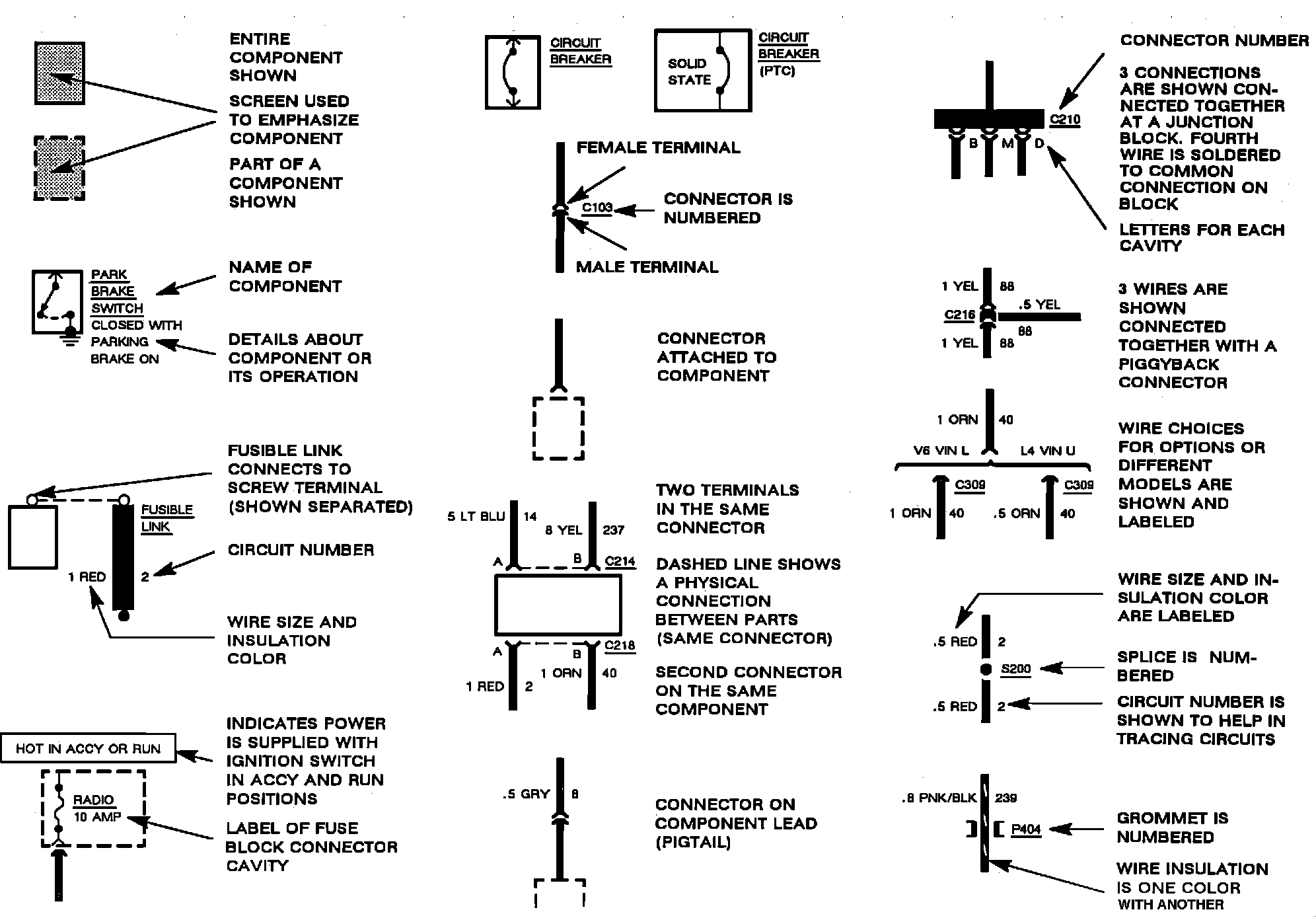

Part 3 of 13

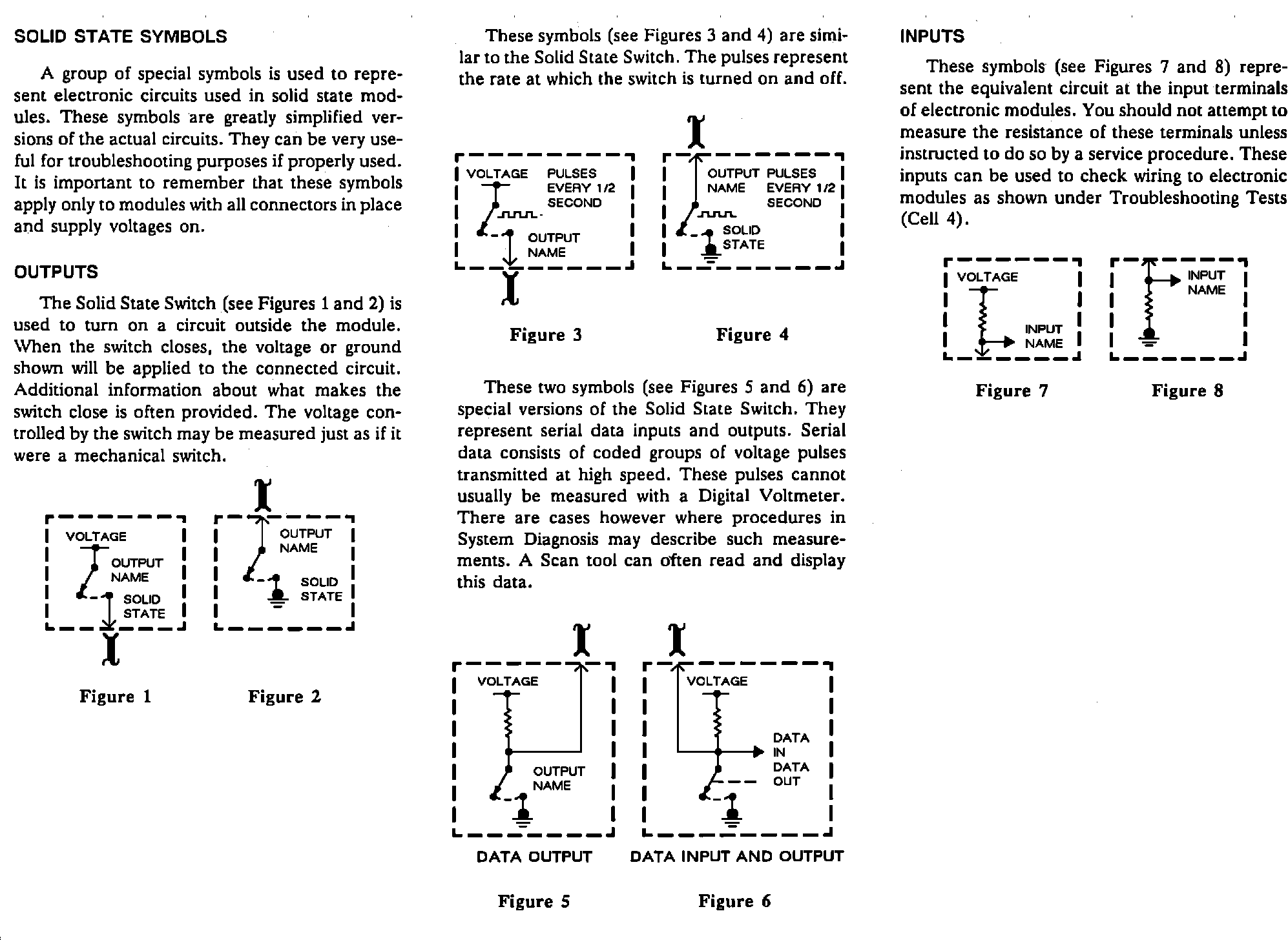

Schematic Symbols:

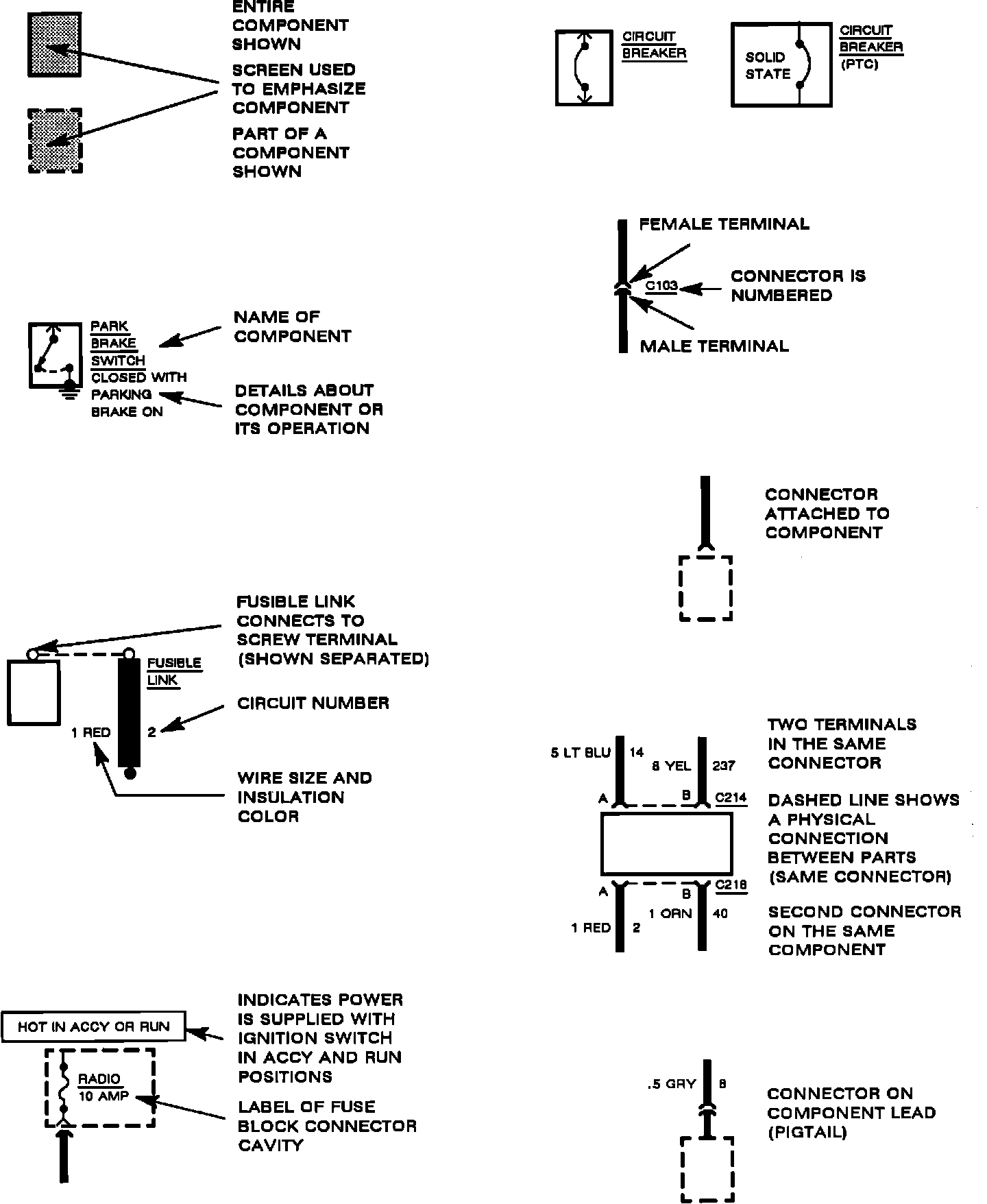

Part 4 of 13

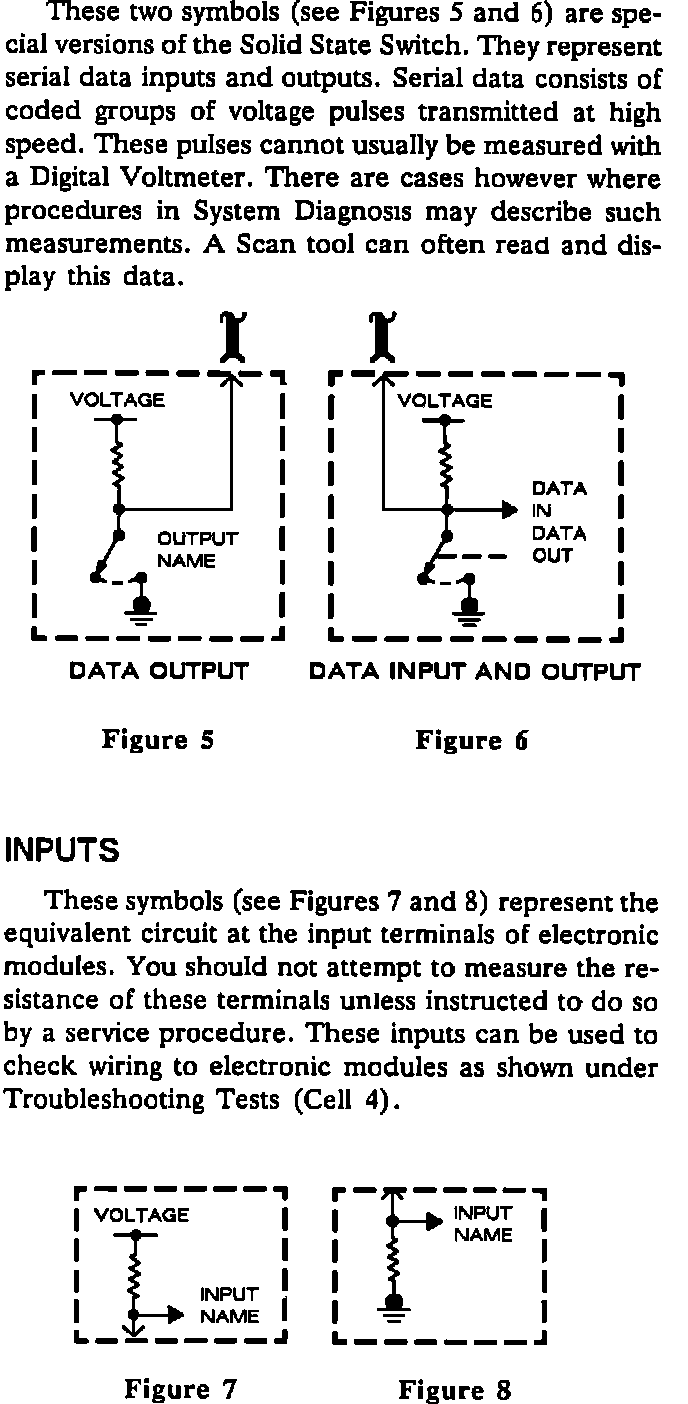

Schematic Symbols:

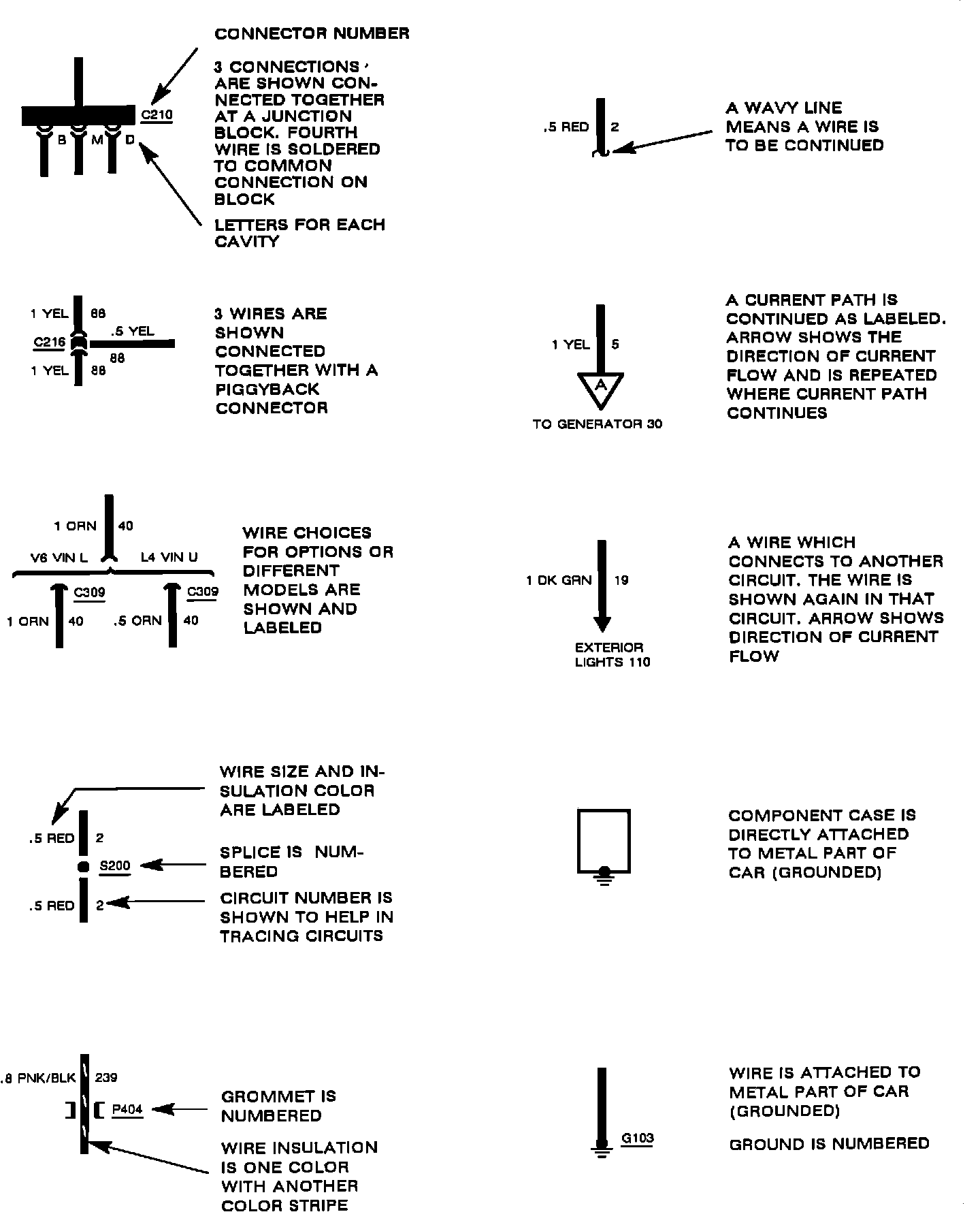

Part 5 of 13

Schematic Symbols:

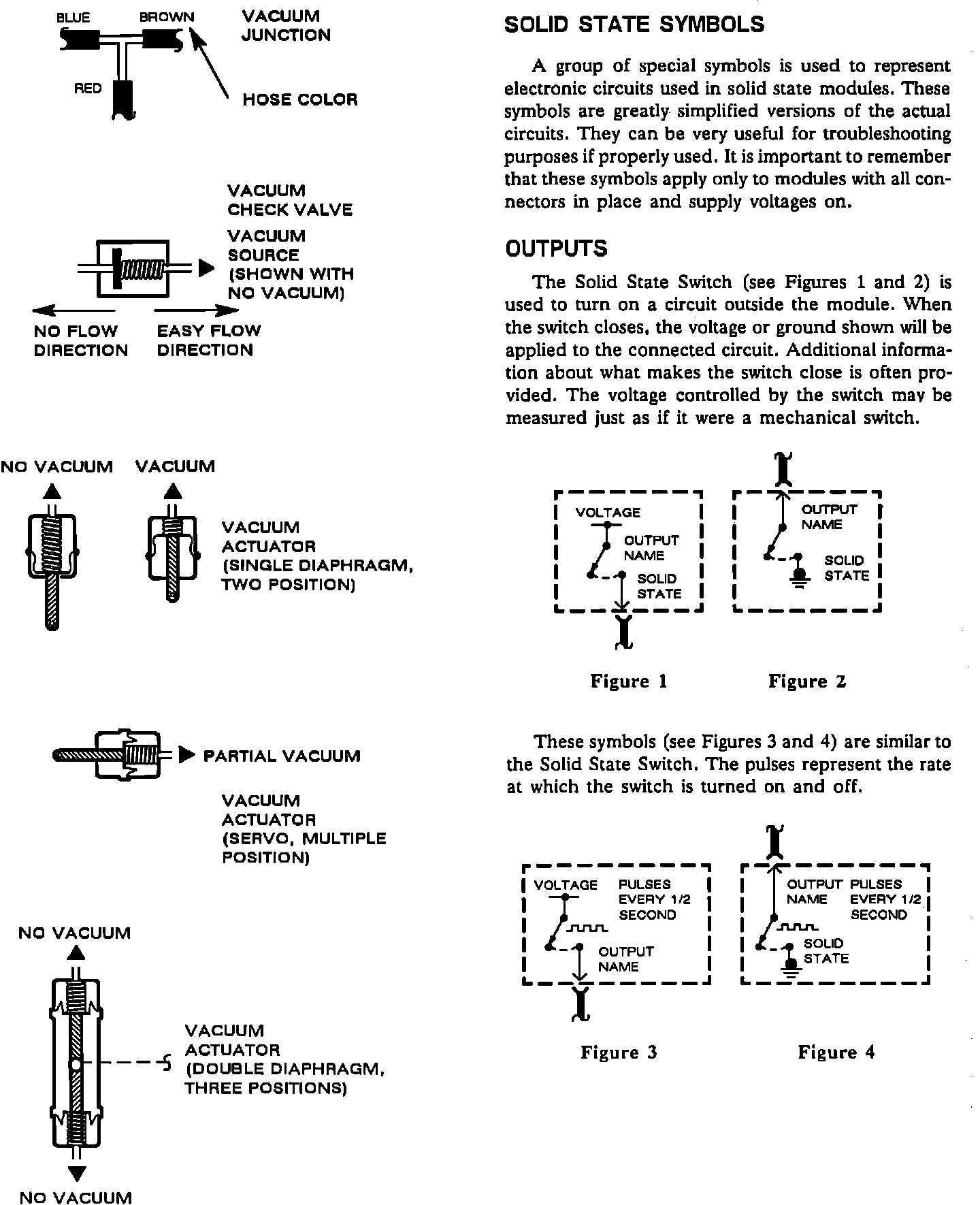

Part 6 of 13

Schematic Symbols:

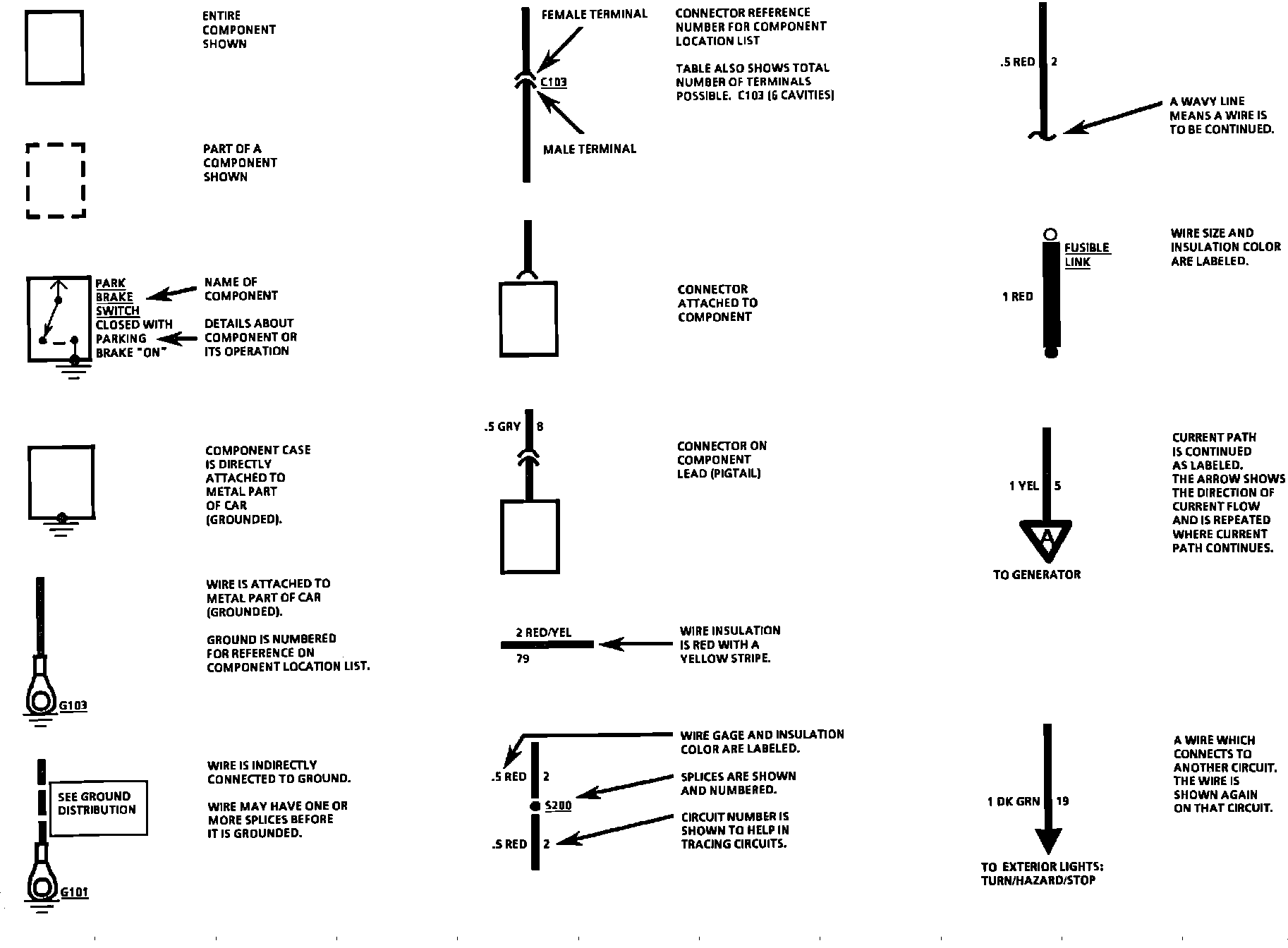

Part 7 of 13

Schematic Symbols:

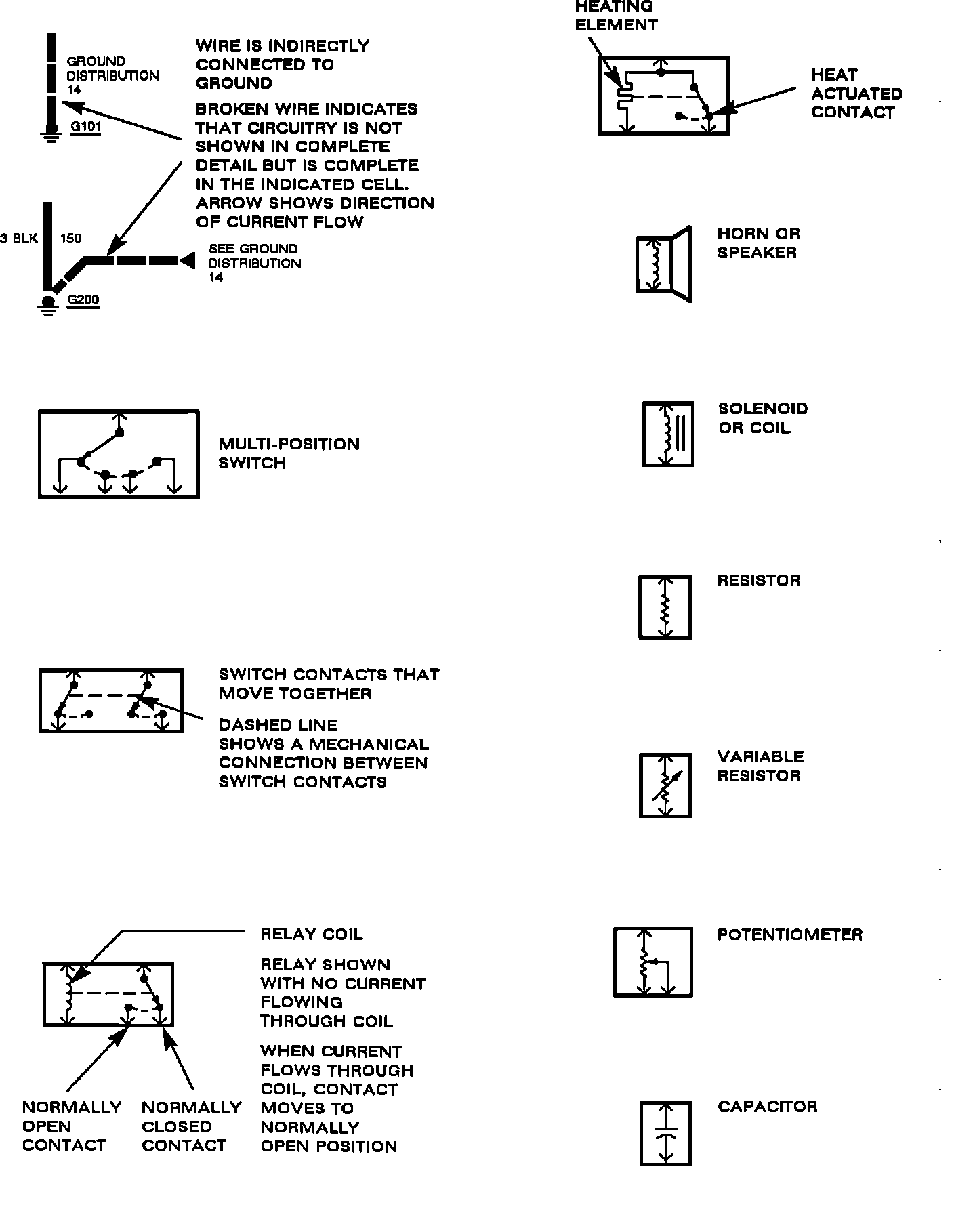

Part 8 of 13

Schematic Symbols:

Part 9 of 13

Schematic Symbols:

Part 10 of 13

Schematic Symbols:

Part 11 of 13

Schematic Symbols:

Part 12 of 13

Schematic Symbols:

Part 13 of 13
