Toronado V6-3800 3.8L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Engine Control Module

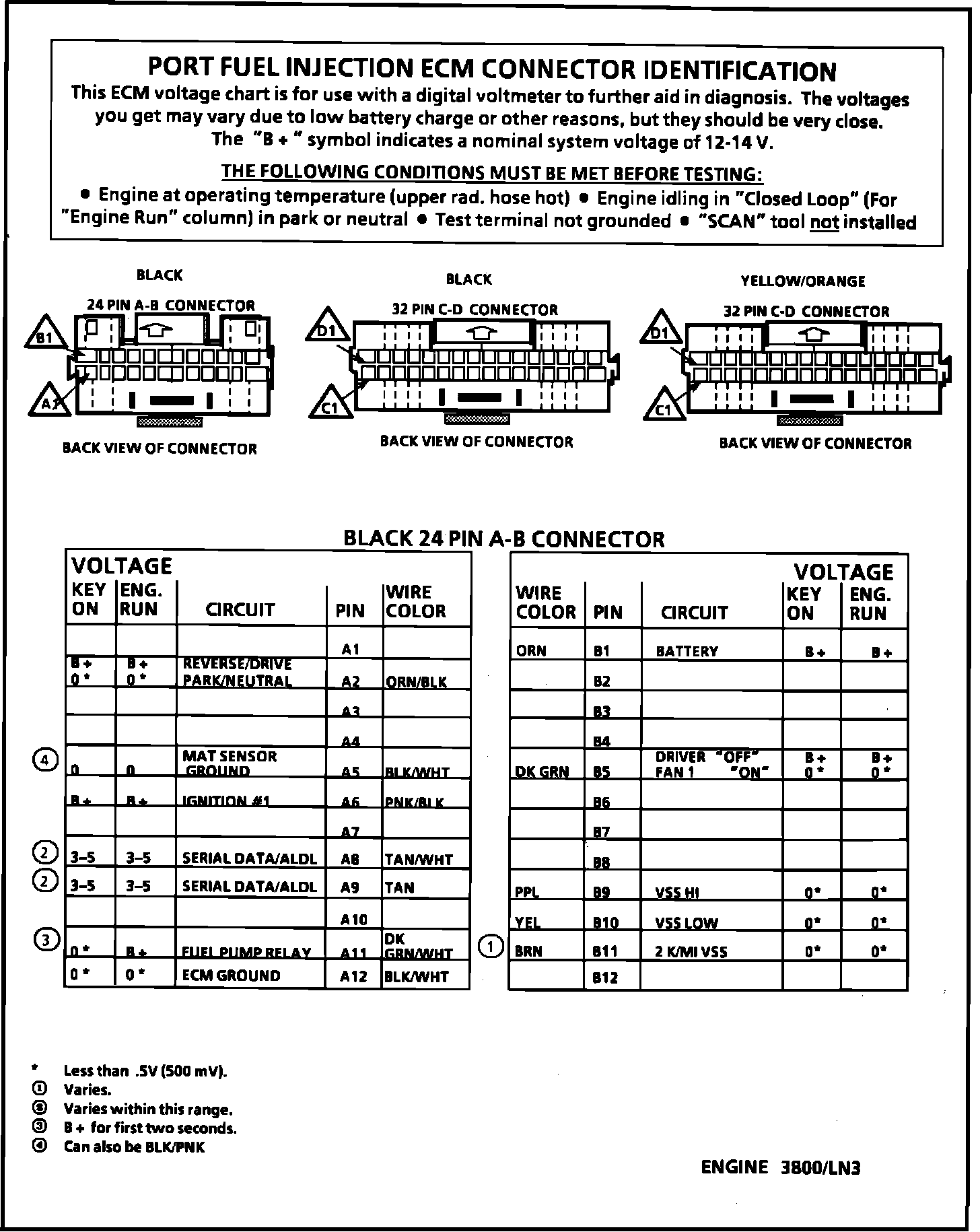

ECM Connector Pinout (1 Of 2):

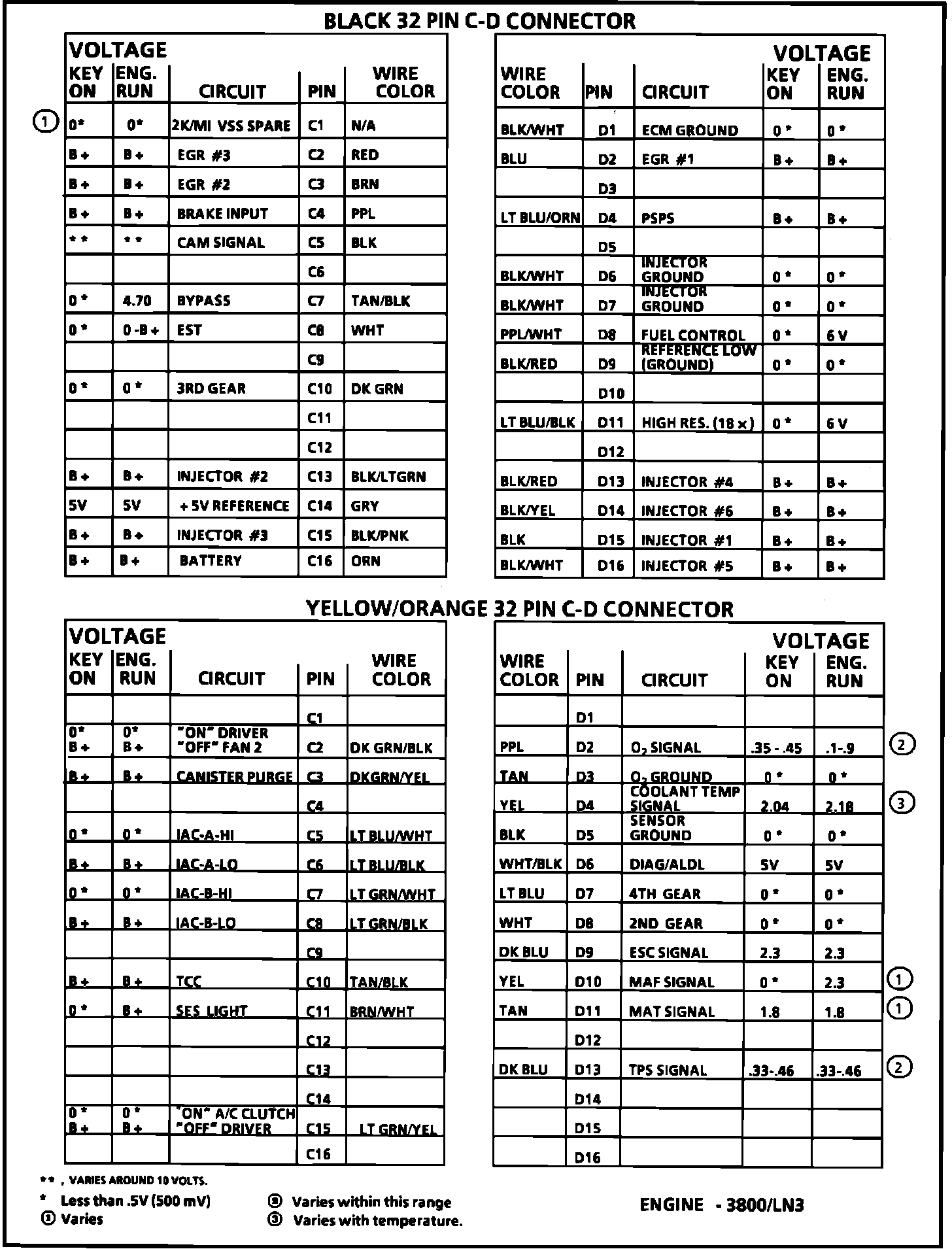

ECM Connector Pinout (2 Of 2):
