Keyless Entry Module: Description and Operation

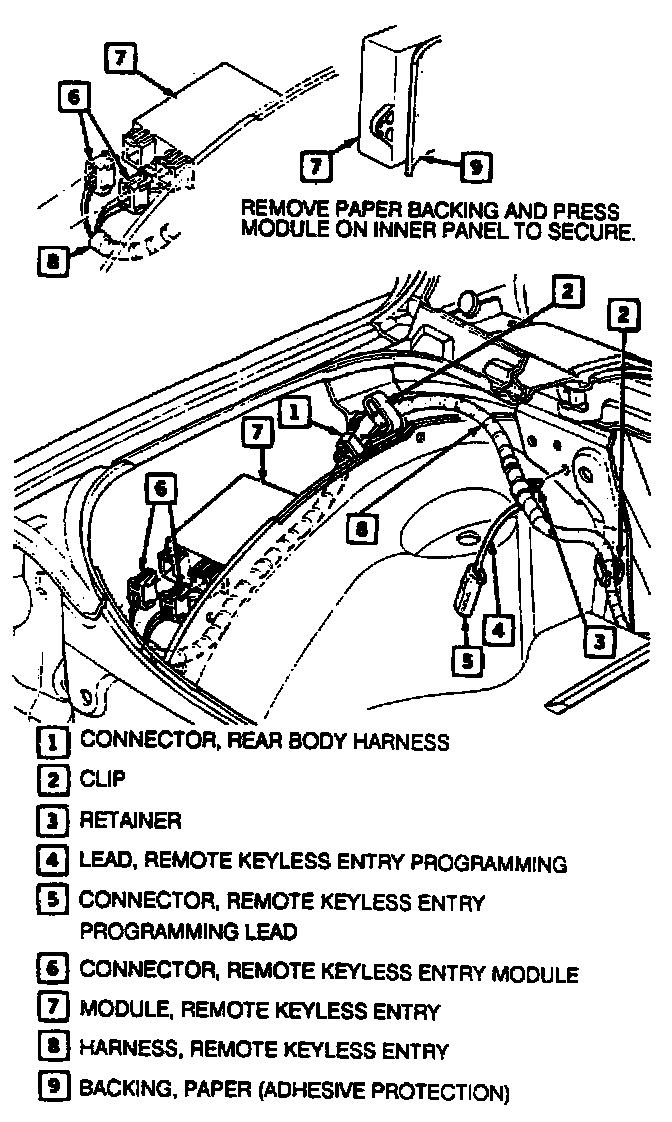

Keyless Entry Module Mounting:

The Keyless Entry Module (receiver) is located in the luggage compartment on the left inner panel. The following information is on the module:

^ GM Part Number
^ Latest Change Level
^ Julian Date Code (4 digits)
^ Manufacturing Location
