Interior Lighting Module: Locations

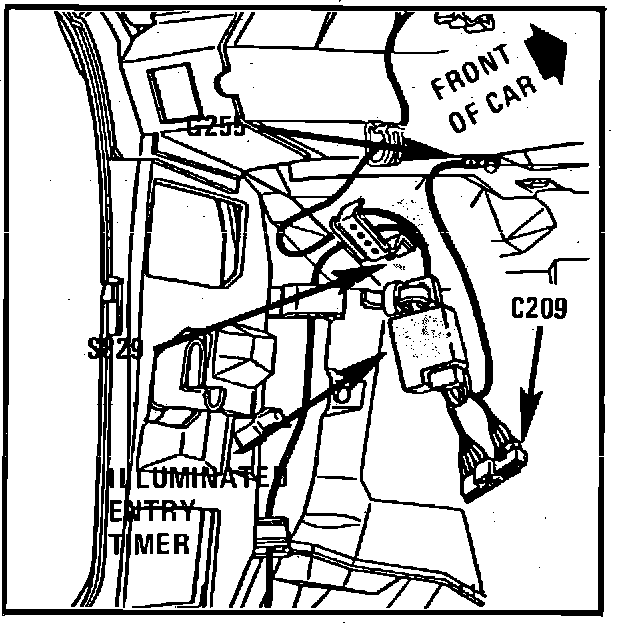

Illuminated Entry Timer.:

Behind I/P, On LH Shroud

Applicable to: Custom Cruiser & Estate Wagon
