Test Chart No. 1

Fig 1: Cruise Control Flow Chart (1 of 6)

G109142

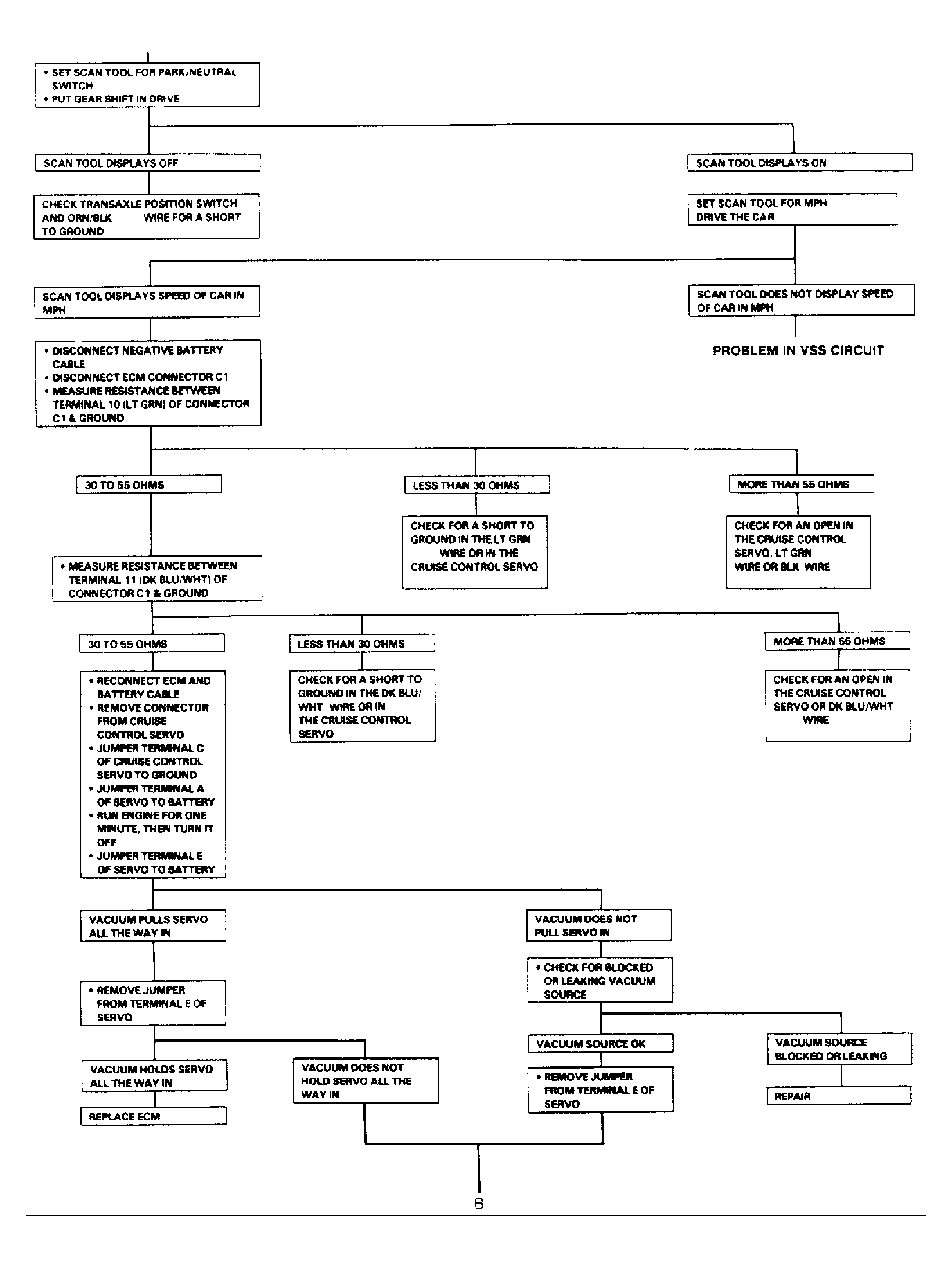

Fig 2: Cruise Control Flow Chart (2 of 6)

G109243

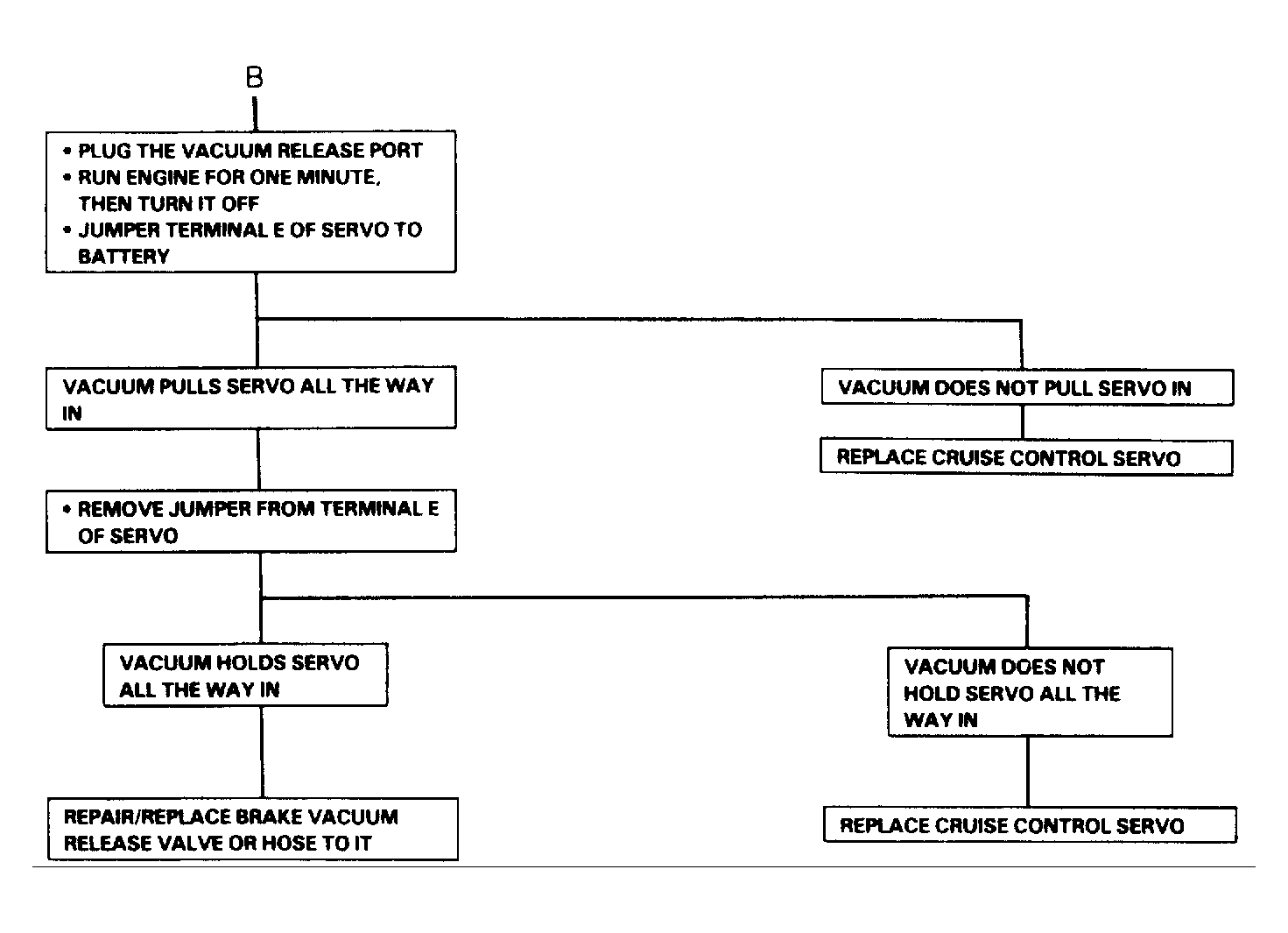

Fig 3: Cruise Control Flow Chart (3 of 6)

G109244

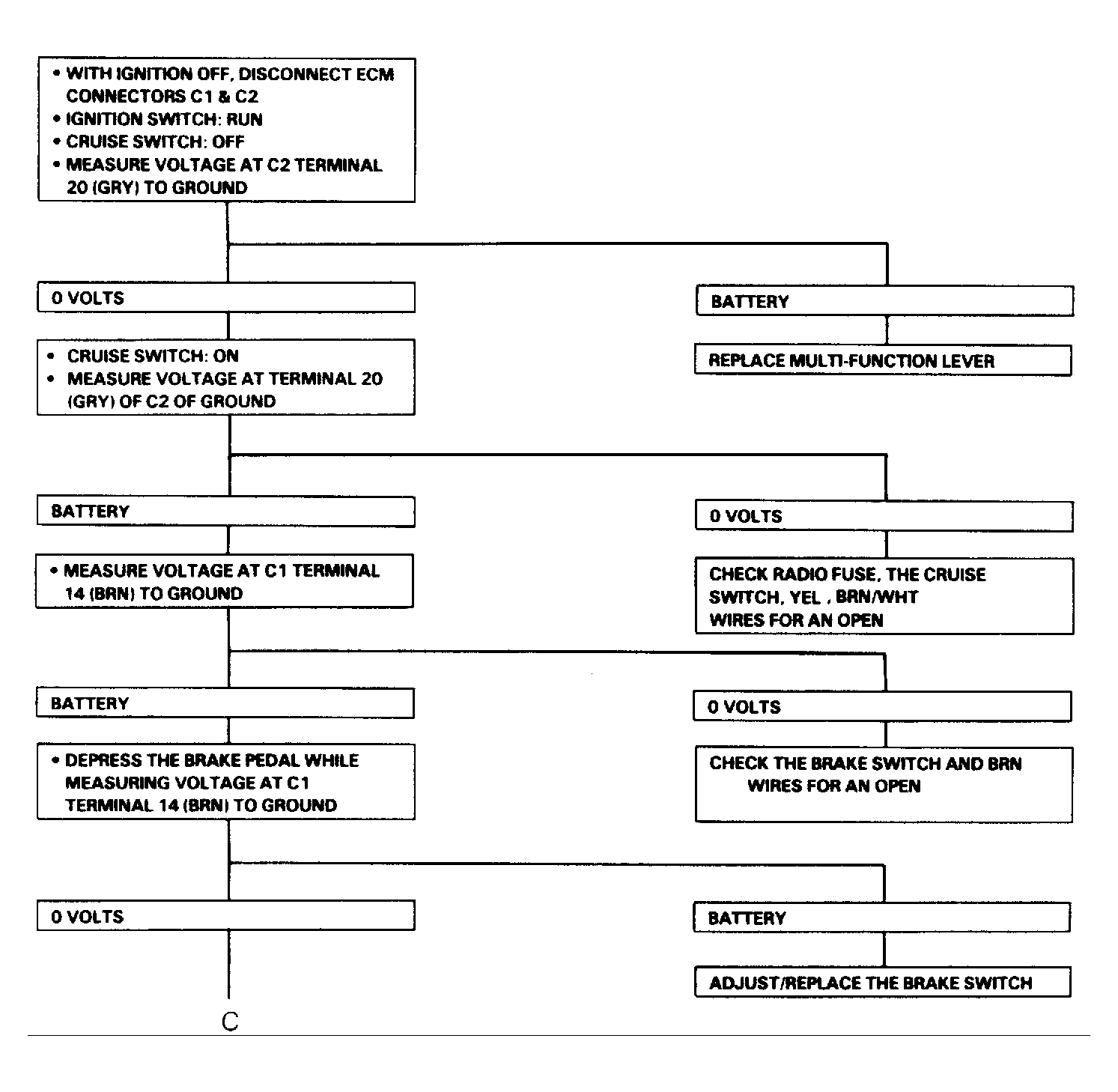

Fig 4: Cruise Control Flow Chart (4 of 6)

G109245

Fig 5: Cruise Control Flow Chart (5 of 6)

G109247

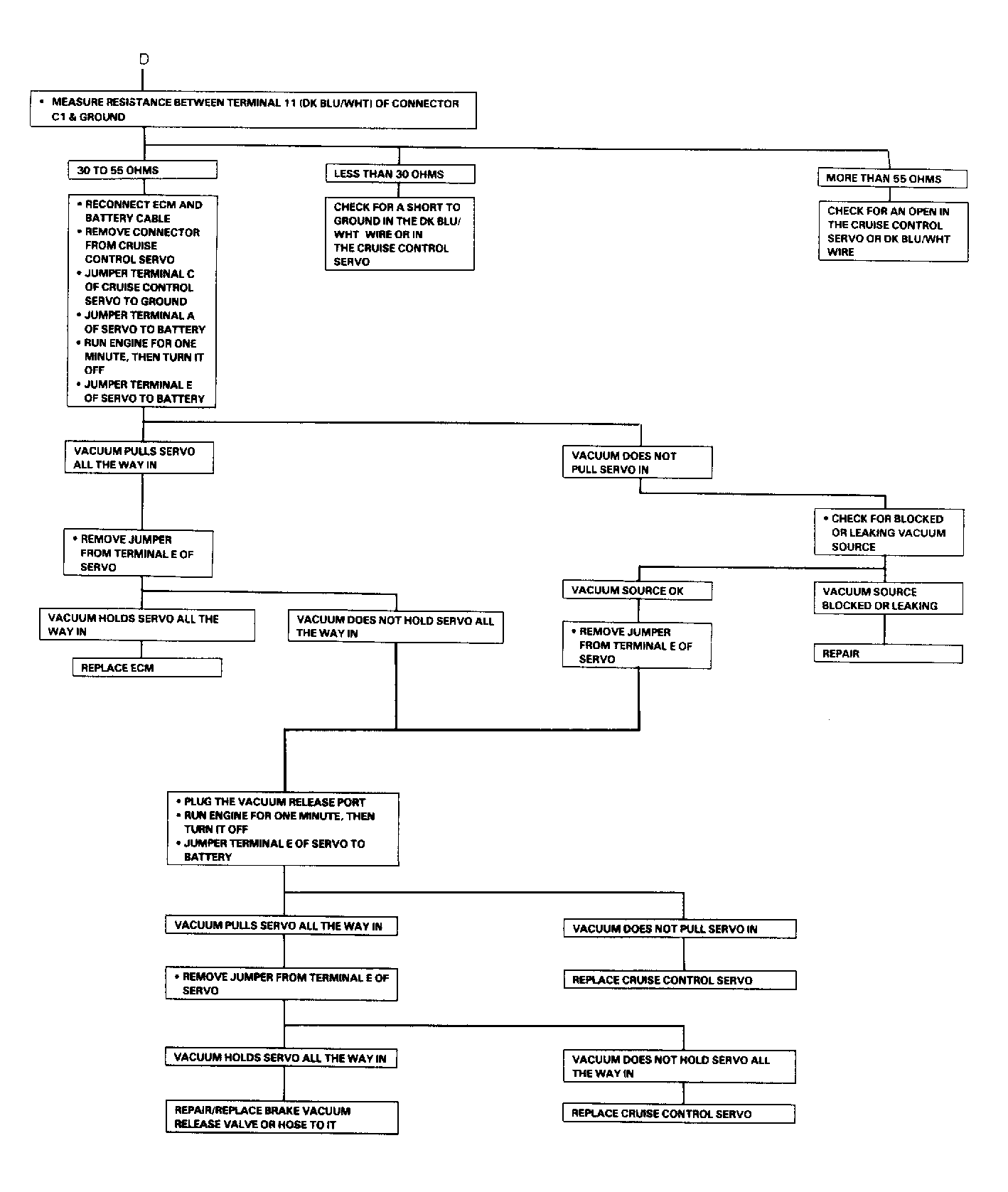

Fig 6: Cruise Control Flow Chart (6 of 6)

G109246
