Diagnostic Circuit Check (Start Diag. Here): Notes

NOTE: See Figure for the Diagnostic Circuit Check (flow chart).

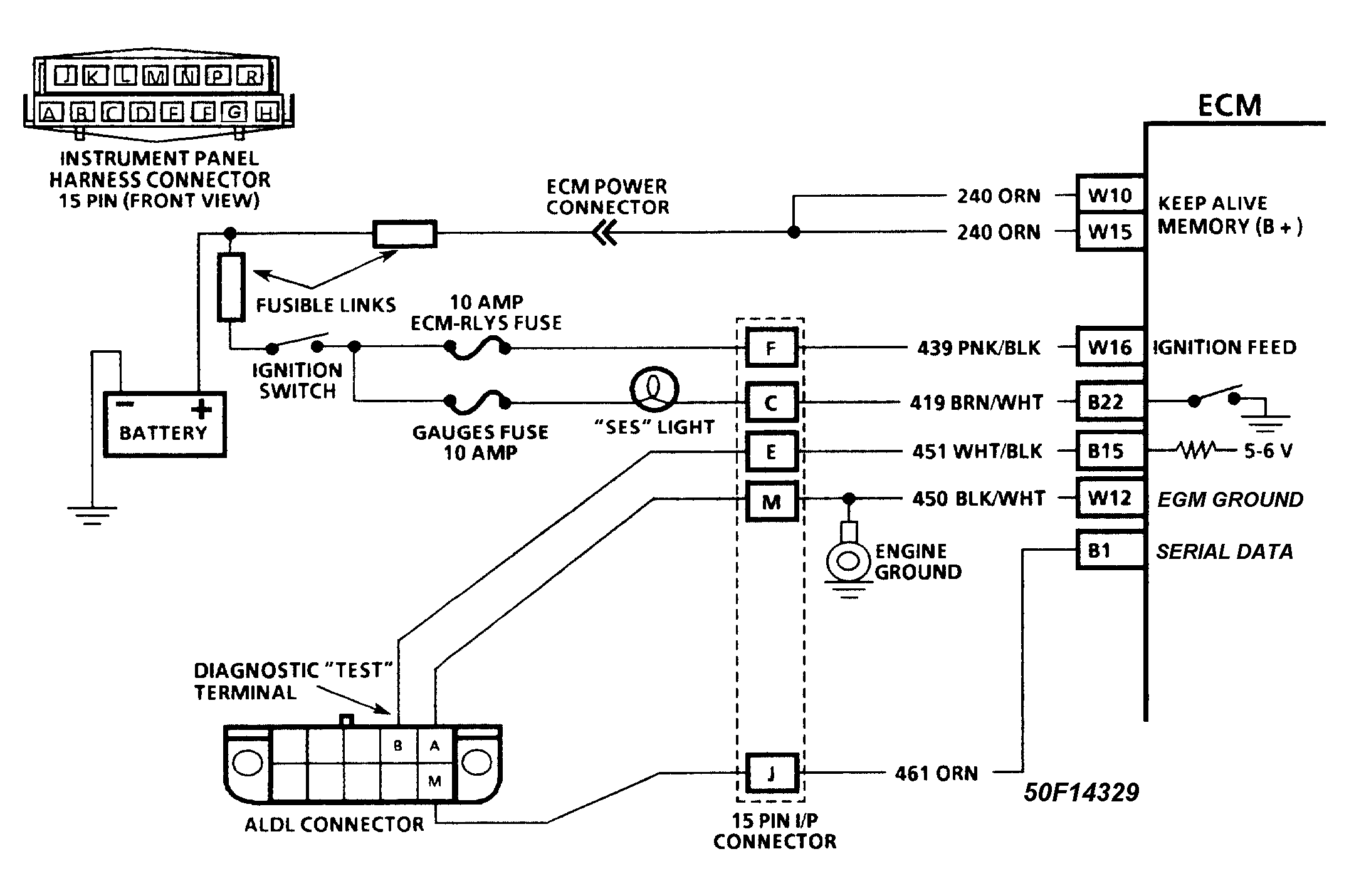

NOTE: See Figure for the accompanying wiring diagram.
