Transmission Position Sensor/Switch: Locations

Rear of VIN R Engine:

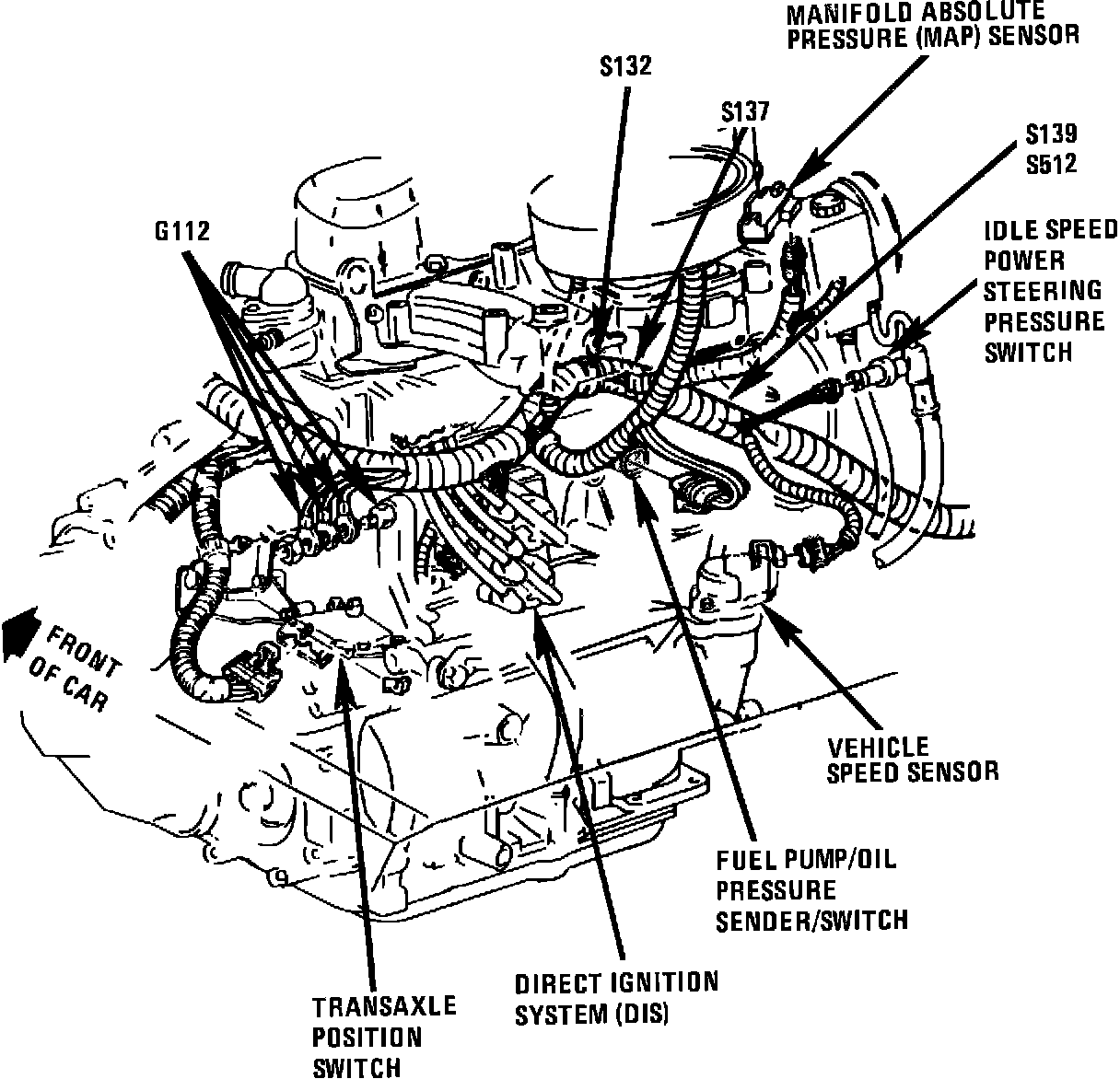

The Transaxle Position Switch is located in the RH rear of engine compartment, on transaxle.
