Note On Intermittents

If an intermittent Code B132 is being set, manipulate the related wiring while observing BCM data parameter BD71. If the failure is induced, the reading will change to a high oil pressure.

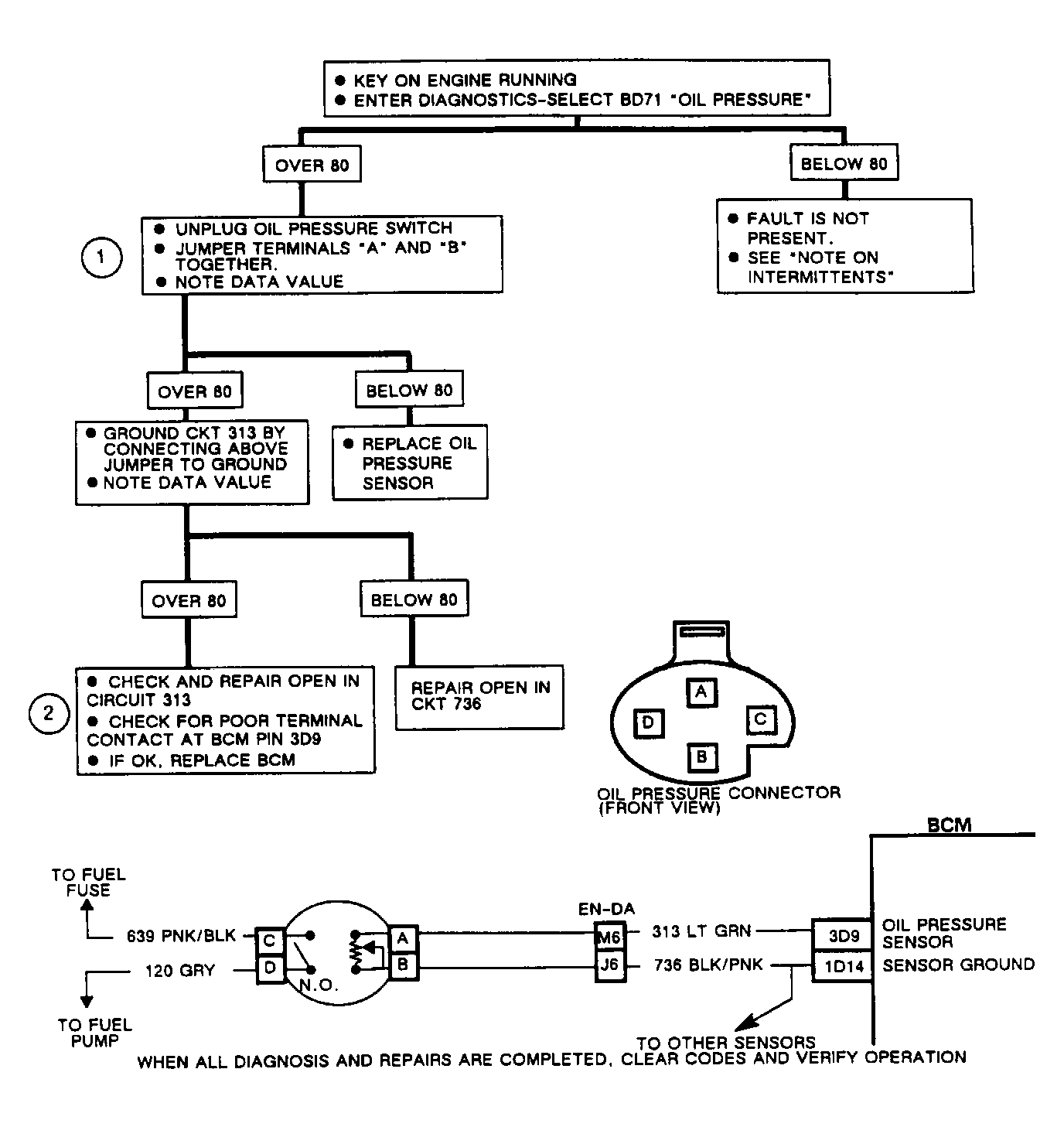

Fig 1: Code B132: Ckt Diagram & Flow Chart Eng Oil Pressure Sens Ckt Faulty
G90D14376
