Serial Data Circuit Multiple Intermittent Data Codes
Fig 1: Circuit Diagram Serial Data Circuit Multiple Intermittent Data Codes

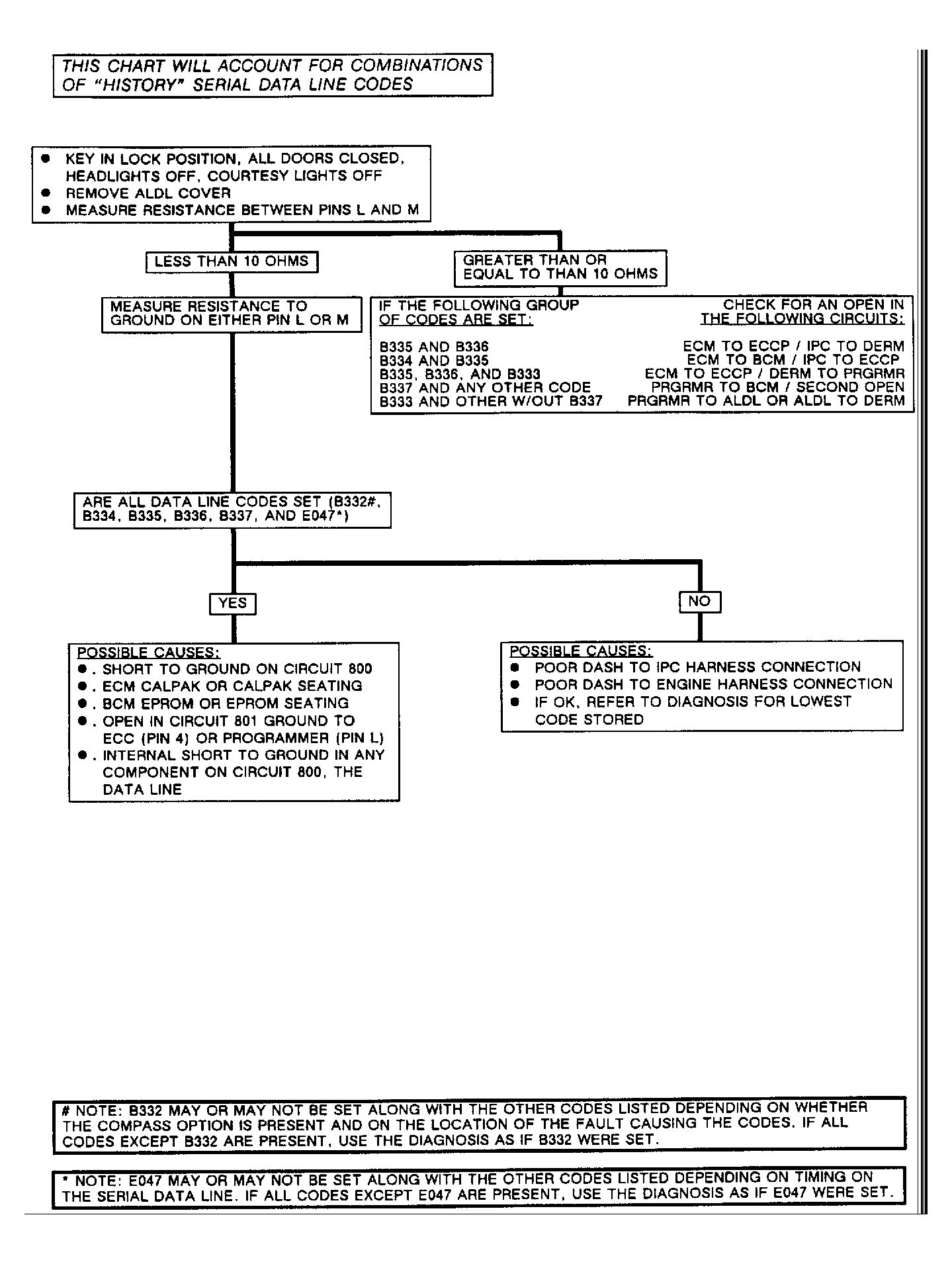

Fig 2: Flow Chart Serial Data Circuit, Multiple Intermittent Data Codes
