Water Deflector: Installation

  1. Fit water deflector (53) to door.
  2. Install plastic fasteners.
  3. Install waterproof tape.
  4. Install armrest bracket (67). See ARMREST  .
  5. Install door trim panel. See TRIM PANEL  .

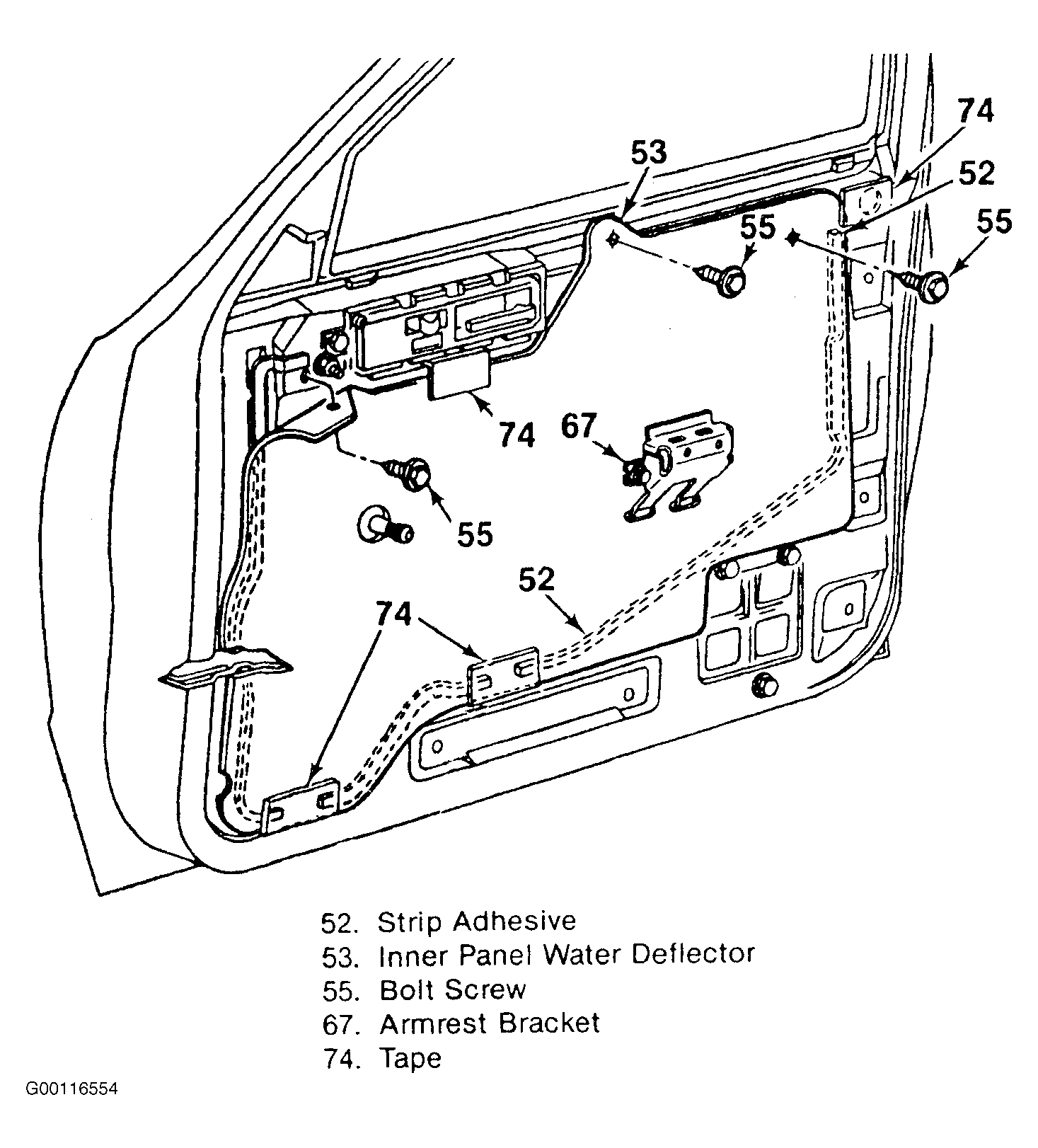

Fig 1: Removing & Installing Water Deflector
G00116554Courtesy of GENERAL MOTORS CORP.
