Test D: Left Rear Power Window Does Not Operate From Either Switch & Left Front Power Window Operates

If left rear power window does not operate from either switch & left front power window operates, see Fig 1 .

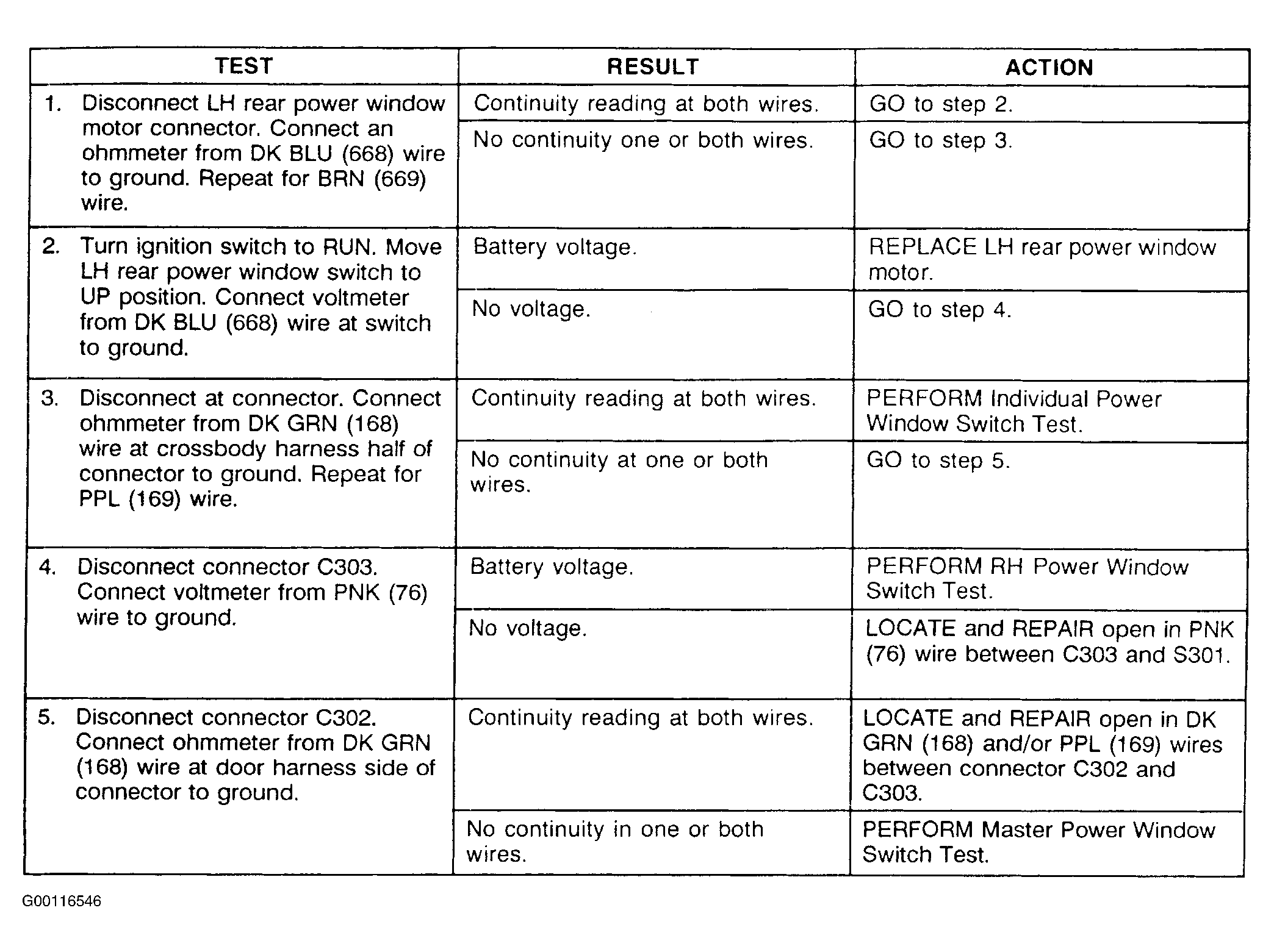

Fig 1: Test D: Left Rear Power Window Does Not Operate From Either Switch, Left Front Power Window Operates
G00116546Courtesy of GENERAL MOTORS CORP.
