Rear Window Run Channel Retainer: Installation

  1. Install rear window run channel retainer (124) with insulator (129). See Fig 1 .
  2. Install screw (123). See TORQUE SPECIFICATIONS  .
  3. Install retainer (128).
  4. Install water deflector. See WATER DEFLECTOR  .
  5. Install door trim panel. See TRIM PANEL  .

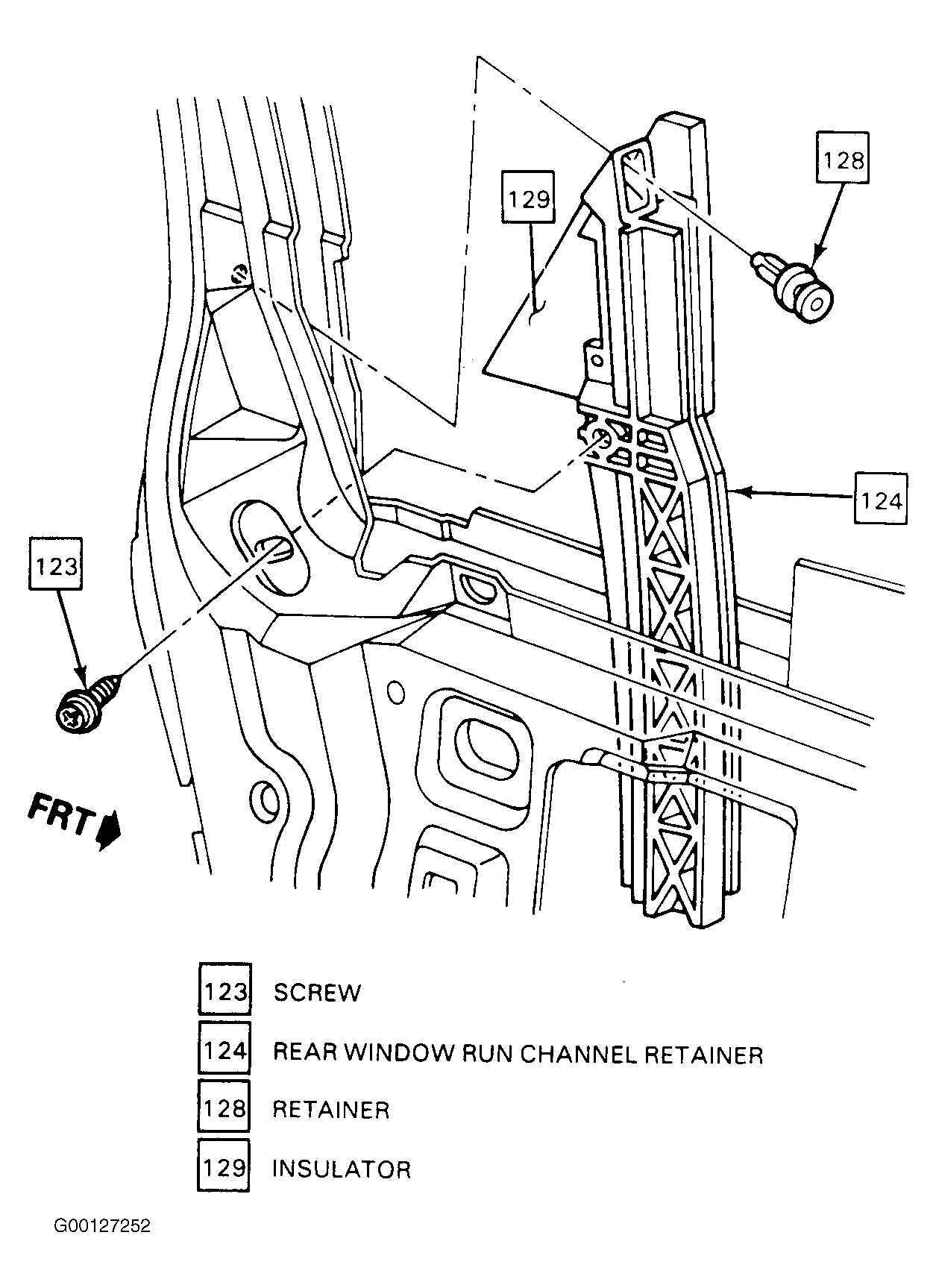

Fig 1: Removing Rear Window Run Channel Retainer
G00127252Courtesy of GENERAL MOTORS CORP.
