Rear Window Run Channel: Installation

  1. Install window run channel (37). See Fig 1 .
    • Squeeze window run channel (37) together.
    • Working from position "A" forward, along upper header toward position "B", seat window run channel (37) into door window frame.
  2. Install rear door window. See DOOR WINDOWS  .
  3. Install rear door run channel retainer. See REAR WINDOW RUN CHANNEL RETAINER  . Seat window run channel (37) into window run channel retainer.

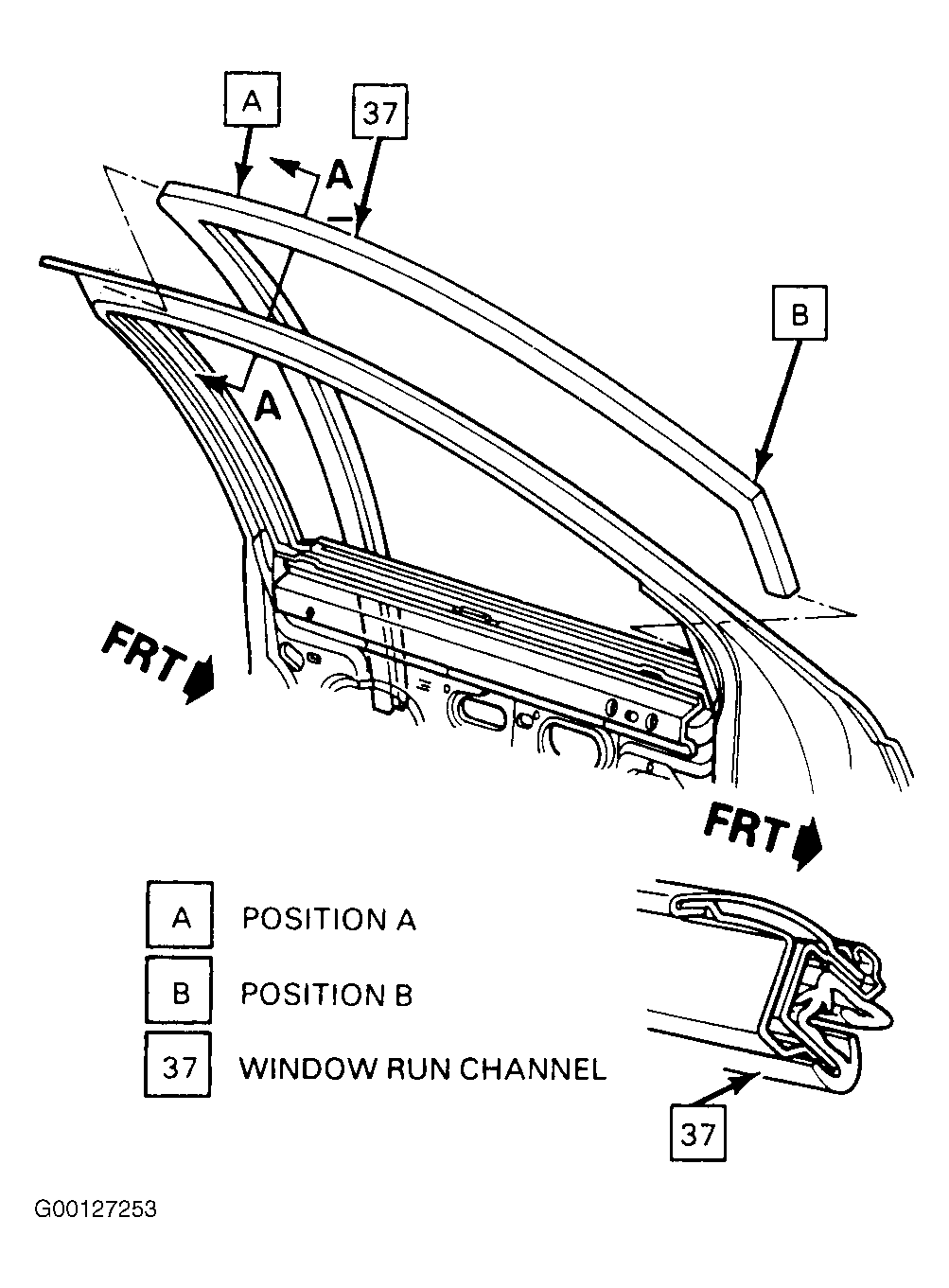

Fig 1: Removing Window Run Channel
G00127253Courtesy of GENERAL MOTORS CORP.
