Trim Panel: Installation
- Install courtesy lamp connector to door trim panel (2), if equipped. See Fig 4
.

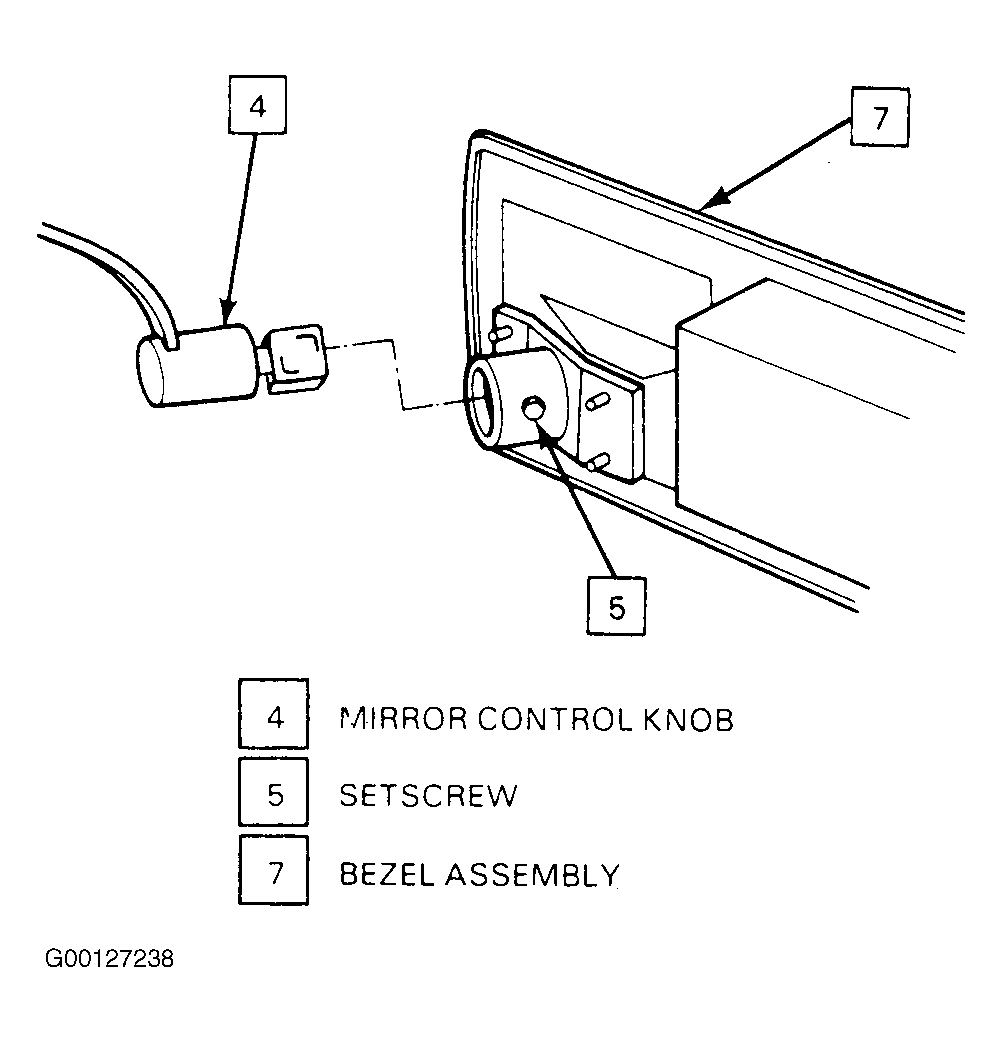

- Install mirror control knob (4). See Fig 3
.
- Tighten setscrew (5) connecting mirror control knob (4) to bezel assembly (7).
- Pull electrical connectors through respective cutouts in door trim panel (2).

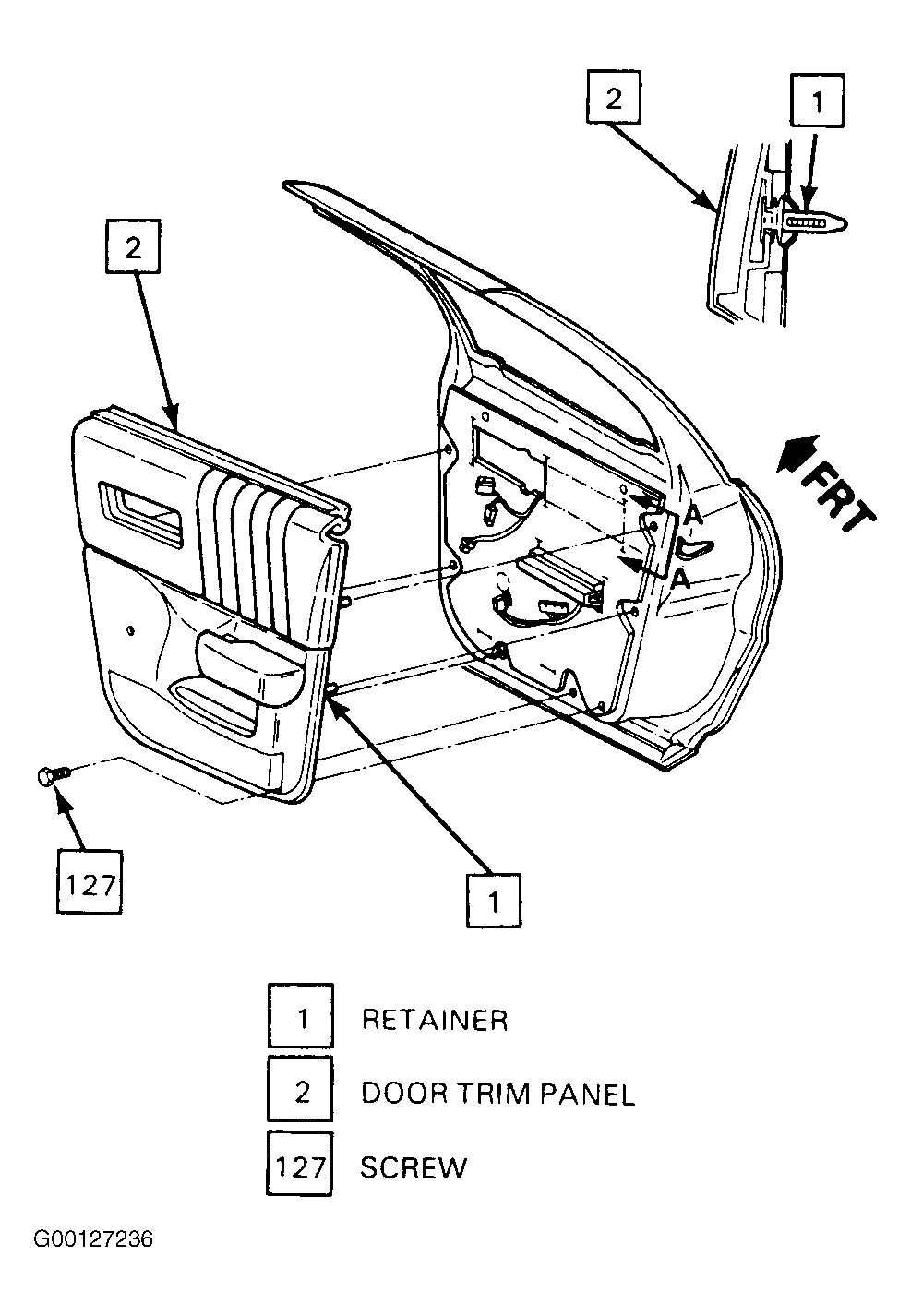

- Replace any damaged retainers (1) on door trim panel (2). See Fig 1
.
- Install door trim panel (2), using a clean rubber mallet to seat retainers (1).
- Install screw (127) and tighten to specification. See TORQUE SPECIFICATIONS
.
- Locate door panel screw hole between armrest and map pocket opening of front door.
- Locate door panel screw hole below rear edge of carpeted section of rear door.
- Install armrest. See ARMREST
.
- Install inside pull strap handle. See PULL HANDLE
.
- Install power door lock connector to power door lock switch, if equipped.
- Install side window switch floodlamp, if equipped.
- Twist 90 degrees to secure.

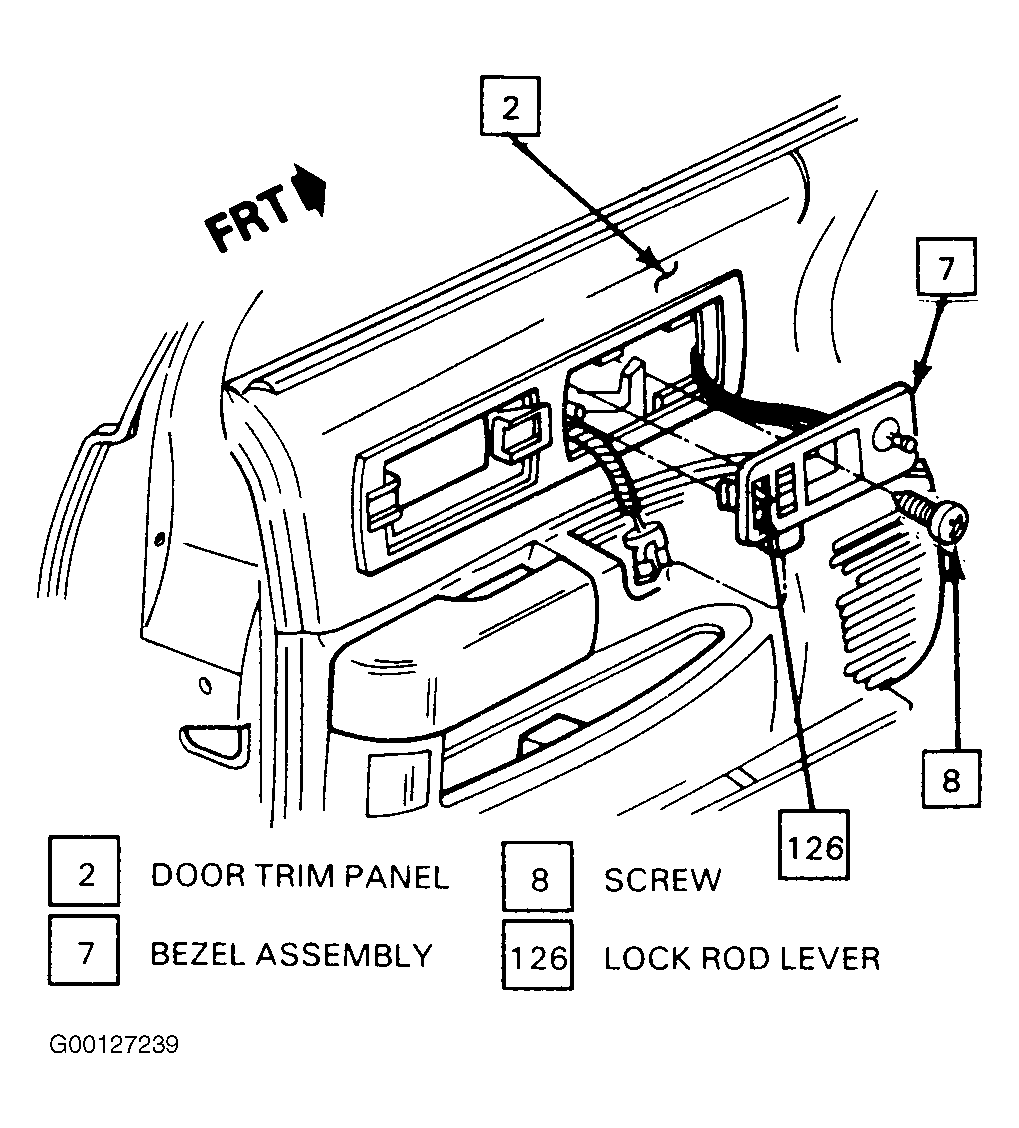

- Snap bezel assembly (7) to door trim panel (2). See Fig 3
.
- Make sure pin is connected to manual lock rod lever (126). See Fig 4
.
- Install screw (8) connecting bezel assembly (7) to door trim panel (2) and tighten to specification. See TORQUE SPECIFICATIONS
.
- Install power seat connector to armrest switch plate (3), if equipped. See Fig 2
.
- Install power window connector to armrest switch plate (3), if equipped.
- Install armrest switch plate (3), if equipped.
- Install negative battery cable.
