Component Locations

COMPONENT LOCATIONS (CONVERTIBLE)

Component Location
Component Center Behind Right Side Of Instrument Panel. See Fig 4
Window Motor Inside Lower Center Of Respective Door. See Fig 3
Autodown Module Behind Left Side Of Instrument Panel. See Fig 1
C200 (106 Cavities) Behind Right Side Of Instrument Panel. See Fig 4
C301 (6 Cavities) Below Instrument Panel, At Left Shroud. See Fig 7
C302 (10 Cavities) Below Instrument Panel, At Left Shroud. See Fig 3
C303 (6 Cavities) Below Instrument Panel, At Right Shroud. See Fig 7
C306 (6 Cavities) Below Instrument Panel, At Left Shroud. See Fig 6
C700 (6 Cavities) In Left Center Pillar. See Fig 9
C800 (6 Cavities) In Right Center Pillar. See Fig 9
C900 (15 Cavities) Behind Left Side Of Instrument Panel. See Fig 1
C901 (8 Cavities) Below Instrument Panel, At Left Shroud. See Fig 10
C906 (8 Cavities) Below Instrument Panel, At Left Shroud. See Fig 10
C907 (5 Cavities) Below Instrument Panel, At Left Shroud. See Fig 10
G305 Under Left Front Seat. See Fig 11
S228 Crosscar Harness, Behind Center Of Instrument Panel. See Fig 13
S231 Instrument Panel Harness, Behind Right Side Of Instrument Panel. See Fig 2
S303 Crosscar Harness, Behind Right Side Of Instrument Panel. See Fig 11
S308 Left Front Door Harness, Inside Center Of Door. See Fig 5
S501 Left Door Harness, Inside Front Door. See Fig 3
S901 Left Door Harness, Inside Front Door. See Fig 10
S902 Left Door Harness, Inside Front Door. See Fig 10
S903 Left Door Harness, Inside Front Door. See Fig 10
S904 Below Instrument Panel, At Left Shroud. See Fig 10
S905 Below Instrument Panel, At Left Shroud. See Fig 1
S907 Left Door Harness, Inside Front Door. See Fig 10
S908 Left Door Harness, Inside Front Door. See Fig 10
COMPONENT LOCATIONS (COUPE & SEDAN)

Component Location
Component Center Behind Right Side Of Instrument Panel. See Fig 2 .
Window Motor Inside Lower Center Of Door. See Fig 5 .
C200 (106 Cavities) Behind Instrument Panel, Right Rear Of Dash. See Fig 2 .
C301 (6 Cavities) Below Instrument Panel, At Left Shroud. See Fig 6 .
C303 (6 Cavities) Below Instrument Panel, At Right Shroud. See Fig 6 .
C306 (6 Cavities) Below Instrument Panel, At Left Shroud. See Fig 6 .
C700 (6 Cavities) In Left Center Pillar. See Fig 8 .
C800 (6 Cavities) In Right Center Pillar. See Fig 8 .
G305 Behind Left Side Of Instrument Panel. See Fig 12 .
S228 Crosscar Harness, Behind Center Of Instrument Panel. See Fig 13 .
S231 Instrument Panel Harness, Behind Right Side Of Instrument Panel. See Fig 2 .
S303 Crosscar Harness, Behind Right Side Of Instrument Panel. See Fig 13 .
S308 Left Front Door Harness, Inside Center Of Door. See Fig 5 .
S501 Left Door Harness, Inside Front Door. See Fig 5 .

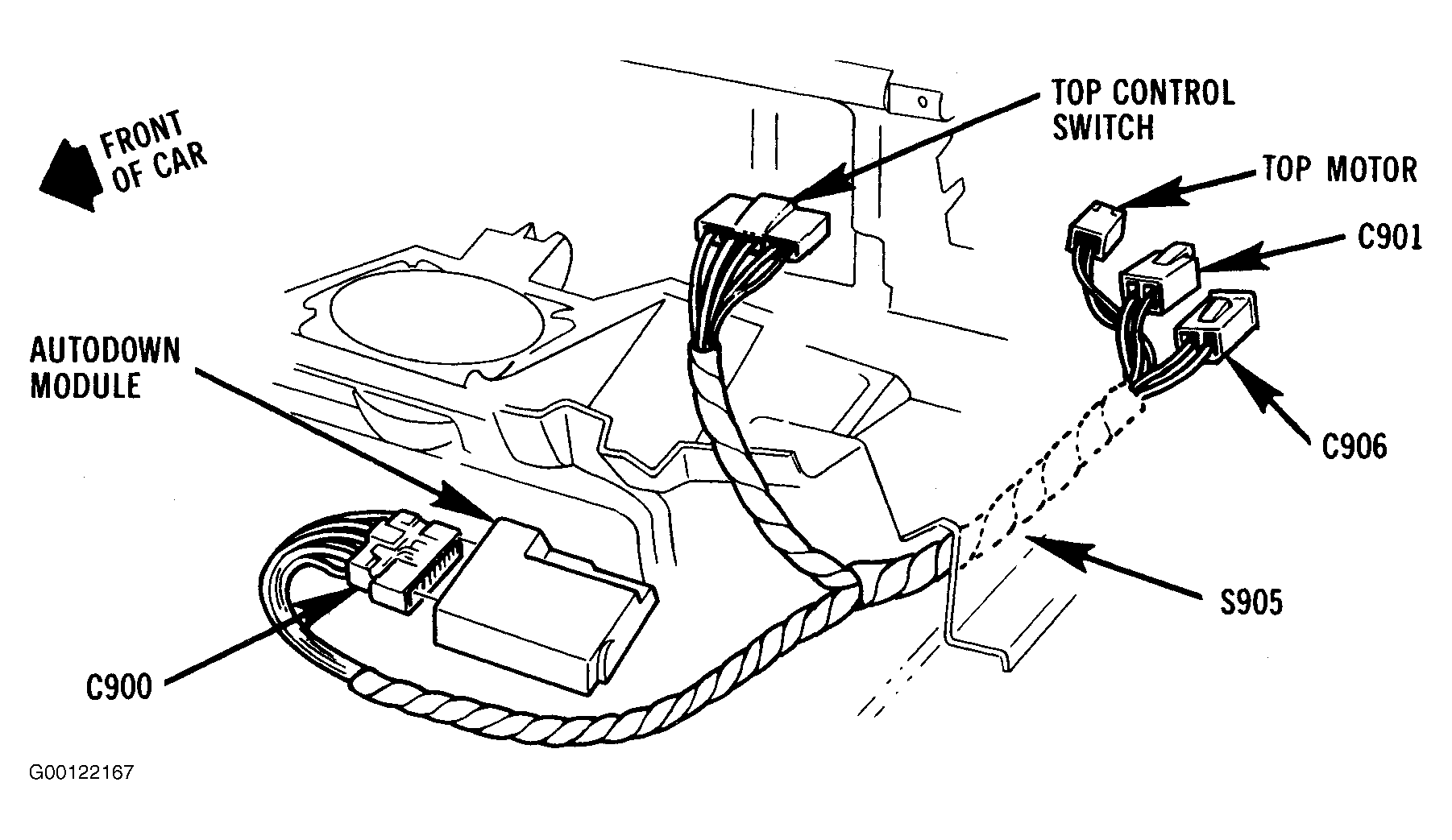

Fig 1: Locating Autodown Module, Connector C900 & Splice S905 (Convertible)
G00122167Courtesy of GENERAL MOTORS CORP.

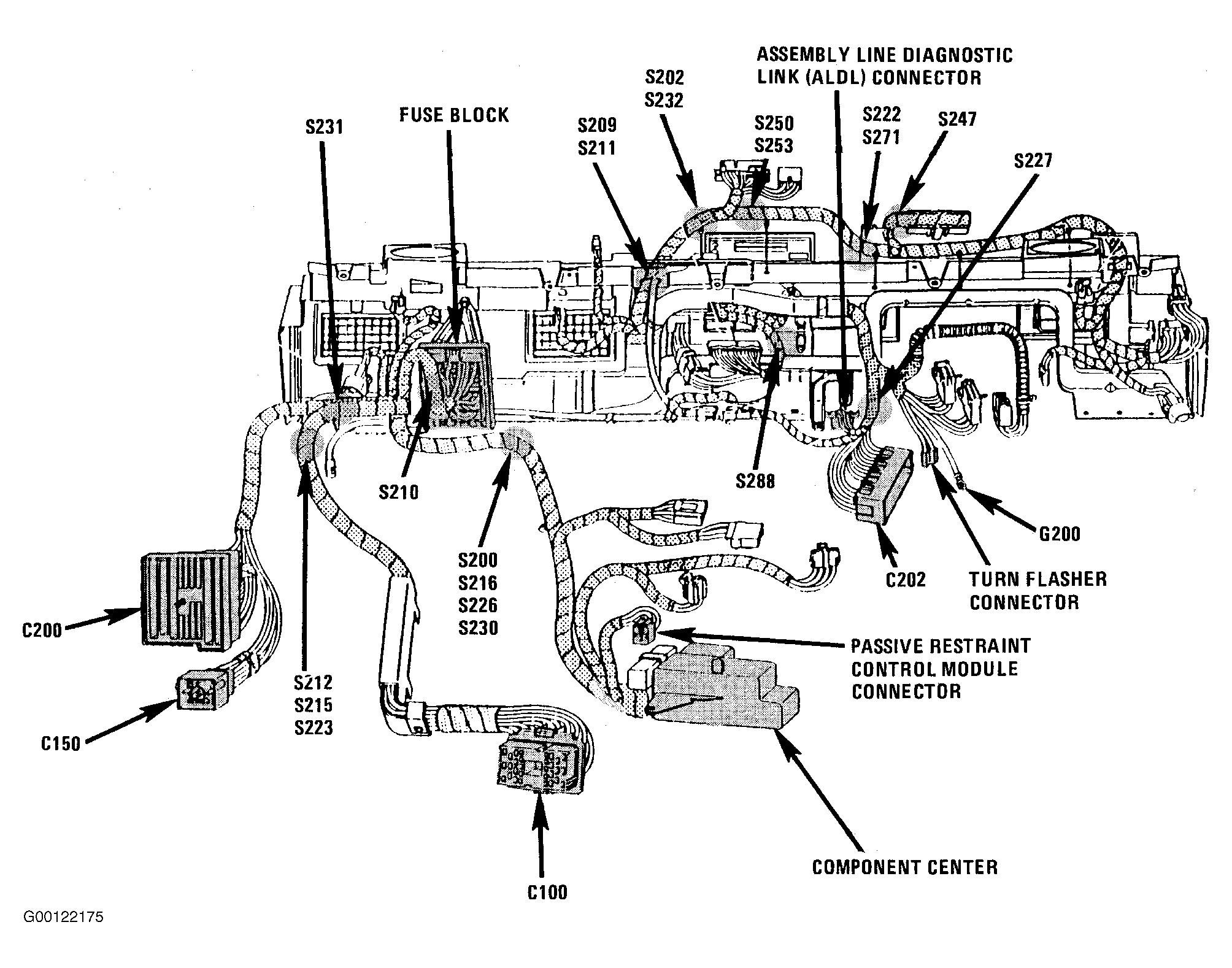

Fig 2: Locating Component Center, Connector C200 & Splice S231
G00122175Courtesy of GENERAL MOTORS CORP.
Fig 3: Locating Component Center, Connector C302 & Splice S501 (Convertible)
G00122170Courtesy of GENERAL MOTORS CORP.

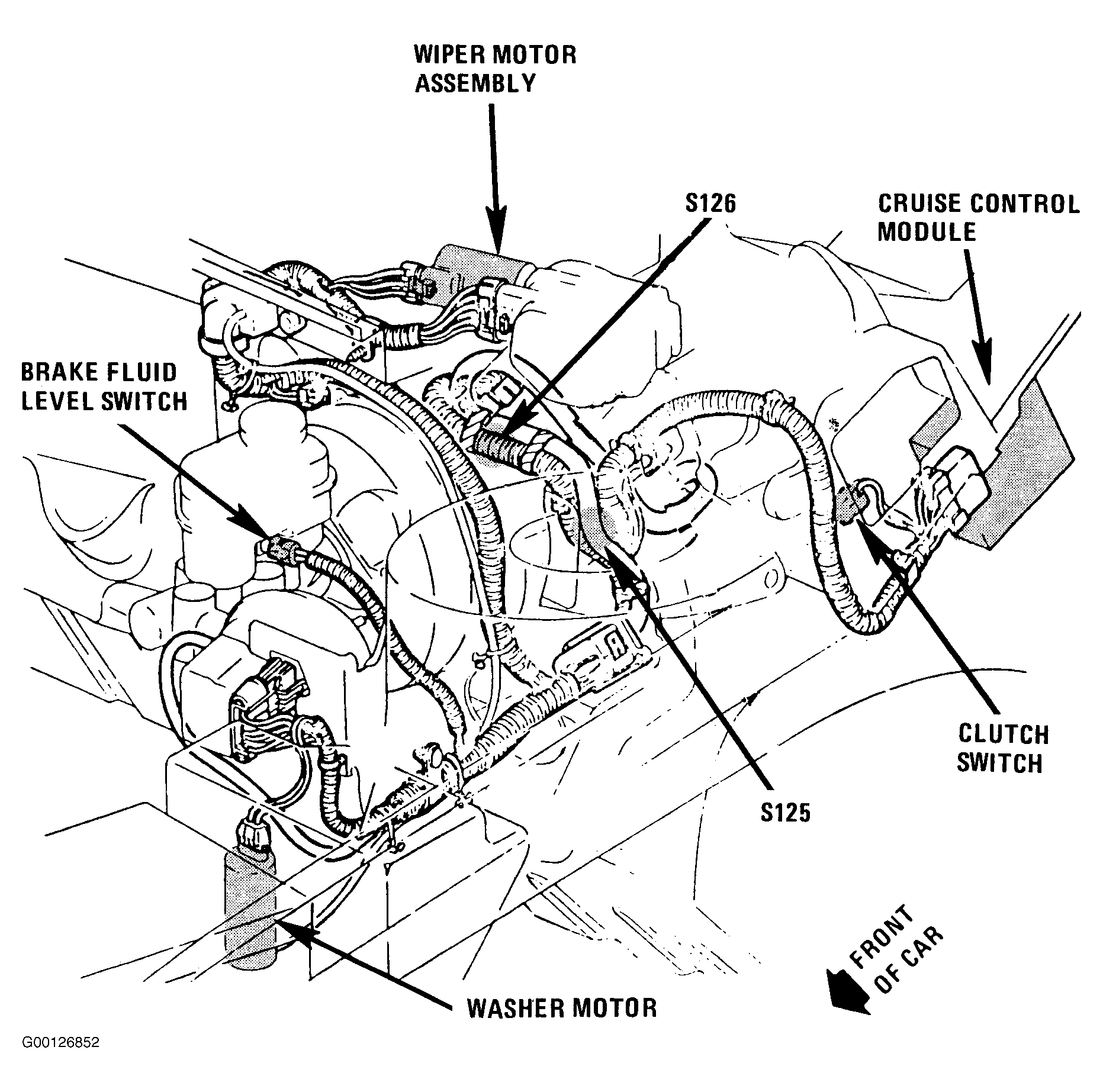

Fig 4: Locating Component Center & Splice S200 (Convertible)
G00126852Courtesy of GENERAL MOTORS CORP.

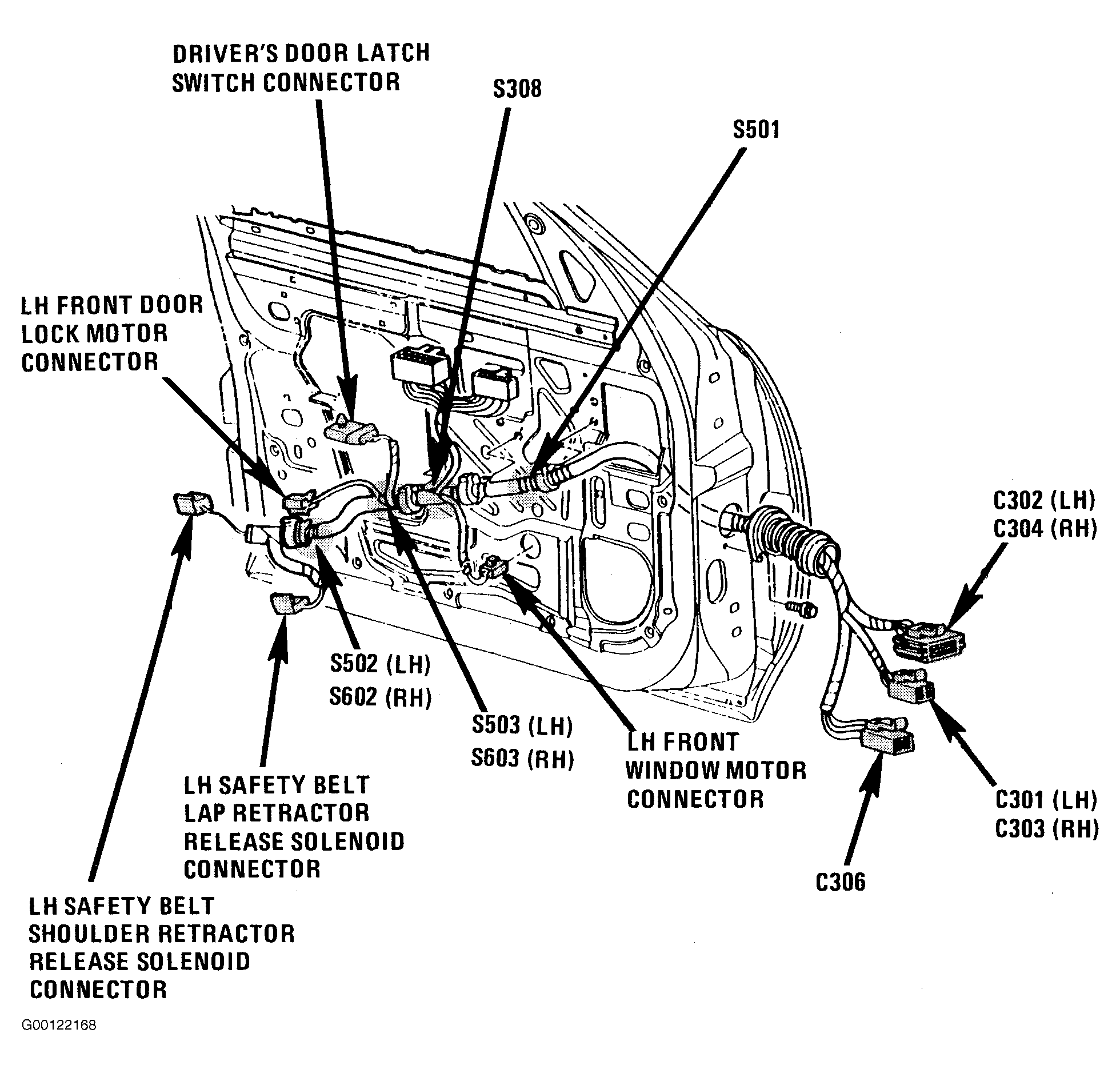

Fig 5: Locating Window Motor & Splice S308 & S501 (Left Is Shown, Right Similar)
G00122168Courtesy of GENERAL MOTORS CORP.

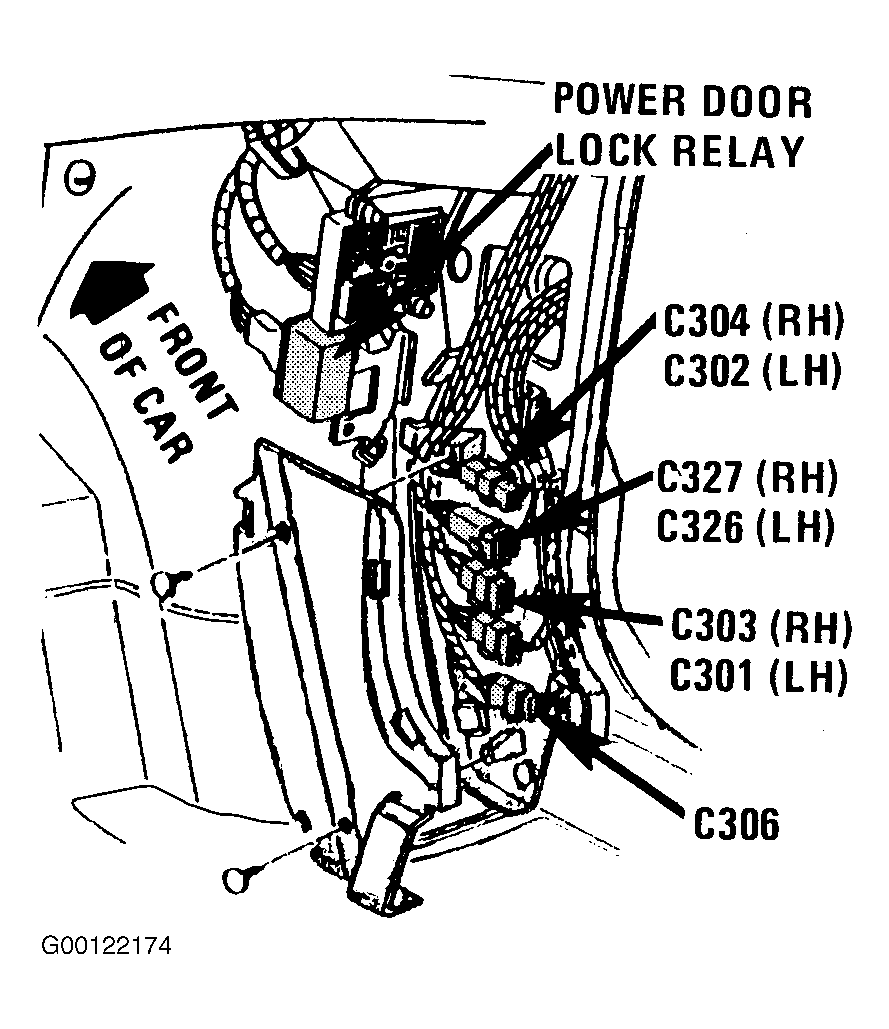

Fig 6: Locating Connectors C301 C303 & C306 (Right Is Shown, Left Is Similar)
G00122174Courtesy of GENERAL MOTORS CORP.
Fig 7: Locating Connector C301 & C303 (Convertible)
G00126851Courtesy of GENERAL MOTORS CORP.

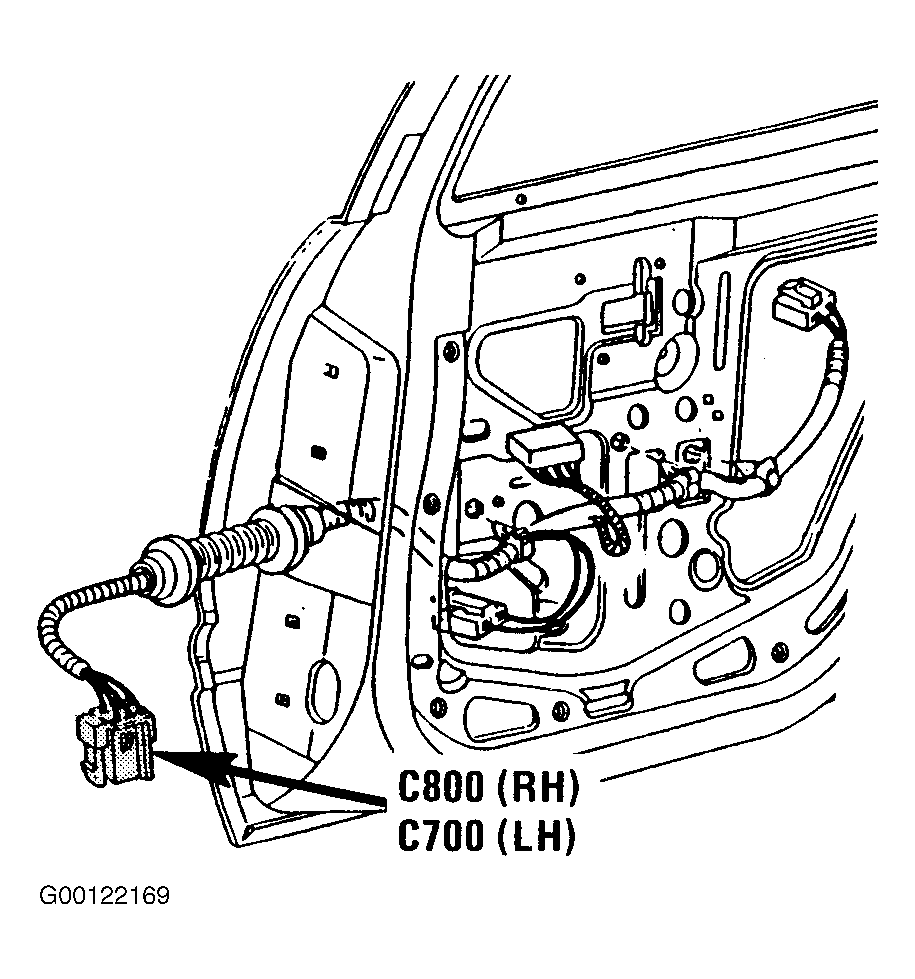

Fig 8: Locating Connectors C700 & C800 (Right Is Shown, Left Similar)
G00122169Courtesy of GENERAL MOTORS CORP.

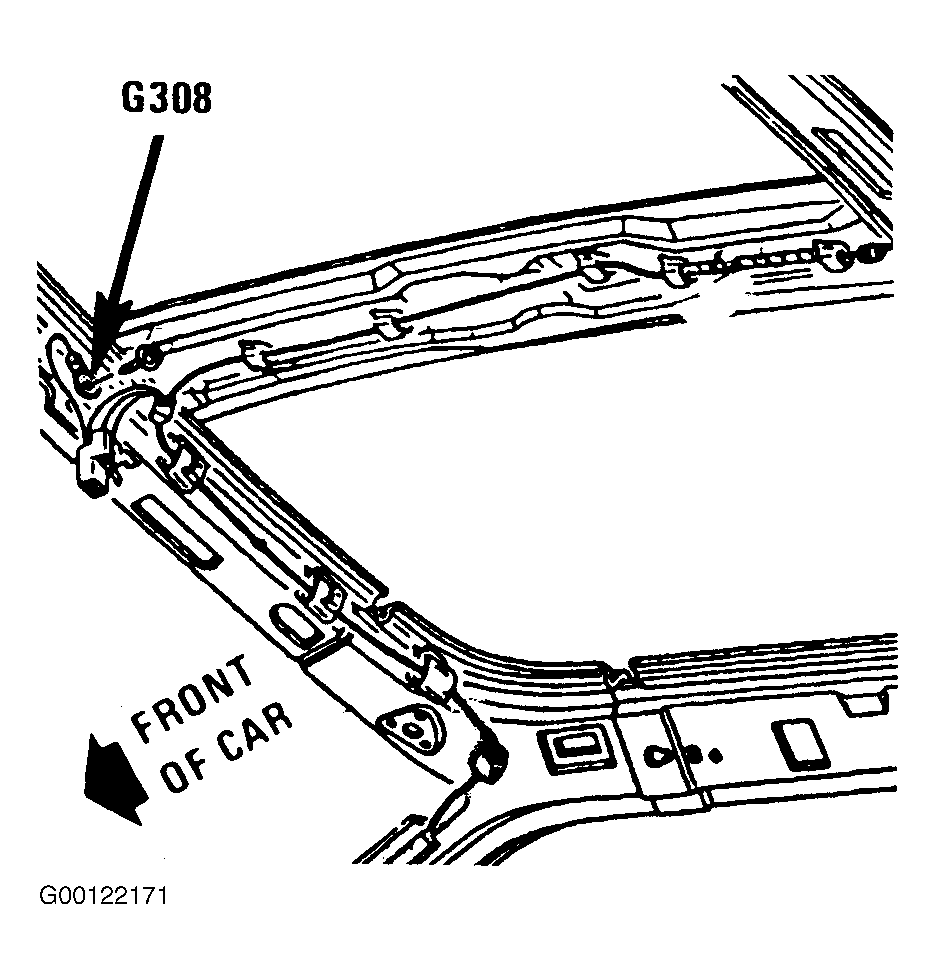

Fig 9: Locating Connector C700 & C800 (Convertible)
G00122171Courtesy of GENERAL MOTORS CORP.

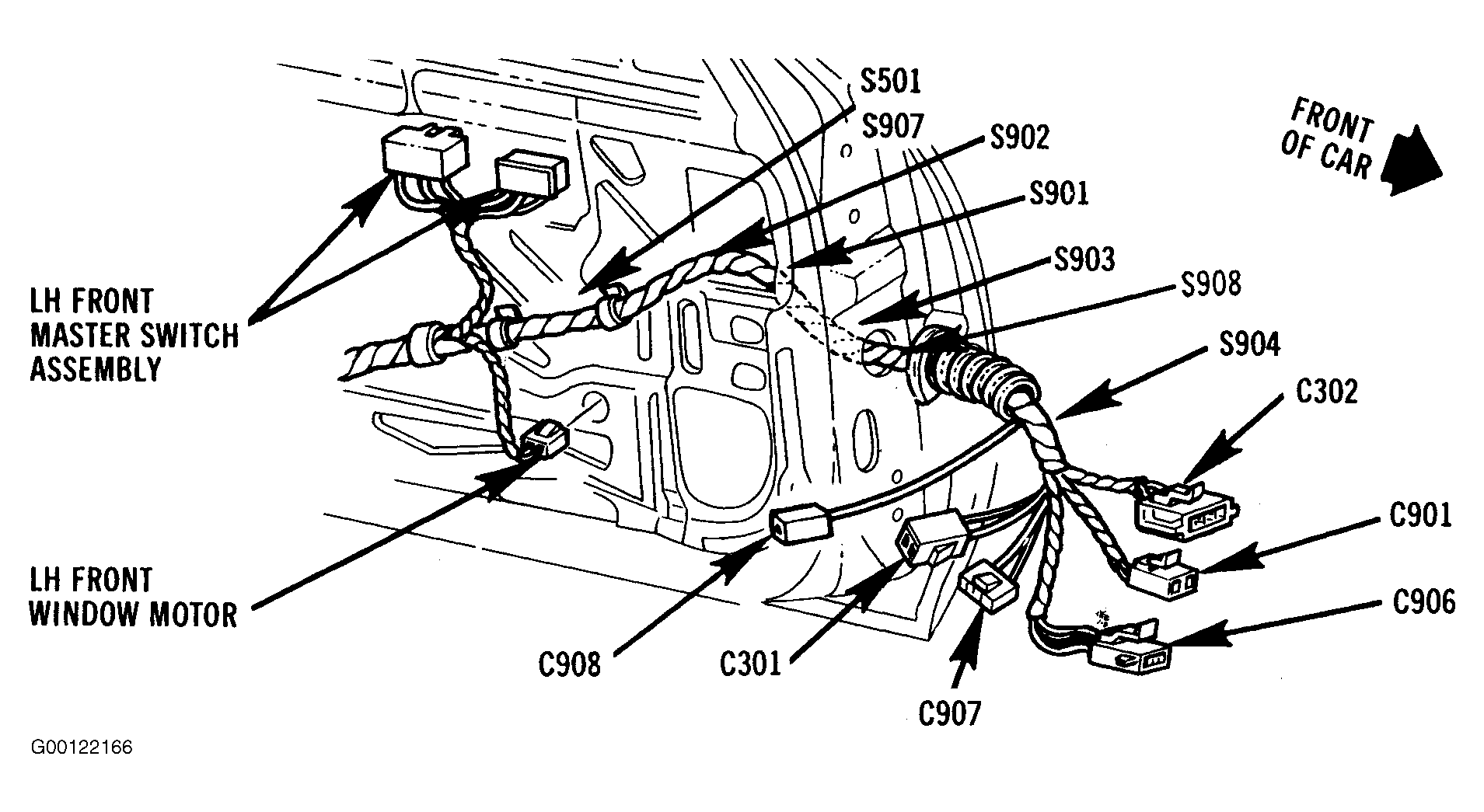

Fig 10: Locating Connector C901, C902, C903, C904, C907 & C908 (Convertible)
G00122166Courtesy of GENERAL MOTORS CORP.

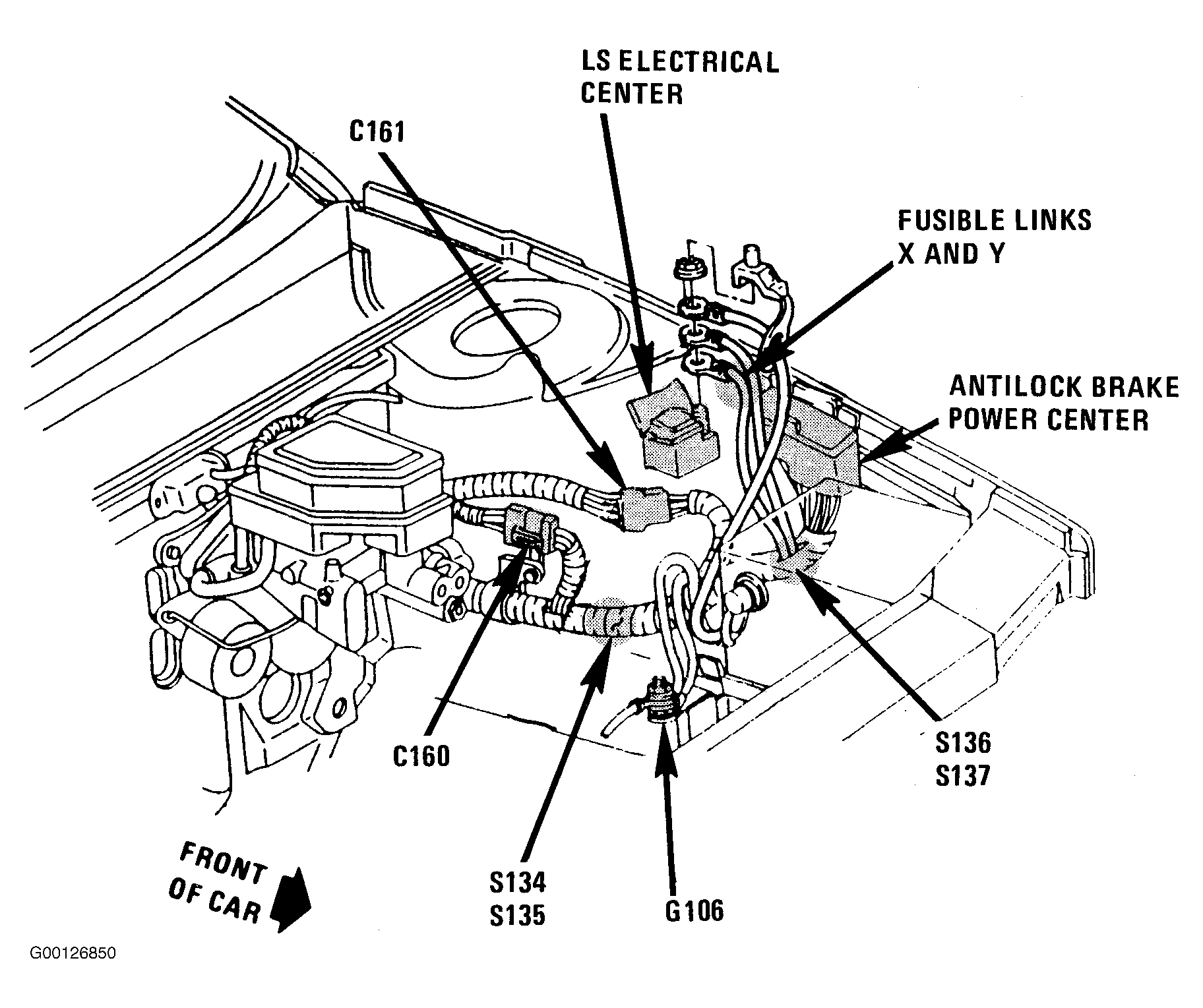

Fig 11: Locating Ground G305 & Splice S303 (Convertible)
G00126850Courtesy of GENERAL MOTORS CORP.

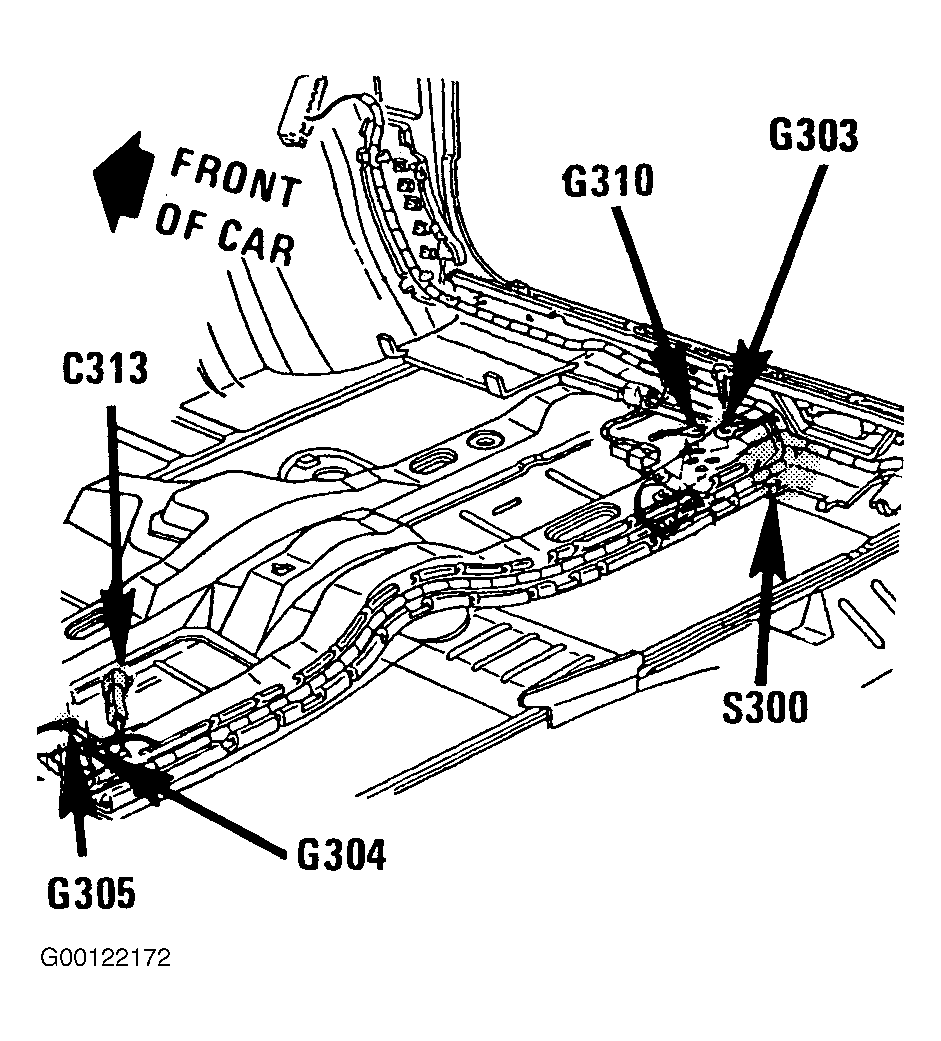

Fig 12: Locating Ground G305
G00122172Courtesy of GENERAL MOTORS CORP.

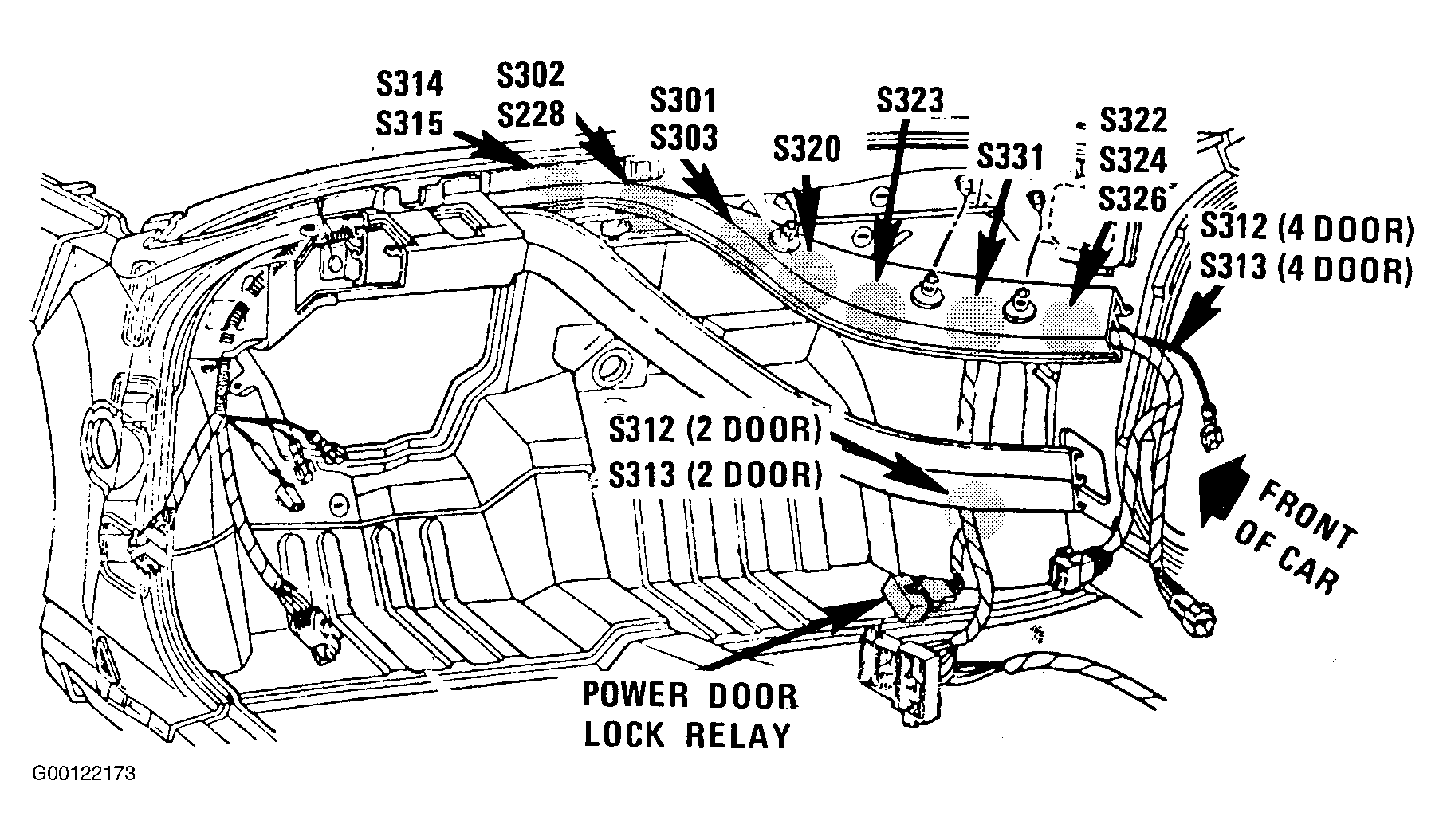

Fig 13: Locating Splice S228 & S303
G00122173Courtesy of GENERAL MOTORS CORP.
