Test B: Master Switch Assembly Test

For testing procedures, see Fig 1 , Fig 2 or Fig 3 .

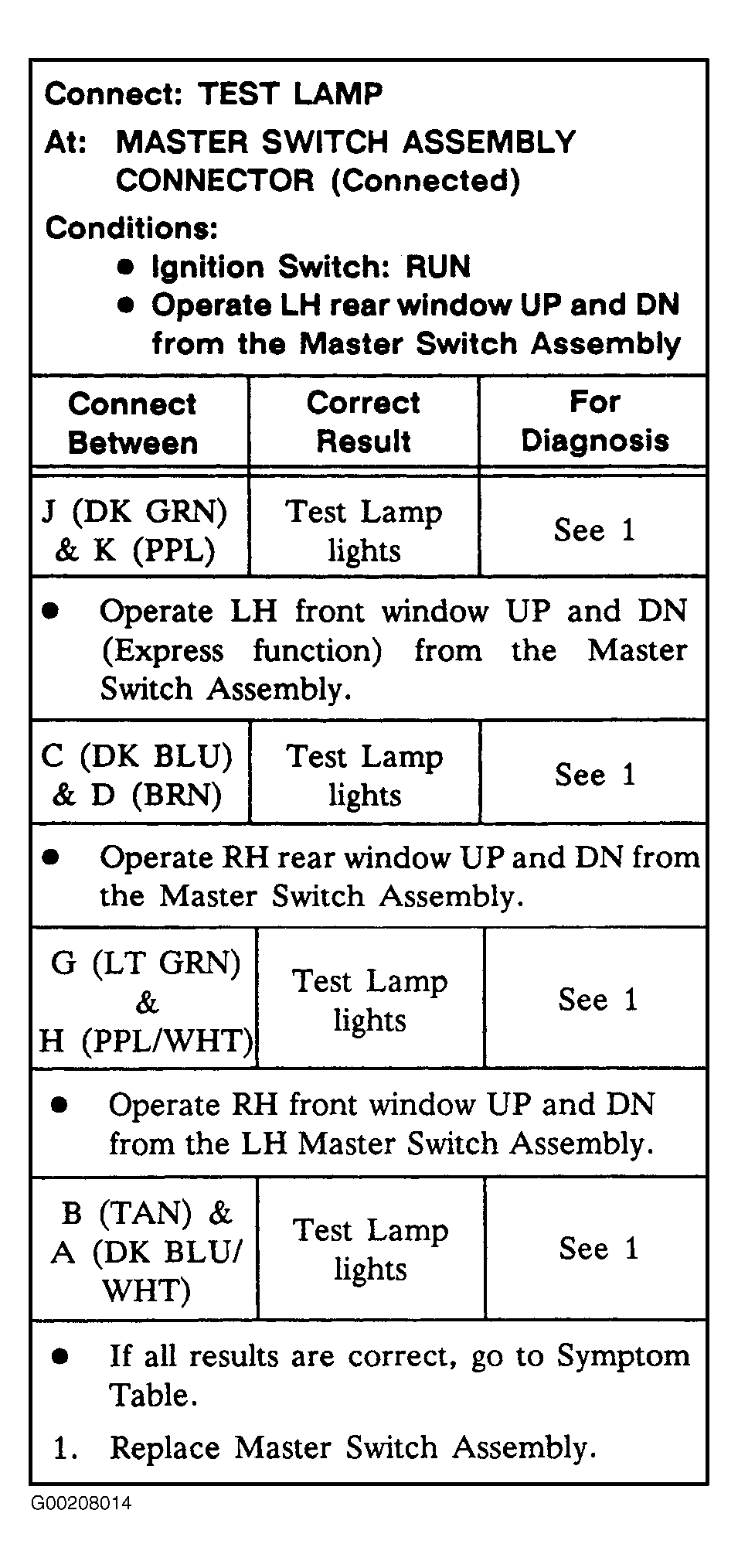

Fig 1: Test B: Master Switch Assembly Test (Eighty-Eight 2-Door)

Courtesy of GENERAL MOTORS CORP.

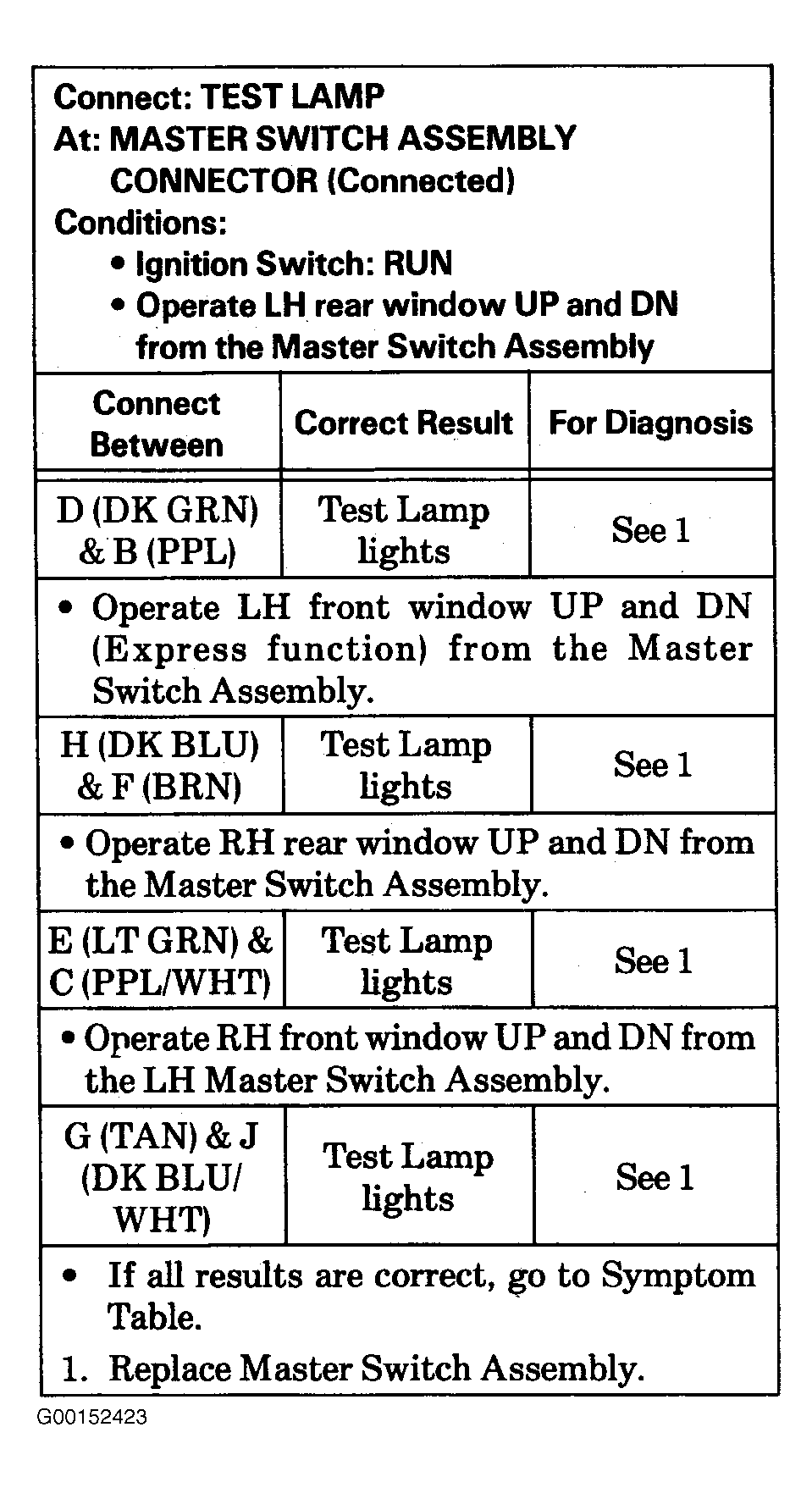

Fig 2: Test B: Master Switch Assembly Test (Eighty-Eight 4-Door)

Courtesy of GENERAL MOTORS CORP.

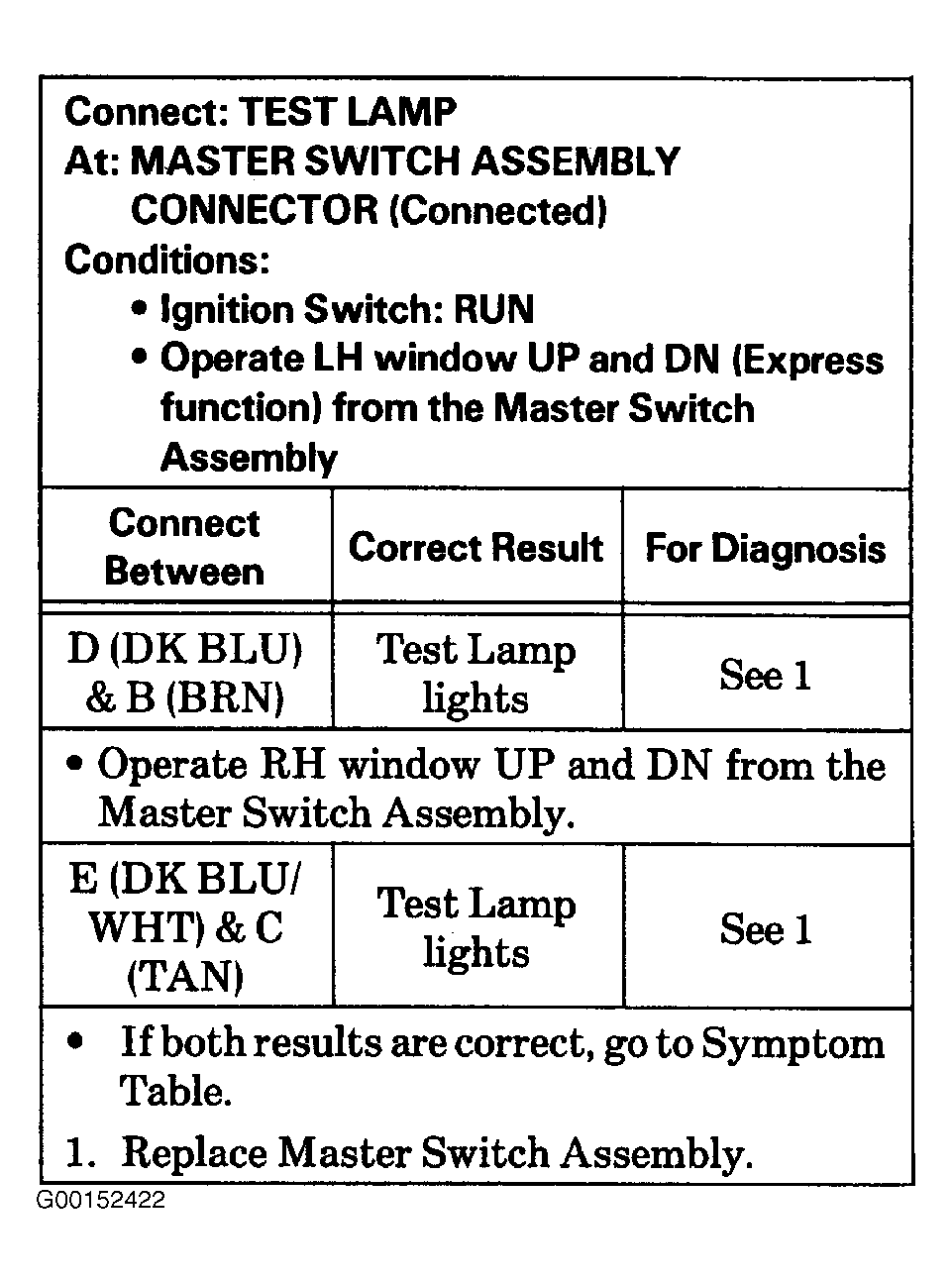

Fig 3: Test B: Master Switch Assembly Test (Ninety-Eight)

Courtesy of GENERAL MOTORS CORP.
