ECM Terminal Identification & Voltage Specifications

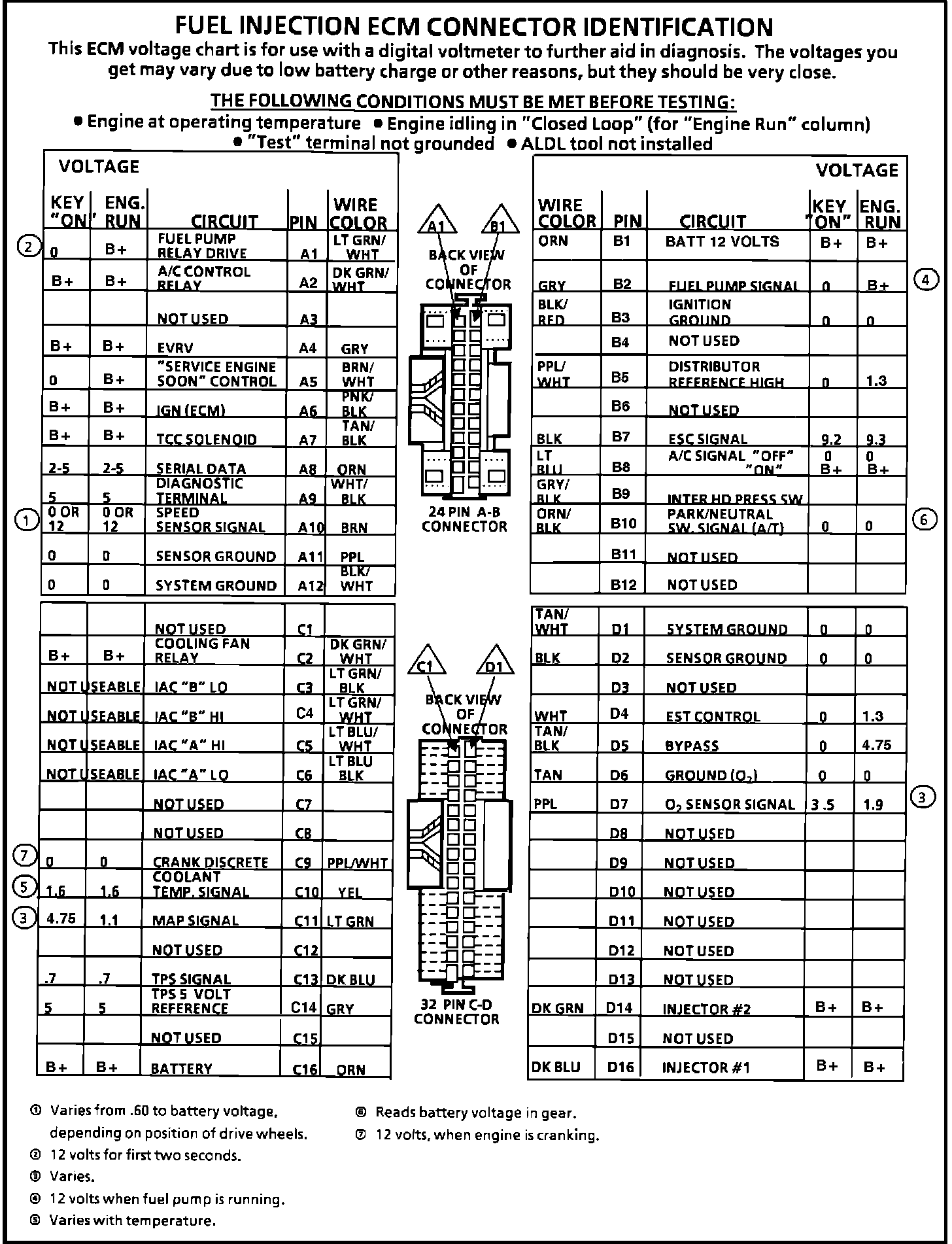

ECM Connector Terminal Identification & Voltage Specifications.:
