Part 1

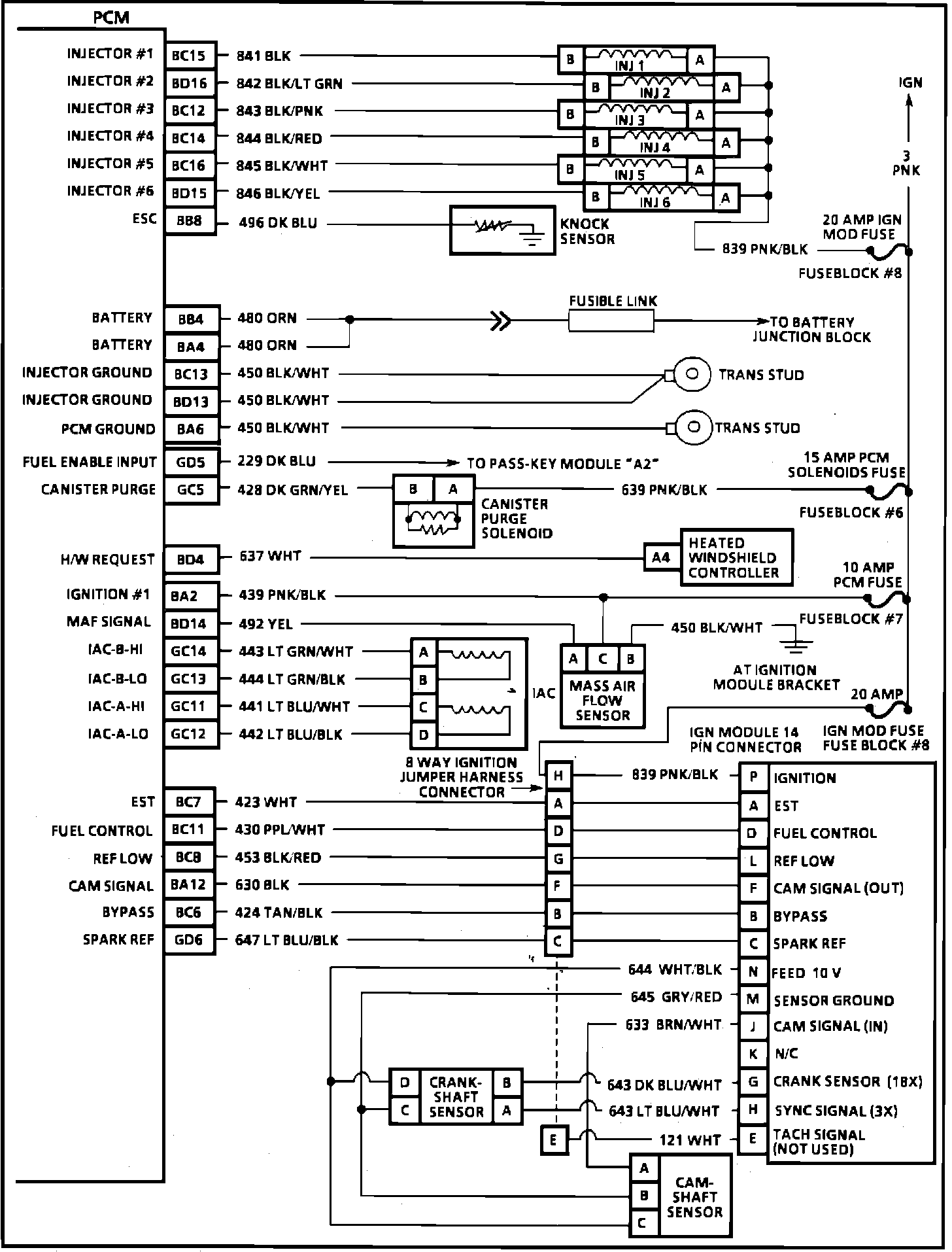

PCM Schematic (1 Of 3):

BC15 = Injector #1
BD16 = Injector #2
BC12 = Injector #3
BC14 = Injector #4
BC16 = Injector #5
BD15 = Injector #6
BB8 = ESC
BB4 = Battery
BA4 = Battery
BC13 = Injector Ground
BD13 = Injector Ground
BA6 = PCM Ground
GD5 = Fuel Enable Input
GC5 = Canister Purge
BD4 = H/W Request
BA2 = Ignition #1
BD14 = MAF Signal
GC14 = IAC B HI
GC13 = IAC B LO
GC11 = IAC A HI
GC12 = IAC A LO
BC7 = EST
BC11 = Fuel Control
BC8 = Ref Low
BA12 = Cam Signal
BC6 = Bypass
GD6 = Spark Ref
