Code 39 alone indicates a problem at:

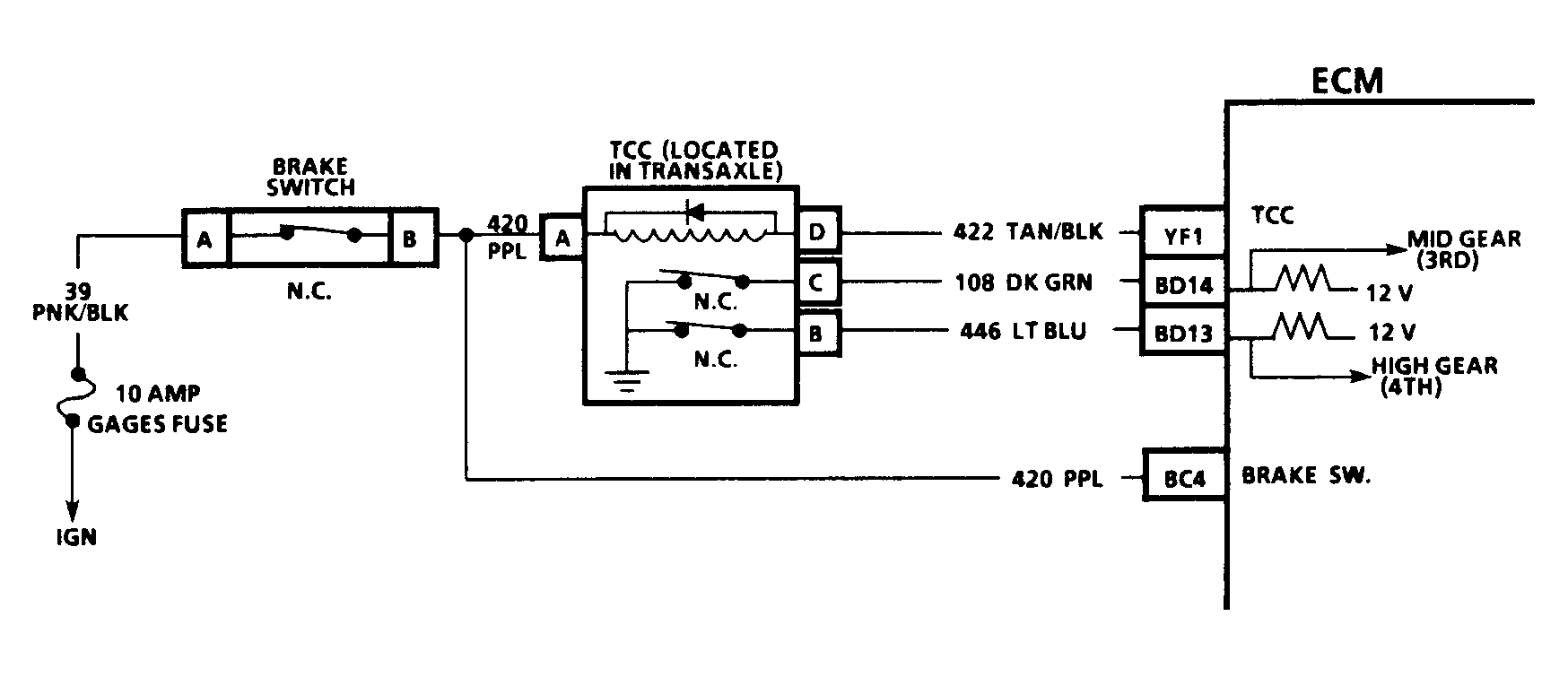

Fig 1: Code 39, "A" Body, Using Tech 1, W/4T60 Transaxle, TCC Ckt, Schematic
G91J07435
Fig 2: Code 39, TCC Ckt, Flow Chart, W/4T60 Transaxle
G91H07340
Fig 3: Code 39 Flow Chart
GB0011740
