Pull Handle Assembly: Installation

  1. Install screw to upper armrest and hanger plate. See Fig 1 .
  2. Install screw to lower armrest and hanger plate.
  3. Install screw to switch plate cutout and hanger plate.
  4. Install switch plate assembly. See POWER WINDOW & DOOR SWITCH ASSEMBLY  .
  5. Install handle bezel. See INSIDE HANDLE BEZEL  .

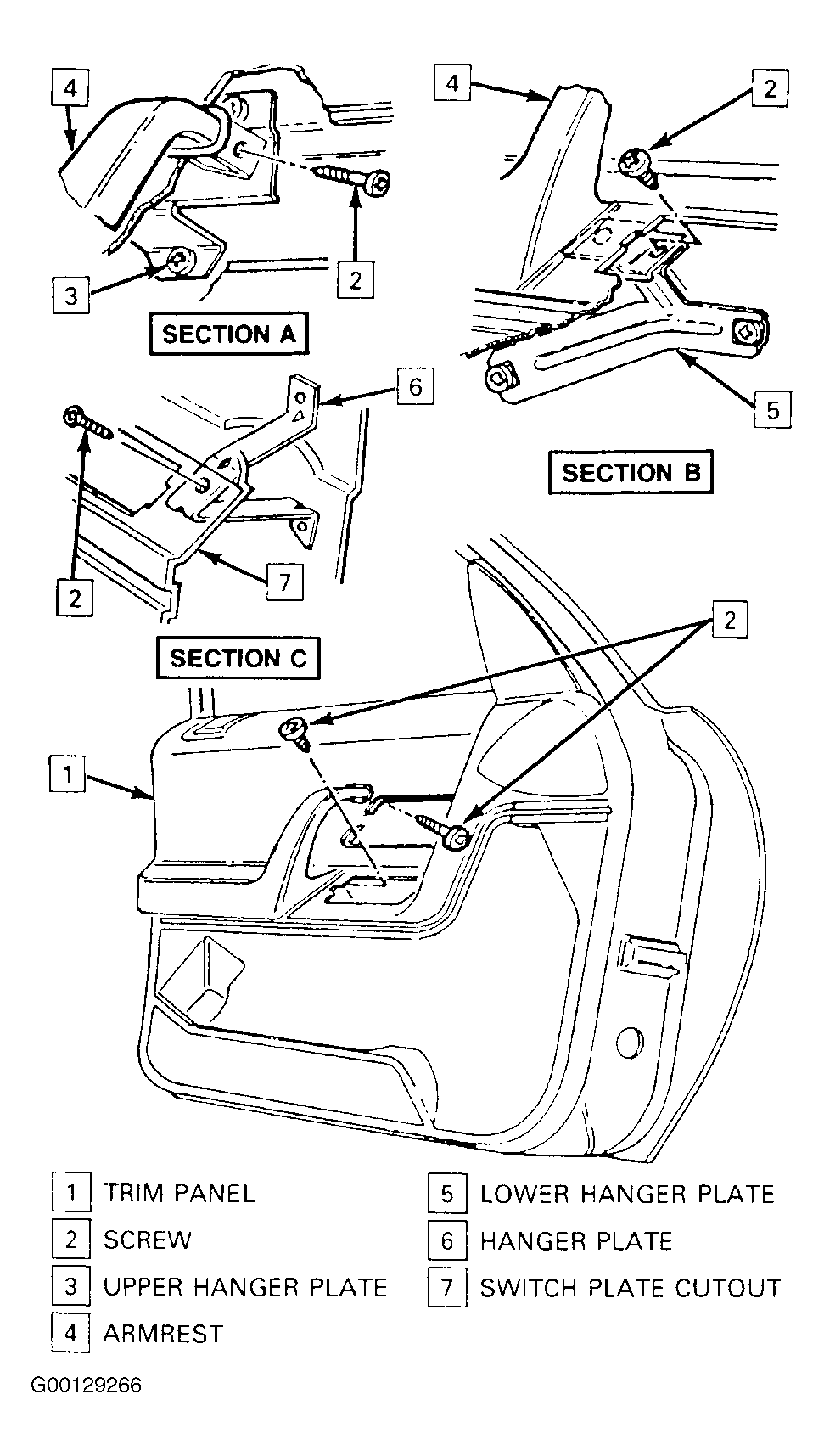

Fig 1: Removing & Installing Front Door Side Pull Handle Assembly
G00129266Courtesy of GENERAL MOTORS CORP.


  1. Install screw to armrest and upper hanger plate. See Fig 1 .
  2. Install screw to armrest and lower hanger plate.

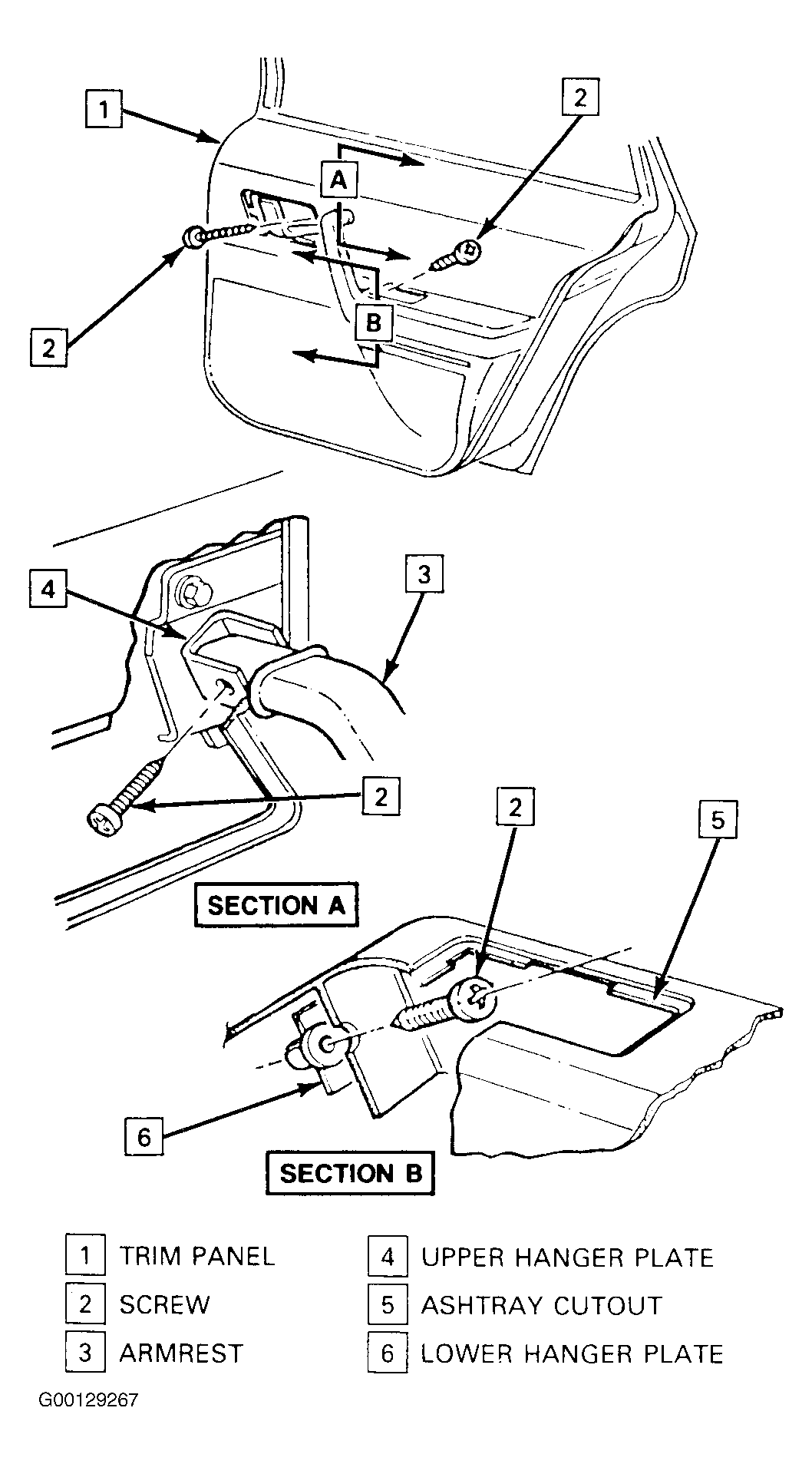

Fig 1: Removing & Installing Rear Door Side Pull Handle Assembly
G00129267Courtesy of GENERAL MOTORS CORP.
