Wiring Diagrams

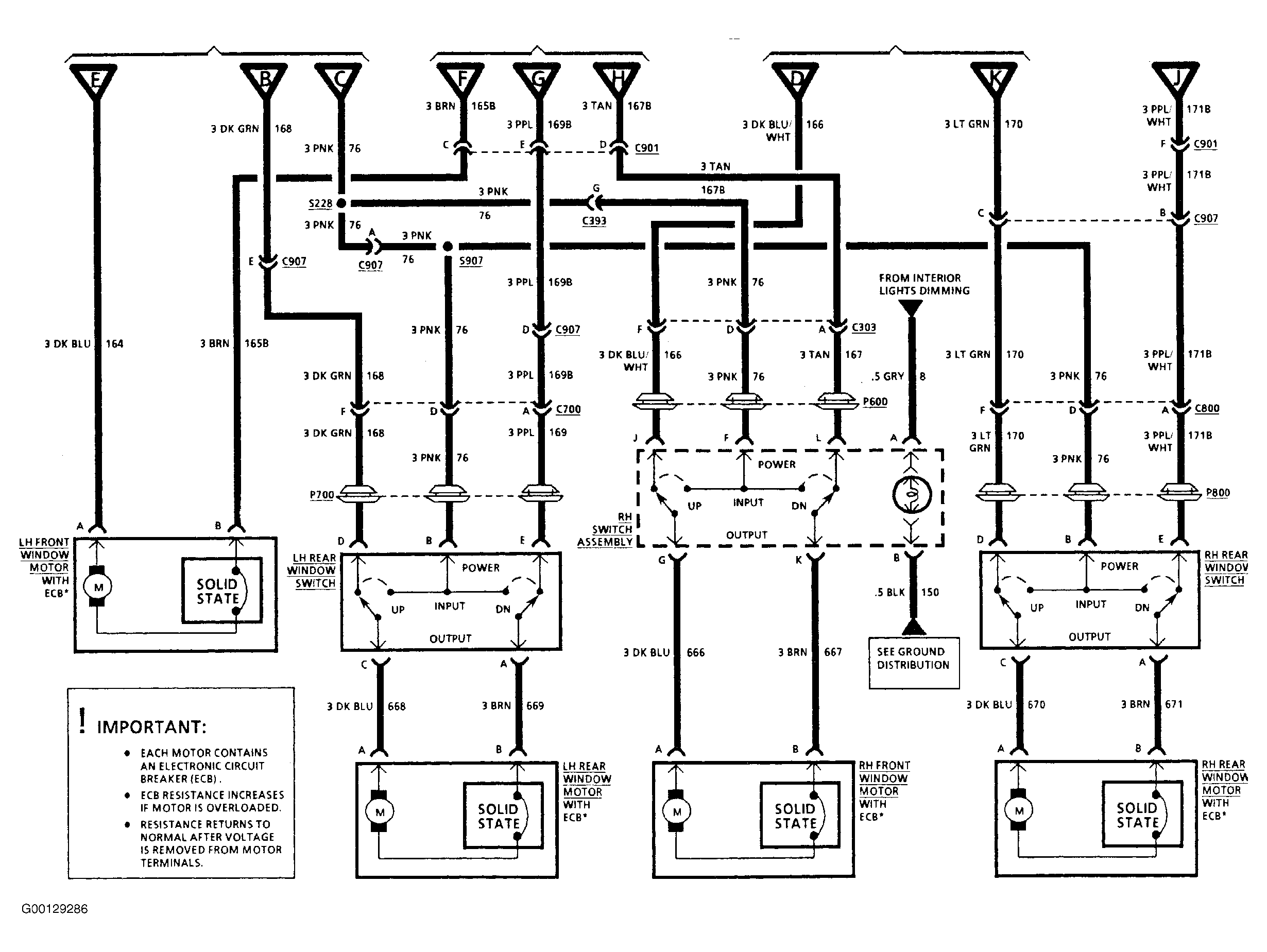

Fig 1: Power Window Wiring Diagram (Convertible - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

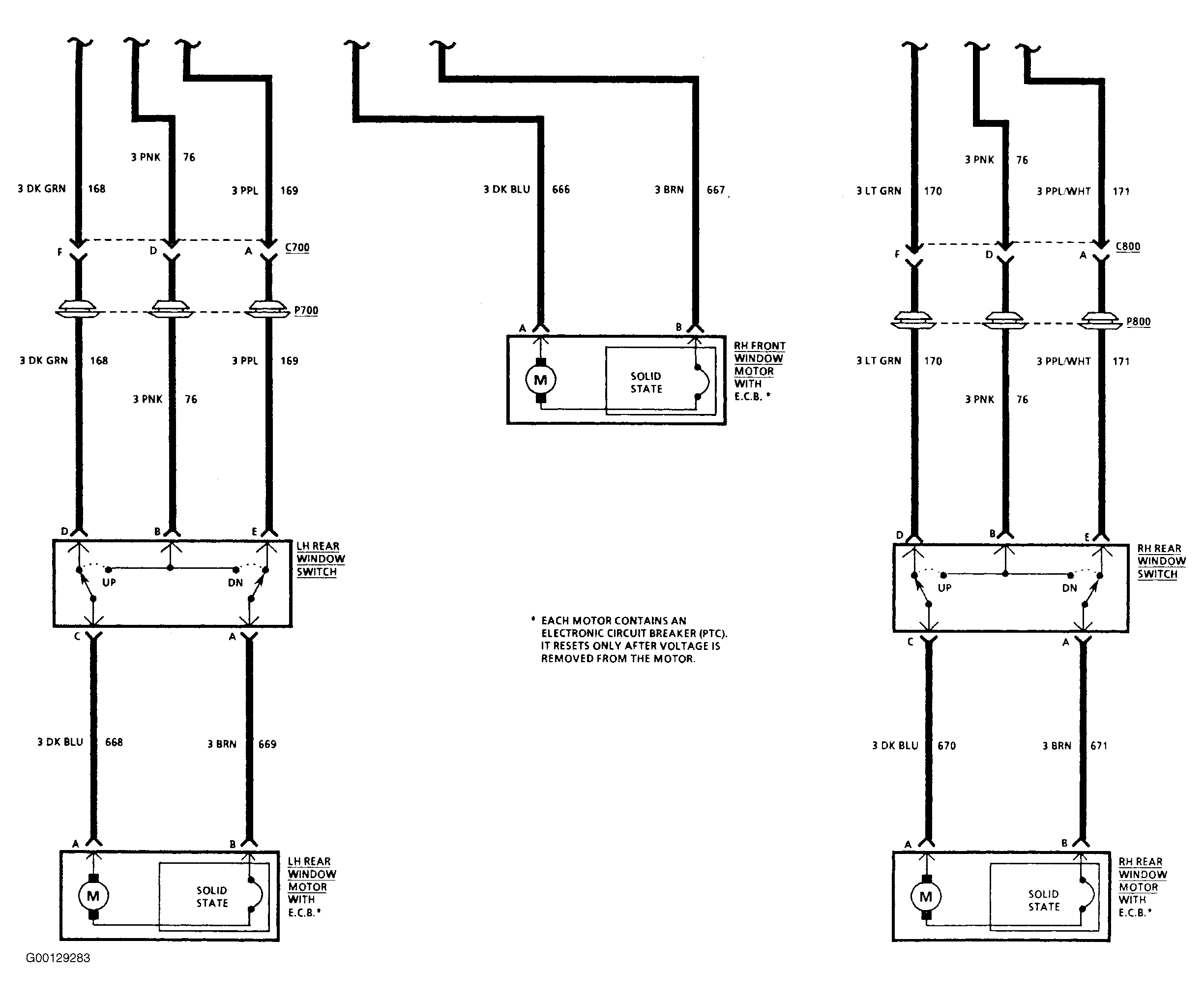

Fig 2: Power Window Wiring Diagram (Convertible - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

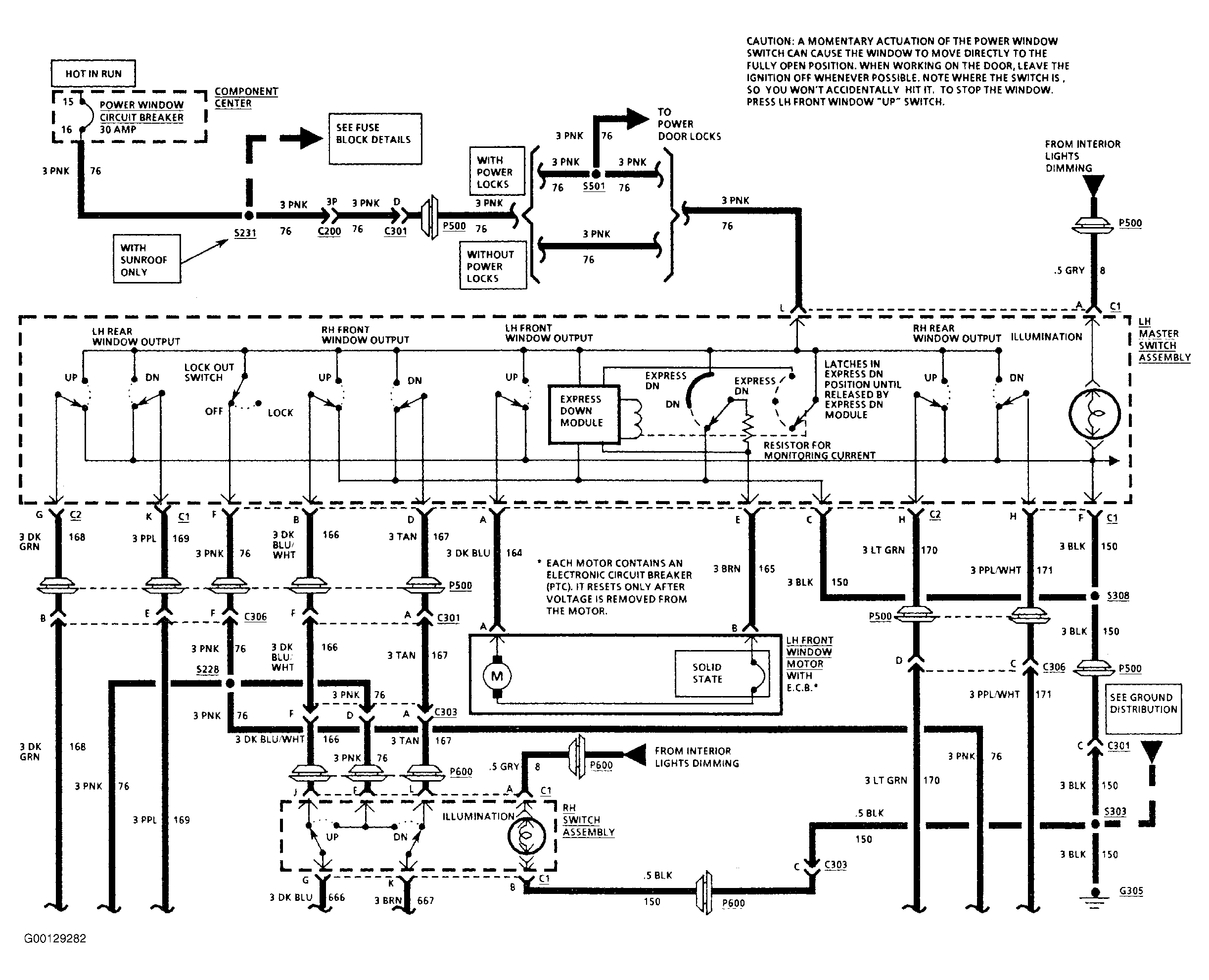

Fig 3: Power Window Wiring Diagram (Coupe)

Courtesy of GENERAL MOTORS CORP.

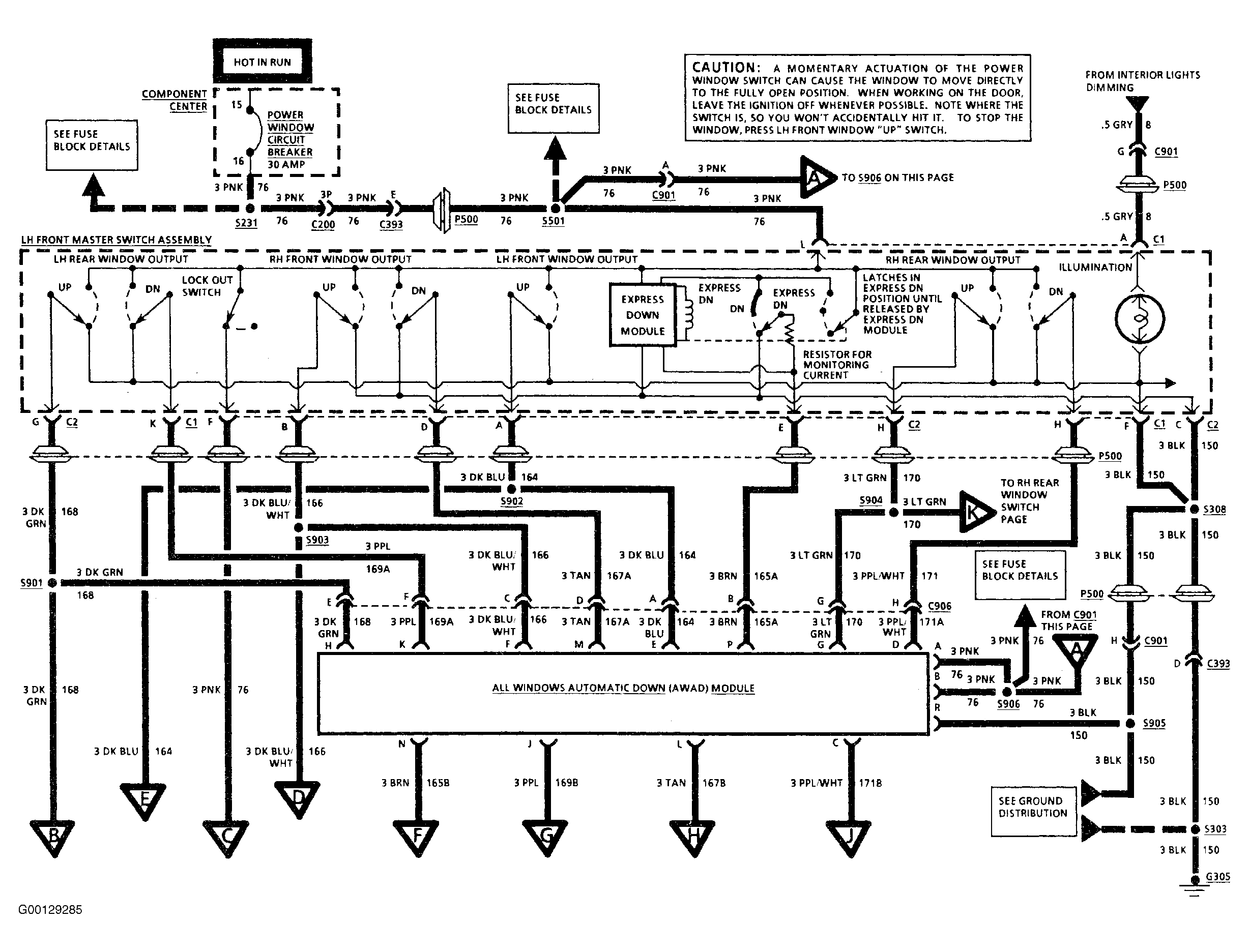

Fig 4: Power Window Wiring Diagram (Sedan - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

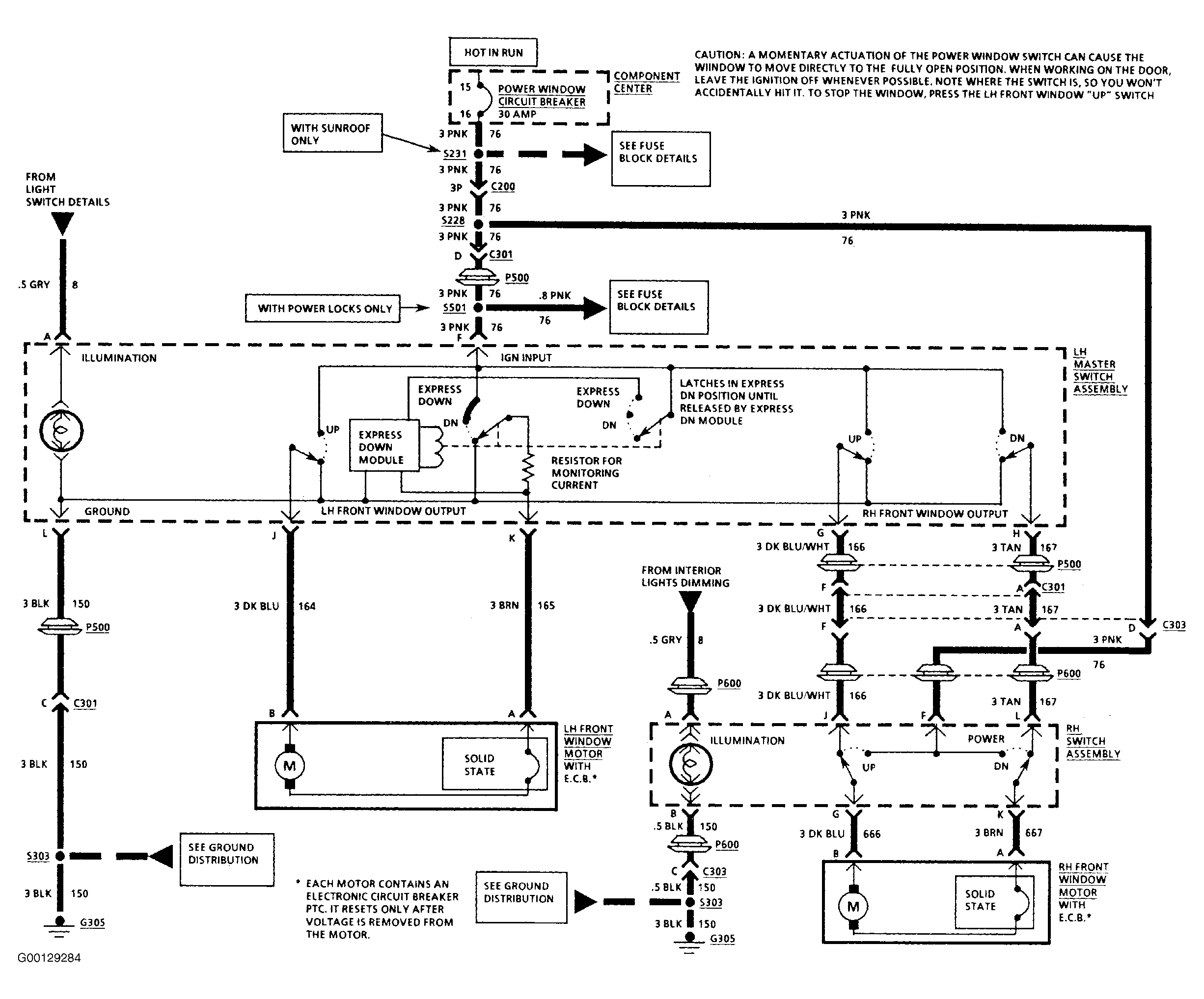

Fig 5: Power Window Wiring Diagram (Sedan - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.
