RKE System Operation Check

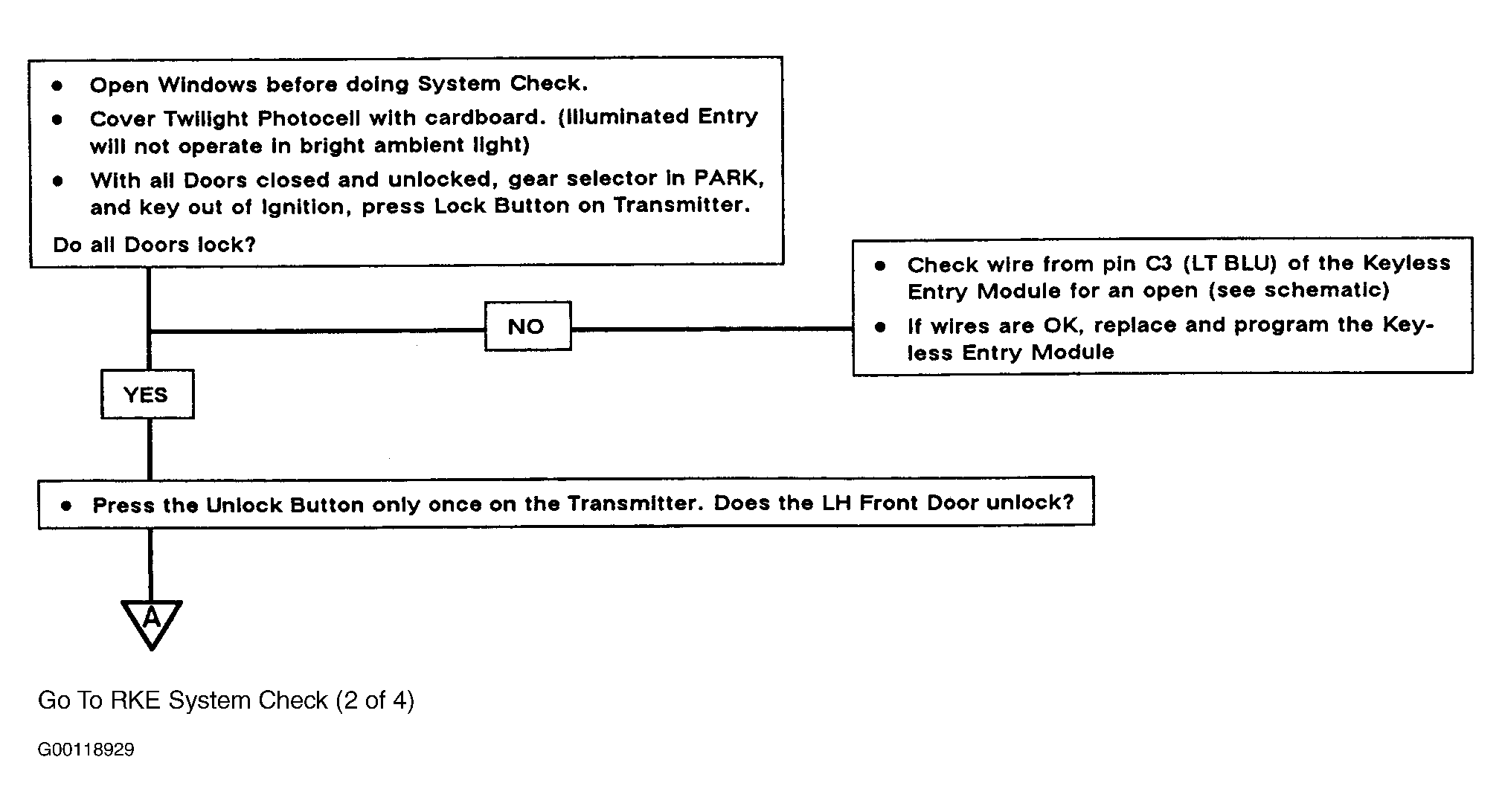

Fig 1: RKE System Operation Check (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

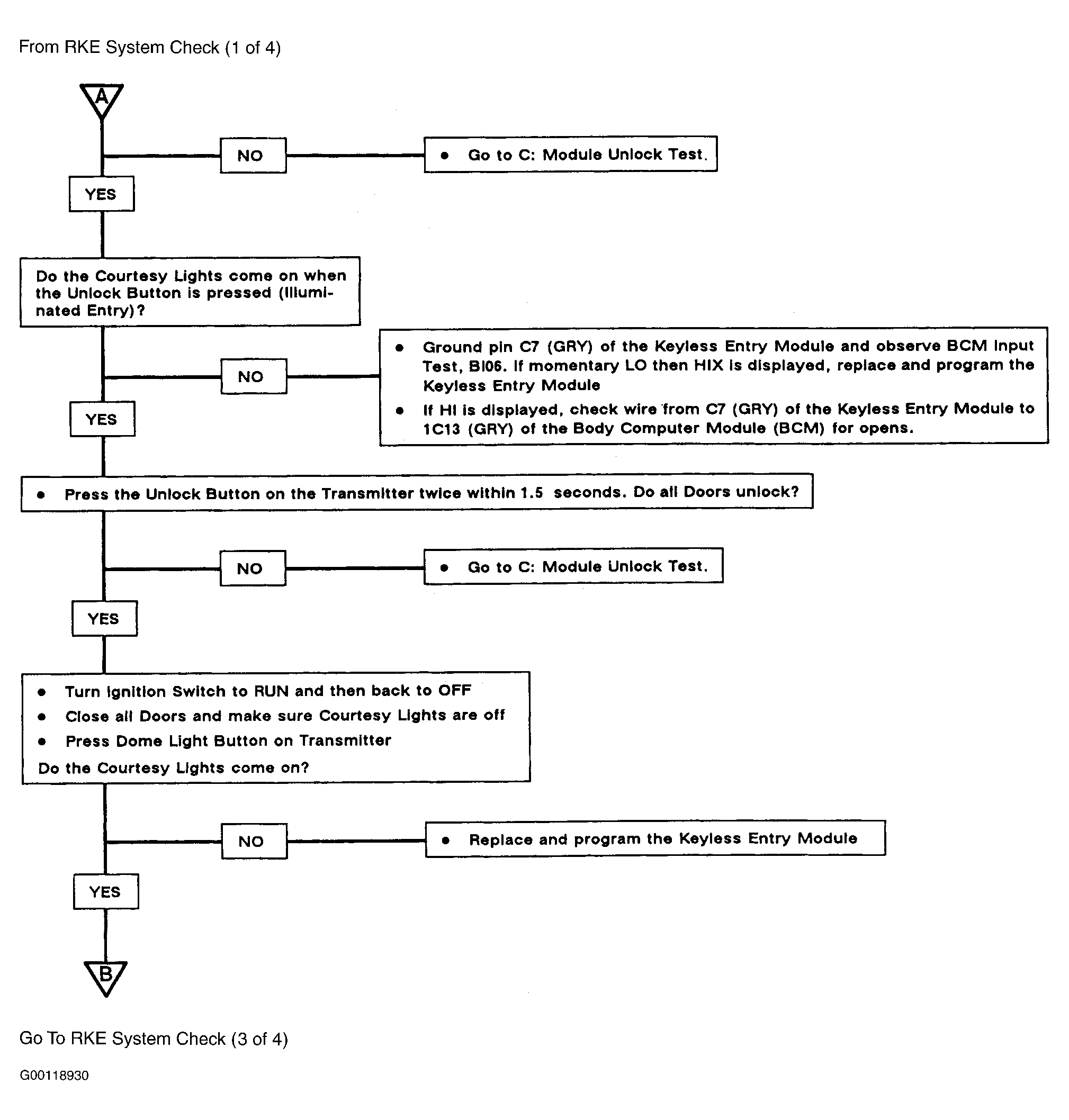

Fig 2: RKE System Operation Check (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

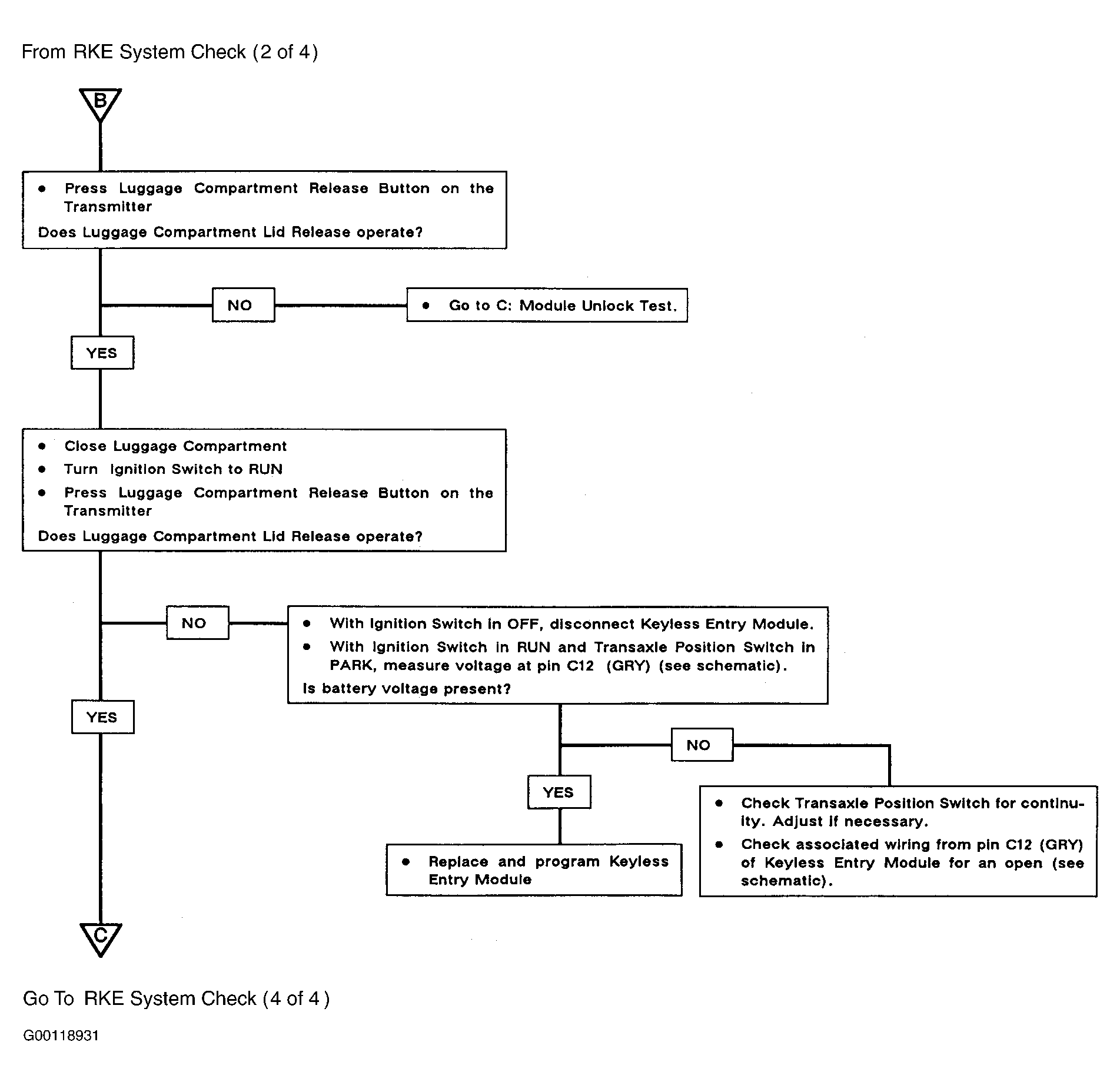

Fig 3: RKE System Operation Check (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

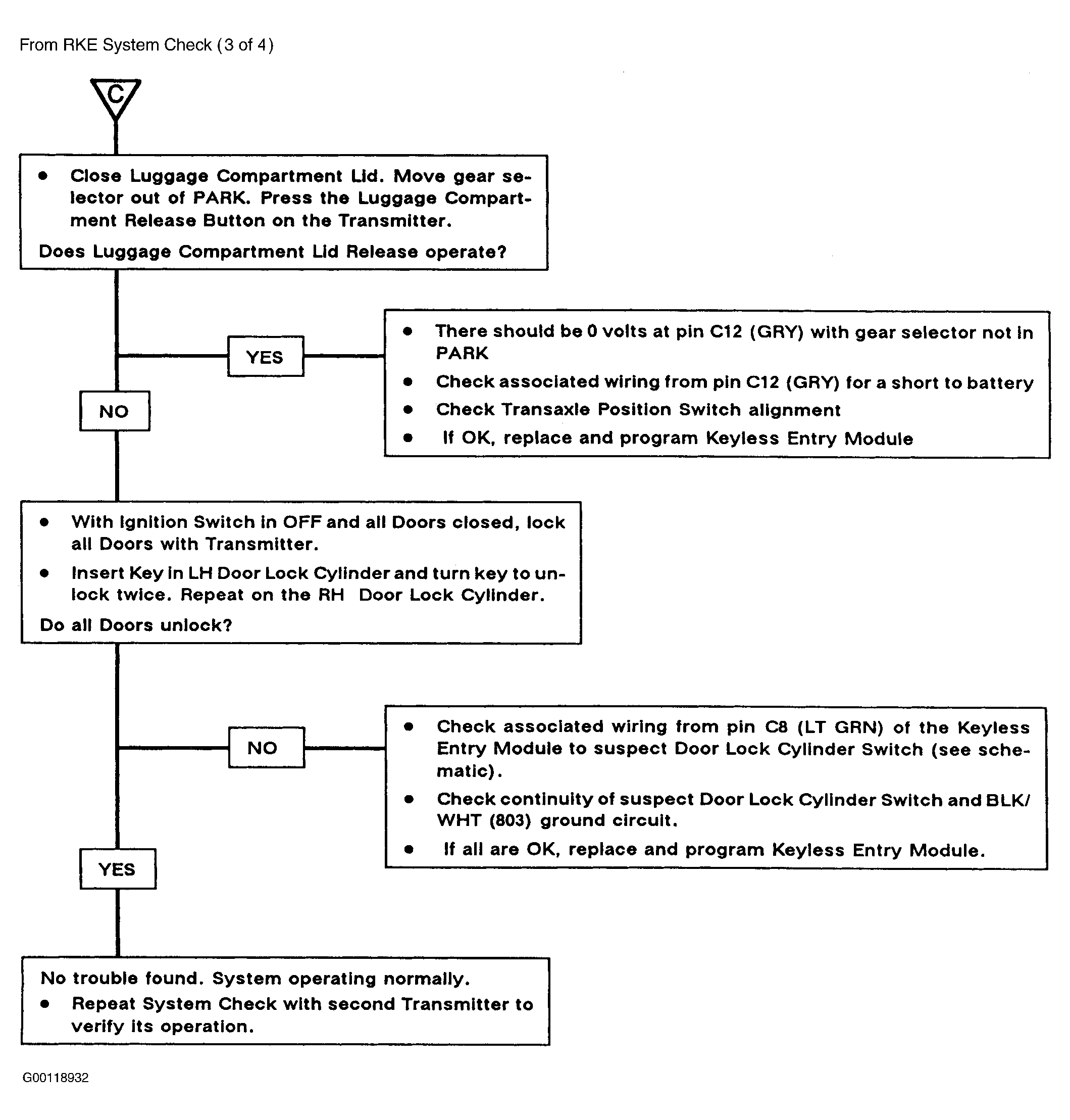

Fig 4: RKE System Operation Check (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
