Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

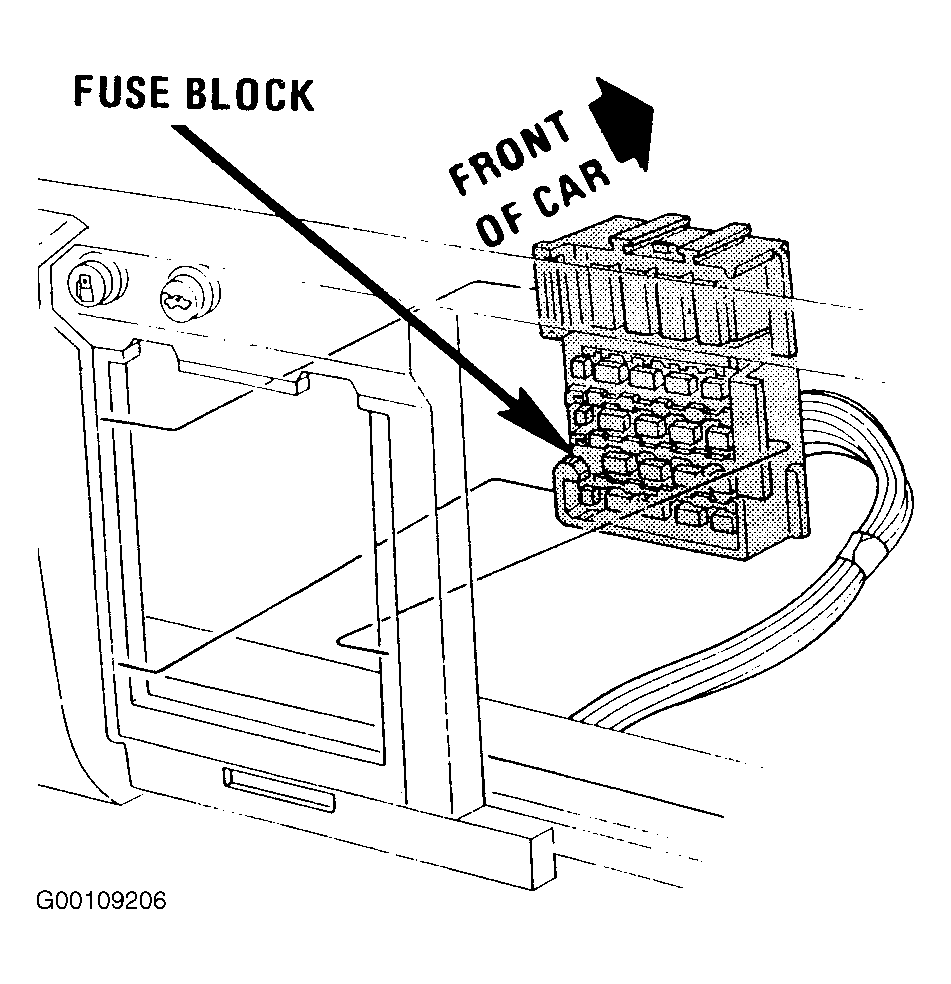

| Fuse Block | On Right Side Of Instrument Panel, Left Of Instrument Panel Compartment. See Fig 1 . |
| Seat Air Pump Assembly | In Center Of Console |
| Seat Control Assemblies | In Passenger Compartment, Below Respective Front Seats |
| Seat Control Module | In Center Console, Near Seat Air Pump Assembly |
| Seat Recliner Motors | Below Respective Front Seats |

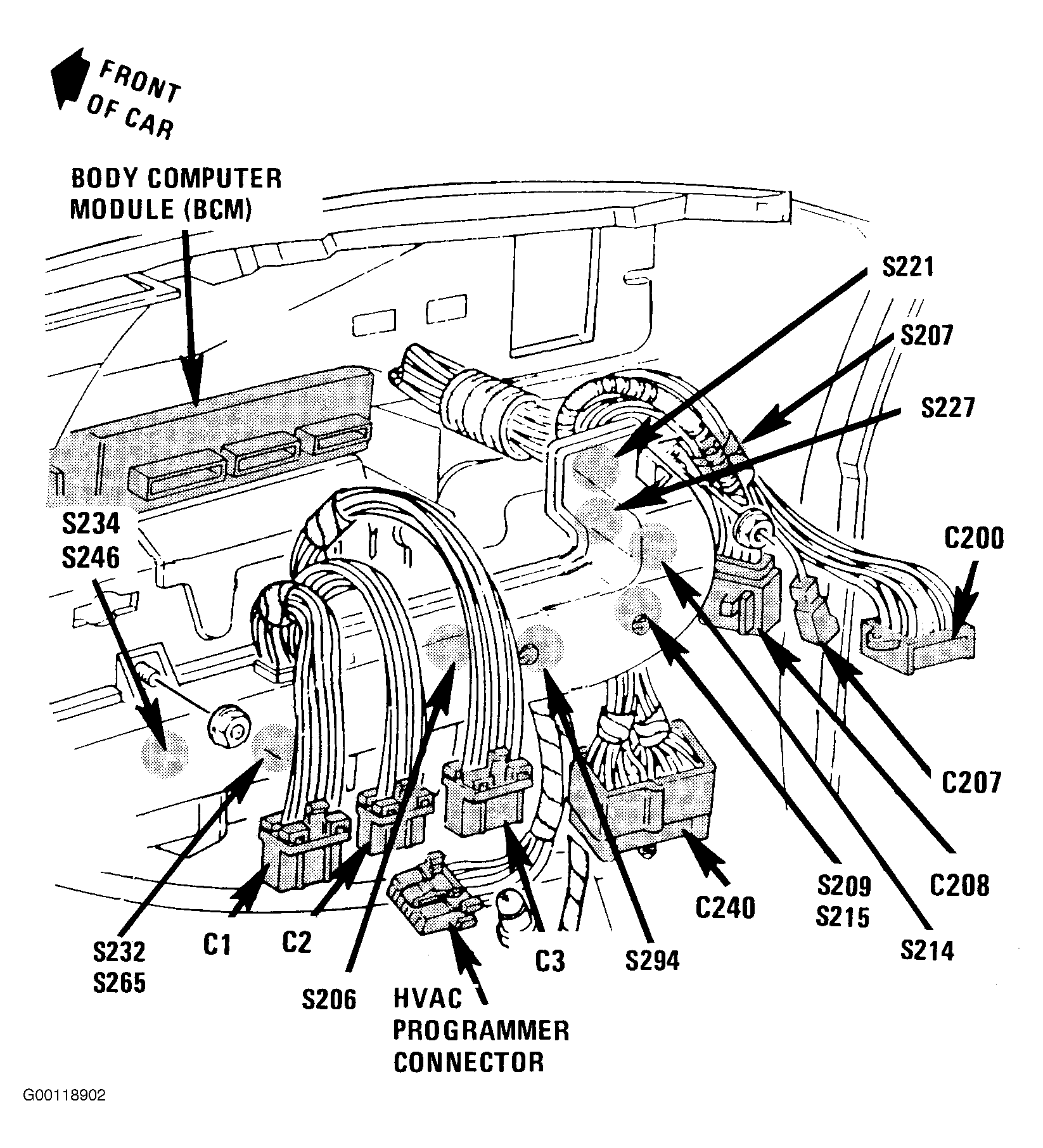

| C200 (56 Cavities) | Behind Right Side Of Instrument Panel, Near Shroud. See Fig 2 . |
| C301 (10 Cavities) | In Console, Behind Console Seat Switch |
| C305 (2 Cavities) | In Passenger Compartment, Below Right Front Seat |
| C306 (6 Cavities) | In Passenger Compartment, Below Left Front Seat |
| C307 (6 Cavities) | In Passenger Compartment, Below Right Front Seat |
| C320 (6 Cavities) | In Console, Behind Console Seat Switch |
| C360 (8 Cavities) | Passenger Compartment, Below Center Console |

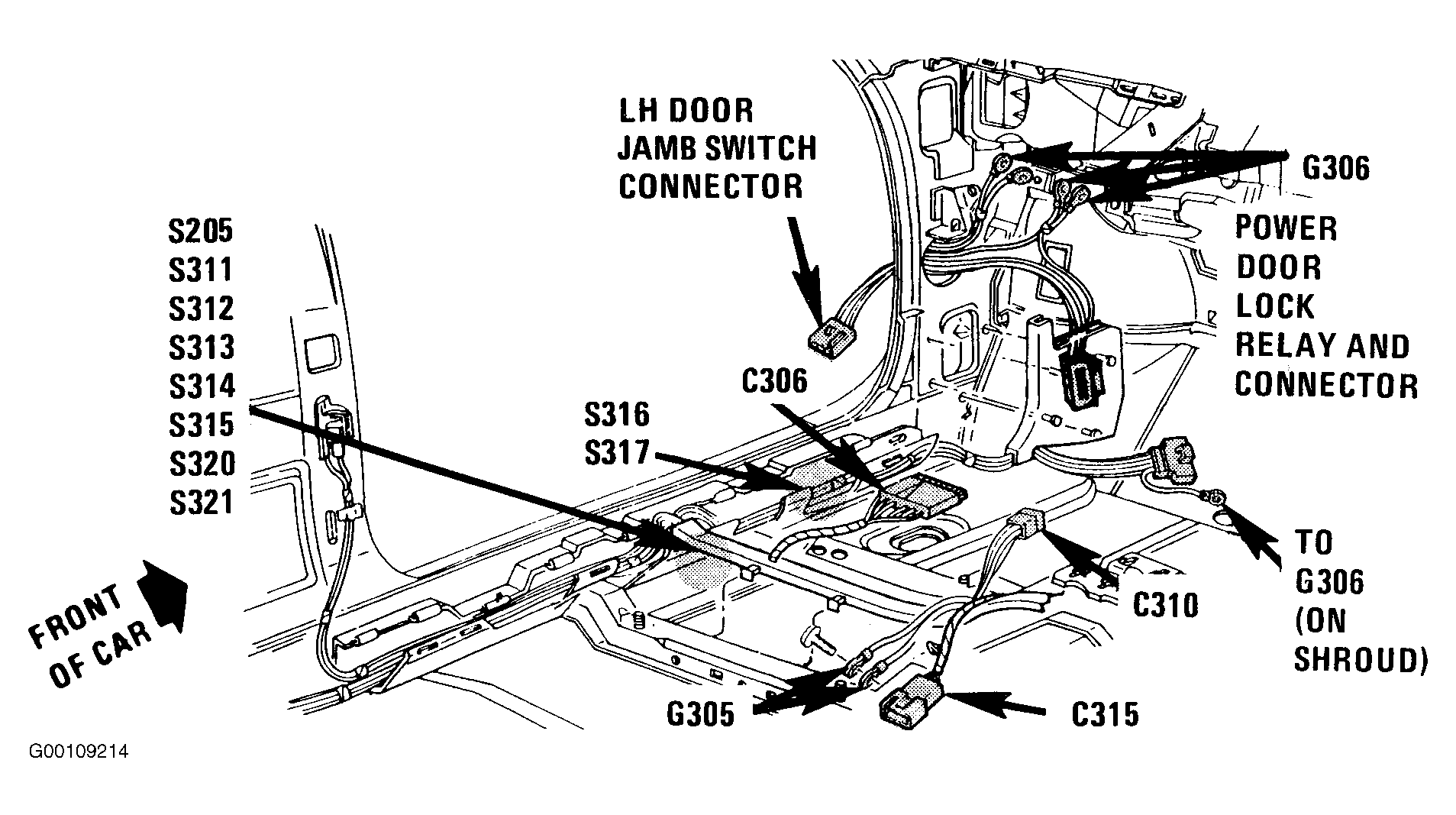

| G305 | In Passenger Compartment, Under Driver's Seat. See Fig 3 . |
| G306 | On Left Shroud, Above Park Brake. See Fig 3 . |

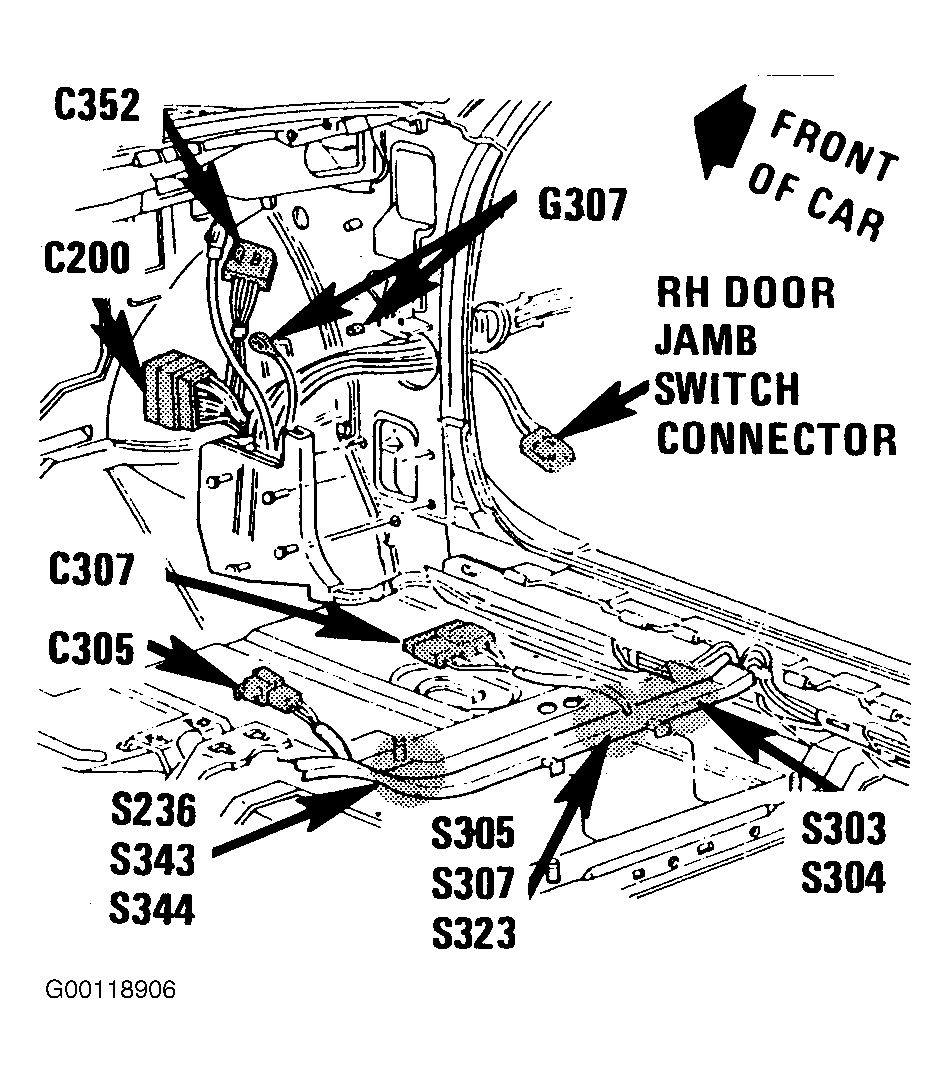

| G307 | Behind Right Side Of Instrument Panel, On Shroud. See Fig 4 . |

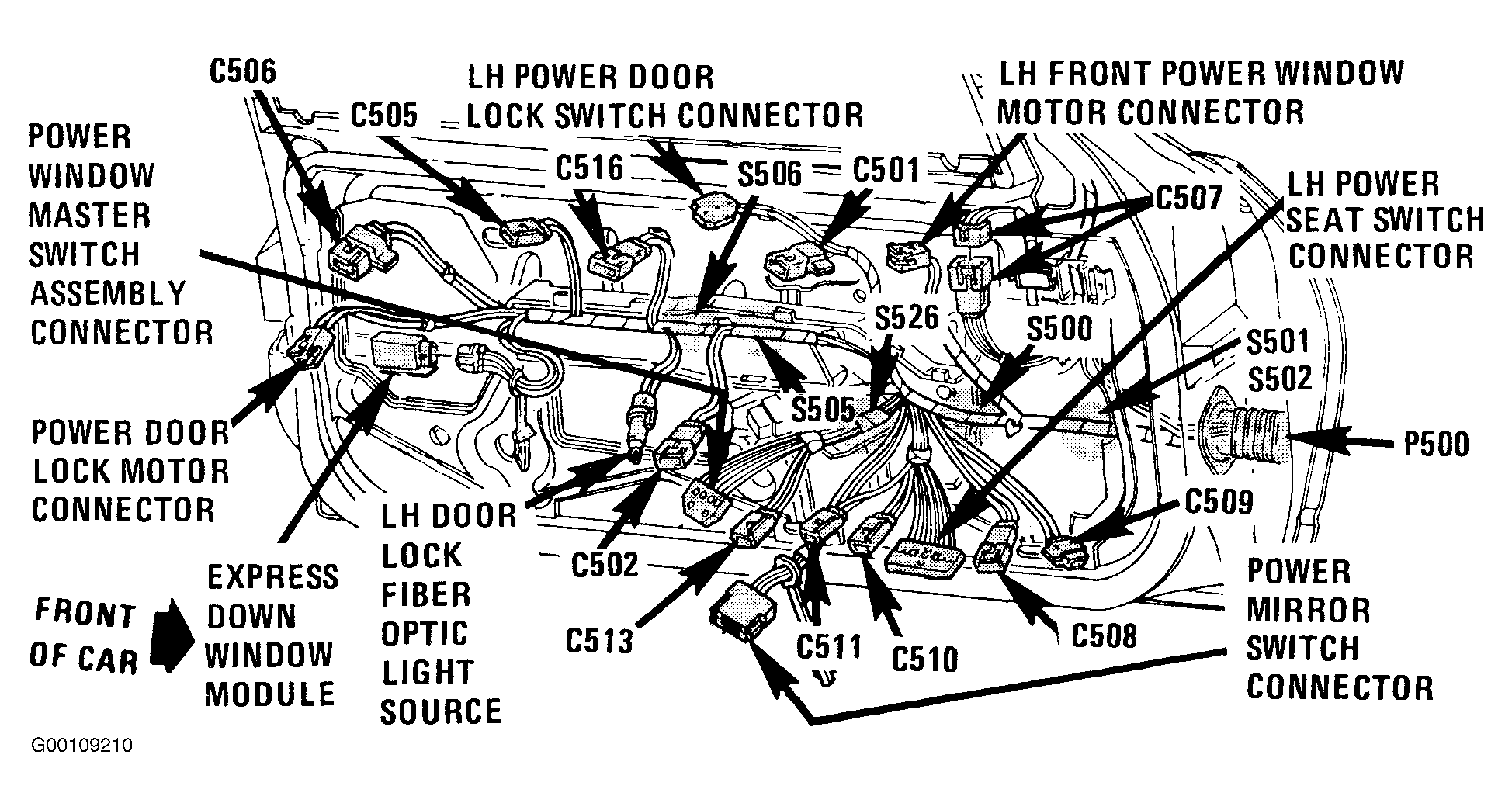

| P500 | In Front Of Left Door. See Fig 5 . |
| P600 | In Front Of Right Door |
| S207 | Dash Harness, Behind Right Side Of Instrument Panel, In C200 Breakout. See Fig 2 . |
| S209 | In Dash Harness, Behind Right Side Of Instrument Panel, In Dash Channel |
| S303 | In Body Main Harness, Below Right Front Seat. See Fig 4 . |
| S311 | In Body Main Harness, Below Left Front Seat |
| S316 | In Body Main Harness, At Left Door Sill |
| S360 | In Lear-Siegler Seat Harness, Under Center Of Console |
| S361 | In Lear-Siegler Seat Harness, Under Right Front Seat |
| S362 | In Lear-Siegler Seat Harness, Under Right Front Seat |
| S364 | In Lear-Siegler Seat Harness, Under Left Front Seat |
| S365 | In Lear-Siegler Seat Harness, Under Console, By Console Seat Switch |
| S366 | In Lear-Siegler Seat Harness, Under Left Front Seat |
