Wiring Diagrams

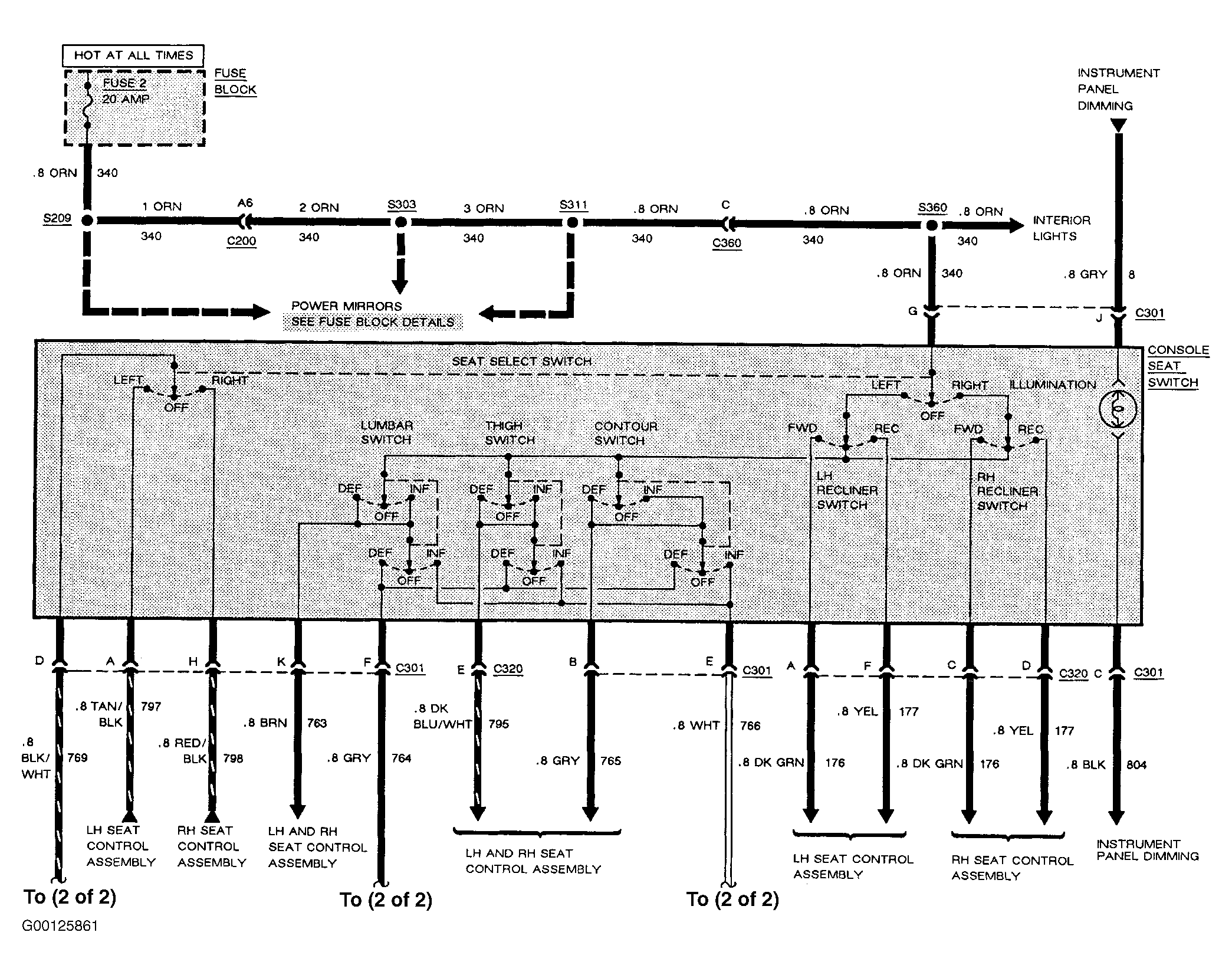

Fig 1: Wiring Diagrams 1991-92 Toronado Power Seats (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

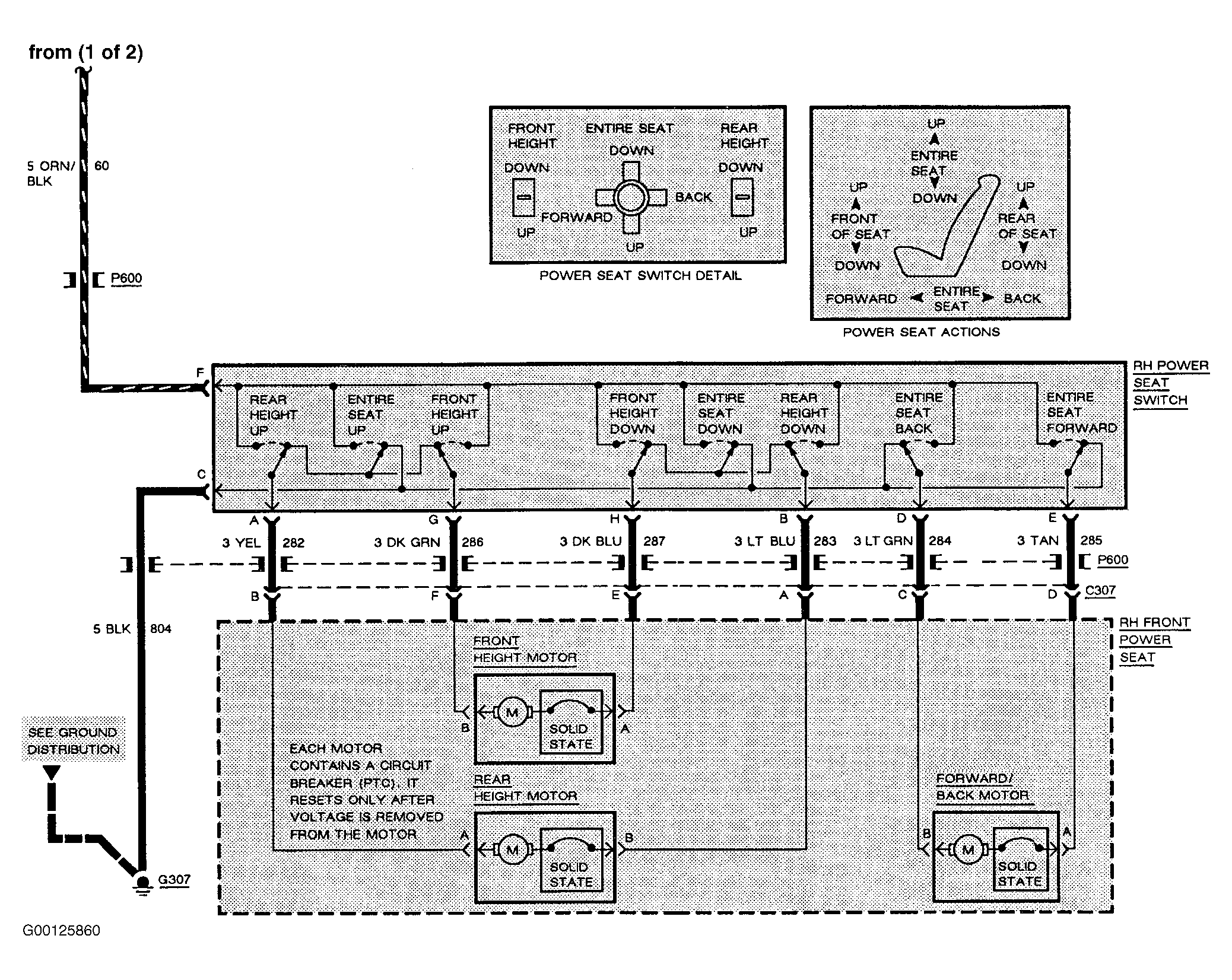

Fig 2: Wiring Diagrams 1991-92 Toronado Power Seats (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

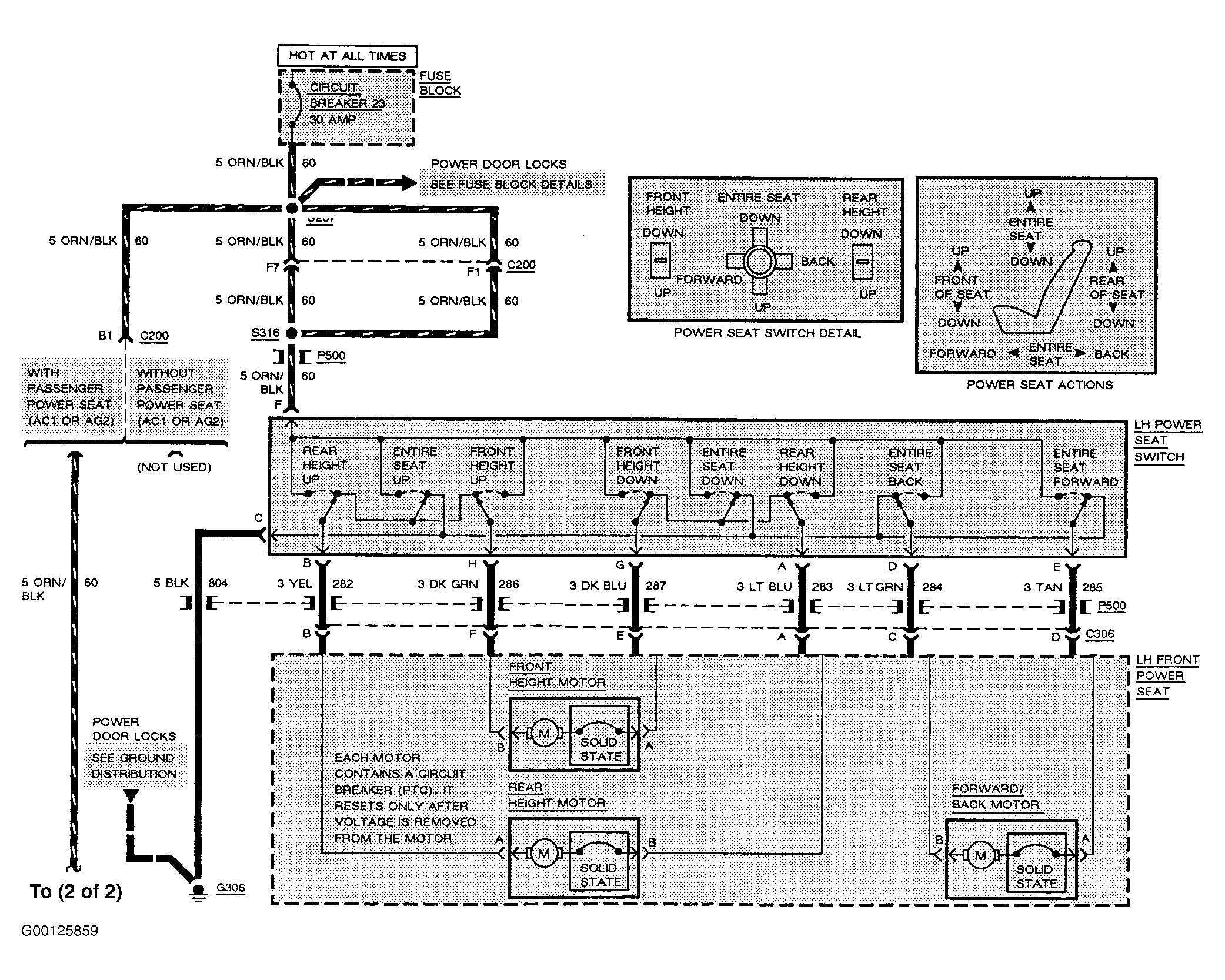

Fig 3: Wiring Diagrams 1991-92 Toronado Lumbar Supports Air Pump (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

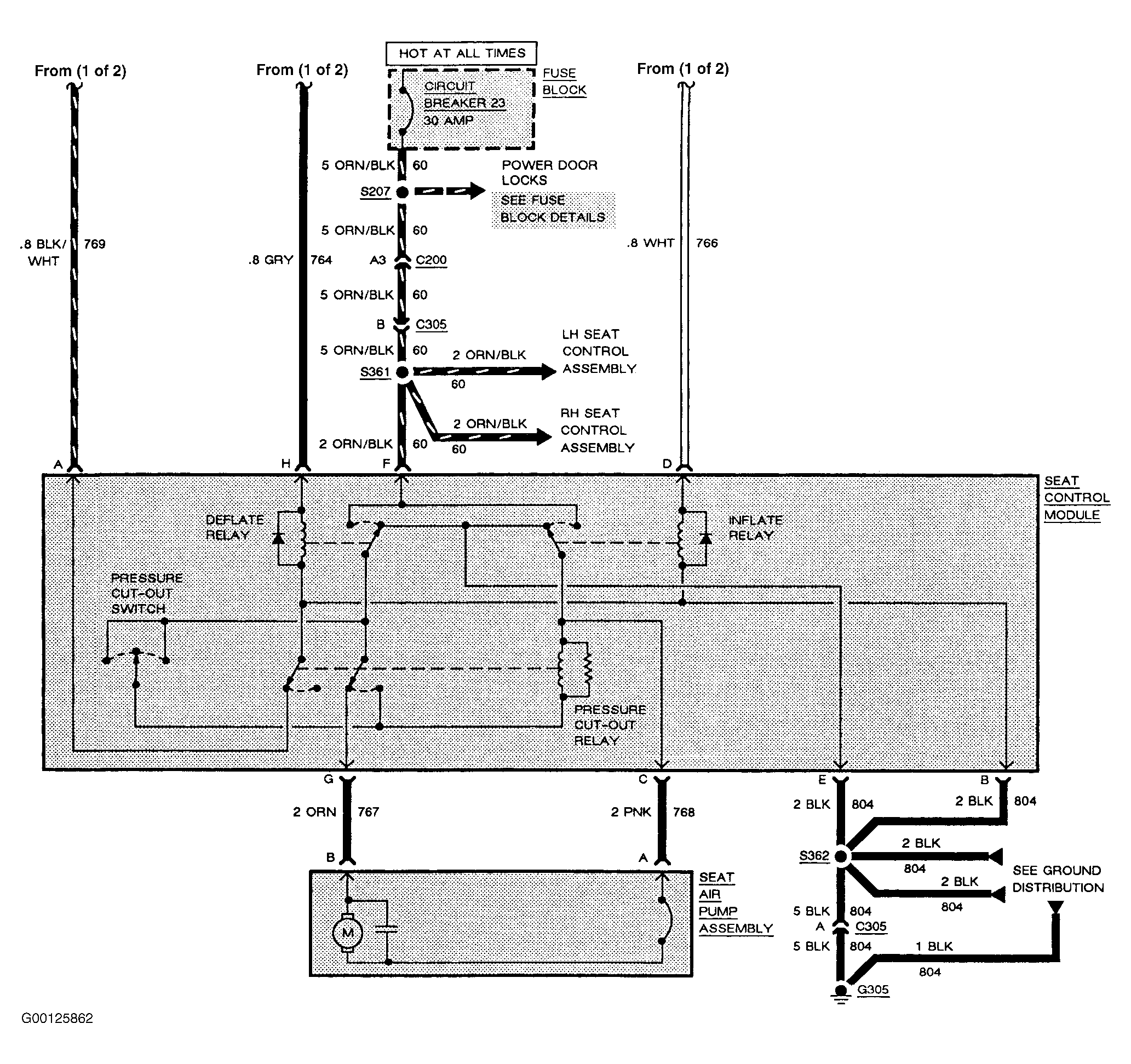

Fig 4: Wiring Diagrams 1991-92 Toronado Lumbar Supports Air Pump (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

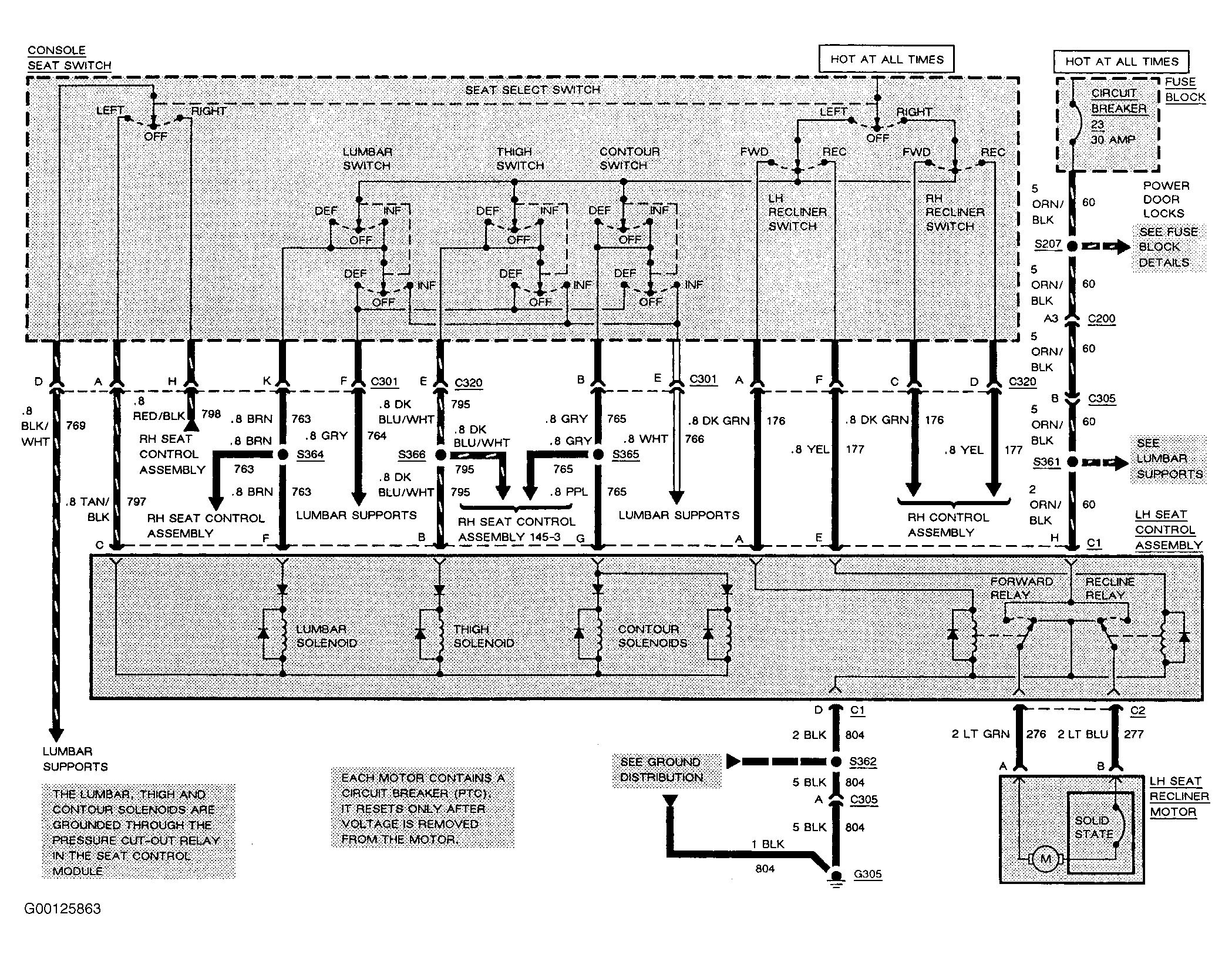

Fig 5: Wiring Diagrams 1991-92 Toronado Lumbar Supports Left Seat Functions

Courtesy of GENERAL MOTORS CORP.

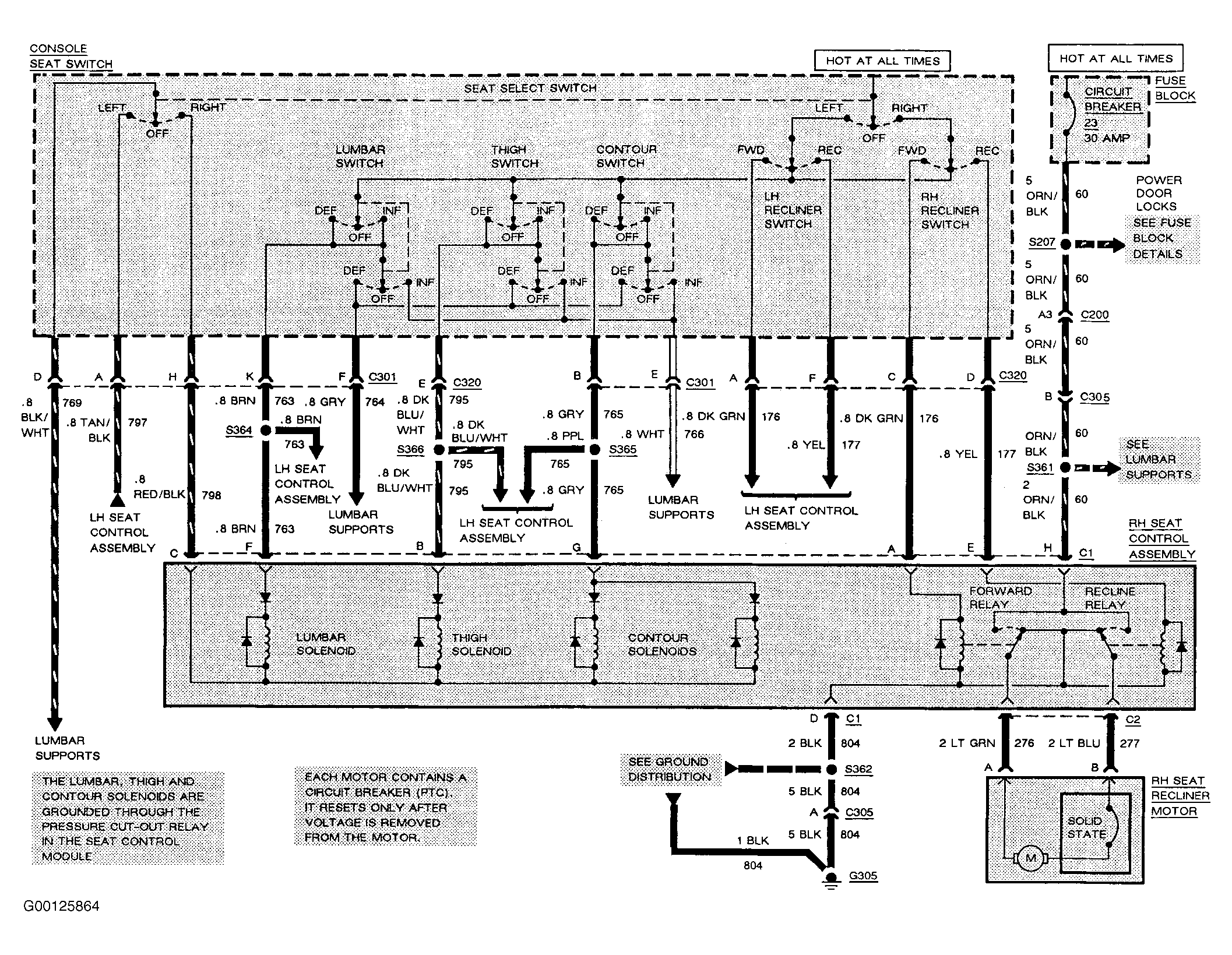

Fig 6: Wiring Diagrams 1991-92 Toronado Lumbar Supports Right Seat Functions

Courtesy of GENERAL MOTORS CORP.
