Code 71: EBCM Fault

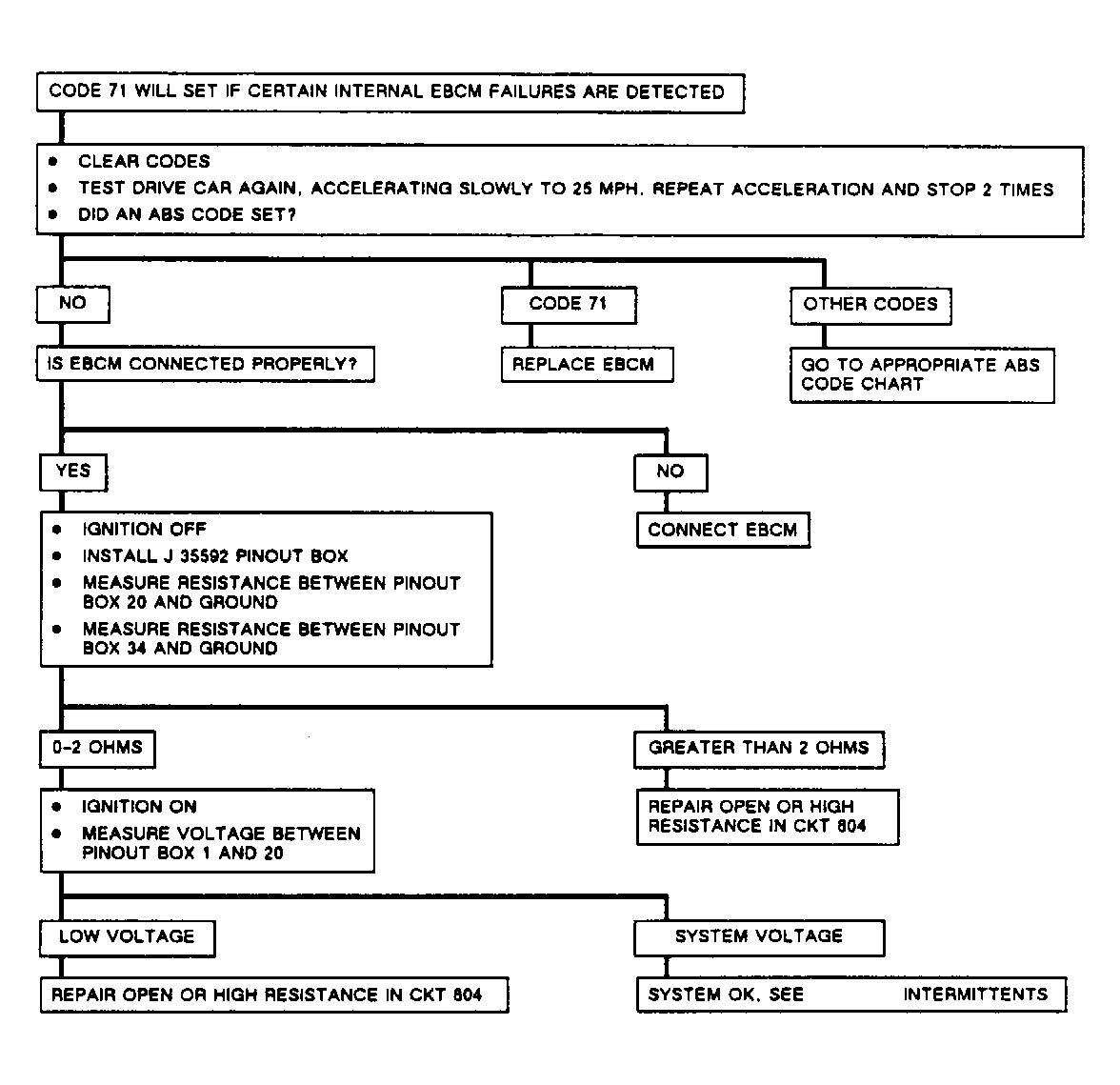

Fig 1: Code 71: Diagnostic Flow Chart

G91A08124

Courtesy of GENERAL MOTORS CORP.
